Frankenstand

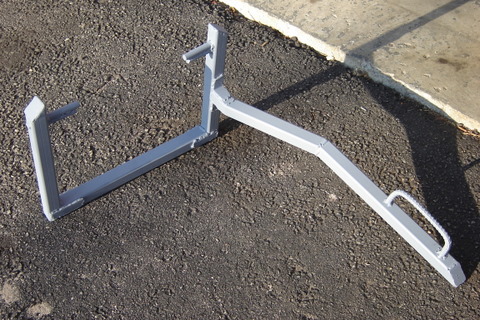

I've always liked the idea of one-handed or "reverse" stands, they always seemed more secure than the rear style; so when I got an old AC stick machine from a guy I work with I figured it would make a good project - up to this point my only welding experience was an afternoon playing around with various mig and tig machines at on of our suppliers. My first attempt I made adjustable L-shaped brackets on threaded rod to support the swingarm - I binned that idea when I tried welding zinc-coated hardware to steel stock! I went with a simpler 1/2" rod swingarm pin design. Initially I had the pins about 14 1/2" high - except I could'nt get the bike up even with a handle extension. I realized the tire does'nt have to be raised that high so I cut of the pins and re-welded another set at about 12 1/2" and it made all the difference. With one hand on the left grip and slight pressure on the handle it goes up on the stand no problem. 'Cause my welds are crappy I reinforced the stress points and the swingarm pins with additional 1/8" stock and 90 degree brackets. In retrospect I would probably raise the pins a little higher for a bit more clearance. Waddya think?
06-18-2009, 08:30 PM
#2
Senior Member
SuperBike
SuperBike
Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,031
Nice, it's funny how you can get by for so many years without a welder, then when you get one (or two), you wonder how you ever survived without. One thought on your design: The pins that the swingarm rest on may slip, causing the bike to fall. Maybe some Tool Dip on those to give them a little more friction.
06-18-2009, 10:01 PM
#4
geezer
SuperSport
SuperSport
Join Date: Jan 2008
Location: Honolulu
Posts: 556
I've always liked the idea of one-handed or "reverse" stands, they always seemed more secure than the rear style; so when I got an old AC stick machine from a guy I work with I figured it would make a good project - up to this point my only welding experience was an afternoon playing around with various mig and tig machines at on of our suppliers. My first attempt I made adjustable L-shaped brackets on threaded rod to support the swingarm - I binned that idea when I tried welding zinc-coated hardware to steel stock! I went with a simpler 1/2" rod swingarm pin design. Initially I had the pins about 14 1/2" high - except I could'nt get the bike up even with a handle extension. I realized the tire does'nt have to be raised that high so I cut of the pins and re-welded another set at about 12 1/2" and it made all the difference. With one hand on the left grip and slight pressure on the handle it goes up on the stand no problem. 'Cause my welds are crappy I reinforced the stress points and the swingarm pins with additional 1/8" stock and 90 degree brackets. In retrospect I would probably raise the pins a little higher for a bit more clearance. Waddya think?
06-18-2009, 10:11 PM
#5
Slacker
Superstock
Superstock
Join Date: Jun 2005
Location: San Antonio, TX
Posts: 489
That is a good setup that you have made. I really need to take up welding...
Good idea here. This will keep the bike from sliding for/aft while torquing bolts, prevent scoring on the bottom of swing arm, and add some extra height. The additional clearance will depend upon the thickness of the hose that you choose to install.
Good idea here. This will keep the bike from sliding for/aft while torquing bolts, prevent scoring on the bottom of swing arm, and add some extra height. The additional clearance will depend upon the thickness of the hose that you choose to install.
06-19-2009, 03:11 PM
#6
Deus vult!
Back Marker
Thread Starter
Join Date: Jun 2007
Location: Ontario, Canada
Posts: 128
Thanks for the input. You can't see in the pics but I've got a piece of 1" i.d. braided hose over the pins! I don't know about bike of the month though - I just think that a red bike with white number plates is a classic look - ever since I saw Marco Luccinelli on his Duc 888 Superbike at Mosport for for the 1990 World Superbike race.
06-19-2009, 06:44 PM
#7
evil man of nothing
MotoGP
Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,484
VERY tasteful...I love the bike! Bet those staintunes sound awesome
I took a tig class about a year ago and I've been wishing to get around to getting my own and getting better at it.
I took a tig class about a year ago and I've been wishing to get around to getting my own and getting better at it.
Last edited by captainchaos; 06-19-2009 at 06:48 PM.
06-21-2009, 06:29 PM
#8
Deus vult!
Back Marker
Thread Starter
Join Date: Jun 2007
Location: Ontario, Canada
Posts: 128
Yeah, TIG welding is an art unto itself - you gotta love that "stack of dimes" look on a good tig weld, though. The build quality on the Staintunes is something else - comparable to OEM or higher. And no blown out packing!
06-22-2009, 09:51 AM
#10
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
The downside is the handle... It's keeps getting in the way when you work on the bike... The rear type is neater that way, but more work to use on your own...
If you are going to weld stuff up... Try an ABBA type stand... It's a one man stand and it allows the rear swing to come of, ie allows shock work...
Also combined with a small floor jack you can remove the front fork...
https://www.superhawkforum.com/forum...highlight=abba
06-22-2009, 10:15 AM
#11
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
Well by doing it the way Mr Toad did vs bikerpiker's, the handle is parallel with the ground.. making it less in the way. In fact if you put the handle all the way at the bottom of the stand with a handle on it, it'd be even more out of the way.
Though bikerpiker's is a removable handle, so that works too.
Though bikerpiker's is a removable handle, so that works too.
