Dyno time!

Old 07-15-2018, 04:46 PM
  #1
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Dyno time!

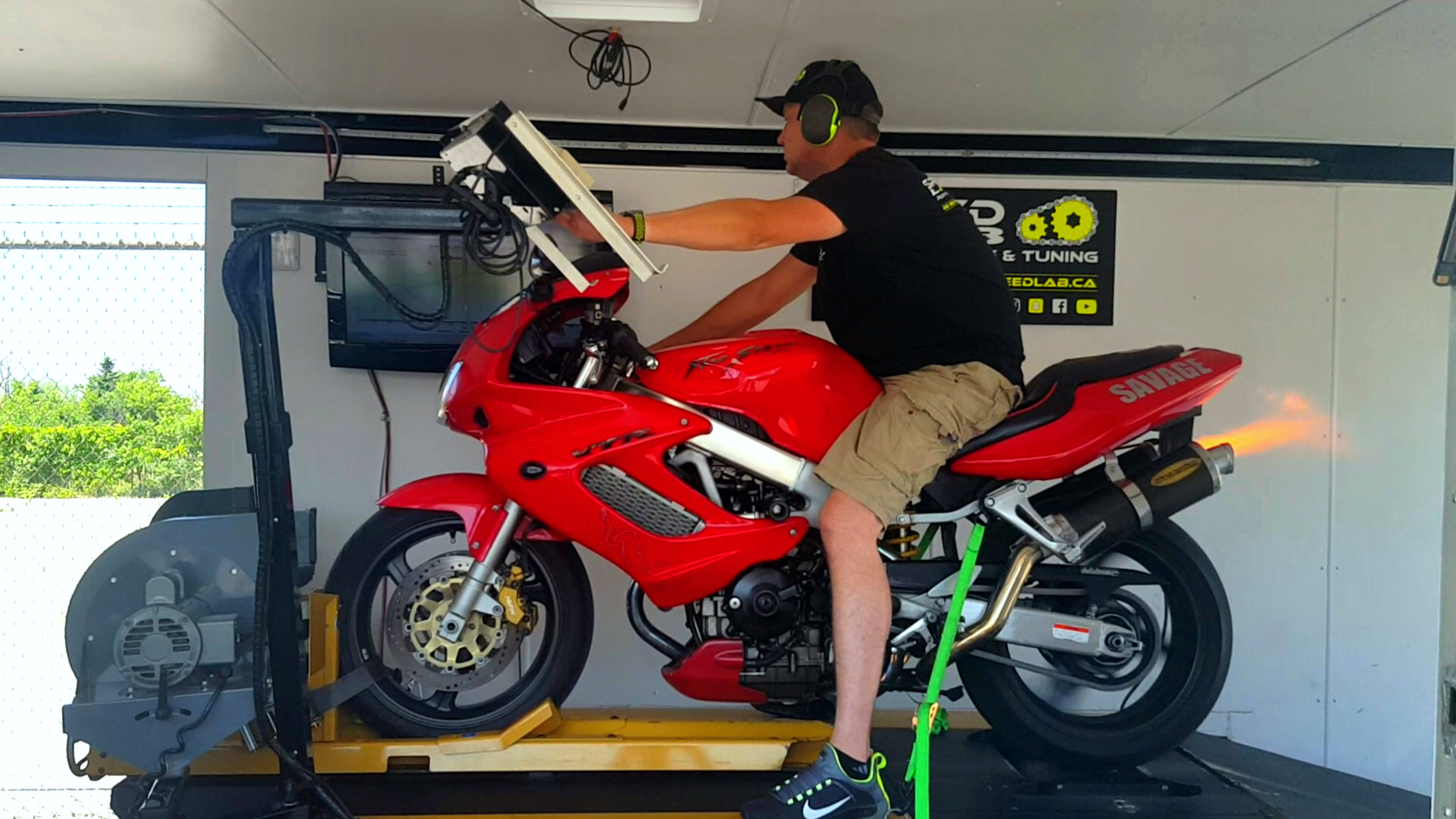

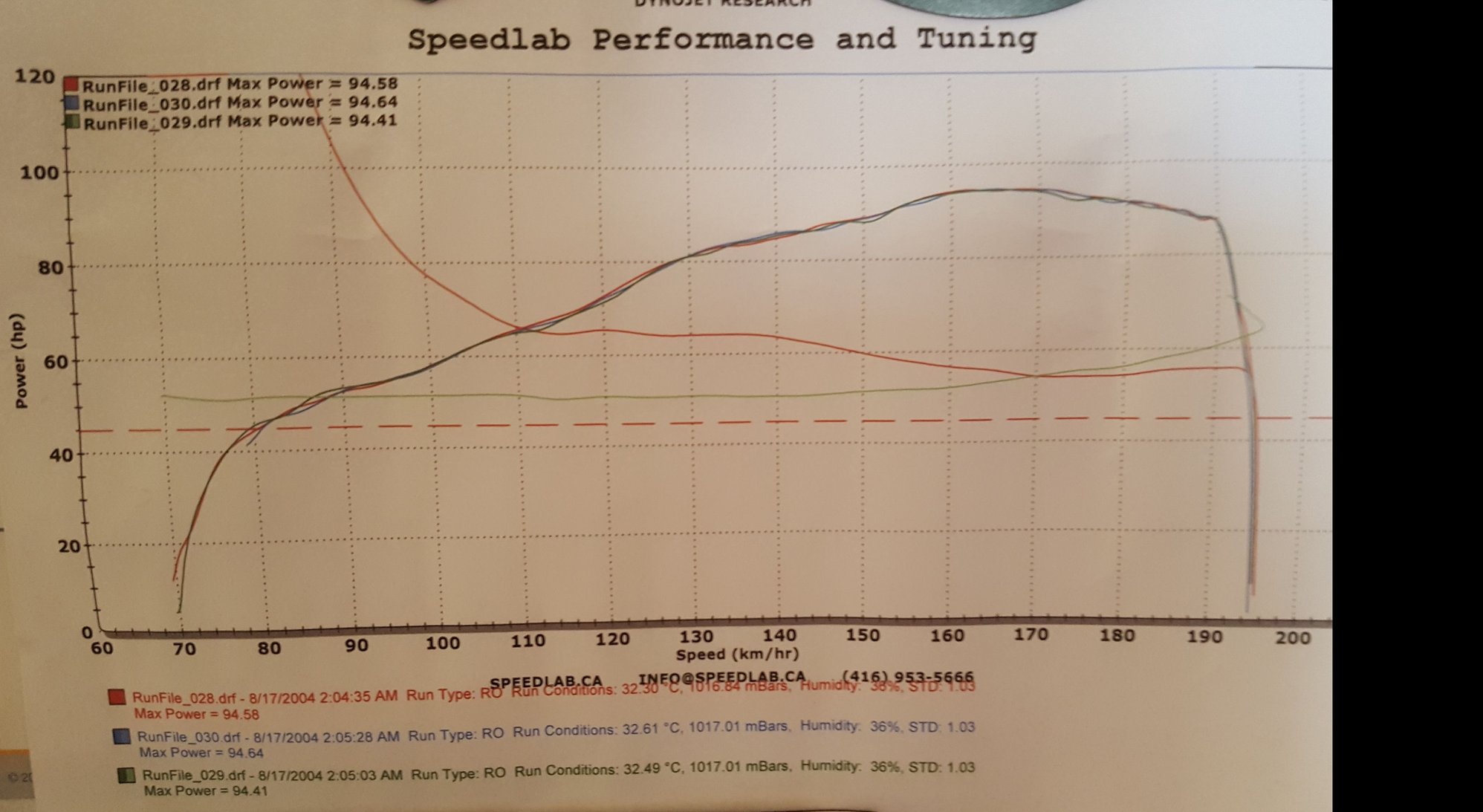

Finally got a chance to get her on the dyno! How did the old girl stack up against yours?
PoorMansDucati is offline
Old 07-15-2018, 04:49 PM
  #2
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
PoorMansDucati is offline
Old 07-16-2018, 07:12 AM
  #3
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
I think you're down a bit on powa.

Last edited by Wolverine; 07-16-2018 at 07:15 AM.
Wolverine is offline
Old 07-16-2018, 07:24 AM
  #4
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by Wolverine View Post
I think you're down a bit on powa.
I thought so as well. Did you do Eriks flywheel lightening? I was wondering if maybe that's why.
PoorMansDucati is offline
Old 07-16-2018, 07:34 AM
  #5
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
OE flywheel. I did carb stuff about 10 years ago and I can't remember what's in there. Before carb work/K&N, it did 108 on the dyno. Before this run, I installed the JF fuel screws and cleaned my K&N, reset TPS. Bike ran perfectly all that time before but now it's unhappy below 4 and my a/f plot shows a bit lean. So some tweaks are in order.
Wolverine is offline
Old 07-16-2018, 08:19 AM
  #6
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by Wolverine View Post
OE flywheel. I did carb stuff about 10 years ago and I can't remember what's in there. Before carb work/K&N, it did 108 on the dyno. Before this run, I installed the JF fuel screws and cleaned my K&N, reset TPS. Bike ran perfectly all that time before but now it's unhappy below 4 and my a/f plot shows a bit lean. So some tweaks are in order.
I'm the same. OE flywheel, K/N, I have velocity stacks, Flo commander, I jetted and my a/f is good. TPS. I can't imagine what the 15 hp difference is?
PoorMansDucati is offline
Old 07-16-2018, 09:57 AM
  #7
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Just over 30,000 miles. Maybe itís cuz itís red.
Wolverine is offline
Old 07-16-2018, 11:32 AM
  #8
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
I use one of them Eriks flywheels ...LOL
Flywheel weight does not effect Dyno numbers as far as false or different readings. I have done back to back pulls , same day, same part of the day with and without light weight flywheel ...numbers were consistent with only the normal error range anticipated

Dyno to Dyno results comparing are all but useless. Machine, calibration, operator, altitude, weather all effect the outcome.
E.Marquez is offline
Old 07-16-2018, 12:11 PM
  #9
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Yep, I do agree. That being said, in '08 bone stock with just a slip-on:


108ish on a 2 up completely different dyno, different software, yadda yadda.


Then one month ago, my VTR was ran on Koups dyno. I did some carb tweaks not long after the run in '08 and changed to low mount D&D. Only 2 hp difference which seems very realistic.
Wolverine is offline
Old 07-16-2018, 12:45 PM
  #10
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by E.Marquez View Post
I use one of them Eriks flywheels ...LOL
Flywheel weight does not effect Dyno numbers as far as false or different readings. I have done back to back pulls , same day, same part of the day with and without light weight flywheel ...numbers were consistent with only the normal error range anticipated

Dyno to Dyno results comparing are all but useless. Machine, calibration, operator, altitude, weather all effect the outcome.
We will definitely be talking soon more about those flywheels. LOL
PoorMansDucati is offline
Old 07-16-2018, 12:46 PM
  #11
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by Wolverine View Post
Just over 30,000 miles. Maybe itís cuz itís red.
Well I just can hardly imagine a 15 hp difference between dyno runs, but I guess it is all down to color now...LOL
PoorMansDucati is offline
Old 07-16-2018, 01:39 PM
  #12
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,624
Wicky is on a distinguished road
You've found the before - now find the after...
Wicky is offline
Old 07-16-2018, 04:01 PM
  #13
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 170
Floyd is on a distinguished road
Id like to make a few pulls on the local dyno here but the guy wanted 100 bucks for 3 pulls.
Ive done car dynos for 30 bucks for 3 runs before! is 100 bucks about what others are paying for bike pulls?
Floyd is offline
Old 07-16-2018, 07:17 PM
  #14
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by Floyd View Post
Id like to make a few pulls on the local dyno here but the guy wanted 100 bucks for 3 pulls.
Ive done car dynos for 30 bucks for 3 runs before! is 100 bucks about what others are paying for bike pulls?
This one was at a local bike club event. The guy had a dyno in a trailer and was charging 40 bucks(Canadian) for three pulls.
PoorMansDucati is offline
Old 07-16-2018, 07:21 PM
  #15
Member
Squid
Thread Starter

Join Date: Aug 2016
Location: Ontario
Posts: 37
PoorMansDucati is on a distinguished road
Originally Posted by Wicky View Post
You've found the before - now find the after...
I thought I was at the after! LOL Like most of you, I have been plugging away for the past few years, K/N, jetting, TPS, velocity stacks, Flo commander, R/R, Jack Flash fuel screws, manual cct's, the list goes on.

Guess I will have to go more drastic...
PoorMansDucati is offline
Old 07-16-2018, 07:26 PM
  #16
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,453
xeris is on a distinguished road
Originally Posted by Wolverine View Post
I think you're down a bit on powa.
Have you plugged one of the front slide holes?
xeris is offline
Old 07-17-2018, 12:09 AM
  #17
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,624
Wicky is on a distinguished road
Originally Posted by PoorMansDucati View Post
I thought I was at the after! LOL Like most of you, I have been plugging away for the past few years, K/N, jetting, TPS, velocity stacks, Flo commander, R/R, Jack Flash fuel screws, manual cct's, the list goes on.

Guess I will have to go more drastic...
Have you a before & after dyno chart/s from when K&N was fitted and rejetting?

PS Here's a variety of dyno runs from the UK VTR forum > https://www.vtr1000.org/phpBB3/viewforum.php?f=36

Last edited by Wicky; 07-17-2018 at 09:58 AM.
Wicky is offline
Old 07-17-2018, 06:26 AM
  #18
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Floyd View Post
Id like to make a few pulls on the local dyno here but the guy wanted 100 bucks for 3 pulls.
Ive done car dynos for 30 bucks for 3 runs before! is 100 bucks about what others are paying for bike pulls?
Well I don't pay for Dyno time as I machined the parts needed to install the updated sensor package..

The shop occasionally has done Dyno night in conjunction with bike night..it was billed as a HP shoot off, but stopped doing it due to liability. even with owners signing a form and having to hand write in their upper RPM limit they were willing to let it rev to.. A few blown up bikes, few broken bits of plastic as we hunted for the hook up locations, or later lost fasteners they claimed we did not put back or tighten and hurt feelings made it unpopular with the shop owner.

Dyno time at that shop is $250, but its not just a few pulls, its all the adjustments that can be made on your bike in that session. Power commander guys get the best bang for the buck on the deal, carbed guys the worst. Dyno operator has been know to break up the session in two parts though, a run, send bike and owner home to tinker, and another session later

Last edited by E.Marquez; 07-17-2018 at 06:41 AM.
E.Marquez is offline
Old 07-21-2018, 07:43 AM
  #19
Senior Member
Superstock

Killemall's Avatar

Join Date: Jul 2007
Location: CA, South of Heaven
Posts: 340
Killemall is on a distinguished road
You are definitely missing some HP and the torque output shouldn't drop. Do you have the AF plot? If I have to guess the AF is too lean and the carbs need more juice->bigger jets.

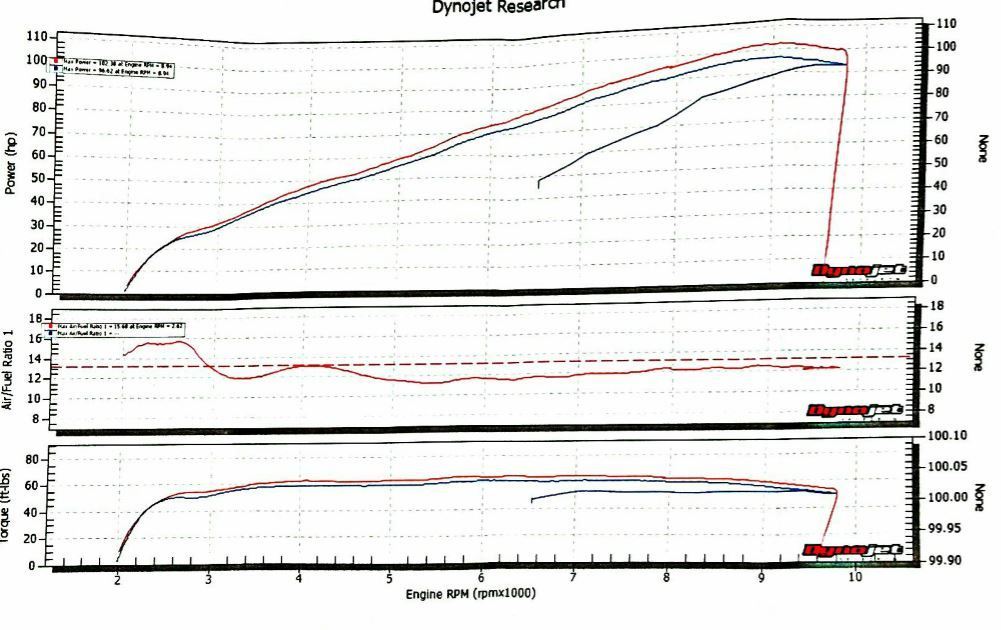

This is mine with Dinojet/K&N (old version)


Last edited by Killemall; 07-21-2018 at 07:45 AM.
Killemall is offline
Old 07-21-2018, 04:31 PM
  #20
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
My dyno time was $5. The local Ducati/Kawasaki/Suzuki dealer has an open house once a year and the dyno is free. They charge $5 for the print out with torque and a/f.
