Done it myself rear stand
#1
Junior Member
Squid
Thread Starter
Join Date: Jul 2013
Location: Portage la Prairie, Manitoba
Posts: 12
Done it myself rear stand

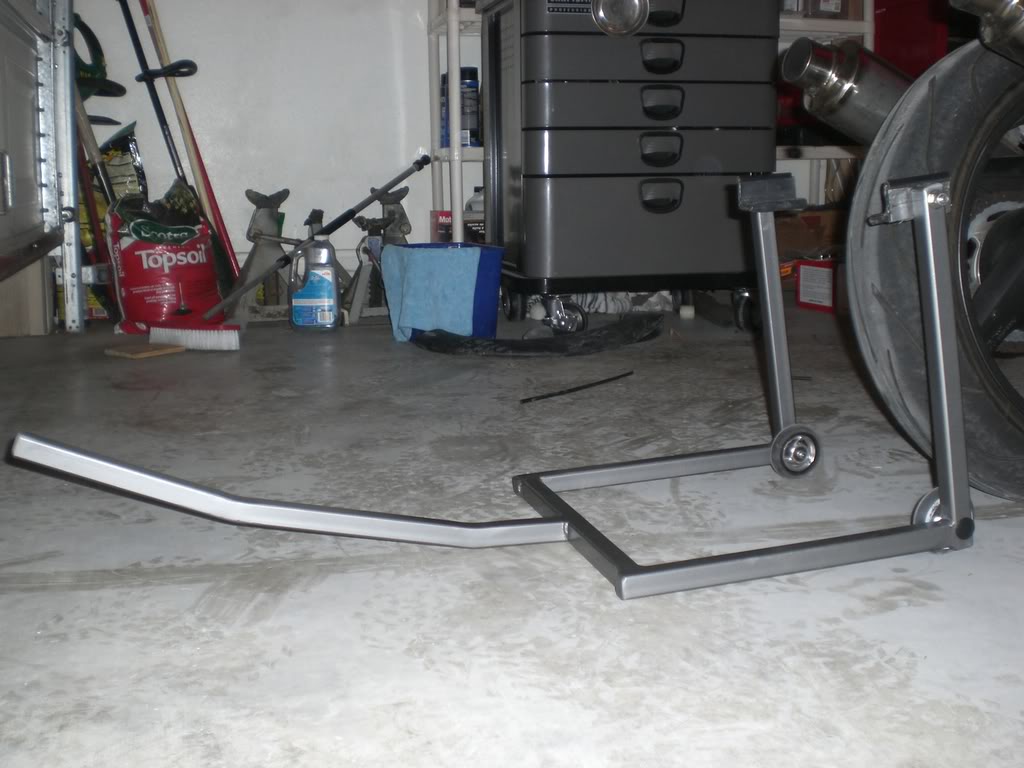

So I just trashed my rear tire and need to get the wheel off. Since I have access to a welder at work I thought I would try my hand at welding up a rear stand for the bike. Took more time than I thought and could use some more bracing but looks ok for now.

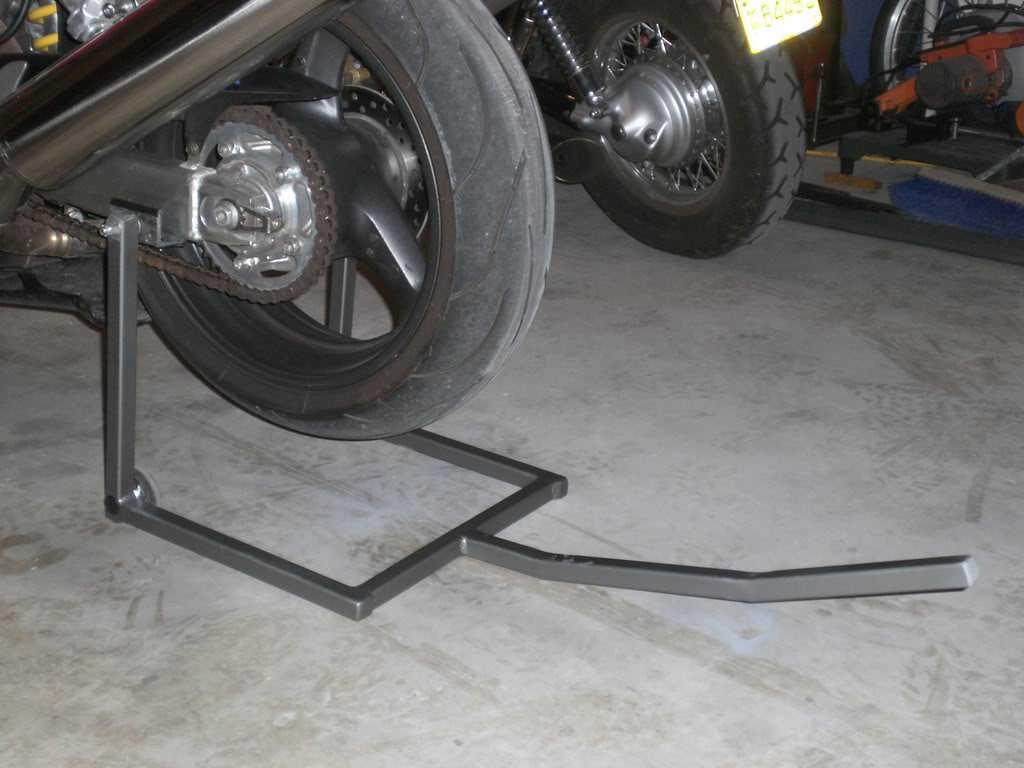

Well I got home and tried it and found that... fail... it doesn't work so back to the drawing board. I think I made the angle on the arms too acute and didnt make it long enough. I don't have enough leverage to even budge the bike.
Ill post more about Rear stand Rev.2
Well I got home and tried it and found that... fail... it doesn't work so back to the drawing board. I think I made the angle on the arms too acute and didnt make it long enough. I don't have enough leverage to even budge the bike.
Ill post more about Rear stand Rev.2
#2
Well.. Since you are doing the welding yourself... Why not make an abba copy? It's much more useful in the end, as it hooks to the engine mounts and let's you take the swing arm off... Also, it's dead easy to operate on your own, since it's stuck on the bike before you start moving anything....
I'll include my crude drawing from a few years back...
I'll include my crude drawing from a few years back...
Last edited by Tweety; 07-23-2013 at 11:21 PM.
#4
Your on the right track... I've made a bunch over the years.. for my bikes, friends bikes..
Nuhawk has one if I remember right as well.
Im sure there are other pics around as well.
If I may make a suggestion..
Little less angle on the up rights... Handle about twice as long.... consider making the swing arm pads rotate
Nuhawk has one if I remember right as well.
Im sure there are other pics around as well.
If I may make a suggestion..
Little less angle on the up rights... Handle about twice as long.... consider making the swing arm pads rotate
Last edited by E.Marquez; 07-24-2013 at 06:01 AM.
#5
Well.. Since you are doing the welding yourself... Why not make an abba copy? It's much more useful in the end, as it hooks to the engine mounts and let's you take the swing arm off... Also, it's dead easy to operate on your own, since it's stuck on the bike before you start moving anything....
I'll include my crude drawing from a few years back...
I'll include my crude drawing from a few years back...
Today is the day.... there is a bunch of 1.5" square DOM tubing on the shop floor looking lonely out there... think it needs some quality time with the chop saw and welder..
#6
Junior Member
Squid
Thread Starter
Join Date: Jul 2013
Location: Portage la Prairie, Manitoba
Posts: 12
Thanks for the advice everyone. E.Marquez, thats exactly what I was thinking I needed to do except for the pivoting swimgarm pads. Thats a good idea too though.
Tweety, I don't get it.
7moore7, Thats why I need to replace my tire!
Tweety, I don't get it.
7moore7, Thats why I need to replace my tire!
#7
The stand Tweety mentioned... it is an interesting design.. Has some benefits and some claims that are exaggerated.
Anyone that can not put up a bike on a basic swing arm stand by themselves, really has no business owning and riding a bike on public streets,, (and for that matter, should only be given a "spork" at feeding time, spoons and forks are way to complicated and dangerous)
#8
You can find these for 30-40 clams if you decide to go that route. One of the few things I did not want to do myself.
Like this http://www.harborfreight.com/low-pro...and-99701.html
Like this http://www.harborfreight.com/low-pro...and-99701.html
#10
The stand Tweety mentioned... it is an interesting design.. Has some benefits and some claims that are exaggerated.
Anyone that can not put up a bike on a basic swing arm stand by themselves, really has no business owning and riding a bike on public streets,, (and for that matter, should only be given a "spork" at feeding time, spoons and forks are way to complicated and dangerous)
Anyone that can not put up a bike on a basic swing arm stand by themselves, really has no business owning and riding a bike on public streets,, (and for that matter, should only be given a "spork" at feeding time, spoons and forks are way to complicated and dangerous)
My version isn't really a true copy of the abba, since that's supposed to be used on many different bikes, and the quirk with the VTR is that it lifts from the swing arm pivot, so I made mine taller, for the simple reason that I wanted to be able to remove that...
The stand plus a small bottle jack or a couple of wood blocks makes it possible to remove the fork and swing arm from the bike... Unlike the paddock stand type which makes that near impossible...
#11
From the Abba site
"The abba superbike stand came about after Mr Burdett a frustrated motorcycle technician was working on his own and customers motorcycles was finding the current equipment he was using i.e. stands and lifts, to be totally inadequate for the job. Exaggerated He was unable to carry out simple routine procedures on a motorcycle without problems Exaggerated "
"Conventional Paddock Stands are at best clumsy and at worst dangerous! " Horseshit and Exaggerated
"If you have ever tried to use a conventional paddock stand on your own before you will know just how awkward and somewhat scary it can be."Exaggerated
"When trying to fit a paddock stand to your motorcycle you do not have total control of the bike at any time" Horseshit and Exaggerated
I can go on, but that should answer your question.
I do like the stand for what it is...and will build one....
But quicker it's not, safer it's not, easier it's not (for a human having both a brain and opposable thumbs)
It is different though and It does allow some maintenance procedures otherwise not doable with a standard stand..
I also think I would like the ABBA stand for my bikes that are stored more than ridden. If for no other reason, no "tail" hanging out behind the rear wheel to trip over.
"The abba superbike stand came about after Mr Burdett a frustrated motorcycle technician was working on his own and customers motorcycles was finding the current equipment he was using i.e. stands and lifts, to be totally inadequate for the job. Exaggerated He was unable to carry out simple routine procedures on a motorcycle without problems Exaggerated "
"Conventional Paddock Stands are at best clumsy and at worst dangerous! " Horseshit and Exaggerated
"If you have ever tried to use a conventional paddock stand on your own before you will know just how awkward and somewhat scary it can be."Exaggerated
"When trying to fit a paddock stand to your motorcycle you do not have total control of the bike at any time" Horseshit and Exaggerated
I can go on, but that should answer your question.
I do like the stand for what it is...and will build one....
But quicker it's not, safer it's not, easier it's not (for a human having both a brain and opposable thumbs)
It is different though and It does allow some maintenance procedures otherwise not doable with a standard stand..
I also think I would like the ABBA stand for my bikes that are stored more than ridden. If for no other reason, no "tail" hanging out behind the rear wheel to trip over.
#12

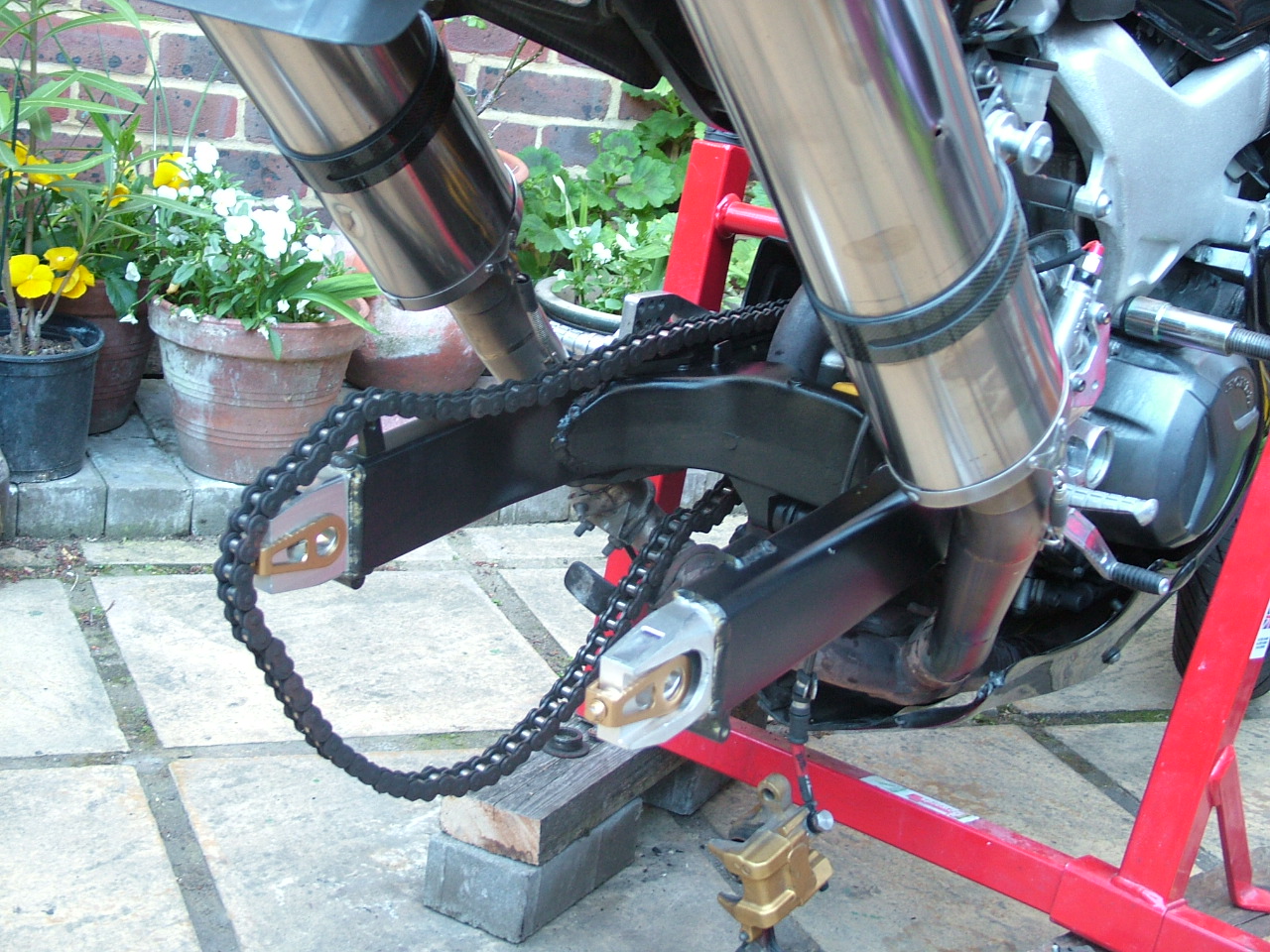

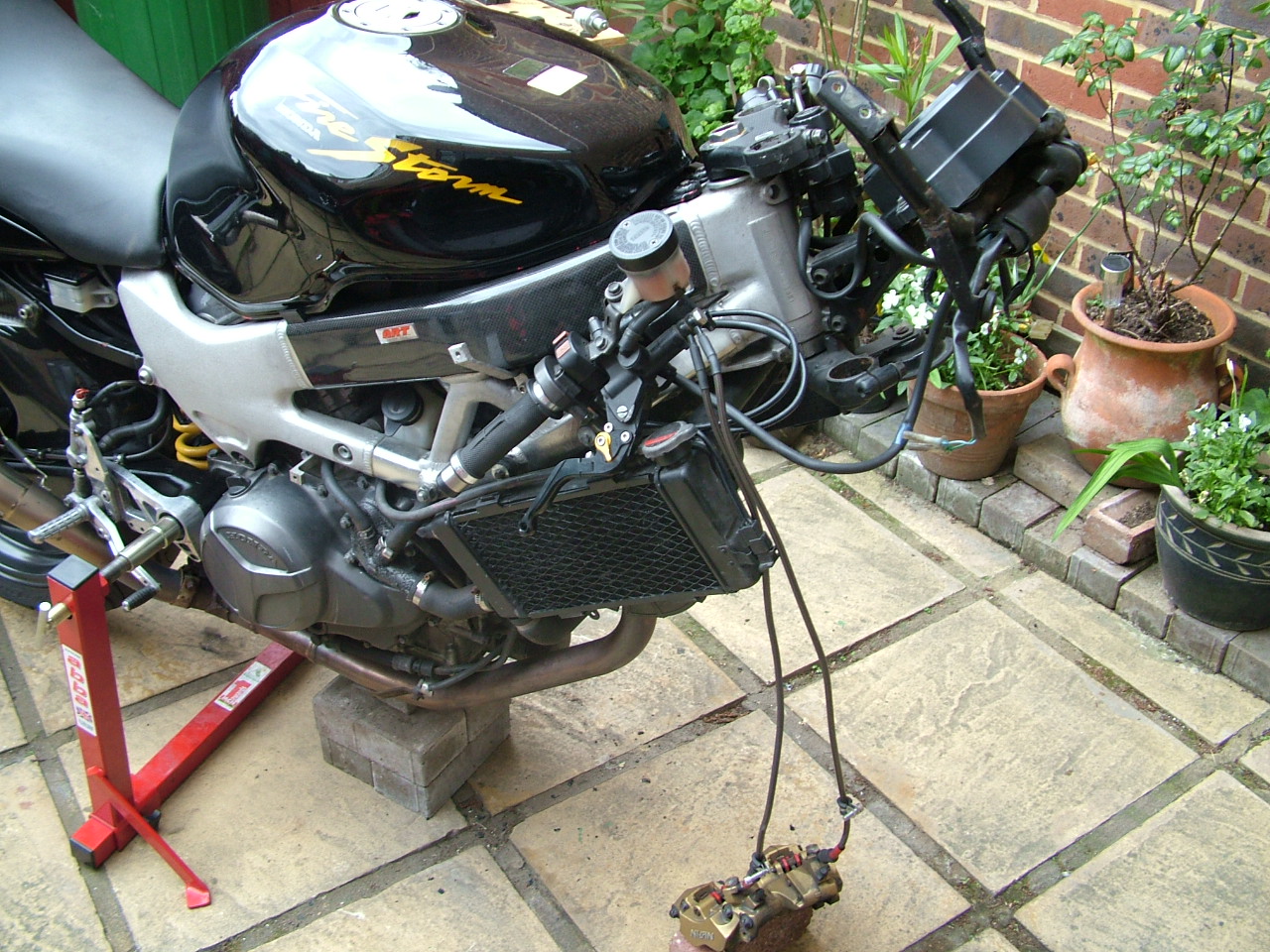

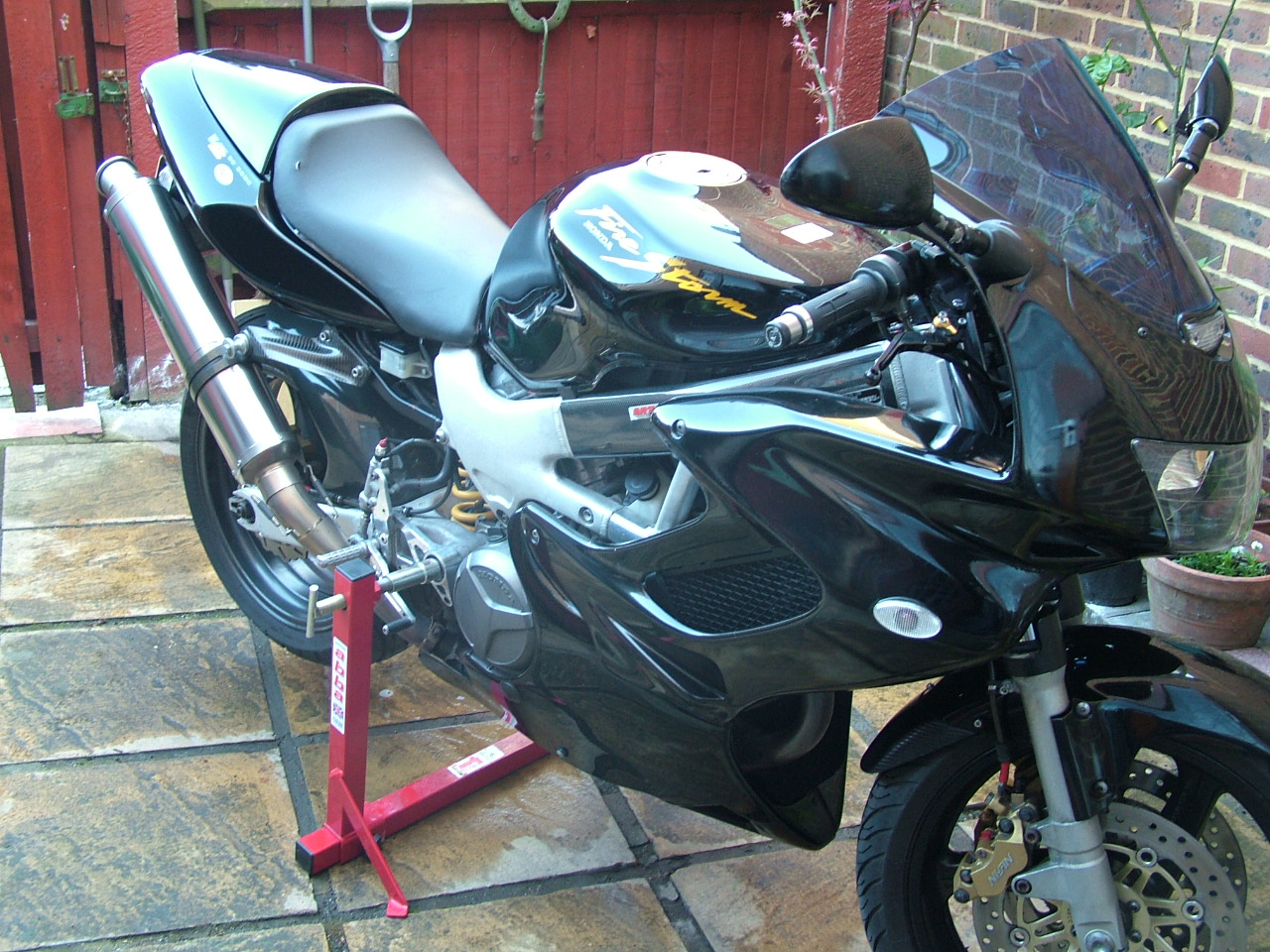

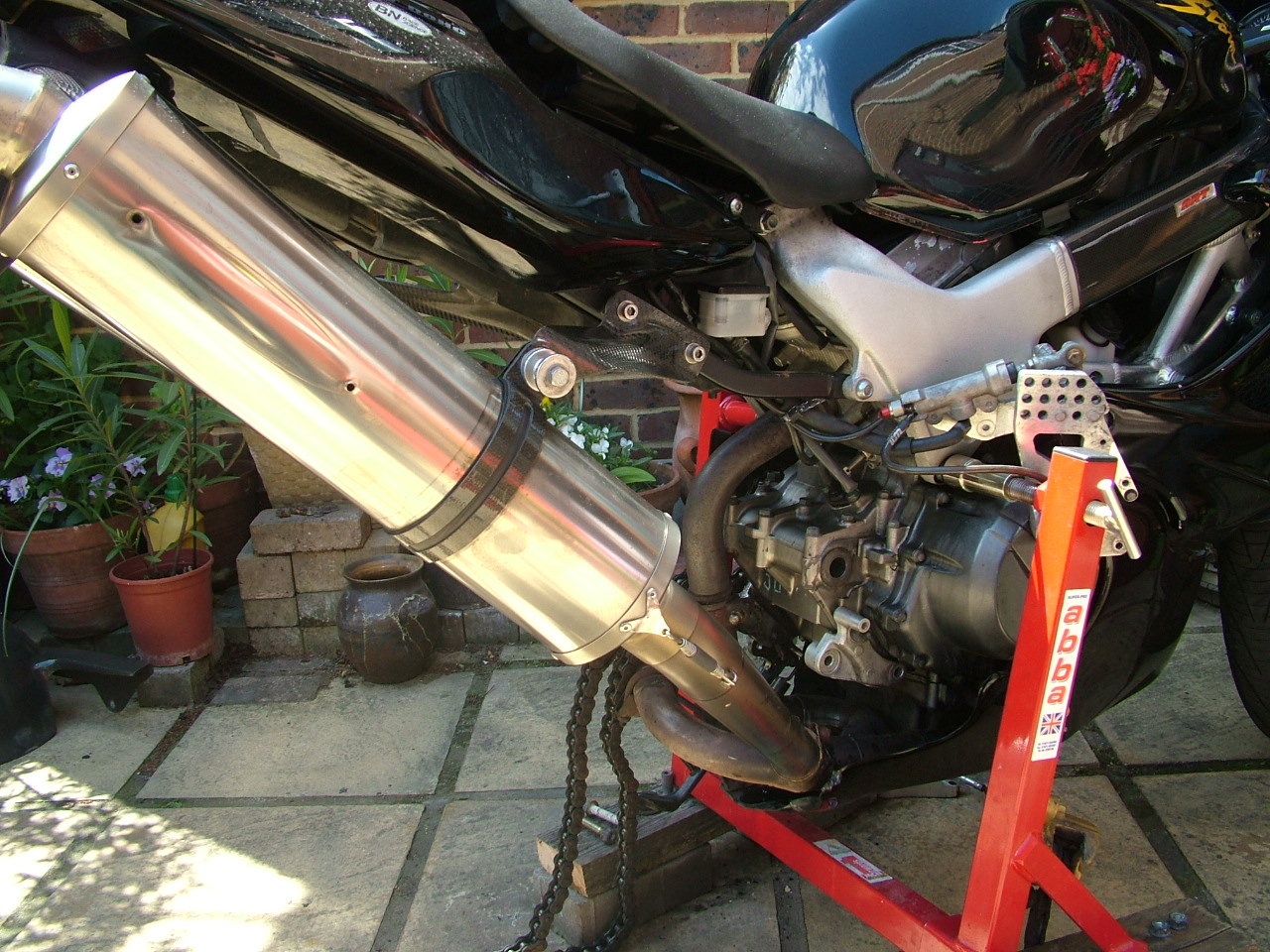

Abba Stands get my vote too. I have a genuine one which like Tweety said is designed to mount of the swingarm bolts. Silly really! So I have mine adapted to mount of the engine mounts. The downside is that as mine is not designed to mount from there I have to sit it on some timber to raise it up a little. With your skills you could make one the tight height to begin with.Motorcycle Stands - Abba Stands, UK
Those Helicopters remind me of the old Royal Navy Westland Lynx.
(:-})
Those Helicopters remind me of the old Royal Navy Westland Lynx.
(:-})
#13
Junior Member
Squid
Thread Starter
Join Date: Jul 2013
Location: Portage la Prairie, Manitoba
Posts: 12
Thanks for the pics Cybercarl. My "skills" lol. You give me way too much credit. Those helos are Bell 412s and Bell 206s used in training the Canadian Forces pilots. Im a helo mechanic.
Looks like both stands have their merit and Im sure Ill end up with one or two of each eventually. Lets see if I can make a functional Paddock Stand first!
Looks like both stands have their merit and Im sure Ill end up with one or two of each eventually. Lets see if I can make a functional Paddock Stand first!
