cct took a crap
02-22-2009, 01:10 PM
#1
Junior Member
Squid
Thread Starter
Join Date: May 2008
Location: northern virginia
Posts: 25
cct took a crap
my rear cct went out yesterday after abou 4 hours of doing other work on the hawk..we just got it back together and was listening to her run to decide if it was the cct going bad then it sounded like some **** blew up in there...riped the rear head apart today and everything looks fine, im taking the head to a dealer to look it over....anyone have any advice on what i should replace(besides the cct's)..im just trying to get a heads up before the dealer rapes me....also how can i reset the timing..
Last edited by tromo01; 02-22-2009 at 01:13 PM. Reason: info
02-22-2009, 03:29 PM
#4
Senior Member
SuperSport
Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
Along with what Tromo said, does anyone have a picture of the rear cylinder at TDC and the cam cover off showing the position of the exhaust and intake cams?
It looks like the failure was caught in the nick of time and it seems that the chain only jumped when the rear CCT failed. As Tromo said we pulled the head and there appears to be no damage to the piston or valves.
I read through the threads about CCT failures before Tromo and myself dug into the bike. So any pictures or information about positioning the cams/cam sprockets would be much appreciated.
It looks like the failure was caught in the nick of time and it seems that the chain only jumped when the rear CCT failed. As Tromo said we pulled the head and there appears to be no damage to the piston or valves.
I read through the threads about CCT failures before Tromo and myself dug into the bike. So any pictures or information about positioning the cams/cam sprockets would be much appreciated.
02-22-2009, 05:26 PM
#5
Will drum for BBQ
Back Marker
Join Date: Jul 2008
Location: Kentucky
Posts: 166
My CCT was going out and the rear intake jumped one tooth. When I got it lined up to check there was slack in the cam chain. Put the tensioner tool in and the CCT jumped into tension. I replaced both, just in the nick of time evidently. I had been hearing a pretty loud slapping noise at startup sometimes. I guess the chain was slapping.

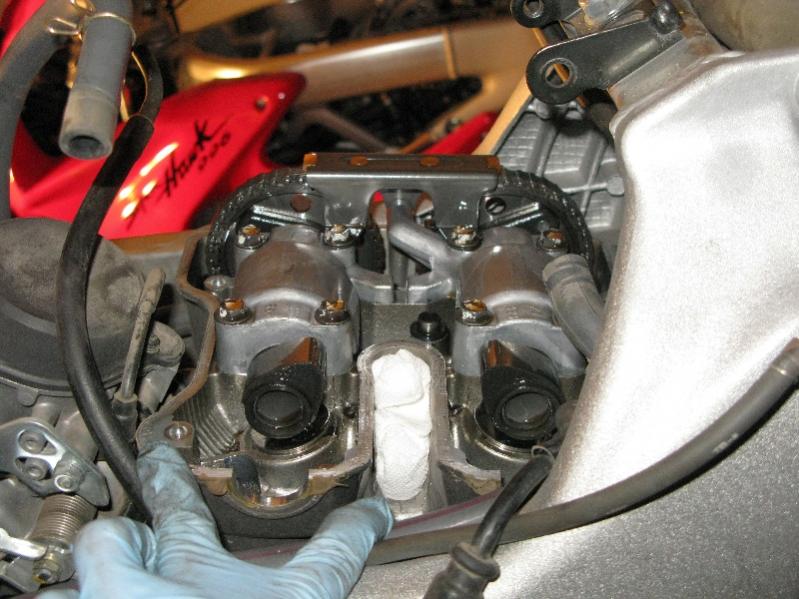

The RE and RI lines have to line up with the head when you're aligned at RT on the flywheel and the rear cylinder is TDC. I don't remember if the lobes are facing up and away, or up and in at that point. But the way it's built with the cam sprocket holes 180 degrees apart I don't think you can get it wrong without the lobe trying to open the valve. Do you have the manual?
The RE and RI lines have to line up with the head when you're aligned at RT on the flywheel and the rear cylinder is TDC. I don't remember if the lobes are facing up and away, or up and in at that point. But the way it's built with the cam sprocket holes 180 degrees apart I don't think you can get it wrong without the lobe trying to open the valve. Do you have the manual?
Last edited by HondaJim; 02-22-2009 at 05:33 PM.
02-22-2009, 06:14 PM
#7
Senior Member
SuperSport
Join Date: Dec 2008
Location: Arizona
Posts: 507
Along with what Tromo said, does anyone have a picture of the rear cylinder at TDC and the cam cover off showing the position of the exhaust and intake cams?
It looks like the failure was caught in the nick of time and it seems that the chain only jumped when the rear CCT failed. As Tromo said we pulled the head and there appears to be no damage to the piston or valves.
I read through the threads about CCT failures before Tromo and myself dug into the bike. So any pictures or information about positioning the cams/cam sprockets would be much appreciated.
It looks like the failure was caught in the nick of time and it seems that the chain only jumped when the rear CCT failed. As Tromo said we pulled the head and there appears to be no damage to the piston or valves.
I read through the threads about CCT failures before Tromo and myself dug into the bike. So any pictures or information about positioning the cams/cam sprockets would be much appreciated.
What year and how many miles were on it?
02-23-2009, 09:52 AM
#10
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
If you are trying to figure out when you need them.. that isn't reliable.. They have gone as early as 8000 miles, and some people have over 50k on their stockers.. For peace of mind, just spend the $85 and get a set from Truckinduc
02-23-2009, 02:41 PM
#11
Junior Member
Squid
Thread Starter
Join Date: May 2008
Location: northern virginia
Posts: 25
its an 01 with 28k, if you even think they might be going out change them asap.. after taking the head to the dealer i found out that i did bend the rear ex valves, so 2 ex valves, guides, seals, cam chain, and a couple gaskets later im up to 600 bucks, and thats without the new ccts...
02-23-2009, 02:51 PM
#13
Member
Squid
Join Date: Feb 2009
Location: Stationed in Beaufort, SC
Posts: 89
lol I feel like I should go buy a set now and my Hawk only has 3300 miles on it, And for lack of being mechanically inclined on a motorcycle I'm going to have the local honda shop put them on.
02-23-2009, 03:10 PM
#14
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
It is actually pretty easy. Yruyur and I made an evening of it and did both our bikes at once a few months ago.. We did take lots of pictures for a write up, but haven't gotten that uploaded yet..
02-23-2009, 03:20 PM
#15
The Hypno-Toad
Superstock
Superstock
Join Date: Jun 2006
Location: Milwaukee, WI
Posts: 467
02-23-2009, 04:13 PM
#16
Sexual Daredevil
SuperSport
Join Date: Sep 2005
Location: Mother Earth- orbiting around Charlotte, NC. But now over the border in S.C.
Posts: 597
my rear cct went out yesterday after abou 4 hours of doing other work on the hawk..we just got it back together and was listening to her run to decide if it was the cct going bad then it sounded like some **** blew up in there...riped the rear head apart today and everything looks fine, im taking the head to a dealer to look it over....anyone have any advice on what i should replace(besides the cct's)..im just trying to get a heads up before the dealer rapes me....also how can i reset the timing..
Do a search, (cct failure, etc) and read all that there is to know about it. Plenty of good info here. At the dealer, your gonna pay more for labor than parts. It set me back a few hundred and I did all the labor my self minus the cutting of the valve seats. It's not hard if you take your time and have the manual open for reference.
02-23-2009, 05:13 PM
#17
Moderator
MotoGP
Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 5,072
02-23-2009, 08:06 PM
#18
Member
Squid
Join Date: Jun 2008
Posts: 83
Ya im planning on buying come CCT's really soon but if you guys can please make a sticky thread with lots of pictures and step by step hwo to remove and install them that would be great. I just wanna make sure that I install it perfectly guys!!
Thanks again,
Pawel
Thanks again,
Pawel
02-24-2009, 05:42 AM
#19
Senior Member
SuperSport
SuperSport
Join Date: Dec 2006
Location: Victoriaville, Quebec, Canada
Posts: 880

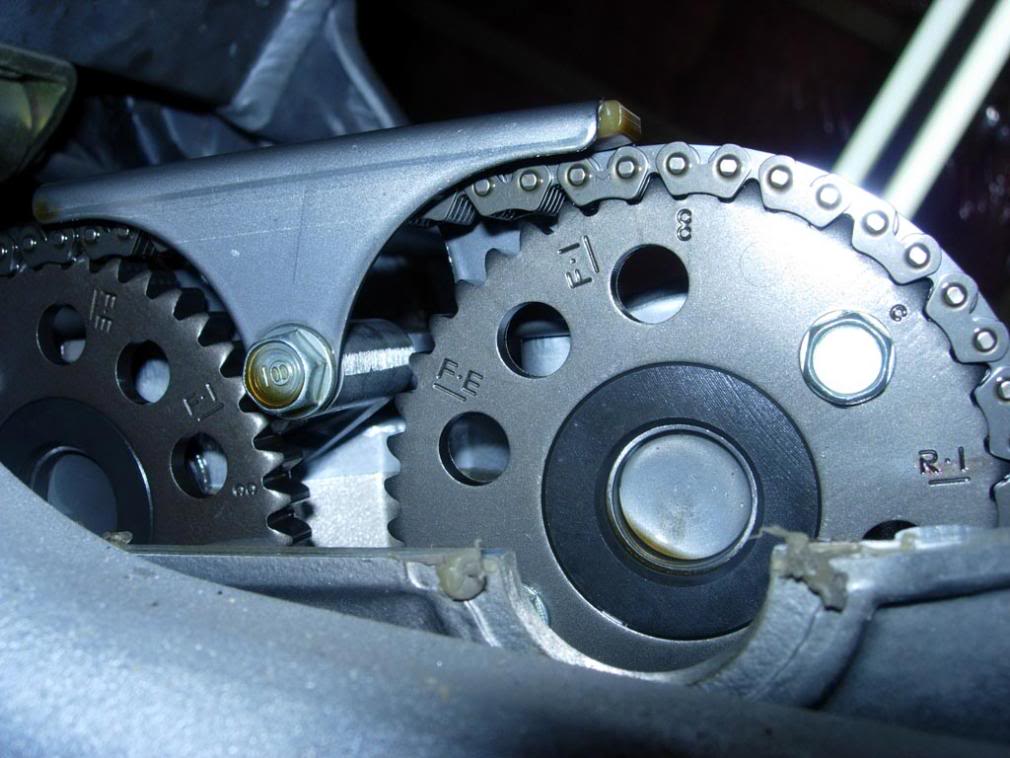

Shiat... take the front plug out, put your finger in the hole, rotate engine couterclockwise until you feel compression, check for FT mark on the flywheel, pass it by 3/4 of a turn to RT, align the mark perfectly, then set your cams sprockets like this
The RI mark should align with the top of the case on the intake cam, same goes for the RE mark on the opposite side toward the rear
The RI mark should align with the top of the case on the intake cam, same goes for the RE mark on the opposite side toward the rear
02-24-2009, 01:53 PM
#21
Senior Member
SuperSport
SuperSport
Join Date: Dec 2006
Location: Victoriaville, Quebec, Canada
Posts: 880
np prob, make 2 or more full engine turns when you're done to make sure the valves clear the pistons before using the starter, then if you made a mistake it will just consume some time, not money
02-24-2009, 02:17 PM
#22
Senior Member
SuperBike
Join Date: Nov 2004
Location: Richmond, Virginia
Posts: 1,315
