Anyone have any internal Starter parts?

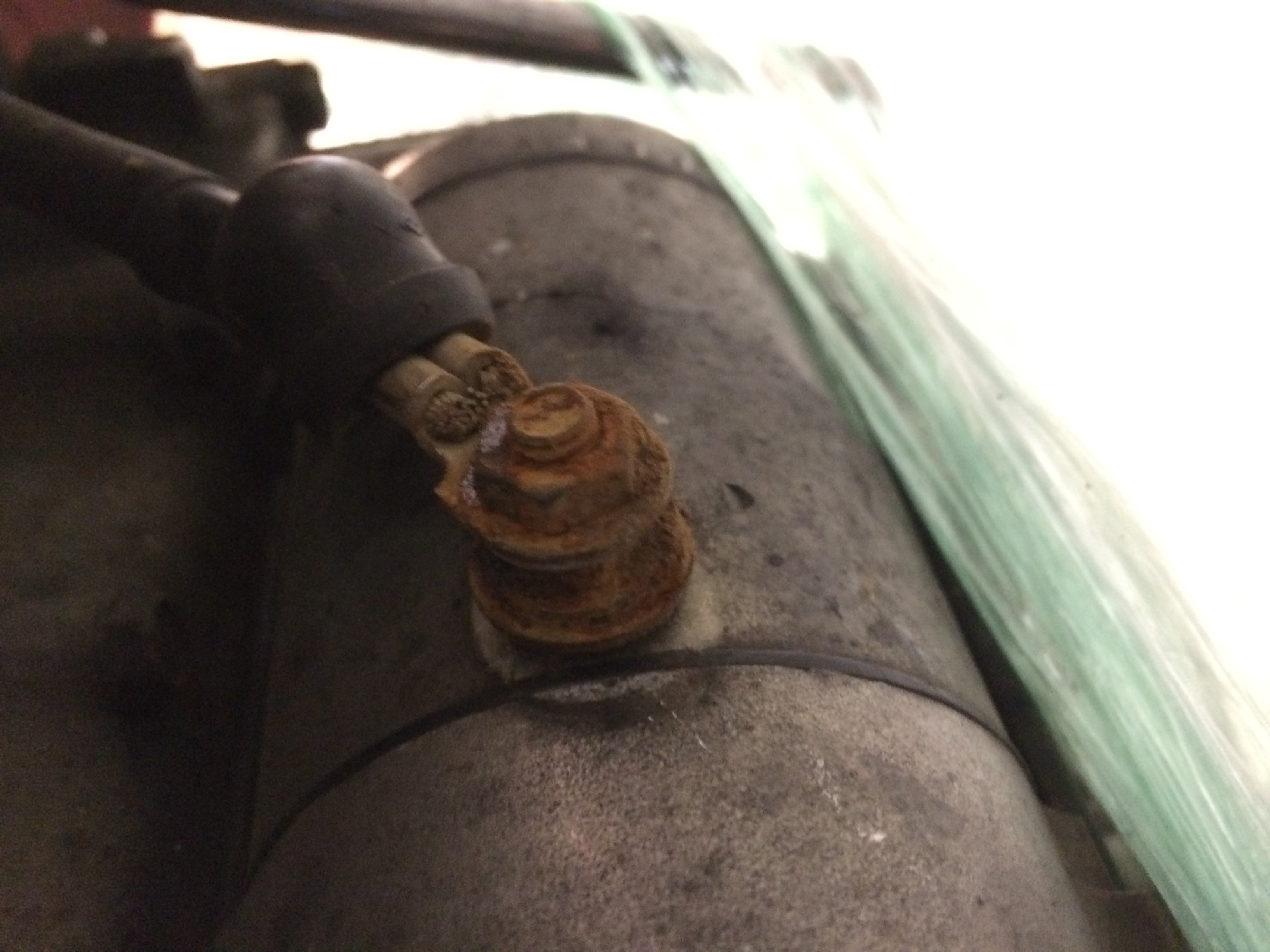

So i went to pull my starter off today and found extremely rusty nuts under the rubber boot (the nuts that hold the starter cable on).

I had to use an impact to get it off, but i failed to hold the stud properly and i cracked the plastic ring inside the starter housing.

Anyone have one of the plastic ring pieces?

(Note: check under your rubber boot and clean this connection!)

James
Attached Thumbnails Anyone have any internal Starter parts?-image.jpeg
thedeatons is offline
Old 01-01-2016, 09:12 PM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
E.Marquez is offline
Old 01-02-2016, 01:18 AM
  #3
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,527
kenmoore is on a distinguished road
The nuts under the rubber boot require maintenance if you hand wash your bike or ride in the rain.

I found out the hard way like you. I check mine every couple of months.
kenmoore is offline
Old 01-02-2016, 10:15 AM
  #4
Senior Member
Superstock

Hangfly's Avatar

Join Date: Mar 2015
Location: San Fran Freako
Posts: 389
Hangfly is on a distinguished road
One of long screws that holds my starter in place is seized.
It's bottomed out against the engine case like it was too long, or should have had a washer installed under the bolt head to prevent the end from bottoming out. I have no plan on attempts to remove it without snapping it off. I tried heating the case by running the bike hard and making another try. But the bolt twists and springs back as if bottomed out with corrosion at the end of the bolt area.
No hurry to remove it, yet.
Hangfly is offline
Old 01-02-2016, 10:16 AM
  #5
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
The long screws hold the starter pieces together, the short screws hold the starter onto the engine. You should be able to remove the short screws and pull the starter from your bike.

James
thedeatons is offline
Old 01-03-2016, 05:28 PM
  #6
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

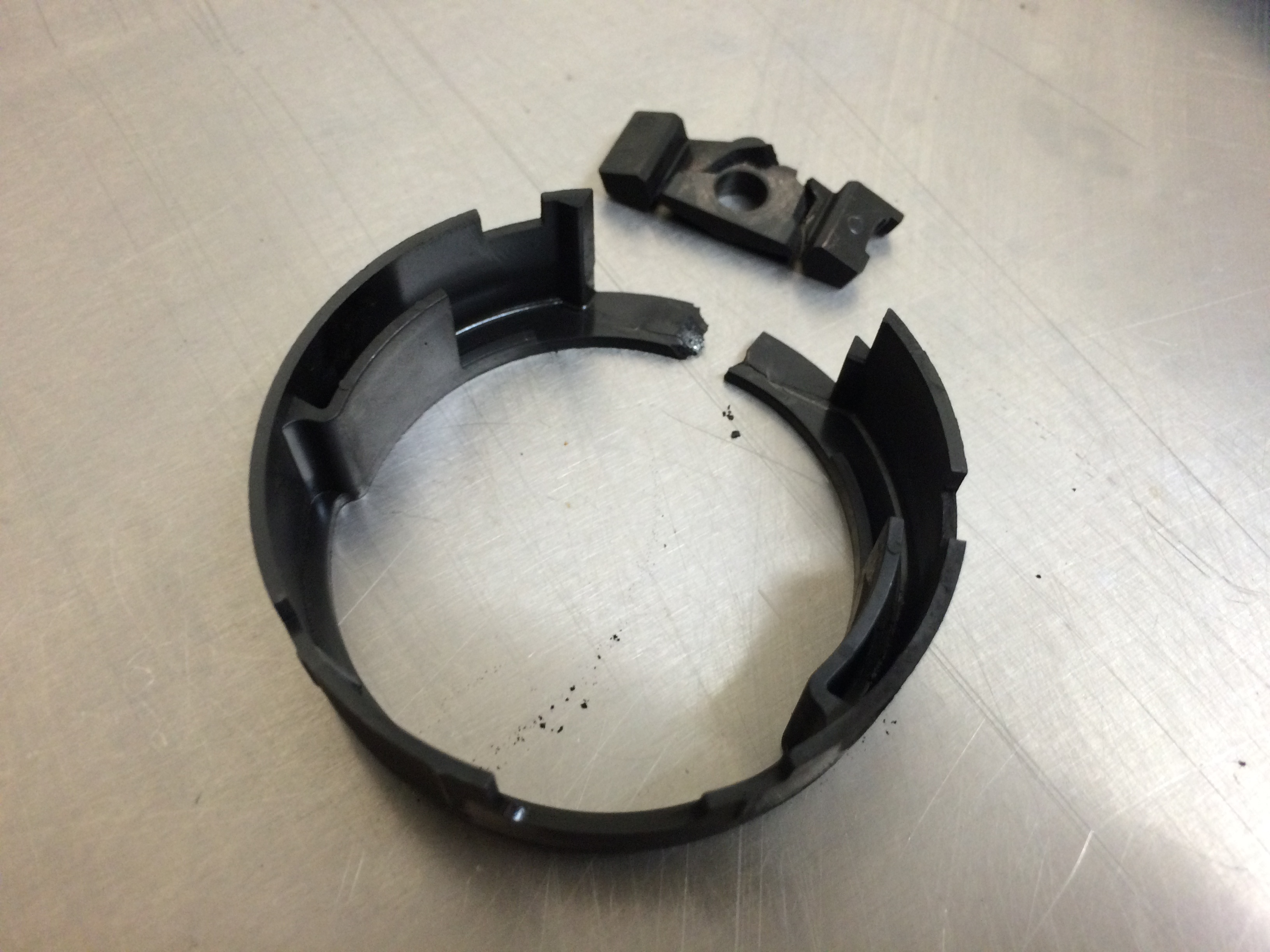

Here are pics of the two pieces i need. If anyone has a busted starter and can part with these pieces please let me know.

Thanks!
James
Attached Thumbnails Anyone have any internal Starter parts?-image.jpeg
thedeatons is offline
Old 01-03-2016, 05:29 PM
  #7
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

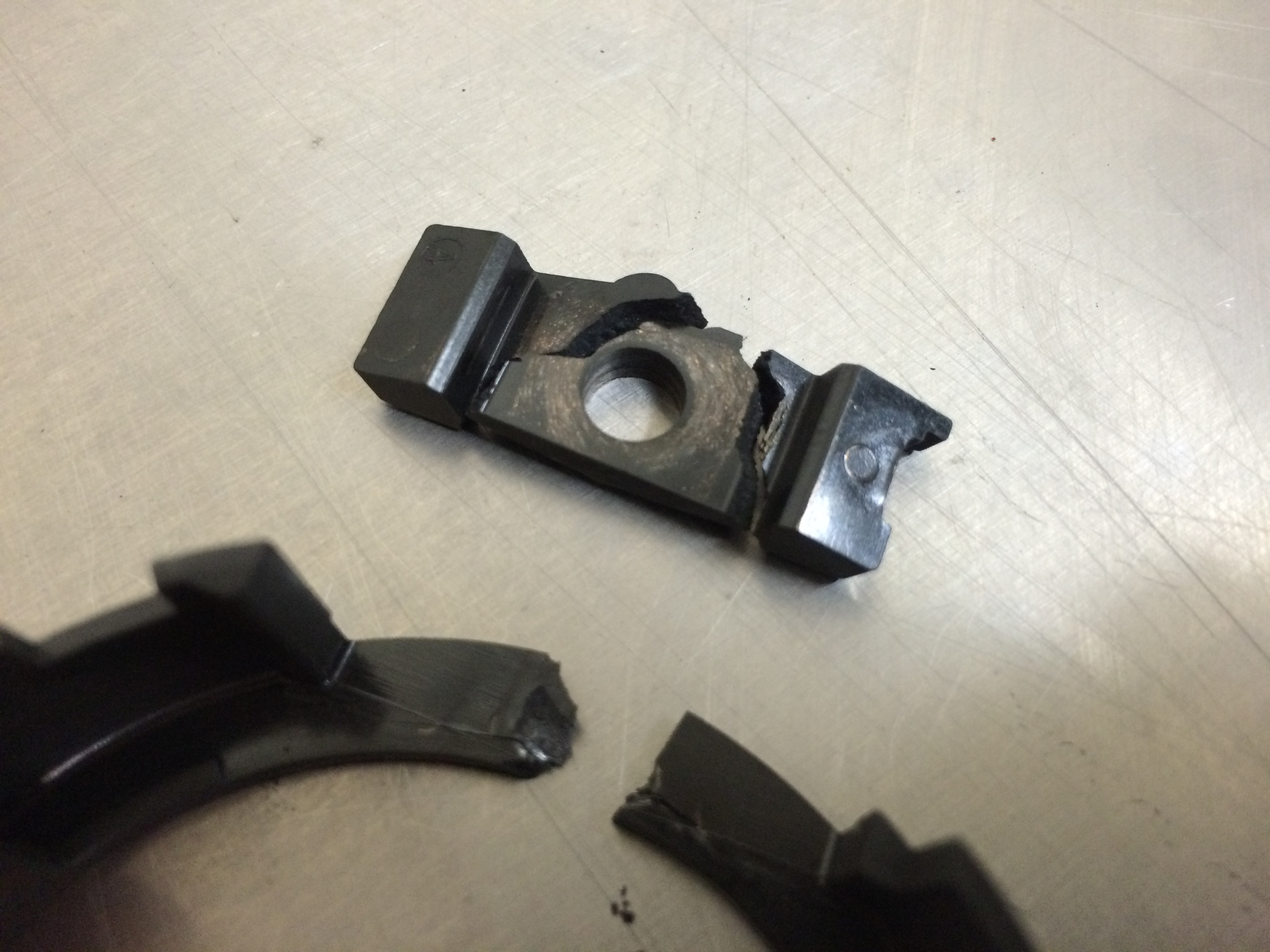

Another pic of the pieces.

James
Attached Thumbnails Anyone have any internal Starter parts?-image.jpeg
thedeatons is offline
Old 01-28-2016, 10:43 AM
  #8
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Still looking if anyone has any internal starter parts they don't need please let me know. I do not need a whole starter, would prefer to just get the parts i need from another member here.

James
