1998 vs. 2001 Camshafts..... With Photo's!
#1
1998 vs. 2001 Camshafts..... With Photo's!
Finally got a '98 and '01 VTR in at my shop and took the chance to measure the camshaft lift on both bikes. Surprisingly enough (or maybe not at all) there is no difference. As for the duration... . Engine numbers for both bikes have been checked at the Honda Interactive Network website and match the VIN's from each bike.

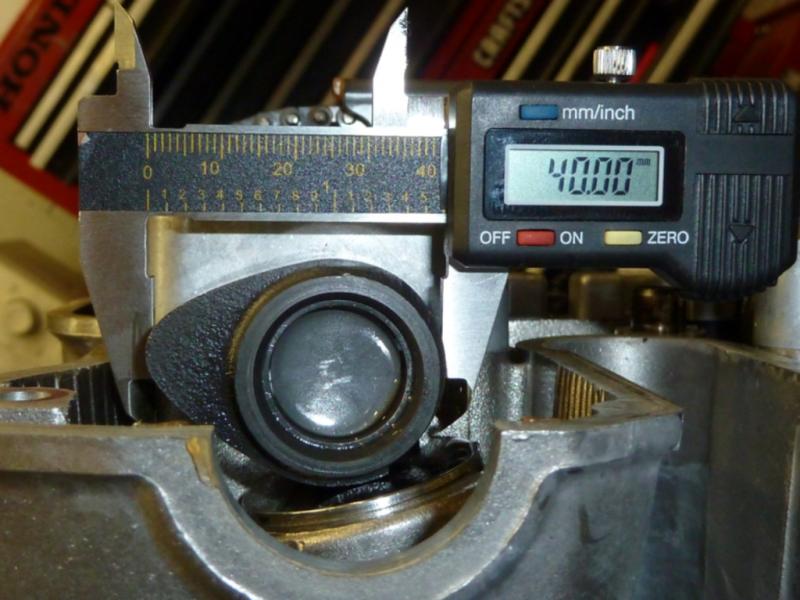

'98 Intake Cam

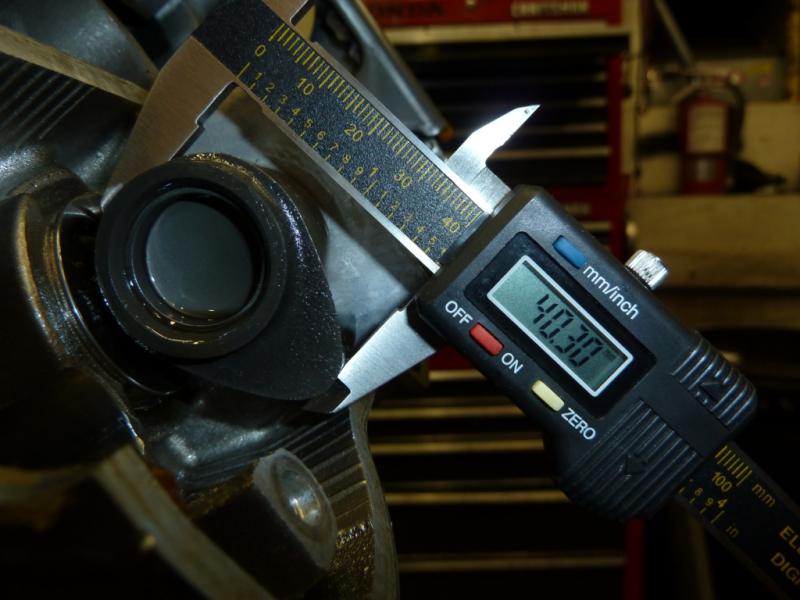

'98 Exhaust Cam

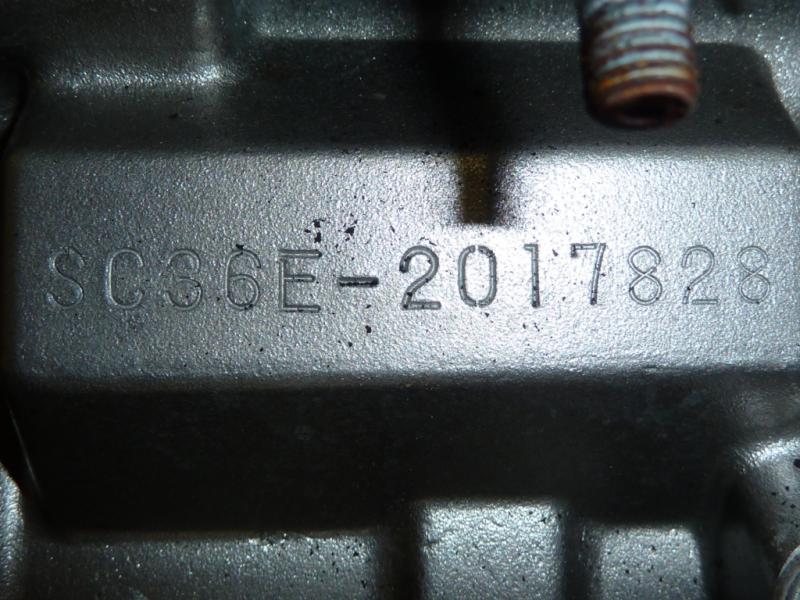

'98 Engine Number

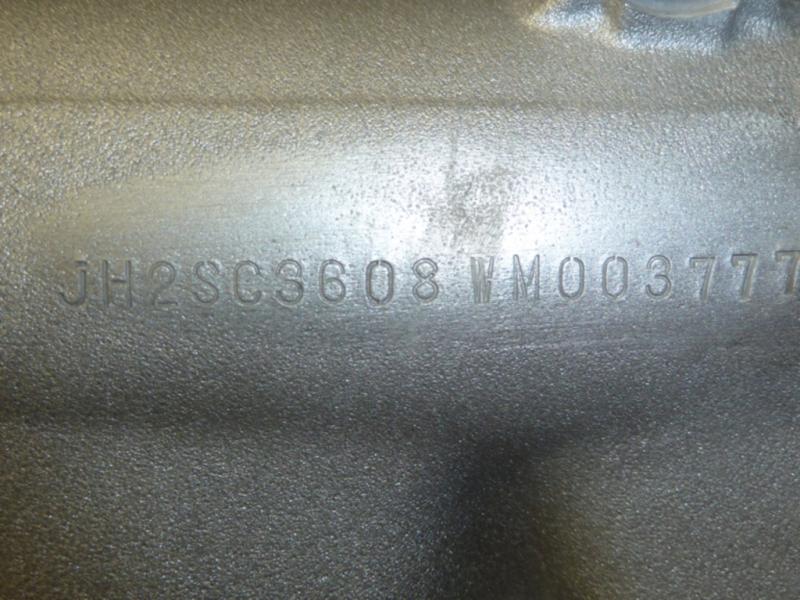

'98 VIN

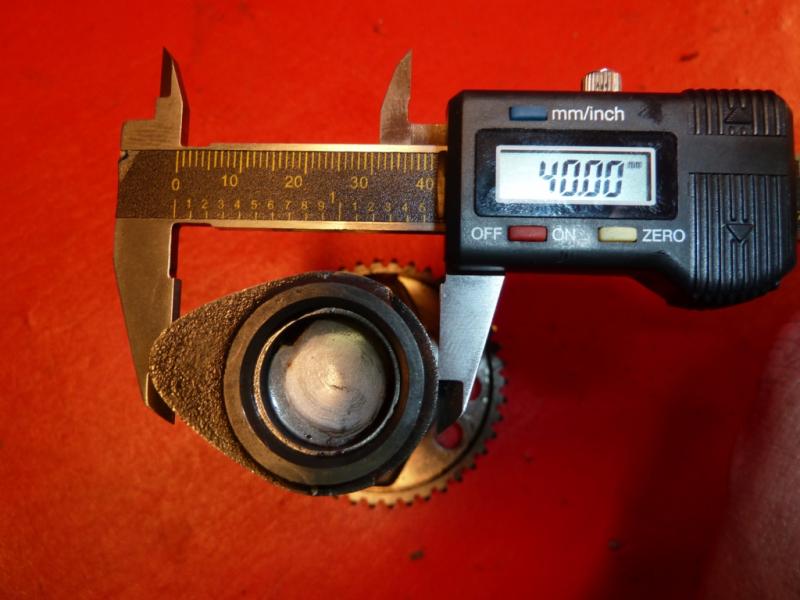

'98 Intake Cam

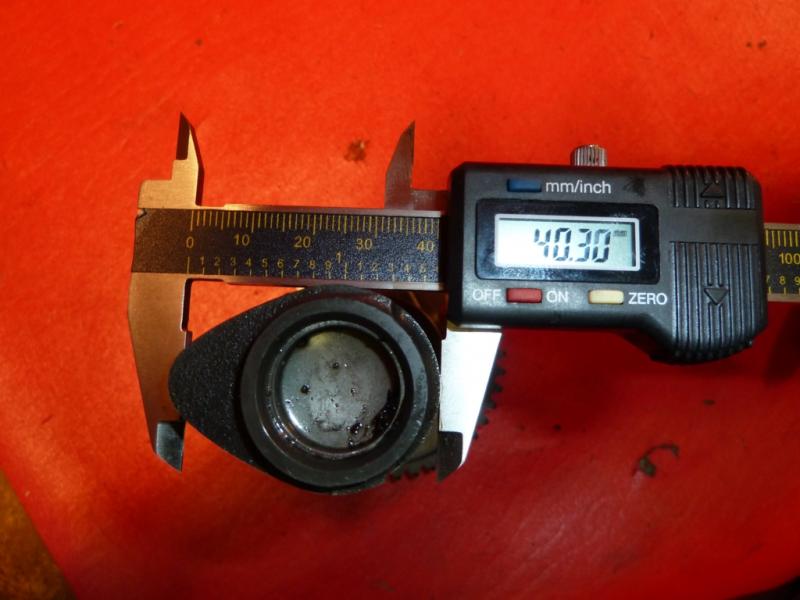

'98 Exhaust Cam

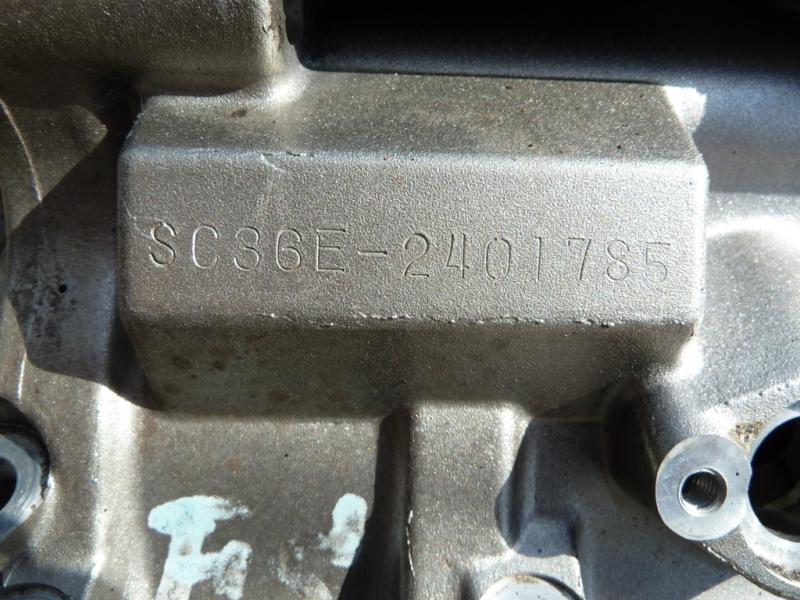

'98 Engine Number

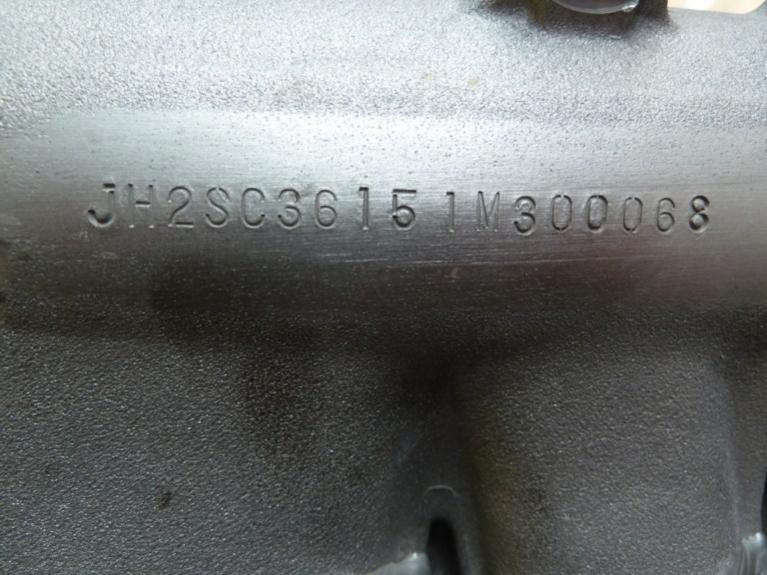

'98 VIN
#4
Well a couple of issues.
First, there is no way to actually know if either one of those engines has had a cam change somewhere in their past.
Second, you really need a set of "vee" blocks and a dial indicator to get really accurate reading for this type of measurement.
Then "if" the cams are the same what happened to the HP.
5 of them were lost somewhere. Add in the fact that by the published dyno charts the later models not only make less power they also make their peak power at a lower RPM. Both of these suggest than there was a cam change.
Now I'm not sure how Markus (Tweety) did his measurements but he did see a difference in the samples he tested.
So I guess it's believe what you want but I still would like to know why the power dropped. In order to get an extra 5 HP out of this engine takes quite a bit of time and $$ so what did they do to lose that much power?
First, there is no way to actually know if either one of those engines has had a cam change somewhere in their past.
Second, you really need a set of "vee" blocks and a dial indicator to get really accurate reading for this type of measurement.
Then "if" the cams are the same what happened to the HP.
5 of them were lost somewhere. Add in the fact that by the published dyno charts the later models not only make less power they also make their peak power at a lower RPM. Both of these suggest than there was a cam change.
Now I'm not sure how Markus (Tweety) did his measurements but he did see a difference in the samples he tested.
So I guess it's believe what you want but I still would like to know why the power dropped. In order to get an extra 5 HP out of this engine takes quite a bit of time and $$ so what did they do to lose that much power?
#5
I have a related question to this... how much does cam profile shape play into the performance? As in, you could have those exact same measurements on the two different cams, but the "egg" shape could be much wider on one than the other.
Actually, it would seem that the shape of the egg would be most important if I'm visualizing it correctly. The longer length that inderocker measured is just how far the valve is pushed down (likely the same on both motors, otherwise parts would be hitting) and the shorter length is just the diameter of the circle when the valve is closed (also likely the same on both motors, as the cams are the same distance from the shim buckets on both motors). It's the shape of the transition between the two that would control speed and duration of the valve lift. Just thinking aloud here...
Actually, it would seem that the shape of the egg would be most important if I'm visualizing it correctly. The longer length that inderocker measured is just how far the valve is pushed down (likely the same on both motors, otherwise parts would be hitting) and the shorter length is just the diameter of the circle when the valve is closed (also likely the same on both motors, as the cams are the same distance from the shim buckets on both motors). It's the shape of the transition between the two that would control speed and duration of the valve lift. Just thinking aloud here...
Last edited by 7moore7; 10-05-2011 at 11:10 AM.
#6
Could it be that one lot of measurements were taken including losses from the alternator and the water pump, the others without. It would have looked good on the brochures at the launch and could be corrected later on??
#7
No that is not the answer as the numbers I have seen and based my questions on were done on the same dyno and the numbers were at the rear wheel.
#8
Well a couple of issues.
First, there is no way to actually know if either one of those engines has had a cam change somewhere in their past.
Second, you really need a set of "vee" blocks and a dial indicator to get really accurate reading for this type of measurement.
Then "if" the cams are the same what happened to the HP.
5 of them were lost somewhere. Add in the fact that by the published dyno charts the later models not only make less power they also make their peak power at a lower RPM. Both of these suggest than there was a cam change.
Now I'm not sure how Markus (Tweety) did his measurements but he did see a difference in the samples he tested.
So I guess it's believe what you want but I still would like to know why the power dropped. In order to get an extra 5 HP out of this engine takes quite a bit of time and $$ so what did they do to lose that much power?
First, there is no way to actually know if either one of those engines has had a cam change somewhere in their past.
Second, you really need a set of "vee" blocks and a dial indicator to get really accurate reading for this type of measurement.
Then "if" the cams are the same what happened to the HP.
5 of them were lost somewhere. Add in the fact that by the published dyno charts the later models not only make less power they also make their peak power at a lower RPM. Both of these suggest than there was a cam change.
Now I'm not sure how Markus (Tweety) did his measurements but he did see a difference in the samples he tested.
So I guess it's believe what you want but I still would like to know why the power dropped. In order to get an extra 5 HP out of this engine takes quite a bit of time and $$ so what did they do to lose that much power?
And there is no way of telling if the two I measured had at one time had the cams swapped either, so there is no more certainity there...
#9
guys he only measured lift here of course there could be some duration differences (egg) maybe where the power went. this thread is only telling us that the lift is the same throughout the years, assuming no cam swaps.
#12
It could be b/c of a variety of things, EPA/Euro emissions, HP restrictions, ignition advance, etc, but it was noticed that the Hawk seems to have lost 5hp on certain dynos after 1998. The part # is the same, and Honda didn't make any note of it, but the best guess as to where the HP loss could have come from is the cams, as there doesn't seem to be any other reasonable explanation.
Hence the comparison of measurements of the cams.
#14
And any magazine test you see from that time on rates a SH at 100hp
the '97, '98 & '99 put out 105hp
In fact in '97 &'98 it was part of the ad campaign..... one more HP than a 916....
and it's not just the loss of power, it is also that the peaks for both HP & torque are at lower RPM and the only way I know to do that would be to run a different cam profile.
If someone else can explain how to do that without changing the cams, I would sure like to hear it.
#15
I have a related question to this... how much does cam profile shape play into the performance? As in, you could have those exact same measurements on the two different cams, but the "egg" shape could be much wider on one than the other.
Actually, it would seem that the shape of the egg would be most important if I'm visualizing it correctly. The longer length that inderocker measured is just how far the valve is pushed down (likely the same on both motors, otherwise parts would be hitting) and the shorter length is just the diameter of the circle when the valve is closed (also likely the same on both motors, as the cams are the same distance from the shim buckets on both motors). It's the shape of the transition between the two that would control speed and duration of the valve lift. Just thinking aloud here...
Actually, it would seem that the shape of the egg would be most important if I'm visualizing it correctly. The longer length that inderocker measured is just how far the valve is pushed down (likely the same on both motors, otherwise parts would be hitting) and the shorter length is just the diameter of the circle when the valve is closed (also likely the same on both motors, as the cams are the same distance from the shim buckets on both motors). It's the shape of the transition between the two that would control speed and duration of the valve lift. Just thinking aloud here...
#16
Well actually it was 2000 when the power loss happened (which by coincidence is also when the RC51 came out)
And any magazine test you see from that time on rates a SH at 100hp
the '97, '98 & '99 put out 105hp
In fact in '97 &'98 it was part of the ad campaign..... one more HP than a 916....
and it's not just the loss of power, it is also that the peaks for both HP & torque are at lower RPM and the only way I know to do that would be to run a different cam profile.
If someone else can explain how to do that without changing the cams, I would sure like to hear it.
And any magazine test you see from that time on rates a SH at 100hp
the '97, '98 & '99 put out 105hp
In fact in '97 &'98 it was part of the ad campaign..... one more HP than a 916....
and it's not just the loss of power, it is also that the peaks for both HP & torque are at lower RPM and the only way I know to do that would be to run a different cam profile.
If someone else can explain how to do that without changing the cams, I would sure like to hear it.
There is a myriad of ways. Timing advance curves, changes to the manufacturing process in the exhaust which could have left restrictions in the headers, changes to the cyl head manufacturing process which could have led to smaller ports. I could go on and on. But without actually measuring thing, like you point out, there is no real way to tell.
#17
I would measure the cam timing with them mounted in the engine and a degree wheel on the crank. Measure the crank angle at .040" lift on the open and closing sides and calculate the lobe center and duration. There may be a small change in the cam phase angles, which you won't see by measuring the cam lobes.
I'm guessing there is no difference between the early and late cams.
I'm guessing there is no difference between the early and late cams.
#18
Well what I can add right now is I do find it a bit strange that both the intake cams you show are on the low side, while still in the "service limit" they are both out of "spec"
The service manual states that the intake cam should have a lobe size of 40.08mm - 40.24mm with a service limit of 39.78
So a bike with the cams having 40.24mm lift would have right around .010" more lift than a cam with 40.00mm of lift.
So I guess it is still unknown but 5 HP disappeared somewhere.
The smaller ports or exhaust system is not the answer. The timing did change in '01 when they changed the ECU but they added more advance (which is why the FP fixed advancers don't work well in later model VTR's)
and even if any or all of these things were true, I could see less power but the 500RPM or so drop in the peak power just doesn't make sense in any of those cases.
Not that I really care as mine has always dyno'ed at over 105 HP but it is one of those things that I would like to figure out.
Hell maybe Honda spent more time and installed "matched" cams (where both cylinders revived the exact same amount of lift) on the earlier bikes and then just fitted whatever to the later ones.
I just don't know but like I have stated the drop in the peak RPM for both HP & Torque usually happens when something changes in the cam timing or lift.
The service manual states that the intake cam should have a lobe size of 40.08mm - 40.24mm with a service limit of 39.78
So a bike with the cams having 40.24mm lift would have right around .010" more lift than a cam with 40.00mm of lift.
So I guess it is still unknown but 5 HP disappeared somewhere.
The smaller ports or exhaust system is not the answer. The timing did change in '01 when they changed the ECU but they added more advance (which is why the FP fixed advancers don't work well in later model VTR's)
and even if any or all of these things were true, I could see less power but the 500RPM or so drop in the peak power just doesn't make sense in any of those cases.
Not that I really care as mine has always dyno'ed at over 105 HP but it is one of those things that I would like to figure out.
Hell maybe Honda spent more time and installed "matched" cams (where both cylinders revived the exact same amount of lift) on the earlier bikes and then just fitted whatever to the later ones.
I just don't know but like I have stated the drop in the peak RPM for both HP & Torque usually happens when something changes in the cam timing or lift.
#20
That is why I had the thought that they might have done a better job of "matching" the lift on both cylinders on the early models.
#21
Ok, in my search through the parts fiche after a thought of how things changed...They changed the gears on the cams...or rather cam timing??? It looks like this is something that got updated and it is shown as a standard part for some but an update for other years. Changing timing can change power significantly without changing the cams themselves.
#22
Ok, in my search through the parts fiche after a thought of how things changed...They changed the gears on the cams...or rather cam timing??? It looks like this is something that got updated and it is shown as a standard part for some but an update for other years. Changing timing can change power significantly without changing the cams themselves.
My old '86 CB700SC Nighthawk S had a screaming top end, but in the midrange it was a dog. I never did it, but there was a fix documented in "Motorcyclist" magazine where you could drill a new locating hole in the cam sprockets to retard the valve timing slightly and thus beef up the midrange torque.
Of course, there's always variable valve timing, which works great on cars, but I've heard it can be upsetting in corners on VFRs with VTEC.
#25
they may very well have decreased the overlap between intake and exhaust cam timing, to increase the midrange torque and decrease the top end torque - which would correspondingly decrease the peak HP number - not a bad compromise.
#27
If you want to, you can slot the cam gears and advance the exhaust cams a few degrees, for more overlap. I bet you'll get more peak HP, but you'll pay for it in the midrange.
It's easy to do, but you should degree the cams before and after and document the change.
There's a lot of speculation and not a lot of measurement and documentation going on...
It's easy to do, but you should degree the cams before and after and document the change.
There's a lot of speculation and not a lot of measurement and documentation going on...
#28
When I looked at the individual years only some showed an updated part. The early years were the ones that showed it, later ones showed it as a standard part.
#29
Honda, ATV Parts, Scooter Parts, Motorcycle Parts,CRF,CR,MX Parts, Goldwing parts
Also if you use the Ron Ayers "where used" tool it shows the same thing for both numbers (that they are for all years).
Last edited by 8541Hawk; 10-07-2011 at 08:47 PM.
