FS tail touring rack
03-13-2009, 10:34 AM
#31
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
so on the corbin seat how much material does the strap screws have depth wise, could you use longer screws? Because I could probably modify the mounting holes to fit. I may also look into making one that still uses the seat cowl underneath, but it may be too much work to make it happen I will try and figure out a way though. The sargent seat would require that I make the very end mount different as I believe it is much thicker on the back edge.
03-13-2009, 10:37 AM
#32
evil man of nothing
MotoGP
Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,484
03-13-2009, 10:40 AM
#33
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
actually, you may be right, I hadn't thought about the cowl end fitting so it should slip over because yes it is mounted just like the cowl in the back. I would still want to test it out before making any claims that it would fit though.
03-13-2009, 10:57 AM
#34
evil man of nothing
MotoGP
Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,484
It's a really cool piece you have there. While it would be cool to make it work with the solo cowl honestly with the tiny gap between the solo cowl and the tail it just seems like way more trouble than it's worth. May require you to mod the cowl, etc, etc...
03-13-2009, 12:53 PM
#35
mildly retarded
SuperBike
Join Date: Mar 2008
Location: Denver, CO
Posts: 1,278
Correction...sorry I assumed they were the same. I actually have both seats and put them side by side. The bolt location is different and would require some type of modification to mount new bolts to the sargent seatpan. You could probably pretty easily overlay the rack on the seat, mark it & drill two holes in the seatpan (dont go too deep
) big enough for the head (say 1/2" away from where you need the bolt to exit) and then a slot just wide enough for the threads (so the head will hold) and slip two bolts in the correct location on the sargent pan.
) big enough for the head (say 1/2" away from where you need the bolt to exit) and then a slot just wide enough for the threads (so the head will hold) and slip two bolts in the correct location on the sargent pan.
03-13-2009, 01:25 PM
#36
evil man of nothing
MotoGP
Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,484
From the looks of things the only difference is where those bolts are, so as long as you can find a way to securely mount two new bolts facing out/down from the seat pan you should be good to go. Just compare the bottom of yours to the pics of the stocker and you'll see the difference.
03-13-2009, 02:06 PM
#38
Senior Member
SuperSport
Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
Corn:
The Corbin seat screws are 3/8", threaded portion, and the screws thread into a steel insert. The screws could possible be longer and if not, there is certainly enough room underneath the seat.
The Corbin seat screws are 3/8", threaded portion, and the screws thread into a steel insert. The screws could possible be longer and if not, there is certainly enough room underneath the seat.
03-13-2009, 02:59 PM
#39
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

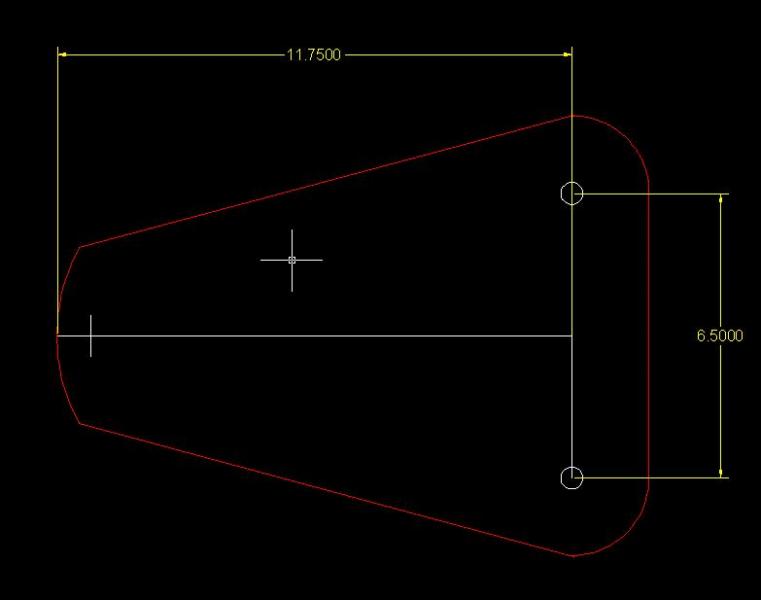

so then what is the distance from hole to hole, on my rack they are shown in the drawing, I could make something different but would need these to measurements in order to make it. red is the overal profile of the back seat
03-17-2009, 07:25 AM
#48
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
03-17-2009, 10:38 AM
#50
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
probably not... well anything is possible but the cowl limits the space needed to fit the rack under the seat alot. I have also seen some cowls fit nearly snug to the tail, while mine for instance sits with 3/16 gap all the way, so the cowl would have to be clearanced most likely making it impossible to make for me unless I have your bike here to custom make a rack/seat/cowl combo that would only work with your bike. Otherwise without the cowl it would be pretty easy for me make a rack for your bike.
03-18-2009, 07:26 AM
#52
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

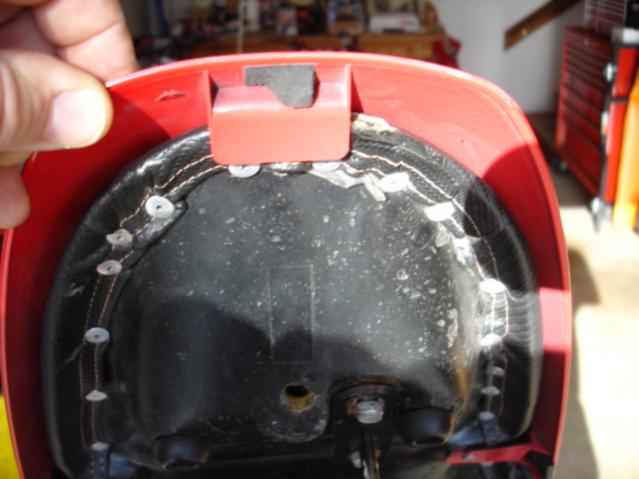

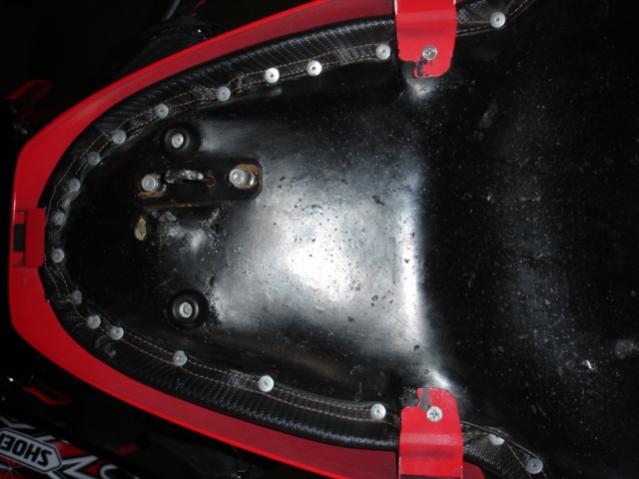

a few pictures of the seat with the cowl, and then a few with it on the bike so I can see how much gap there is between the cowl and tail bodywork, I need at least and 1/8 in if not more, for me to even be able to think its possible. I may throw it down on Solid works so I can see if I can model it in 3d.
03-18-2009, 09:14 AM
#53
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

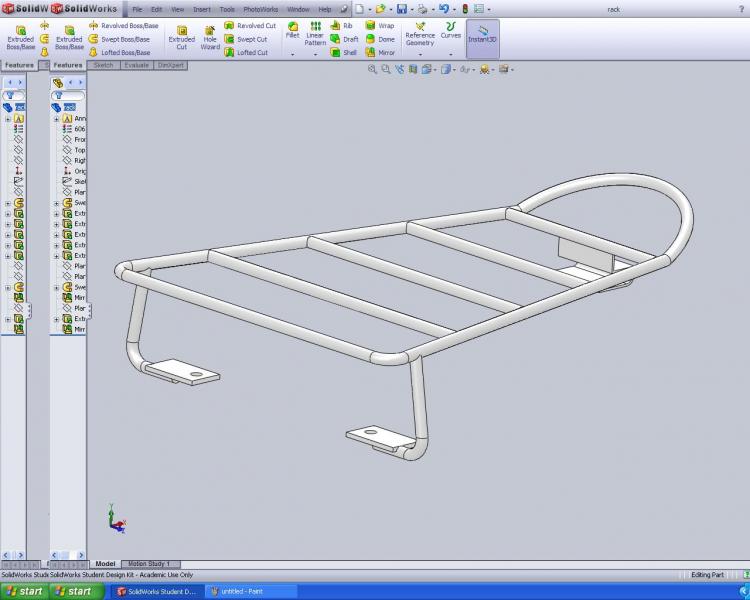

heres a shot of the original, I will bring my cowl in tomorrow and create that in 3d than I will make a "dummy seat" put everything together and figure out if it can be done.
04-16-2009, 07:30 AM
#55
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

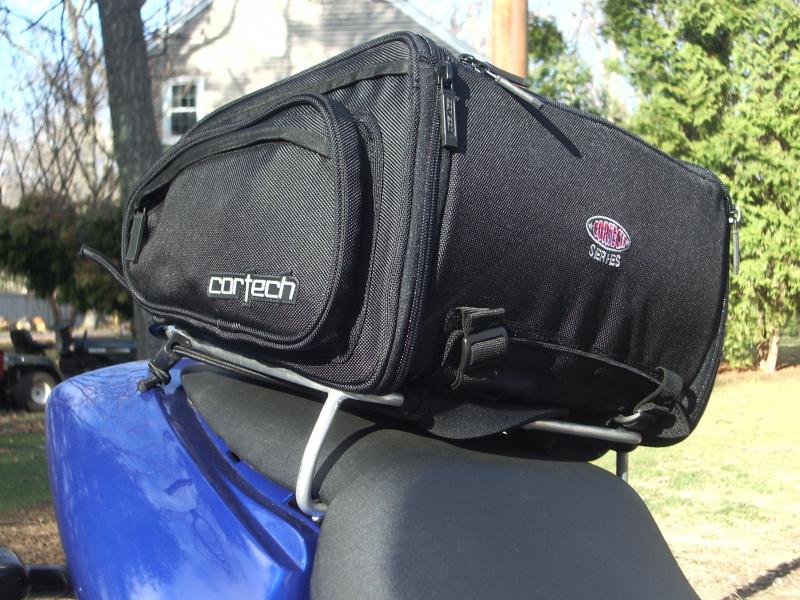

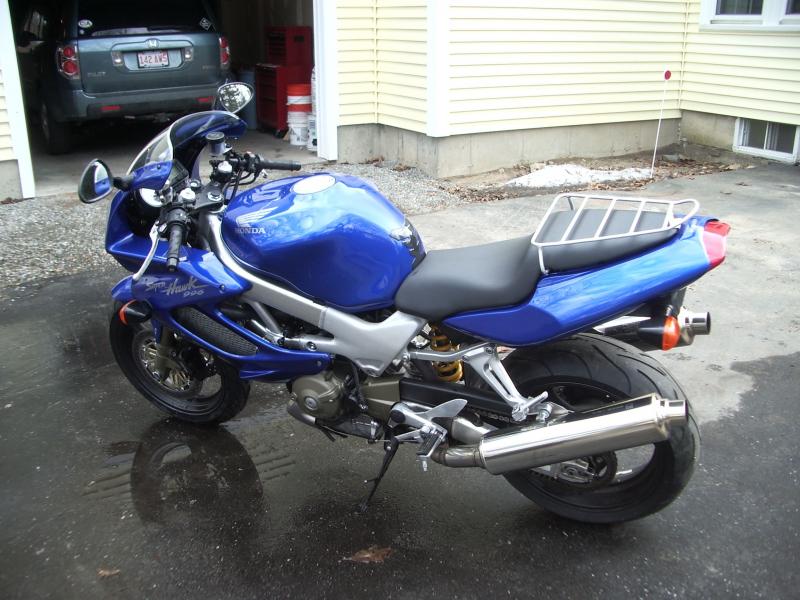

Anyways BlueStreak sent me a couple of great photos of the rack I sold him I thought I would post up for you all.
08-18-2009, 07:34 PM
#58
Senior Member
Back Marker
Join Date: Dec 2008
Location: Lunenburg, MA
Posts: 116
Rack for sale
Just replaced my stock seat with a Sargent. New seat is great, but sadly, Andrew's beautiful little aluminum tail rack won't fit it and is not easily alterable to fit. I've gotta sell it. It's only 4 months old and in prime condition. Is excellent at protecting the paint on your seat cowl. Send me an e-mail if you're interested.
08-18-2009, 07:45 PM
#59
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
if I ever get my hands on a sargent seat, bluestreak you wil be the first one to get one.
Also if anyone in my area has a sargent seat I will build you a free rack in exchange for time with the seat so I can make a template and check that it will fit. Thanks.
Also if anyone in my area has a sargent seat I will build you a free rack in exchange for time with the seat so I can make a template and check that it will fit. Thanks.
