Is this Thermostat junk?

Thread Tools

Search this Thread

Old Apr 3, 2020 | 03:37 PM
  #1
MwCrf450R's Avatar
Thread Starter
Member
Squid

Joined: Aug 2017
Posts: 34
From: 207
MwCrf450R is on a distinguished road
Is this Thermostat junk?

This is at room temp and I really don't know what I'm looking at
Old Apr 3, 2020 | 06:05 PM
  #2
E.Marquez's Avatar
Administrator
MotoGP

Joined: Apr 2006
Posts: 4,402
From: Kempner, TX
E.Marquez is on a distinguished road
Yes at room temp it should be "closed"
Old Apr 4, 2020 | 07:56 AM
  #3
MwCrf450R's Avatar
Thread Starter
Member
Squid

Joined: Aug 2017
Posts: 34
From: 207
MwCrf450R is on a distinguished road
Originally Posted by E.Marquez
Yes at room temp it should be "closed"
thanks man I thought so but wasnt sure as it's a bit different then what I'm used to. Failed open seems better than failed closed though eh?
Old Apr 4, 2020 | 11:56 AM
  #4
E.Marquez's Avatar
Administrator
MotoGP

Joined: Apr 2006
Posts: 4,402
From: Kempner, TX
E.Marquez is on a distinguished road
Originally Posted by MwCrf450R
thanks man I thought so but wasnt sure as it's a bit different then what I'm used to. Failed open seems better than failed closed though eh?
Welcome

What is should look like

Old Apr 4, 2020 | 03:20 PM
  #5
YMRacing's Avatar
Senior Member
Superstock

Joined: Jul 2018
Posts: 277
From: Champaign, IL
YMRacing is on a distinguished road
If you've gone this far...replace it, regardless.
Old Apr 4, 2020 | 08:54 PM
  #6
smokinjoe73's Avatar
Senior Member
MotoGP

Joined: Jul 2007
Posts: 5,066
From: NYC
smokinjoe73 is on a distinguished road
Its like food you find in your fridge & you not sure if its good or not. If there is an "IF" then its a "NO". Too much bad can result from either bad food or a bad thermostat. I have had a few fail in weird ways at weird ages. Meaning it seemed too new to be the problem but swapping it out solved the issue.
I agree, if you are in there and asking the question, just replace it.
The bike can run without one in a pinch but it actually cools better with one. I think the water runs through the rads too fast to properly cool without one.
Old Apr 5, 2020 | 08:19 AM
  #7
MwCrf450R's Avatar
Thread Starter
Member
Squid

Joined: Aug 2017
Posts: 34
From: 207
MwCrf450R is on a distinguished road
Originally Posted by smokinjoe73
Its like food you find in your fridge & you not sure if its good or not. If there is an "IF" then its a "NO". Too much bad can result from either bad food or a bad thermostat. I have had a few fail in weird ways at weird ages. Meaning it seemed too new to be the problem but swapping it out solved the issue.
I agree, if you are in there and asking the question, just replace it.
The bike can run without one in a pinch but it actually cools better with one. I think the water runs through the rads too fast to properly cool without one.
Well we tried verifying it was working at all and baked the thing to destruction so i got a new one coming haha.
i only pulled it to check it out cuz i noticed a coolant leak near the thermostat and that it took awhile to fully warm up sometimes and thought that might be part of the problem. Is there anything in the general vicinity that could leak due to a bad thermostat? Otherwise I geuss I'm going to start ripping and replacing hoses
Old Apr 5, 2020 | 11:27 AM
  #8
smokinjoe73's Avatar
Senior Member
MotoGP

Joined: Jul 2007
Posts: 5,066
From: NYC
smokinjoe73 is on a distinguished road
Its just a simple thermostat housing. You can order the gasket or cut one out of gasket material Or RVT. Could be a loose hose clamp. Take apart and reassemble. Use Vaseline to put hoses back on. It prevents them tearing next removal and eases install.
As said you can run the bike wo the thermostat. I had it like that for years. Just put one in eventually.
Old Apr 5, 2020 | 04:58 PM
  #9
E.Marquez's Avatar
Administrator
MotoGP

Joined: Apr 2006
Posts: 4,402
From: Kempner, TX
E.Marquez is on a distinguished road
Originally Posted by smokinjoe73
Its just a simple thermostat housing. You can order the gasket or cut one out of gasket material

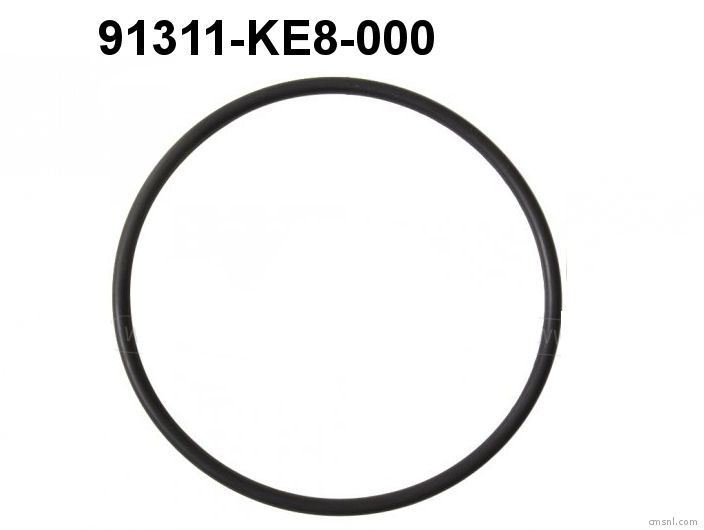

Ahh, the VTR housing uses a 47.5X2 O-RING to seal the housing.... not going to be cutting that from gasket material


Old Apr 5, 2020 | 05:52 PM
  #10
MwCrf450R's Avatar
Thread Starter
Member
Squid

Joined: Aug 2017
Posts: 34
From: 207
MwCrf450R is on a distinguished road
Originally Posted by E.Marquez
Ahh, the VTR housing uses a 47.5X2 O-RING to seal the housing.... not going to be cutting that from gasket material
lol the king of part #'s and another item to add to the list haha
