replaced RR with GSXR unit do these voltages sound right?

Thread Tools

Search this Thread

Old Dec 11, 2007 | 02:16 PM
  #1
andy9743's Avatar
Thread Starter
Senior Member
Superstock

Joined: Feb 2007
Posts: 310
andy9743 is on a distinguished road
replaced RR with GSXR unit do these voltages sound right?

Per superblings write up i replaced my fried stock finned RR with a GSXR unit...off of an 04 600. worked great exactly how he wrote it up (thanks for the great write up!)

off 13.06
high idle (1600) 14.22
at 5000 13.9


do these sound about right? reason i'm asking is bike was jetted, then the RR took a dump i replaced the RR with the GSXR unit and now it's not running right. I'm 98% sure that it's the guy that jetted it didn't dial her in (due to the RR taking a dump in the process of him jetting it.) and would like some opinions before going back to him.

thanks
andy

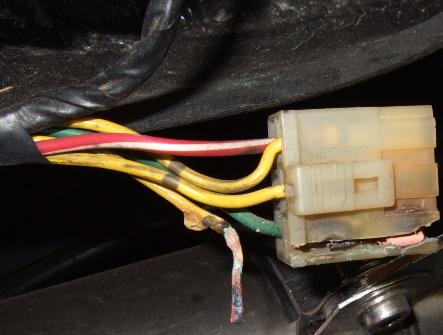

Attached Thumbnails replaced RR with GSXR unit do these voltages sound right?-2007_1118friedrr0066.jpg
Old Dec 11, 2007 | 02:17 PM
  #2
andy9743's Avatar
Thread Starter
Senior Member
Superstock

Joined: Feb 2007
Posts: 310
andy9743 is on a distinguished road
pic of old RR connector...
Old Dec 11, 2007 | 04:46 PM
  #3
nuhawk's Avatar
Senior Member
MotoGP

Joined: Sep 2006
Posts: 4,138
From: Austin, Tx
nuhawk is on a distinguished road
I think your voltages look within the acceptable range. Jetting these bikes is not easy and involves a lot trial and error. The carbs also have to be synced everytime they come off the bike. Thank God all this **** was done by the PO and whomever he had do it did a great job. Mine tends to run a little rich unless you're on it.
