Originally Posted by CrankenFine
Or for that matter, at idle? Throttle butterfly would limit air intake - no?
I've only ever done comp tests with the throttle fully open, all plugs out of the motor and using the starter motor to turn crank. A few rotations gets you a peak number.
Wolverine is offline
Old 07-11-2018, 04:47 PM
  #32
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 197
Floyd is on a distinguished road
Im with Wolverine on this one. All plugs out and throttle wide open. Smack the starter for 3-4 seconds then take the reading.
Floyd is offline
Old 07-14-2018, 06:42 AM
  #33
Administrator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,402
E.Marquez is on a distinguished road
Originally Posted by Floyd
Im with Wolverine on this one. All plugs out and throttle wide open. Smack the starter for 3-4 seconds then take the reading.
There is no "standard" but many manufacturers have test methods defined to go with cylinder pressure specifications.

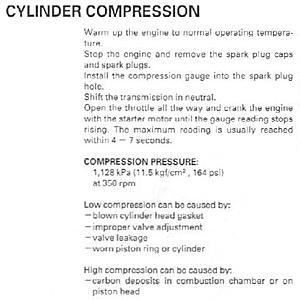

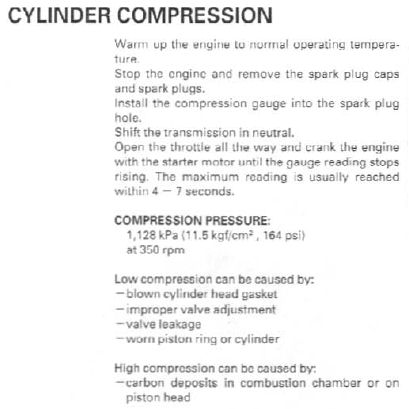

Honda says for the VTR



Other than manufactures condemned test procedures, no plugs, on a fully capable power source (not just onboard battery), throttles wide open is common...

wither you let it crank 4, 5, 10 revolutions or until max pressure is reached is a choice, again unless the OEM has a test procedure that starts otherwise. , just be consistent
Attached Thumbnails Low power, dying when stopped-vtr-compression-testing-.jpg
