Help, Stat! Re: R/R swap

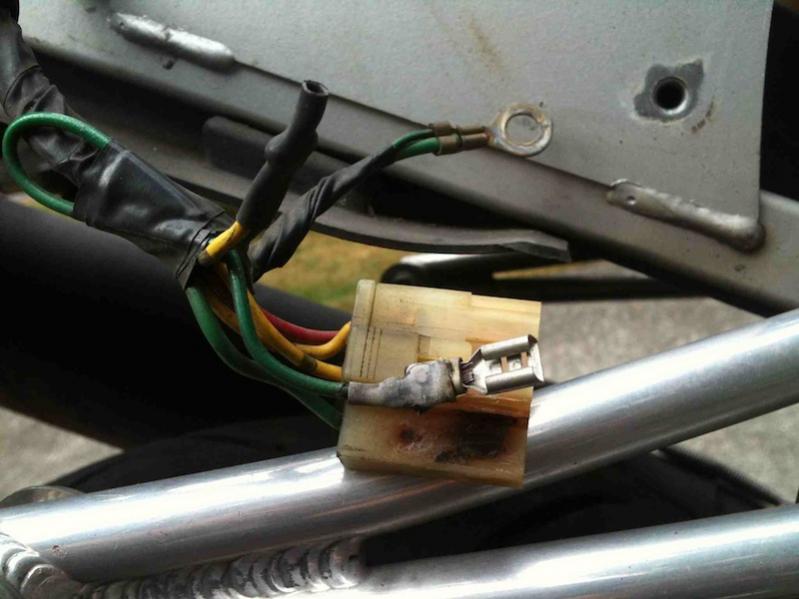

It looks as though some p/o has done a rectifier replacement before. Here is wiring as of now. I want to put in the mosfet rectifier that is in my hand as we speak. What is going on with this splice?
How to I make this correct to the new rectifier?
Thanks.

Edit: I see that the p/o just lenghthened the one yellow wire.
I am following https://www.superhawkforum.com/forum...er-swap-14380/
by Hawkrider. I like how he grouped the wires, the yellows together etc. Is there a specific order for this?
I will just copy his, just curious.
Attached Thumbnails Help, Stat! Re: R/R swap-smallwire.jpg

Last edited by 98hvtr; 08-23-2012 at 04:33 PM. Reason: new info
98hvtr is offline
Old 08-23-2012, 05:07 PM
  #2
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
No order to the yellow wires.
7moore7 is offline
Old 08-23-2012, 05:45 PM
  #3
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,253
E.Marquez is on a distinguished road
as simple as it can get.. three yellow wires in any order to three yellow wires.

Positive to positive, negative to negative.
E.Marquez is offline
Old 08-23-2012, 07:45 PM
  #4
Now What?
Squid
Thread Starter

Join Date: May 2012
Location: Washington State
Posts: 30
98hvtr is on a distinguished road
Originally Posted by 7moore7 View Post
No order to the yellow wires.
Thanks a lot.
Job done. Need battery now.
98hvtr is offline
Old 08-23-2012, 07:46 PM
  #5
Now What?
Squid
Thread Starter

Join Date: May 2012
Location: Washington State
Posts: 30
98hvtr is on a distinguished road
Originally Posted by E.Marquez View Post
as simple as it can get.. three yellow wires in any order to three yellow wires.

Positive to positive, negative to negative.
Thank you. Makes me feel better.
