Can someone show me what the stock linkage should look like?

Reply Subscribe

Thread Tools

Search this Thread

09-28-2014, 08:38 AM

boverman

Junior Member

Squid

Thread Starter

Join Date: Apr 2014

Location: Charlotte NC

Posts: 12

Can someone show me what the stock linkage should look like?

When I bought my wife's Superhawk it was lowered and I want to return it to stock. I went to Bike Bandit and looked at the schematic but I can't tell for sure what I need.

09-28-2014, 09:09 AM

hawxter996

ole dirty bastard

SuperSport

Join Date: Jul 2004

Location: my house

Posts: 975

hawxter996 is an unknown quantity at this point

why not just keep that?
you can make it any height you want.

eta.....make that link shorter will raise the bike.

09-28-2014, 09:56 AM

Wolverine

Moderator

MotoGP

Join Date: Jul 2007

Location: Gettysburg, Pa

Posts: 5,072

Let me google that for you

09-28-2014, 10:03 AM

boverman

Junior Member

Squid

Thread Starter

Join Date: Apr 2014

Location: Charlotte NC

Posts: 12

Quote:

Originally Posted by hawxter996

why not just keep that?
you can make it any height you want.

eta.....make that link shorter will raise the bike.

Well I was hoping to put it back the way the honda engineers set it to start with.

09-28-2014, 10:34 AM

CruxGNZ

Rex Kramer-Thrill Seeker

SuperBike

Join Date: Jan 2011

Location: Brookfield, WI

Posts: 2,312

Really no point in doing all that work and spending money on things you don't need. Give me a few minutes and I will get you the length of the stock part. Then, just adjust yours to the stock length.

I'll edit this post in a bit...

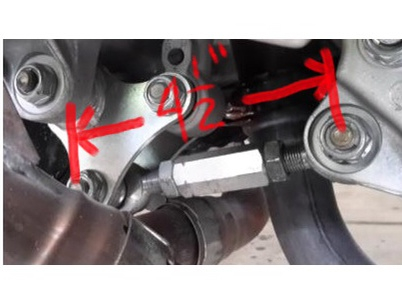

EDIT: The length of the stock link is exactly 4 1/2" from center of bolt to center of bolt.

Name: 3bb610f4820d01dd15aef2a0146255bc.jpg
Views: 59
Size: 80.4 KB
