450 degree confirmation on CCT install

I'm startin this thread to help out everyone who is about to do their CCT's. I can confirm (with pics) that after removing the rear valve cover to check cam position, hand cranking 450 degrees counterclockwise (1 1/4 turn) will allow you to change the front without removing the cover (which is a total pita).

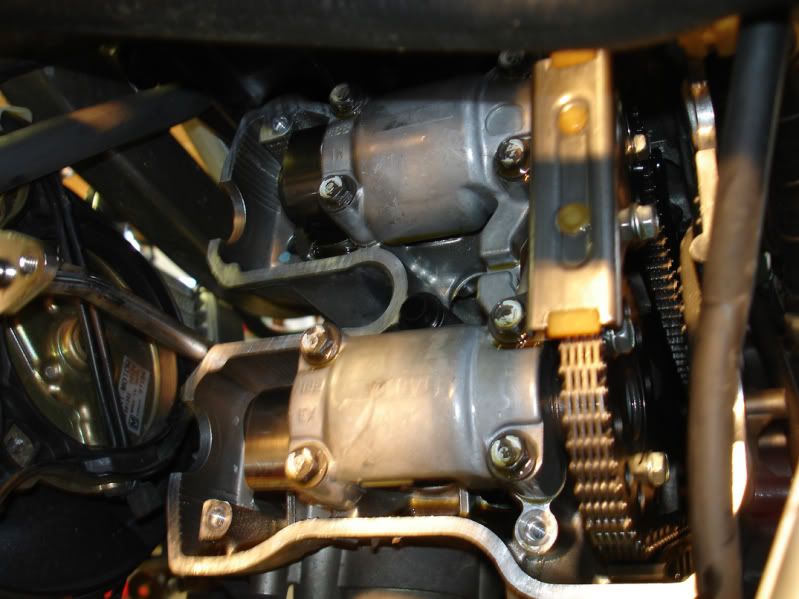

Name:  DSC04004.jpg
Views: 51
Size:  73.6 KB

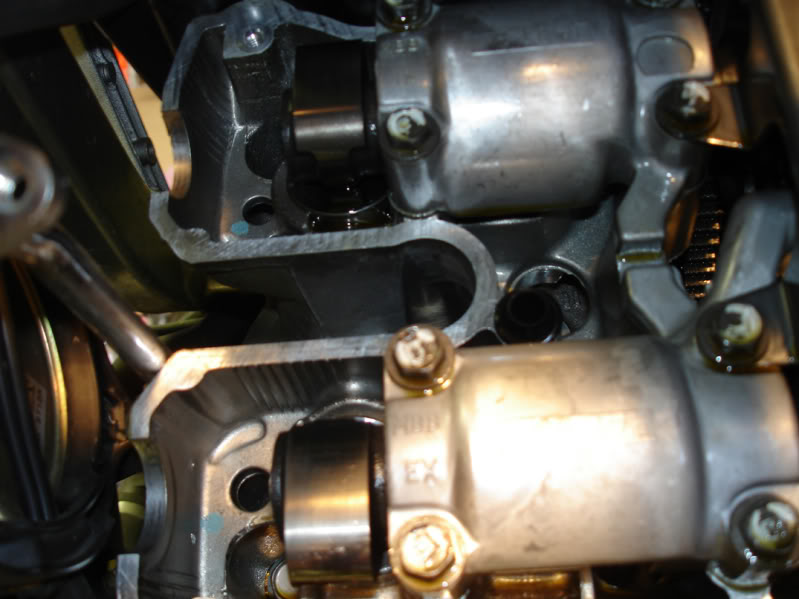

As you can see, both lobes are off the valves.
Name:  DSC04005.jpg
Views: 52
Size:  61.6 KB


I just finished installing Truckinduc's tensioners. Everthing was pretty straight forward. I searched and couldn't find any posts where someone confirmed the 450, only quoting the manual. So for piece of mind, I went ahead and removed the front cover to make sure. Hope I can help someones job go a little faster than mine.

Here's a couple more shots:

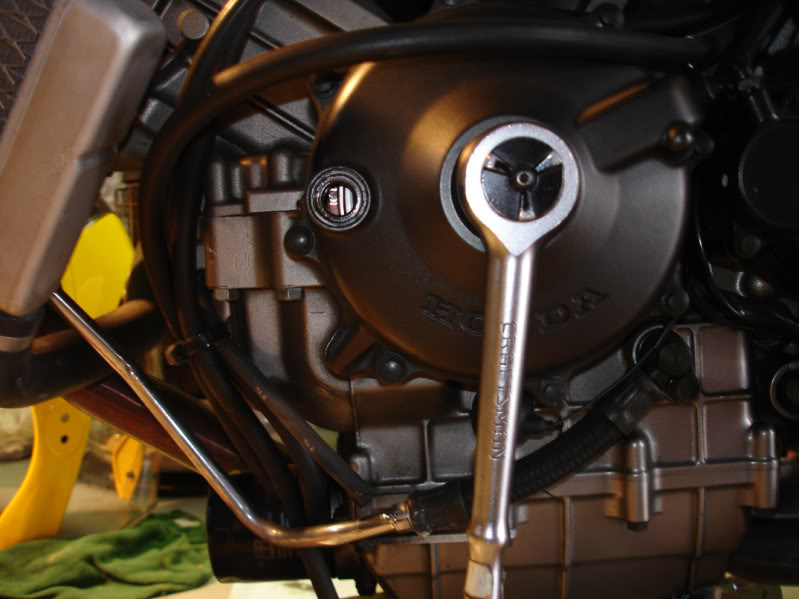

Name:  DSC04002.jpg
Views: 48
Size:  62.6 KB

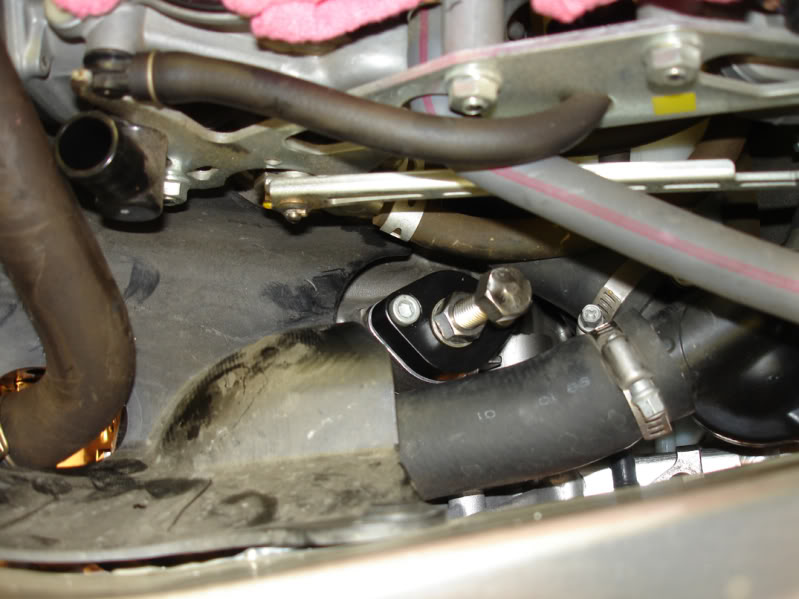

Name:  DSC04006.jpg
Views: 51
Size:  64.5 KB

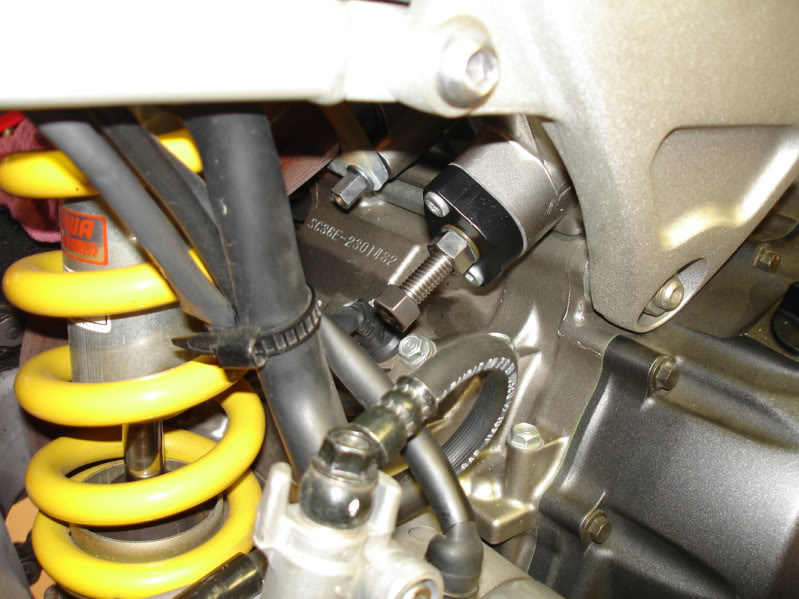

Name:  DSC04007.jpg
Views: 38
Size:  82.4 KB
Old Apr 11, 2009 | 04:31 PM
  #2
yruyur's Avatar
Senior Member
SuperSport

Joined: Dec 2008
Posts: 507
From: Arizona
yruyur is on a distinguished road
Great pics, me and lazn did both ours at the same time about 6 months ago. 450 worked great. We have not had a chance to put the pics up yet. I think we took almost 50 pics of the steps required. That looks to be a custom by Truckinduc.
Old Apr 11, 2009 | 04:34 PM
  #3
Truckinduc's Avatar
Senior Member
SuperBike

Joined: Oct 2008
Posts: 1,033
Truckinduc is on a distinguished road
looks good man. I just put a set on yesterday.
Old Apr 11, 2009 | 04:49 PM
  #4
Wolverine's Avatar
Thread Starter
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,221
From: Gettysburg, Pa
Wolverine is on a distinguished road
I got Trucker bling!

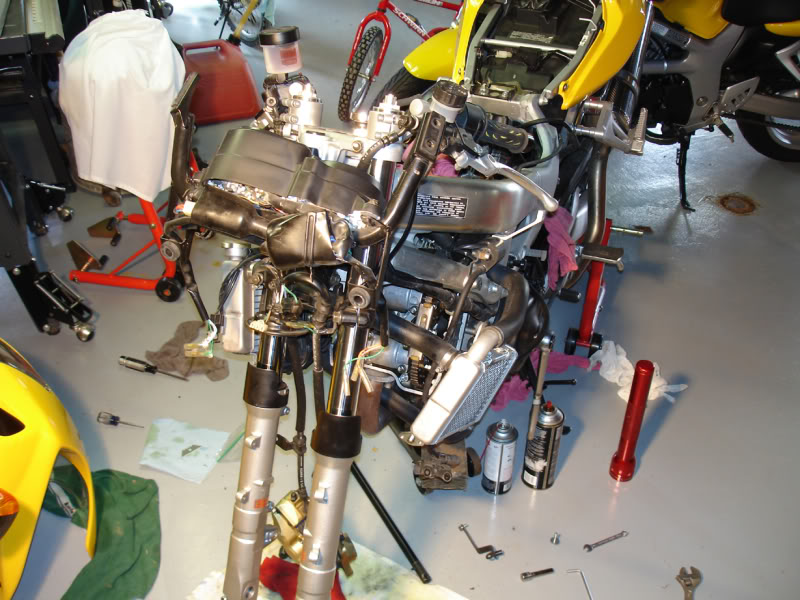

Here's a shot of a very messy work space:
Name:  DSC04010.jpg
Views: 46
Size:  107.8 KB

I wish I would have had pair block-offs to get rid of all that plumbing. What a mess!
