34k on my VTR how urgent is the manual CCT

Old 08-14-2010, 11:00 PM
  #1
Mad Max NO Squid!
Squid
Thread Starter

skycam's Avatar

Join Date: Jun 2010
Location: Honolulu, Hawaii, 96789
Posts: 54
skycam is on a distinguished road
34k on my VTR how urgent is the manual CCT

i am concerned about how urgent changing the cam chain tensioner is.
i find myself using motor breaking a lot and riding my VTR like i stole it.

i am interested in what the general consensus is about manual CCT is this something i need to do ASAP?

what is the percentage of riders that do it?

thanks for helping
skycam is offline
Old 08-15-2010, 06:02 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
Originally Posted by skycam View Post
i am concerned about how urgent changing the cam chain tensioner is.
i find myself using motor breaking a lot and riding my VTR like i stole it.

i am interested in what the general consensus is about manual CCT is this something i need to do ASAP?

what is the percentage of riders that do it?

thanks for helping
Better yet to a search for "head" "Valves" "Bent" or like words used when a failed ACCT happens.. Then read the results.
It's not every VTR that will toss a cam chain at 18,976 miles.. or what ever.. but enough do to make it a pretty simple decision to install a few $$ worth of after market parts and never have to be wondering if your going to be the next guy posting "ya I know, I had heard all about installing MCCT's,, but you know,, it was running great,,, then I heard this noise as I was coming off the freeway... and the motor just died. Removed the front head today and the valves were all bent"

Many VTRs will never have an issue... some will... Which one will yours be if you keep the ACCT?
E.Marquez is offline
Old 08-15-2010, 08:24 AM
  #3
Senior Member
SuperSport

Join Date: Mar 2010
Location: Asheville, North Carolina
Posts: 886
1971allchaos is on a distinguished road
Have not researched this info on the forum, SO is the milage /around 18k to 20k when most S-hawk owners start to expect this disaster?
1971allchaos is offline
Old 08-15-2010, 08:32 AM
  #4
Sexual Daredevil
SuperSport

motojoe's Avatar

Join Date: Sep 2005
Location: Mother Earth- orbiting around Charlotte, NC. But now over the border in S.C.
Posts: 597
motojoe is an unknown quantity at this point
Sleep well tonite because you ordered manual CCTs and will install them before your next ride. Simple as that.
motojoe is offline
Old 08-15-2010, 08:37 AM
  #5
Senior Member
SuperSport

Join Date: Mar 2010
Location: Asheville, North Carolina
Posts: 886
1971allchaos is on a distinguished road
REsearched- and the proper way to get the manual CCT adjusted in is (by hear, with the engine running) Is this a good choice of this installation?
1971allchaos is offline
Old 08-15-2010, 08:45 AM
  #6
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
the ear method you still need to finger tighten the adjuster to start with. Then start the bike and if there isn't a rattle you can slowly back the adjuster out until a rattle begins then re tighten a little. However I find that finger tight works well for me, and as long as it isn't affecting your idle by being to tight or making noise by being too loose you are good to go.
Little_Horse is offline
Old 08-23-2010, 09:20 AM
  #7
Member
Squid

ohiophotog's Avatar

Join Date: Sep 2006
Location: Mentor, Ohio
Posts: 66
ohiophotog is on a distinguished road
Hmmm.......this concerns me as I have 52K on my Hawk. Wondering if I should be looking into this as well.
ohiophotog is offline
Old 08-23-2010, 10:22 AM
  #8
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by ohiophotog View Post
Hmmm.......this concerns me as I have 52K on my Hawk. Wondering if I should be looking into this as well.
Yes it is time to change them. Use whatever type you prefer but it's time.
8541Hawk is offline
Old 08-23-2010, 10:51 AM
  #9
Senior Member
Superstock

Join Date: Jul 2008
Posts: 320
evines is on a distinguished road
This has been discussed to death already, but to save you some time, I think the consensus is . . . if you are neurotic (like me) and worry every time you ride about your ACCTs, then change them to manual CCTs. But then you'll worry about whether of not you got the tension correct (like me). So you'll always worry about something. If you are asking the question, then you are probably ready to change them.

If your ACCTs are old, like 30K+ miles or 10+ years, then you can change them out for either new ACCTs or manuals, whatever your preference. But it's probably a good idea to change out the originals as they get older, or if you don't know the bike's history. The ACCTs seems to fail at random with little warning, but not on every (or even most?) bike. There isn't a mileage where they "always" or "often" fail, although I don't think I've heard of too many failing below 15K miles.

I changed to APE CCTs before my first track day. I barely ever ride my bike hard, and I was worried that the ACCTs couldn't handle the track (although I have no evidence that they can't). The swap was pretty easy to do and I had no issues except for breaking an old crankcase cover bolt while removing the cover. But my 12 year old ACCTs with 30K miles still looked completely fine. When looking at it, it was hard to imagine that they fail, because it looked pretty "beefy" to me. The spring was solid and not at all brittle.
evines is offline
Old 08-28-2010, 09:53 AM
  #10
Senior Member
Back Marker

storm_rider's Avatar

Join Date: Aug 2009
Location: North
Posts: 112
storm_rider is on a distinguished road
Never had a problem with mine. At 57,000 miles I decided to change these out with new ones after I set the valve clearances, just in case these have weakened somehow over the years.

Seems if you run the engine at high rpm under full throttle and suddenly snap the throttle shut (as you might while racing to negotiate an approaching sharp turn) I've heard there could be enough force developed in the cam chains to back out the tensioner lifters.

Apparently the VTR isn't the only machine to have this potential problem (also happens to the CBR 600).

Manual cam chain tensioner lifters are a good idea on race bikes.

Last edited by storm_rider; 08-29-2010 at 09:16 AM.
storm_rider is offline
Old 01-25-2018, 08:43 PM
  #11
Member
Squid

ProfChaos's Avatar

Join Date: Mar 2010
Location: Tampa Bay Area, USA
Posts: 59
ProfChaos is on a distinguished road
Originally Posted by skycam View Post
i am concerned about how urgent changing the cam chain tensioner is.
i find myself using motor breaking a lot and riding my VTR like i stole it.

i am interested in what the general consensus is about manual CCT is this something i need to do ASAP?

what is the percentage of riders that do it?

thanks for helping
Apparently in response to complaints related to engine failure, Honda eventually upgraded the initial cam chain tensioner ("tensioner lifter assembly") to the following part number which super-cedes the earlier version: https://www.partzilla.com/product/ho...0e1b7e71d493eb

A local Honda Parts Manager told me that Honda switched vendors for the tensioner (lifter assembly), and the gasket is different as well, to fit the new housing.

If you plan on installing modified cams or plan on modifying the valve-train in any way to improve performance, I would say that you might be better-off not to use manual CCT's at all, just to be safe. Manual CCT's can be a bit tricky to adjust with tricked-out engines and might actually end-up being more trouble than you can imagine. For track bikes that are torn-down regularly anyway, it might not be that big of a deal to install manual CCT's, but with a bike that hasn't shown any signs of failure or cam-chain rattle, I would leave it alone and use the money for a nice exhaust, a light-weight lithium-ion battery, or something more practical, like a Sargent custom seat.

That's just me, and I am writing this response after having had a manual CCT possibly contribute to a bent titanium valve on an engine with very aggressive aftermarket cams (in a freshly-rebuilt 30,000-mile-engine that I purchased on eBay). It seems that the cam chains were stretched (because the owner of the bike from which the engine was taken apparently had a penchant for doing wheelies). Having automatic cam-chain-tensioners installed would have compensated to some degree for the stretched cam-chains, by applying spring-loaded pressure, whereas with manual CCT's the engine jumped timing and might have bent an expensive titanium valve. I will know the extent of the damage for sure next week, after my mechanic performs a compression test, but let me caution you anyway that just because other people have experienced CCT-failure, it does not necessarily meant that you will too. In my case, I might have been much better-off to have installed the upgraded automatic CCT's. All I know at this point is that--at a minimum--I have to install new cam-chains, new automatic tensioners and gaskets, and I might even have to request that Ferrea make me another intake valve, depending upon compression readings gathered next week during further analysis by a very reputable mechanic. (I wish now that the mechanic had told me in advance about his misgivings regarding installation of manual CCT's in tricked-out engines: It might have saved a little heartache.)

I hope that my little cautionary tale might serve someone well.

cheers,
--Professor Chaos

Last edited by ProfChaos; 01-25-2018 at 09:37 PM.
ProfChaos is offline
Old 01-26-2018, 11:56 AM
  #12
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
I've taken both versions of the ACCTs apart and there is no visual difference. With that we can go to the, Is it just a bad design or are folks doing something to cause the issue?
They fail due to the spring breaking. How do you get a piece of tempered spring steel to break? The easiest way is to do something that damages the temper. Usually this is caused by excessive heat cycling.

So how does the end user cause an issue with the spring temper? They let it sit and "warm up" on the side stand.
If you look at the water table while the bike is leaned over along with how the cooling system works with the thermostat closed (which means the carb heat lines are flowing) you will see that it is very easy for the front cyl to overheat.
Then the thermostat opens and you flash cool every thing. Lots of heat and fast cooling.....what does that do to a bit of tempered steel?
Why the front and not the back? Because the rear one is full of oil. No it doesn't lube anything, it is a heat sink and causes the temperature changes to happen much slower.

With all that I also have never heard of a properly adjusted MCCT causing an issue.

So run whichever makes you sleep the best at night. Just do yourself and the bike a favor and stand it up before you start it. There is no need for a long warm up no matter how cold out. That is from the old air cooled days.
Letting it sit and "warm up" on the side stand is not doing your engine a favor. also on a new to you engine, replace the CCTs right away if it is fitted with ACCTs as you have no idea what the user before you has done which is also why you should check a MCCT before running a new to you engine again because you don't know what others have done.

Last edited by 8541Hawk; 01-26-2018 at 11:59 AM.
8541Hawk is offline
Old 01-27-2018, 12:53 PM
  #13
Senior Member
Back Marker

fabiostar's Avatar

Join Date: Jan 2017
Posts: 153
fabiostar is on a distinguished road
honda never upgraded them. they changed to colour of the paint dots but thats only a batch marking...

number of standard cct blow ups.......dozens that i know of.

number manual cct blow ups............im still waiting to see one..

you can make your mind up from that.
fabiostar is offline
Old 01-27-2018, 02:18 PM
  #14
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
Every failed ACCT I have seen is due to broken spring.
Springs have a service life under the best working conditions, X number of cycles and the spring will fracture and fail. The spring will work harden and fracture.
Add in surface rust from long periods of storage and big temp swings/ humid air..and that service life can go down.
Add in something that cause the spring to cycle more often then "normal" (perhaps the issue with long decel?) and it will work harden faster and fail faster.

It was mentioned that heat may be a factor.. I cant say its not, no research...I can say in general, the temp it would take to make spring steel brittle and then fracture is a lot hotter then the rest of the motor would handle I believe, So im just not thinking heat is a factor ..It might be,..no way i can say its not..... but if the engine was getting that hot, valve springs should be failing as well, engine overheating, pistons seizing as well. Out of curiosity, I went and let the two VTRs I have in the shop today, mine and a customers idle till fully warm, with no air flow over the engine, coolant temps fully hot...the front CCT was no hotter than anyplace else on the head other than right near the header flange. I was wondering if the front CCT was getting heated by the header, but it seems not in the two I just tried that on and measured with moth an IR temp gun and contact fluke temperature probe.
If your bored try reading chapter 14 "Elevated temperature failures" in "Understanding How Components Fail, 3rd Edition"
and from a coil spring manufacture
It only takes 400 degrees F to start annealing spring steel. When springs anneal, it’s steel begins to soften .
That was reference vehicle coil springs and may or may not apply to the type of steel used in the CCT coil spring

Point of all that....end of the day, the coil spring in the CCT has a service life...X number of cycles before the spring fails. How many? no idea, according to the OEM, there is no maintenance time frame or service interval for the CCT. implying it shod last the "life" of the motor, which...lol is kind of true, the motors life ends when the CCT fails.

Last edited by E.Marquez; 01-27-2018 at 02:30 PM.
E.Marquez is offline
Old 01-27-2018, 03:46 PM
  #15
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
The first question would be did you warm them up on the side-stand? Second would be did you monitor the temp while it was warming up or only after the thermostat opened?
Heat is the answer and there is an explanation and I would be happy to explain more if anyone is interested. There is also an answer to why the front is the one that usually fails.

It is all down to how the cooling system works, the water table and how "warming up" the bike on the side stand is the root cause. Also why even with MCCTs it is not good for your engine.

Now many say it is just a poor design which can fail at any time, to which I have to ask , why would someone like Roger D put them in all the VTR engines he built? Wouldn't he know if the design was faulty?
Also if they are so prone to failure for no reason, why would he send his own son out on the track with them?
8541Hawk is offline
Old 01-28-2018, 09:20 AM
  #16
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,464
Wolverine is on a distinguished road
Originally Posted by ProfChaos View Post
If you plan on installing modified cams or plan on modifying the valve-train in any way to improve performance, I would say that you might be better-off not to use manual CCT's at all, just to be safe.
I would like to ask if you realize you dug up an 8 year old question and are currently answering it?
Wolverine is offline
Old 01-28-2018, 11:51 AM
  #17
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
Originally Posted by ProfChaos View Post
Apparently in response to complaints related to engine failure, Honda eventually upgraded the initial cam chain tensioner ("tensioner lifter assembly") to the following part number which super-cedes the earlier version: https://www.partzilla.com/product/ho...0e1b7e71d493eb

A local Honda Parts Manager told me that Honda switched vendors for the tensioner (lifter assembly), and the gasket is different as well, to fit the new housing.
He is mistaken, Ive inspected, disassembled and measured ACCTs from a VTR built Jun 1997,, 2000, 2002, 2004, and a brand new one bought as a service replacement Dec 2017, confirmed it was sent in form the US distributer warehouse, to regional distro to selling dealer... So not NOS that had been on a shelf for years.
There is NO change in design..Source vender ? Sure, new PN yup, but the ACCT itself never changed in design that can be seen or measured obviously.

The cam profile, or valve type is completely non relative to the choice of CCT.. At to keeping the chains tensioned properly.
E.Marquez is offline
Old 01-30-2018, 07:54 PM
  #18
PNW Tour Guide
Squid

skifreak's Avatar

Join Date: Nov 2017
Posts: 33
skifreak is on a distinguished road
So, a possibly stupid question.

It seems to me that a properly functioning ACCT would apply correct spring pressure and therefore, correct tension on the cam chain in most all conditions, allowing for variables like sudden deceleration, cam chain stretch given time and heat, etc. In other words, if the ACCT is doing it's job, it adjusts to conditions appropriately. However, a MCCT applies only a given, set tension regardless of variables like sudden decel, heat, time, etc.

My question is, how often do you need to adjust the tension on a MCCT to keep it functioning appropriately? And, are they easy enough to reach that it can be done with a minimal of bike teardown to ease maintenance and eliminate proctastination? I imagine that an improperly adjusted or neglected MCCT would be just as injurious as a failing ACCT. I want to replace mine, but not sure how often to check them.

Also, what brand is the MCCT of choice?
skifreak is offline
Old 01-31-2018, 01:16 AM
  #19
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
"I imagine that an improperly adjusted or neglected MCCT would be just as injurious as a failing ACCT. I want to replace mine"

Re Manual. If too loose it will rattle, if too tight it will cause cams to squeal. It would be hard, nigh on impossible, unless very uncorrectly fitted in the first place to have a manual become loose enough to allow the cam chain to hop, skip or jump.

For peace of mind adjust at the same time as getting valves checked.

Depends where you are - Kreiger, APE, Bazza and Ade Whitmarsh's CCT's - VTR1000.ORG

Krieger is based in sunny USA > Krieger Cam Chain Tensioners or there are APEs
Wicky is offline
Old 01-31-2018, 06:02 AM
  #20
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
Originally Posted by skifreak View Post
My question is, how often do you need to adjust the tension on a MCCT to keep it functioning appropriately? And, are they easy enough to reach that it can be done with a minimal of bike teardown to ease maintenance and eliminate proctastination? I imagine that an improperly adjusted or neglected MCCT would be just as injurious as a failing ACCT. I want to replace mine, but not sure how often to check them.

Also, what brand is the MCCT of choice?
Actual use would indicate your concerns are not popping up as you theorize they might.

There is no need to tension the chain, the CCT is there to remove the excess slop, The MCCT once installed correctly is doing just that... In theory, it might need adjustment again as the chain, sprockets and chain guides wear, in reality Ive not had to readjust in 36,000 miles on one SH, and 22,000 miles on my other... Nor the dozen of SH and tens of dozens of other models I've installed manual CCTs on.

Where to get um? Well you can have um very cheaply on ebay, and hope they work out, you can get them moderately priced from Kreiger, APE, Bazza and Ade Whitmarsh's CCT's - VTR1000.ORG and know your getting a great product..I have these on one of my SH now. Or you can get them from APE and have the same thing as Kreiger's known quality...but at a bit more price for the design and trickery APE has put in them....are the APR's better for the money? Probably not in this application, but they are a nice bit of kit.. https://www.superhawkforum.com/forum...1&d=1517407117

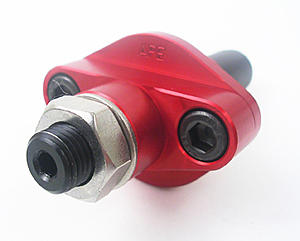

Attached Thumbnails 34k on my VTR how urgent is the  manual CCT-ht900-pro.jpg
E.Marquez is offline
Old 01-31-2018, 06:54 PM
  #21
PNW Tour Guide
Squid

skifreak's Avatar

Join Date: Nov 2017
Posts: 33
skifreak is on a distinguished road
Thanks for the info. I plan on swapping mine out since my bike still has the ACCT (not sure if they are original or have been replaced), and at their age, although currently working, I am not betting the life of my engine and valvetrain on them. I love the bike too much. Think I will order up some APE Pros or Kriegers

Of course, the real cure is that Honda should have fitted the VTR with gear driven cams. Oh the mechanical music...
skifreak is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
skycam
Modifications - Performance
12
08-24-2010 11:20 AM
Jens_denmark
Technical Discussion
2
07-23-2010 05:32 AM
Hawkrider
General Discussion
20
01-10-2007 12:54 PM
EngineNoO9
General Discussion
12
07-01-2006 09:13 AM
AZZKIKER
Technical Discussion
15
04-12-2005 09:04 PM


Thread Tools
Search this Thread
Quick Reply: 34k on my VTR how urgent is the manual CCT


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 01:53 PM.


© 2019 MH Sub I, LLC dba Internet Brands
