Velocity stack??
#1
Velocity stack??
I saw mention of velocity stacks on an older website speaking of Moriwaki parts.... Haven't seen any mention of these anywhere since and can't find them.....are they some oddball parts for hopped up carburetors and pod filters or something?
#3
G'day Brooks,
Moriwaki made those, and they were a bolt-on made specifically for the VTR. Revolution Racing in the UK is a contact for Moriwaki gear. I don't know of anyone in the US.
If your engine has a relatively standard state of tune, get longer stacks, rather then the short ones. If you have increased compression, cams etc etc then the shorter ones may be more suitable. Short ones on a stock engine don't work.
The theory is that it increases air speed and promotes more torque. As suggested by Scooberhawk, the cheap version is to geta nother rear stack from Honda and bolt it on the front. You have a long and a short one from standard, the rear being longer.
I have something similar to the Moriwaki long units on my bike. They are made in Australia by a mob called Hpower. A consequence of using these is that it promotes air speed, and you end up using smaller main jets. I am using 170 Keihin jets. The guy that designed the stacks had a full race engine that was runiing 182's. Just keep that in mind if you fit them.
Should give you a nice boost in the mid range.
Moriwaki made those, and they were a bolt-on made specifically for the VTR. Revolution Racing in the UK is a contact for Moriwaki gear. I don't know of anyone in the US.
If your engine has a relatively standard state of tune, get longer stacks, rather then the short ones. If you have increased compression, cams etc etc then the shorter ones may be more suitable. Short ones on a stock engine don't work.
The theory is that it increases air speed and promotes more torque. As suggested by Scooberhawk, the cheap version is to geta nother rear stack from Honda and bolt it on the front. You have a long and a short one from standard, the rear being longer.
I have something similar to the Moriwaki long units on my bike. They are made in Australia by a mob called Hpower. A consequence of using these is that it promotes air speed, and you end up using smaller main jets. I am using 170 Keihin jets. The guy that designed the stacks had a full race engine that was runiing 182's. Just keep that in mind if you fit them.
Should give you a nice boost in the mid range.
#6
G'day Brooks,
Moriwaki made those, and they were a bolt-on made specifically for the VTR. Revolution Racing in the UK is a contact for Moriwaki gear. I don't know of anyone in the US.
If your engine has a relatively standard state of tune, get longer stacks, rather then the short ones. If you have increased compression, cams etc etc then the shorter ones may be more suitable. Short ones on a stock engine don't work.
The theory is that it increases air speed and promotes more torque. As suggested by Scooberhawk, the cheap version is to geta nother rear stack from Honda and bolt it on the front. You have a long and a short one from standard, the rear being longer.
I have something similar to the Moriwaki long units on my bike. They are made in Australia by a mob called Hpower. A consequence of using these is that it promotes air speed, and you end up using smaller main jets. I am using 170 Keihin jets. The guy that designed the stacks had a full race engine that was runiing 182's. Just keep that in mind if you fit them.
Should give you a nice boost in the mid range.
Moriwaki made those, and they were a bolt-on made specifically for the VTR. Revolution Racing in the UK is a contact for Moriwaki gear. I don't know of anyone in the US.
If your engine has a relatively standard state of tune, get longer stacks, rather then the short ones. If you have increased compression, cams etc etc then the shorter ones may be more suitable. Short ones on a stock engine don't work.
The theory is that it increases air speed and promotes more torque. As suggested by Scooberhawk, the cheap version is to geta nother rear stack from Honda and bolt it on the front. You have a long and a short one from standard, the rear being longer.
I have something similar to the Moriwaki long units on my bike. They are made in Australia by a mob called Hpower. A consequence of using these is that it promotes air speed, and you end up using smaller main jets. I am using 170 Keihin jets. The guy that designed the stacks had a full race engine that was runiing 182's. Just keep that in mind if you fit them.
Should give you a nice boost in the mid range.
#7
HOLY CRAP guys.... Every time I tear into this bike, I realize the previous owner is more of an idiot. He had the velocity stacks (intake trumpets, same thing) on reversed! And managed to round out one of the bolts...
So after I plugged up all the holes in the airbox to the carbs PAIR etc, drilled and easy-outed the bolt, I reversed the stacks, installed the K+N and removed the rubber snorkel. Bike runs MUCH better.....one small flat-spot at 4-5k and then pulls like a bandit....louder too. The jetting must be fairly close already because it really doesn't have any driveability issues, and it's much colder than normal right now so it should get better when we get some warmer weather.
So after I plugged up all the holes in the airbox to the carbs PAIR etc, drilled and easy-outed the bolt, I reversed the stacks, installed the K+N and removed the rubber snorkel. Bike runs MUCH better.....one small flat-spot at 4-5k and then pulls like a bandit....louder too. The jetting must be fairly close already because it really doesn't have any driveability issues, and it's much colder than normal right now so it should get better when we get some warmer weather.
#8
So that is why. I was going to change it, but he reckons not.
#9
Yes, I had it dyno tuned and that is how it was done. I questioned as to whether the rear should be richer due to the cylinder running hotter and was told "no". This guy has a great reputation, does a lot of race stuff with twins.
So that is why. I was going to change it, but he reckons not.
So that is why. I was going to change it, but he reckons not.
#10
You make a good point.
The jetting thgeory with the VTR (and all twins I think) is that the rear cylinder runns hotter due to less airflow, and you run a bigger main jet to cool the combustion chamber down. This is not to be confused with the temp of the intake charge. This is what my dyno tuner disagreed with.
What you are suggesting could very well equalise the other settings such as needle shimming or position, and mixture screw position between each cylinder. It is reasonable to assume that with the same size stack it would make things more equal in this regard.
The jetting thgeory with the VTR (and all twins I think) is that the rear cylinder runns hotter due to less airflow, and you run a bigger main jet to cool the combustion chamber down. This is not to be confused with the temp of the intake charge. This is what my dyno tuner disagreed with.
What you are suggesting could very well equalise the other settings such as needle shimming or position, and mixture screw position between each cylinder. It is reasonable to assume that with the same size stack it would make things more equal in this regard.
#11
You make a good point.
The jetting thgeory with the VTR (and all twins I think) is that the rear cylinder runns hotter due to less airflow, and you run a bigger main jet to cool the combustion chamber down. This is not to be confused with the temp of the intake charge. This is what my dyno tuner disagreed with.
What you are suggesting could very well equalise the other settings such as needle shimming or position, and mixture screw position between each cylinder. It is reasonable to assume that with the same size stack it would make things more equal in this regard.
The jetting thgeory with the VTR (and all twins I think) is that the rear cylinder runns hotter due to less airflow, and you run a bigger main jet to cool the combustion chamber down. This is not to be confused with the temp of the intake charge. This is what my dyno tuner disagreed with.
What you are suggesting could very well equalise the other settings such as needle shimming or position, and mixture screw position between each cylinder. It is reasonable to assume that with the same size stack it would make things more equal in this regard.
#12
Another consequence of the different stacks is the effect on main jets. My stacks are billet ally, and the guy that designed them designed them on a flow bench. He had done a lot of development on the VTR, and found that the different stacks effected main jet sizes. Required main jets will be smaller when using his billet stacks. He had a full race motor that was using 182 keihin jets.
#13
rear cylinder temp and lean condition superhawk v twin
In reference to the rear cylinder running more rich to cool exhaust gas temperatures or egts. I find that using a laser temp gun is a good way to see the temp. differences from front to rear cylinder. At the time I am having issues trying to get the leaness out of my mixture. I have K & N filters and jaradine cans. I bought this bike at auction seems to run great however when I first got it, it hesitated when throttle was slammed. Upon disassembly I noticed it had stock jets 175 and 178 rear and someone had drilled a third hole in both front and rear slides. Also it looked like there were 2 small washers and a thinner one underneath the front needle and and 2 washers under the rear needle. I rejetted to 180 in the front and 185 rear took it to my friends smog shop and adjusted the mixture. The bike runs better and seems to have more power however later that evening at home I was reading the exhaust pipes temp. 2 inches from the cylinder noticed my rear cylinder was running 300 degrees hotter than my front cylinder. No matter how I adjusted the mixture of the front or rear the temperature was basically a 250-300 difference. Does anyone know if these exhaust gas temp. should be this far off?? Example front was 300 rear 620 degrees f. This seems too far off in my opinion- all readings were done at idle. Other than this 99 % of hesitation is gone but do get backfires every time when closing throttle abruptly but very little. Upon removal of spark plugs I noticed white ceramic insulater white in front cylinder and more white in rear cylinder. I have now decided to increase washers in front to 3 and 3.5 in the rear and am waiting for #48 pilots to come in so I can try this. Might get rid of my backfires and perhaps make it run a little less lean. Does any one have any advice??? Should I plug the drilled slide hole increase or shorten stacks?? Please let me know. thx.
#14
Worth a read regarding your jetting questions. The holes drilled in the slides is indicative of a Dynojet kit.
https://www.superhawkforum.com/forum...-set-up-24769/
As far as the cylinder temps, I've never taken the time to check the temp between cylinders.
You'll probably get lots of advice to ditch the K&N and go back to a stock filter, seems not too many have had good luck with them.
Hope this helps a little.
https://www.superhawkforum.com/forum...-set-up-24769/
As far as the cylinder temps, I've never taken the time to check the temp between cylinders.
You'll probably get lots of advice to ditch the K&N and go back to a stock filter, seems not too many have had good luck with them.
Hope this helps a little.
#15
Sexual Daredevil
SuperSport
Join Date: Sep 2005
Location: Mother Earth- orbiting around Charlotte, NC. But now over the border in S.C.
Posts: 597
Just wanted to chime in on my install of Dr.Honda's stacks. On my "Seat Of The Pants Dyno", I noticed an improvement. I would recommend them to anyone that would consider buying a set. I had them for a while and just now found the time to install them. Six spokers are the next mod on the way.
#16
What are six spokers and where can I get a set of Dr. Honda's Velocity stacks? I found a website that sell velocity stacks but besides the different heights, is there an actual difference?
A&L Motorsports. Superhawk Parts
Those are the stacks I was thinking about getting.
A&L Motorsports. Superhawk Parts
Those are the stacks I was thinking about getting.
#17

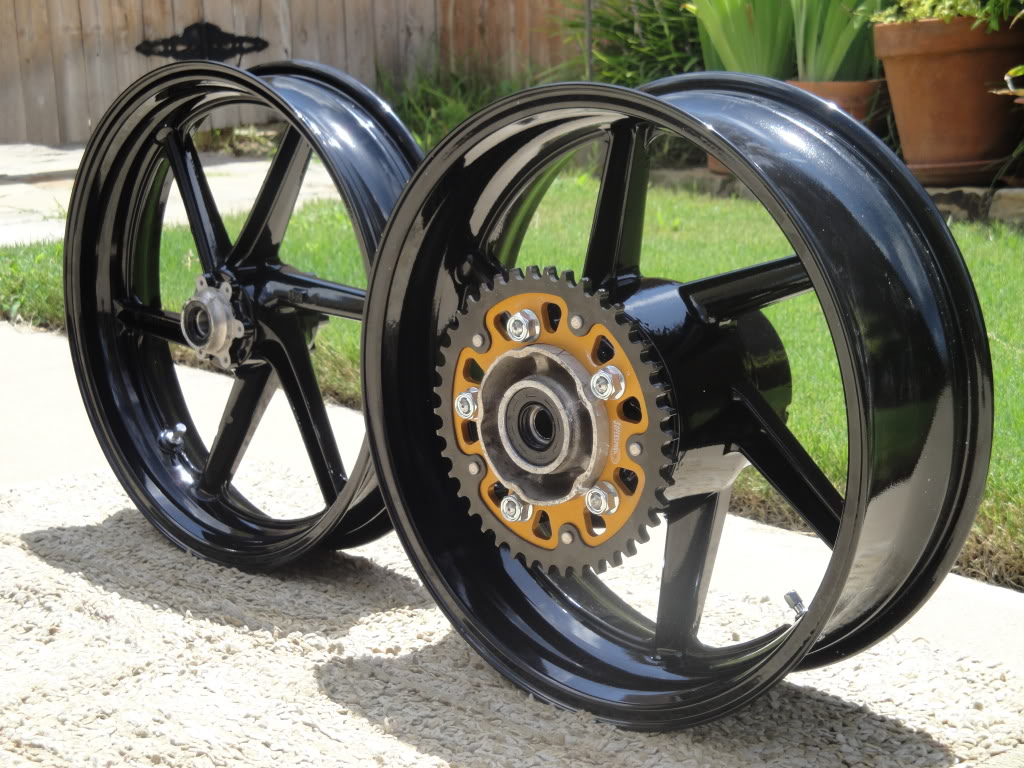

Six spokes.
As far as the velocity stacks, you'll have to ask Dr. Honda if he is interested in making more. Check this thread:
https://www.superhawkforum.com/forum...y-stack-26914/
Order here:
http://www.a-lmotorsports.com/Catego...awk-parts.aspx
As far as the velocity stacks, you'll have to ask Dr. Honda if he is interested in making more. Check this thread:
https://www.superhawkforum.com/forum...y-stack-26914/
Order here:
http://www.a-lmotorsports.com/Catego...awk-parts.aspx
Last edited by RWhisen; 05-15-2012 at 08:08 AM.
#18
i had 2 long honda velocity stacks. K&N filter, removed the rubber snorkel, completly gutted pair and vacuum, gutted the coolant to the carbs, carbs jetted the same front and back, and D&D slip on. and a few other little things, ot ran AMAZING and the K&N did fine. jetting and needle ended up not being exactly like the jet kit claimed they would, and the jet kit doesnt come with doubles so you can run the same main in both carbs. and i think i ended up one size larger on the mains then what was in the kit anyway...come to think of it, all i used out of the kit was the springs....
god i miss my hawk.
god i miss my hawk.
