RR wiring help please 07 zx6r>hawk

Old 05-06-2011, 11:26 AM
  #1
Senior Member
Back Marker
Thread Starter

20_rc51_00's Avatar

Join Date: Jul 2010
Posts: 218
20_rc51_00 is on a distinguished road
RR wiring help please 07 zx6r>hawk

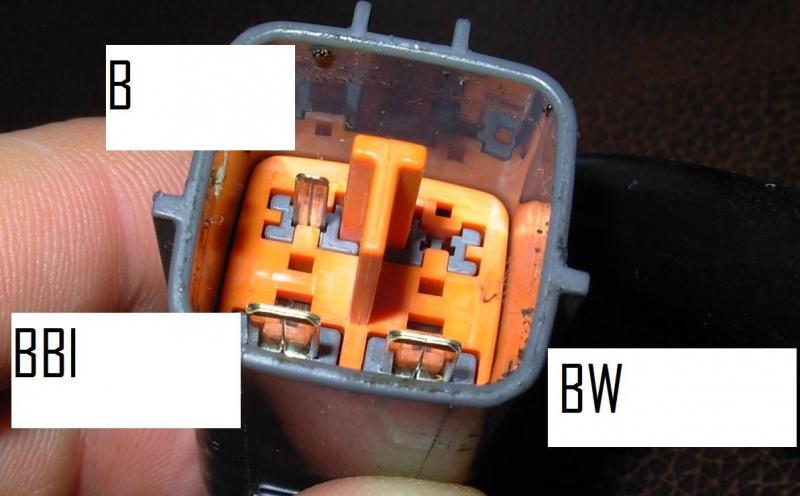

I folks I have a RR form a 07 zx6r that I need help wiring to the hawk. The 3 solid black wires are for the stator, that much I know. Do these need to be wired in a certain order?

The other 3 wires are as follows,
top righ- nothing
bollom right- BW
bottom left- BBl
top left- thin B

any ideas how to wires these to the hawk?

thanks!
Attached Thumbnails RR wiring help please 07 zx6r>hawk-dscn3875paint.jpg

Last edited by 20_rc51_00; 05-06-2011 at 11:28 AM.
20_rc51_00 is offline
Old 05-06-2011, 08:41 PM
  #2
Senior Member
Back Marker
Thread Starter

20_rc51_00's Avatar

Join Date: Jul 2010
Posts: 218
20_rc51_00 is on a distinguished road
I managed to find a service manual

here is the wiring diagram of the zx6r

so can I leave the thin BK wire unconnected?

Thanks.
Name:  zx6r1.jpg
Views: 156
Size:  178.9 KB

Name:  zx6r2.jpg
Views: 149
Size:  185.1 KB

Last edited by 20_rc51_00; 05-06-2011 at 08:50 PM.
20_rc51_00 is offline
Old 05-07-2011, 12:28 AM
  #3
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Yep, leave it unconnected... It's there because the anti-theft "disables" the stator on the Kawi... Ie don't hook it up on the VTR... But make sure to seal it nicely... Prefferably shrinktube with glue...
Tweety is offline
Old 05-07-2011, 07:53 AM
  #4
Senior Member
Back Marker
Thread Starter

20_rc51_00's Avatar

Join Date: Jul 2010
Posts: 218
20_rc51_00 is on a distinguished road
thanks tweety, I appreciate the help!

The 3 wires from the stator do not need any specific order for attachment, correct?

Last edited by 20_rc51_00; 05-07-2011 at 07:58 AM.
20_rc51_00 is offline
Old 05-07-2011, 08:10 AM
  #5
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by 20_rc51_00 View Post
thanks tweety, I appreciate the help!

The 3 wires from the stator do not need any specific order for attachment, correct?
Asolutely correct, no order what-so-ever...
Tweety is offline
Old 05-07-2011, 02:57 PM
  #6
Senior Member
Back Marker
Thread Starter

20_rc51_00's Avatar

Join Date: Jul 2010
Posts: 218
20_rc51_00 is on a distinguished road
Originally Posted by Tweety View Post
Asolutely correct, no order what-so-ever...
thanks again
20_rc51_00 is offline
