Flo-Commander, to do or not to do

I started doing some research on the Flo-Commander for my Superhawk and I would like to hear from those members that are running this setup what their thoughts are as far as performance, setup, etc.

I found that the Flo-Commander site lists the unit at $134.00 whereas Exotic Bike is selling it for $119.00. There is also an on the fly adjustment that gets mounted near/on the steering yoke that cost $88.00.

Anyway, I am interested in hearing from members that are using this and the pros and cons of the unit.
reaper is offline
Old 06-24-2009, 07:55 AM
  #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Hi Patrick,

I have been running one for five years now and have nothing but good things to say about it. Its greatest asset is that it allows jetting to be changed at the turn of a screw. I personally would not buy the remote adjuster as you would likely never use it anyhow (given that it takes all of about ten seconds to pull over adn effect a change anyhow).
Also, I would like to add that he installation instructions are clear and easy to use and are actually specific to the VTR (imagine that!).
mikstr is offline
Old 06-24-2009, 08:46 AM
  #3
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Mikstr can you upload some pictures showing where you located the adjuster?
reaper is offline
Old 06-24-2009, 09:06 AM
  #4
Senior Member
Superstock

skoshere's Avatar

Join Date: Oct 2008
Location: Muskego,WI
Posts: 388
skoshere is on a distinguished road
So does this unit act as jetting or is a companion to the actually act of jetting the carbs?
skoshere is offline
Old 06-24-2009, 09:34 AM
  #5
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
+1 I would like some more info on the setup too. I am intrigued.
Little_Horse is offline
Old 06-24-2009, 09:41 AM
  #6
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
You guys are gojng to force me to take some shots!!! Bastiges! IN the interim, the screw is accessible through a hole in the clutch side of the airbox, directly under where the tank arcs upward to expose the side of the box underneath (hole in the side of the box is sealed with a grommet to help preserve the seal)

In so far as the workings of the F-C, the manufacturer's site (www.flo-commander.com) does a good job at explaining how it works.
mikstr is offline
Old 06-24-2009, 09:50 AM
  #7
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
so, did it improve mpg's too or did they stay about the same for you?
Little_Horse is offline
Old 06-24-2009, 09:50 AM
  #8
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road

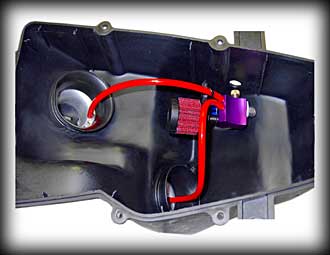

It looks a lot like this (taken from the mfrs's WEb site; pic is for an Aprilia RS250) although on the VTR the tubing runs outside of the velocity stacks. Hope this helps.
Attached Thumbnails Flo-Commander, to do or not to do-rs250web.jpg
mikstr is offline
Old 06-24-2009, 10:03 AM
  #9
Senior Member
SuperBike

killer5280's Avatar

Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,802
killer5280 is on a distinguished road

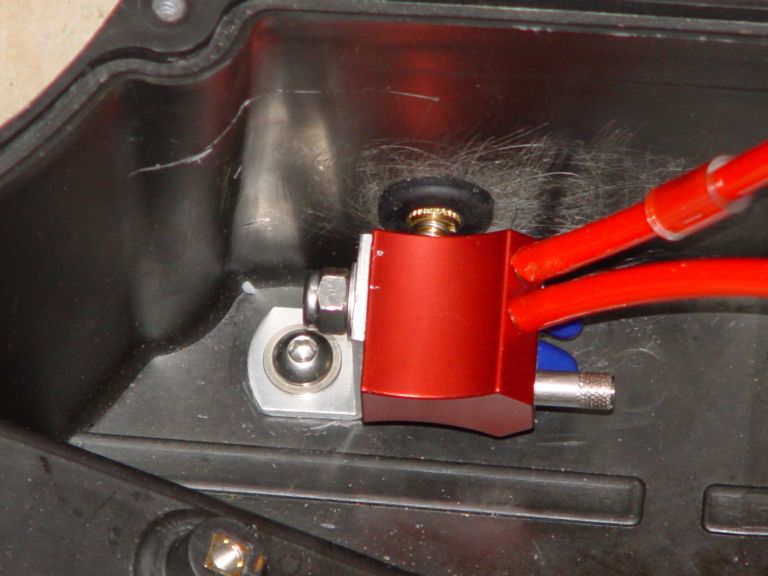

I don't know that I would do it again. I think it's a useful tool and can compensate somewhat for atmospheric changes, but it's not a substitute or alternative for proper jetting.
Attached Thumbnails Flo-Commander, to do or not to do-dsc04344.jpg   Flo-Commander, to do or not to do-dsc04343.jpg   Flo-Commander, to do or not to do-dsc04335.jpg   Flo-Commander, to do or not to do-dsc04326.jpg
killer5280 is offline
Old 06-24-2009, 12:17 PM
  #10
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Here is a picture of the Superhawk setup

Flo-Commander, to do or not to do-vtr1000.jpg

It can be viewed at, http://www.flo-commander.com/

Here is the write-up on how the Flo-Commander works:

General Technical Information
When most any carburetor is being designed the first time, one of the most complicated areas to make work correctly is the transitional areas, where the carbs are trying to deliver a smooth power/ fuel curve area as the rpm`s go from the pilot to the mid circuit, then the mid to the main or top end circuit. This is where most of the stumbling and dead spots occur that make the power drop or be erratic. The other big issue is keeping the carbs synchronized after you leave the idle area and bring the rpm up, (ever watch your synchronization gauge after bring up the rpm`s, even after having them all even at idle?)
Also air moving around in the air box, gives different pressures to each of the four carbs , causing them to run way out of synchronization, resulting in inconsistent, uneven, erratic power.
The Flo-Commander takes all fuel air circuits, from the MAIN AIR JET LOCATION, (via our tubing adapters, and tubing), and routes them all into one location, so that each carb gets exactly the same amount of air all the time. The result is much smoother transition areas I previously talked about as well as all other areas being enhanced as well. The icing on the cake is being able to adjust the amount of air you are letting into the system, thus you can meter the air/fuel mixture, from one location, without doing anything to the carbs. And the system can even be installed without having to go into or removing the carbs at all, under normal circumstances.


The Flo-Commander ties/blends each of the carburetor's fuel to air mixtures to one, Thus eliminating the results of uneven air pressures around the carb air jets causing the multiple fuel/air mixtures of the diff. carbs to thus be much better synchronized through-out the entire RPM range (approx. 3000 to red-line or 1/16 - 1/8 throttle position to W.O.T.) instead of just at idle. You adjust the fuel/air mixture of all the carbs at once by adjusting the thumbscrew to add or limit the air going into the main circuit. The carbs in which we remove the main air-jet to install the tubing adapter have a carefully sized and shaped restriction inside the tubing adapter. We use this, and use the same restrictions already in place (on the carbs we just press the adapter down over the air-jet), to ensure that even if the flo-com. adjustment is opened way up it won't be dangerously lean. When opening it all the way, it does allow a certain amount more air through (to go slightly leaner in the mixture) because even though the restriction is the same size, the other effects such as air velocity & flow, in the tubing, allow / enable it. You then have a more broad range of adjustment.
The first sought after, and now acquired goal, is smoother circuit-to-circuit transition areas, as well as much better synchronization. The next sought after and acquired goal is being able to adjust (to a certain degree) multiple carburetors from one point.
End result; more TQ & HP, a more smooth and predictable power curve, convenience of tuning, the flo-c. will aid in determining where your jet size should be, if you make radical engine mods, while allowing the finer adjusting to be done with the unit itself. How much power you gain will vary , but, we have seen averages of 2 or 3 in a few areas, up to 10 or 12 and higher in others. An over all average gain in a particular situation, as long as the installer of the Flo-Commander at least average skills as far as a conscientious mechanic, and (DEPENDING ON WHAT WORK HAS ALREADY BEEN DONE & HOW CORRECTLY IT WAS DONE) has been somewhere between 4 & 6 hp , and so importantly a MUCH SMOOTHER application of that power.

Jet Kit info
This is covered in the instructions that come with your F.C. system as well.
If have installed a “Dyno-Jet” Jet Kit, you may have a plug or restrictor in the main air passage. This is a list we have compiled so you will have an idea if you will need to remove a plug or restrictor so the passage can be used to it’s original flow potential again. You will be able to set up the Flo-Commander w/no problem, no matter what jet kit brand or type you may have installed. The list here is handy, as it will tell you if you should purchase our handy super time saver Plug/Restrictor Removal system. You can remove them without the system, but the few bucks for the system is well worth it even if you only ever use it once. They are just a convenience we offer to you. If you have another brand/type Jet Kit, the passage is most likely not plugged or restricted. As a “rule of thumb” if you are removing a restrictor, and the jetting was “Right On”, you can go up just one size on the main jets, to bring the mixture back into a neutral position, and fine tune with the F.C. If you remove a plug, you can go up 1 or 2 sizes with the mains and fine tune with the F.C. These are basic settings/suggestions. You could make up the difference with just the F.C., but because you would be closing it substantially to get the mixture back rich enough, you wouldn’t be getting as much of a synchronization effect, as you would not be allowing the circuit to be utilized as much.
Many times though we have found that the Jet system installer, did not put the plugs or restrictors in anyway, in which case it’s an extra easy install.

Corrector/Restrictor
mean the same thing below.
VTR 1000 97 – 03 stage 1 n/a
reaper is offline
Old 06-24-2009, 12:32 PM
  #11
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
Originally Posted by killer5280
I don't know that I would do it again. I think it's a useful tool and can compensate somewhat for atmospheric changes, but it's not a substitute or alternative for proper jetting.
Killer:

What kind of performance improvement did the Flo-Commander have on your bike?
reaper is offline
Old 06-24-2009, 02:55 PM
  #12
Senior Member
SuperSport

Stevebis1's Avatar

Join Date: Sep 2008
Location: Delmar NY
Posts: 805
Stevebis1 is on a distinguished road
I was going to start this thread myself - thanks reaper.
I have read the flo-commander site, but I think I'm a bit slow on this topic. I thought I had a rough grasp of jetting, but I always thought in terms of fuel control, not air control. This item seems to control the air side.
The sight also indicates that the jetting needs to be close - and then the flow commander would help fine tune. Yet Mikstr indicates that his adjustments may have covered the range of several jet sizes. Then Killer comes on and states it is a very minor adjustment.
Is it worth it? Will it shortcut potential iterative jetting steps?
Stevebis1 is offline
Old 06-24-2009, 03:18 PM
  #13
Reb
Junior Member
Squid

Reb's Avatar

Join Date: May 2007
Posts: 18
Reb is on a distinguished road
I've had the Flo Commander installed for about 2 yrs. An easy job, took about 30 minutes with a drill and screwdriver. I set up as per the instructions and headed off for a dyno run. 1st run 105.3hp with the a/f ratio way lean. Aquick turn of the screw and 2nd run 108.7hp with a marked improvement in a/f ratio. Unfortunately the dyno crapped out at that stage, thus no more runs, but that will give a good idea how easy it is to find/fine tune power with the Flo Commander.
In effect it has the same result as raising or lowering the needles, and to a lesser extent changing main jets, but without the hassle of pulling the carbs down. Highly recommended.
Reb is offline
Old 06-24-2009, 03:48 PM
  #14
RK1
Senior Member
MotoGP

RK1's Avatar

Join Date: Aug 2007
Location: Way Out West
Posts: 2,547
RK1 is on a distinguished road
I've got no experience with the Flo Commander but one thing I'd take note of if I've read their website correctly;

To get any value from the Flo Commander your bike has to be jetted at least slightly lean in the first place. It can enrich the mixture if you're jetted lean but if your bike is running rich already it can only make it richer.

So you can leave the carbs alone if you're lean already but otherwise would need to pull them and rejet before installing the thing.
RK1 is offline
Old 06-24-2009, 04:50 PM
  #15
Senior Member
Superstock

cameron's Avatar

Join Date: Nov 2008
Location: texas
Posts: 286
cameron is on a distinguished road
Originally Posted by RK1
I've got no experience with the Flo Commander but one thing I'd take note of if I've read their website correctly;

To get any value from the Flo Commander your bike has to be jetted at least slightly lean in the first place. It can enrich the mixture if you're jetted lean but if your bike is running rich already it can only make it richer.

So you can leave the carbs alone if you're lean already but otherwise would need to pull them and rejet before installing the thing.

sounds right to me. i have the dynojet kit, k&n air filter and couldnt be happier.my yoshies burnned in a golden brown so i figgured its running pretty close to "right on". so dumping more gas, and less air into the mix wouldnt help much and probally just cost me mpg? now if i could get a huge hp increase then id be all over this.
cameron is offline
Old 06-24-2009, 05:09 PM
  #16
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
You can also make it leaner (turn the screw counterclockwise).
mikstr is offline
Old 06-24-2009, 07:27 PM
  #17
Senior Member
Back Marker

MOONSTER's Avatar

Join Date: Apr 2009
Location: San Antonio, Tx.
Posts: 181
MOONSTER is on a distinguished road
So, does the fuel commander kit for the hawk come with the diffuser they talk about? Or is this additional. Really like the sound of this system, as it would allow me to quickly retune, depending which set up i selected on my Blueflame Evo cans.
MOONSTER is offline
Old 06-24-2009, 08:02 PM
  #18
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Diffuser is extra
mikstr is offline
Old 06-25-2009, 08:02 AM
  #19
Senior Member
SuperBike

killer5280's Avatar

Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,802
killer5280 is on a distinguished road
Originally Posted by RK1
I've got no experience with the Flo Commander but one thing I'd take note of if I've read their website correctly;

To get any value from the Flo Commander your bike has to be jetted at least slightly lean in the first place. It can enrich the mixture if you're jetted lean but if your bike is running rich already it can only make it richer.

So you can leave the carbs alone if you're lean already but otherwise would need to pull them and rejet before installing the thing.
It ties together the main air circuits and syncs the carbs that way. According to Flo-Commander 3 turns out on the mixture screw is roughly equivalent to not having it in the system. Further out on the screw is leaner and further in is richer, so you can definitely lean it out. Experimentation bears this out. Ultimate wide open throttle mixture is still determined by the main jet.
killer5280 is offline
Old 06-25-2009, 08:20 AM
  #20
RK1
Senior Member
MotoGP

RK1's Avatar

Join Date: Aug 2007
Location: Way Out West
Posts: 2,547
RK1 is on a distinguished road
Originally Posted by killer5280
It ties together the main air circuits and syncs the carbs that way. According to Flo-Commander 3 turns out on the mixture screw is roughly equivalent to not having it in the system. Further out on the screw is leaner and further in is richer, so you can definitely lean it out. Experimentation bears this out. Ultimate wide open throttle mixture is still determined by the main jet.
OK then. I thought I'd read that in some cases they recommended smaller main jets. Maybe that was for an earlier version of the thing.
RK1 is offline
Old 06-25-2009, 08:44 AM
  #21
Senior Member
SuperBike

killer5280's Avatar

Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,802
killer5280 is on a distinguished road
Originally Posted by reaper
Killer:

What kind of performance improvement did the Flo-Commander have on your bike?
I think I did see an improvement of 1 hp or so throughout the rev range. I posted dyno charts on the forum at the time.
Like I said, it is a useful tool and certainly has some benefits, but the bike still needs to be jetted. Now that I have my jetting pretty much where I like it I rarely adjust the Flo Commander, although I do make fine adjustments depending on weather or altitude.
killer5280 is offline
Old 06-25-2009, 10:50 AM
  #22
Senior Member
Superstock

salmanilla2000's Avatar

Join Date: Jul 2008
Posts: 344
salmanilla2000 is on a distinguished road
Pilot Air-Jet Circuit

Anyone have this add-on to their FC?


A New Addition Many have been asking if the Flo-Commander will work with the pilot circuit as well as it does with the main circuit, and do we have the parts to fabricate a set-up for it as well. Well, the answer now is yes to both questions. This arrangement enhances operation at idle as well as throttle response from a closed, or a slightly open position. Many times as you close the throttle upon entering a corner, then start to crack open the throttle there is a lag then a sudden hit of power, (which has been the cause of more high-sides than many racers want to remember). This is evident/noticeable on race engines where this area (from closed to 1/16th or 1/8th open throttle) ), has been given little tuning time, or just can't be tuned well using normal methods, due to many different reasons. This is common with many Flat-Slide type set-ups, as well as stock carbs which are many times very lean at idle, and at a "just cracked open position". With the stock set-ups, the problem is not usually enough of a problem to be noticeable or to be concerned with. The idle mixture screws will usually take care of a lot of that area. However , the Flo-Commander system set up with this circuit enhances throttle response from the closed throttle & "just cracked open position", and increases power thru better synchronization. Due to the fact that with most o.e.m carbs, the pilot circuit uses fairly large air restrictions, and the fact that at part throttle, precise synchronization really makes a difference. As your throttle position opens further, into the main circuit, your other Flo-Commander will take care of the mixture and synchronization from there to W.O.T. or red line. On a street Sportbike, when you are cruising at a lower part throttle position, say up to 3500 or so, the Flo-Commander set up on the pilot system will solve many tuning problems, which make the engine run rough or surge there. Again, our system on the main circuit is the best for overall improvement, but if need be, a set-up on the pilot system can be a great plus as well.
salmanilla2000 is offline
Old 06-25-2009, 02:02 PM
  #23
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
I spoke to the chap who builds them and he said the pilot system is not necessary for the VTR.
mikstr is offline
Old 06-25-2009, 10:07 PM
  #24
Senior Member
SuperSport
Thread Starter

reaper's Avatar

Join Date: Aug 2007
Location: Eagle, ID.
Posts: 599
reaper is on a distinguished road
The Flo-Commander ties/blends each of the carburetor's fuel to air mixtures to one, Thus eliminating the results of uneven air pressures around the carb air jets causing the multiple fuel/air mixtures of the diff. carbs to thus be much better synchronized through-out the entire RPM range (approx. 3000 to red-line or 1/16 - 1/8 throttle position to W.O.T.) instead of just at idle. You adjust the fuel/air mixture of all the carbs at once by adjusting the thumbscrew to add or limit the air going into the main circuit. The carbs in which we remove the main air-jet to install the tubing adapter have a carefully sized and shaped restriction inside the tubing adapter. We use this, and use the same restrictions already in place (on the carbs we just press the adapter down over the air-jet), to ensure that even if the flo-com. adjustment is opened way up it won't be dangerously lean. When opening it all the way, it does allow a certain amount more air through (to go slightly leaner in the mixture) because even though the restriction is the same size, the other effects such as air velocity & flow, in the tubing, allow / enable it. You then have a more broad range of adjustment.
The first sought after, and now acquired goal, is smoother circuit-to-circuit transition areas, as well as much better synchronization. The next sought after and acquired goal is being able to adjust (to a certain degree) multiple carburetors from one point.
This passage is so what confusing when considering the Superhawk because the rear cylinder jetting is richer than the front cylinder due to a decreased air flow around the rear cylinder head. So if the air flow is blended would the rear carburetor run leaner or richer?

Also, it mentions better synchronization of the carburetors using the Flo-Commander. So does this mean that the gauge will read the same when the carbs are synchronized at idle or 4K rpm? I typically synch mine at 4K.

I do not find a great deal of clarity in this write-up for this product. Maybe someone can shed some additional light on this topic.
reaper is offline
Old 06-27-2009, 08:08 AM
  #25
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by reaper
This passage is so what confusing when considering the Superhawk because the rear cylinder jetting is richer than the front cylinder due to a decreased air flow around the rear cylinder head. So if the air flow is blended would the rear carburetor run leaner or richer?

Also, it mentions better synchronization of the carburetors using the Flo-Commander. So does this mean that the gauge will read the same when the carbs are synchronized at idle or 4K rpm? I typically synch mine at 4K.

I do not find a great deal of clarity in this write-up for this product. Maybe someone can shed some additional light on this topic.
You guy's are making this more complicated than it is... I don't own one... but I have some experience tuning with carbs on a dyno...

The Flo-commander is NOT a substitute for jetting... It's a fine tune for the jetting that is in place... It's that simple...

The jetting that is done is still what affects how the bike runs, this means since the rear is naturally richer (because of heat issues) and therefore jetted for this, what the FC does is to even out the difference that the airbox turbulence creates... Nothing else... If you make the setting richer with the FC it goes richer for both, same for leaner...

This means that the balance between the front and rear cylinder is unchanged as far as jetting goes... But, you might find that you need to adjust the balance as the airflow in the carbs is evened out... Ie you might find that you can't get both cylinders to optimum unless you re-jet one cylinder...

Same for the synchronisation... It still works the same as without the FC... If you sync at idle it's dead even there but drifts more and more the further away you get, that's why some sync at 4K to compensate, as this is where you wan't them sync'ed for the midrange... The FC reduces the drift, but doesn't cancel it out completely... Altough I think it could come very close to canceling it out in the whole midrange like they advertise...

In terms of how much you can adjust, they claim it's able to adjust about one jet size either way... Ie if you are on the right jet size you can then fine tune... If you are one size or more of, adjusting the FC to one end will produce noticable gains and you can then figure out which way you need to move with the jetting...

So you still jet your carbs the same, sync your carbs the same and adjust you idle and what not the same...

But once you have the FC in place and those other things dialed in, and a basic jetting in place, you can adjust both carbs from one point and fiddle around to figure out if you need a re-jet without going on a dyno... Or adjust for the weather... Or once you have it setup, go get that dyno-tune and have them fine tune it to the max instead of paying several hours worth of basic setup to figure out what jet is needed...

Last edited by Tweety; 06-27-2009 at 08:16 AM.
Tweety is offline
Old 07-02-2009, 02:06 PM
  #26
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 834
thetophatflash is an unknown quantity at this point
Installed a Flo Commander today. Test results in the neutral position (3 turns out) are very good. Much better throttle response off idle and low rpm. Seems to be smoother on deceleration, also.
thetophatflash is offline
Old 08-17-2009, 12:27 PM
  #27
Senior Member
SuperBike

uchi's Avatar

Join Date: Aug 2009
Location: thorold ontario
Posts: 1,978
uchi is on a distinguished road
this is great info. im running a little on the lean side, random pops and stalls from time to time when i come to a stop. so i think i might give this a go and see if it makes a difference for me. im glad to see that theres something this cool for the vtr.

but has anyone looked into how this thing works? im sure that its something that can be fabbed up for a few bucks. kinda like a home made manual boost controller for a turbo setup can be made for few bucks vs buying an expensive unit.
uchi is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
20_rc51_00
Modifications - Performance
5
12-28-2010 09:35 PM
uchi
Modifications - Performance
25
12-28-2010 05:57 PM
Stevebis1
Modifications - Performance
14
07-12-2010 04:01 PM
SuperHawkins
Technical Discussion
2
02-02-2007 03:28 PM
killer5280
Modifications - Performance
31
04-10-2006 09:45 AM



Quick Reply: Flo-Commander, to do or not to do



All times are GMT -7. The time now is 10:08 AM.


Top

© 2024 MH Sub I, LLC dba Internet Brands



When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
