RC51 (SP2) rear end swap
Junior Member
Squid
Joined: Jul 2005
Posts: 19
Very nice work!!!
M
M
The measurements that I took are free to use, free to spread around... If you make and sell those, I'm fine with that as long as it's on "self-cost" basis... Ie cost of production & shipping and round it of at the top, not high profit...
But it should be noted that the dimensions are not going to work very well with a stock VTR shock or an aftermarked shock with stock length... For one, the rear will point very high in the sky... And two, the linkage needs a slightly softer shock setting than stock to work optimally...
You need either an aftermarket shock with adjustable length or like me a rebuilt F4i shock with an adjustable clevis mount... I'll gladly provide all basic information needed to build that...
But like the information I gave Gaggenau, I give the basic measurements and an idea... The final shape and form is up to you to figure out... If you have the know-how it's "easy"... If you haven't got a clue, well... Then you are likely to hurt yourself if you get to much help building it... That's how I look at things...
But it should be noted that the dimensions are not going to work very well with a stock VTR shock or an aftermarked shock with stock length... For one, the rear will point very high in the sky... And two, the linkage needs a slightly softer shock setting than stock to work optimally...
You need either an aftermarket shock with adjustable length or like me a rebuilt F4i shock with an adjustable clevis mount... I'll gladly provide all basic information needed to build that...
But like the information I gave Gaggenau, I give the basic measurements and an idea... The final shape and form is up to you to figure out... If you have the know-how it's "easy"... If you haven't got a clue, well... Then you are likely to hurt yourself if you get to much help building it... That's how I look at things...
Thread Starter
Member
Squid
Joined: Nov 2009
Posts: 77
From: Lowestoft UK
Update, took delivery of the 2 into 1 exhaust system yesterday, fitted it, sounds absolutly mental
Gona have to get the jetting set up as no doubt it will run like an absolute pig.
And the CBR900 6 spoke wheel well chuffed i found this, firestorm discs and spacers all fit to make this a direct bolt in, and its 17" which is mega rare, plenty of 16" kicking about.
Gona have to get the jetting set up as no doubt it will run like an absolute pig.And the CBR900 6 spoke wheel
well chuffed i found this, firestorm discs and spacers all fit to make this a direct bolt in, and its 17" which is mega rare, plenty of 16" kicking about.
Out of my mind, back in 5
MotoGP
Joined: Nov 2006
Posts: 6,109
From: Skurup, Sweden
If what you are reffering to is changing the link Gaggenau/I have made and using it with the stock length shock, then it's not going to happen, since the problem would then be that the link would be impossible to manufacture, and the geometry wouldn't work... This is because the stock shocks is to long, the bottom end needs to sit lower than the current to fit, ie you can either move the mount down with the longer shock, and get a high rear and need a much softer spring than stock to make that new geometry work... Or you can use the geometry that works with a shorter shock...
Thread Starter
Member
Squid
Joined: Nov 2009
Posts: 77
From: Lowestoft UK
The hole dimmestions have been freely posted by Tweety on the forum, I think that are in this thread, designing ur own isnt that hard, I have put some dimms for spacings for the engine tie bar and shock.
On another note, today I had been looking thorugh my local Honda dealers website that list bike parts for bikes, I could not find a CBR900/929/954 that has a 6 spoke 17" front wheel, only 16", so I think that the wheel is an SP1 front wheel, as they had 6 spoke 17" front wheels.
Thread Starter
Member
Squid
Joined: Nov 2009
Posts: 77
From: Lowestoft UK

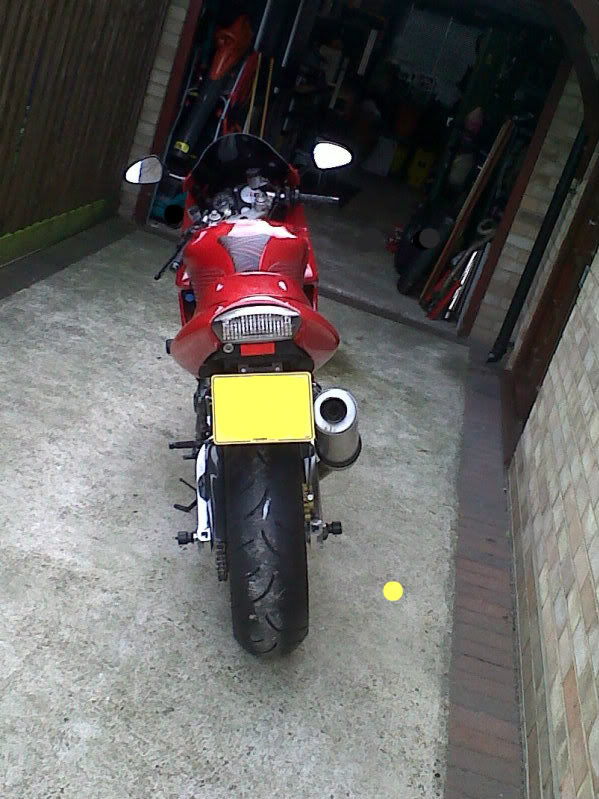

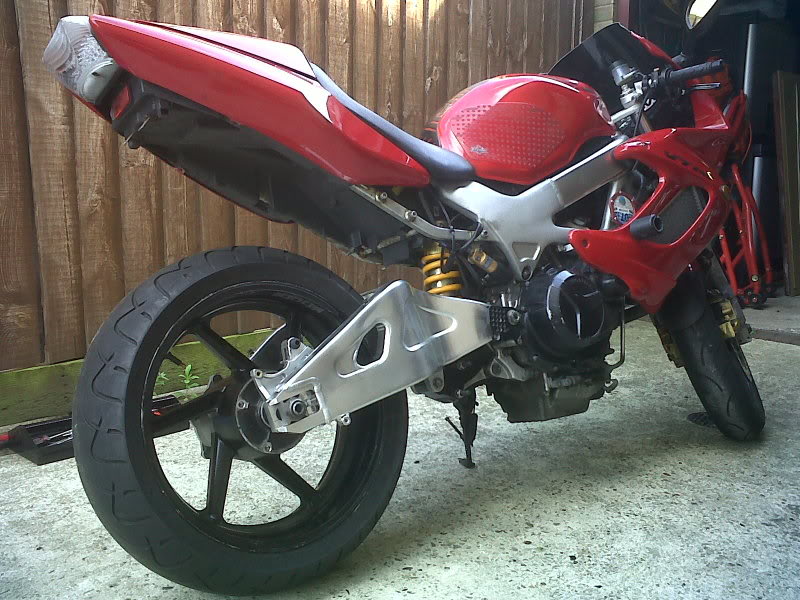

Well i have finished it ...well for now!
Just got to get the suspension sorted as the rear is rock hard, but from the little ride i had today, its running ok, no immediate signes of reduced power due to the 2 into 1 exhaust, roll on the summer
...well for now!Just got to get the suspension sorted as the rear is rock hard, but from the little ride i had today, its running ok, no immediate signes of reduced power due to the 2 into 1 exhaust, roll on the summer
Junior Member
Squid
Joined: Apr 2011
Posts: 24
Out of my mind, back in 5
MotoGP
Joined: Nov 2006
Posts: 6,109
From: Skurup, Sweden
Well, since I was the one doing it initially I'll but in... I personally wanted a tad longer swingarm and higher rear, which this easily produces... It moves the weight forward, less wheelie prone bike, more stable through corners... Combined with a sorted fork, the much stiffer rear, and altered geometry makes the bike corner like it's on rails...
You can get similar results from a braced stock swingarm and sorted damper... But that's about the same amount of work, all parts of it together...
You can get similar results from a braced stock swingarm and sorted damper... But that's about the same amount of work, all parts of it together...
Junior Member
Squid
Joined: Sep 2019
Posts: 4
This is the fitting in to the swing arm, it looks tight but its moves freely
Attachment 27100
Attachment 27101
Here is the weight of the new part (no bearings) compared to the SP linkage (bearings fitted)
Attachment 27102
Attachment 27103
Here are some of the other bits i have, Swing arm, SP1 6 spoke wheel,, caliper and NWS carbon hugger
Attachment 27103
Attachment 27105
Just got to get a speocket carrier and spacer, and bearings for the new linkage, will be using stock honda ones from the SP linkage
Attachment 27100
Attachment 27101
Here is the weight of the new part (no bearings) compared to the SP linkage (bearings fitted)
Attachment 27102
Attachment 27103
Here are some of the other bits i have, Swing arm, SP1 6 spoke wheel,, caliper and NWS carbon hugger
Attachment 27103
Attachment 27105
Just got to get a speocket carrier and spacer, and bearings for the new linkage, will be using stock honda ones from the SP linkage
How did the road testing go?
Any chance of PMing me the CAD file?
Thankyou.
