SuperHawk goes naked

Hi all!
I decided to do a proper thread on this one. I will try to mention all the mods chronologically as the work is still in process and every year I have a slightly different set up.

First year most of the mods were done.

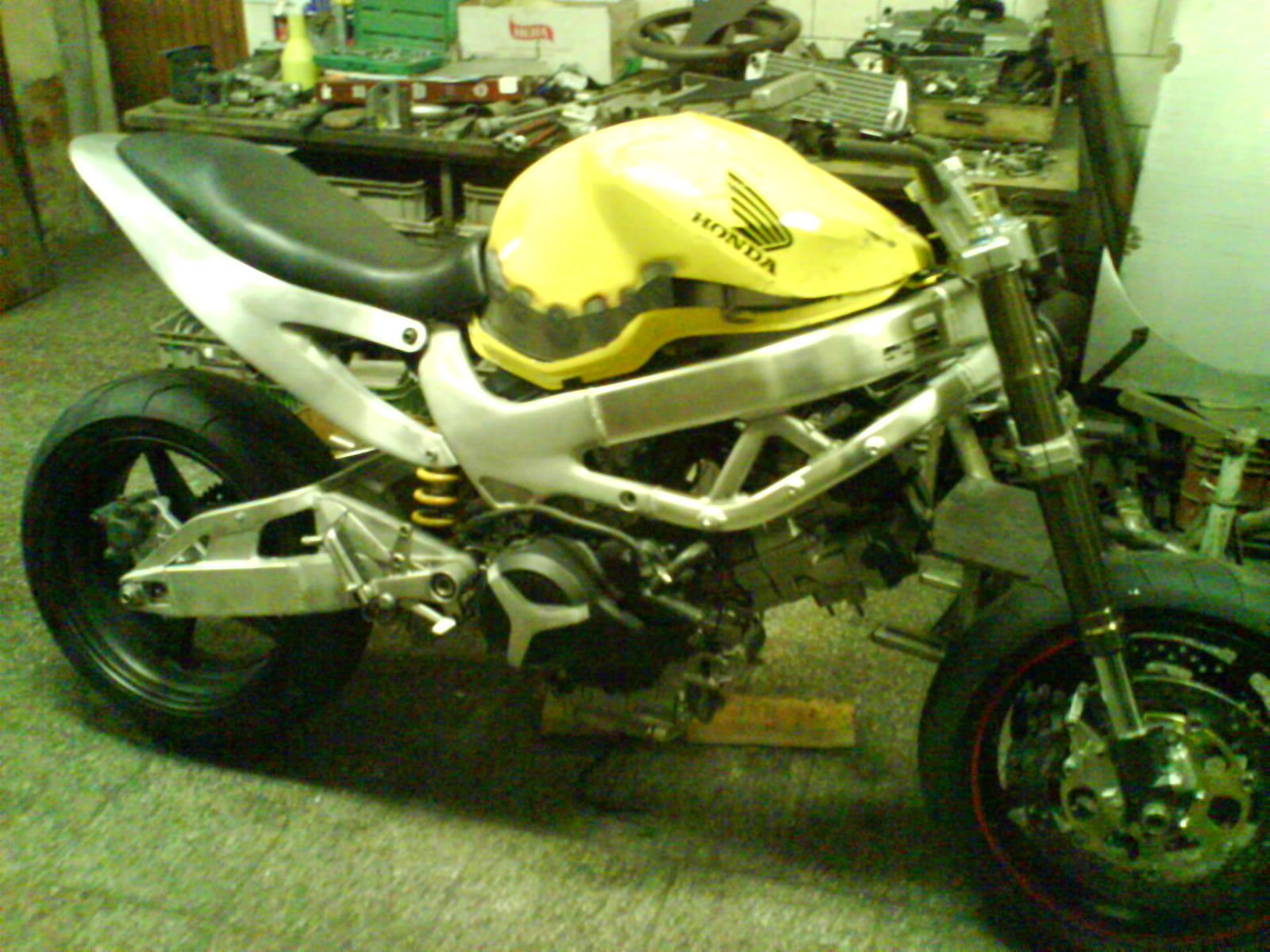

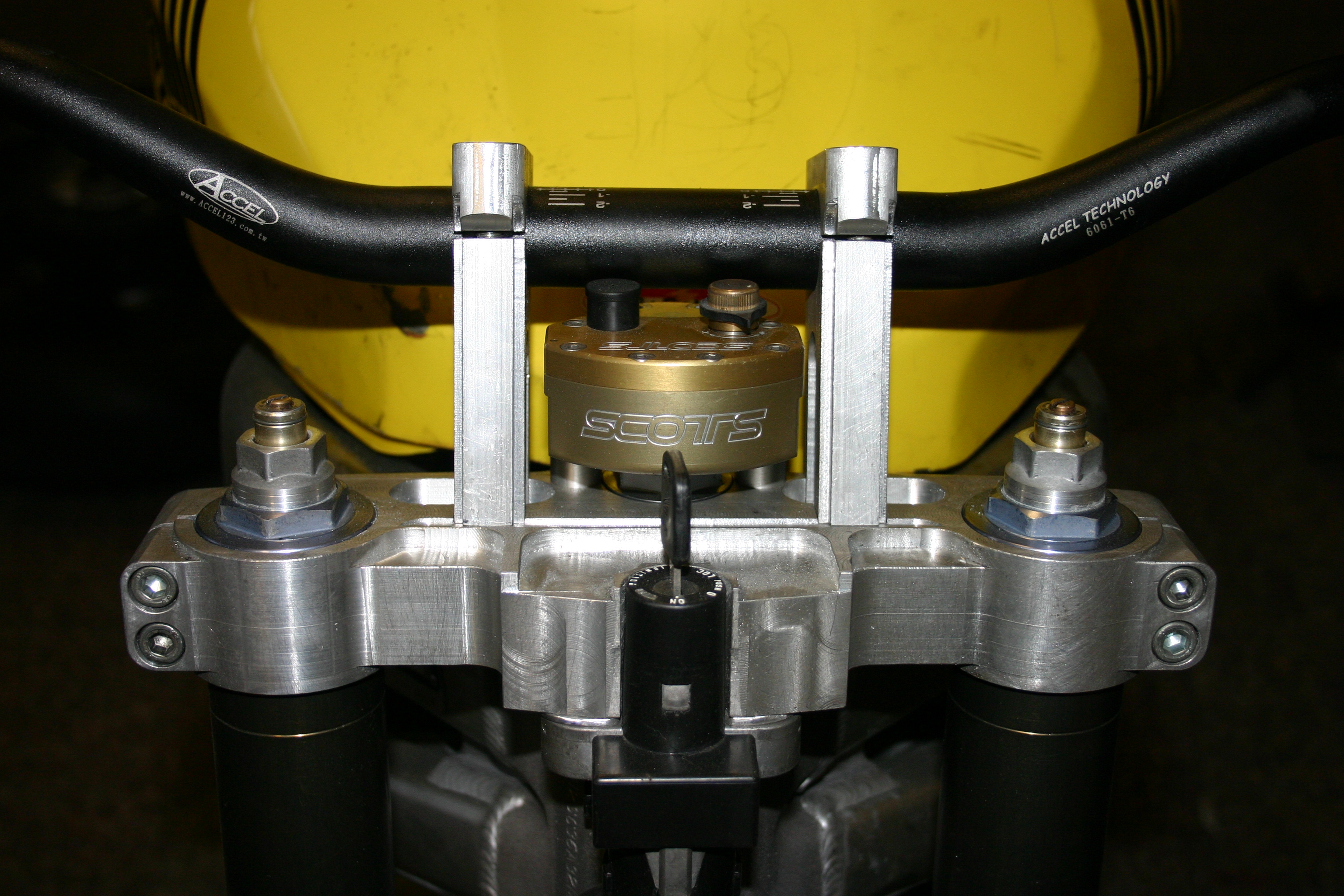

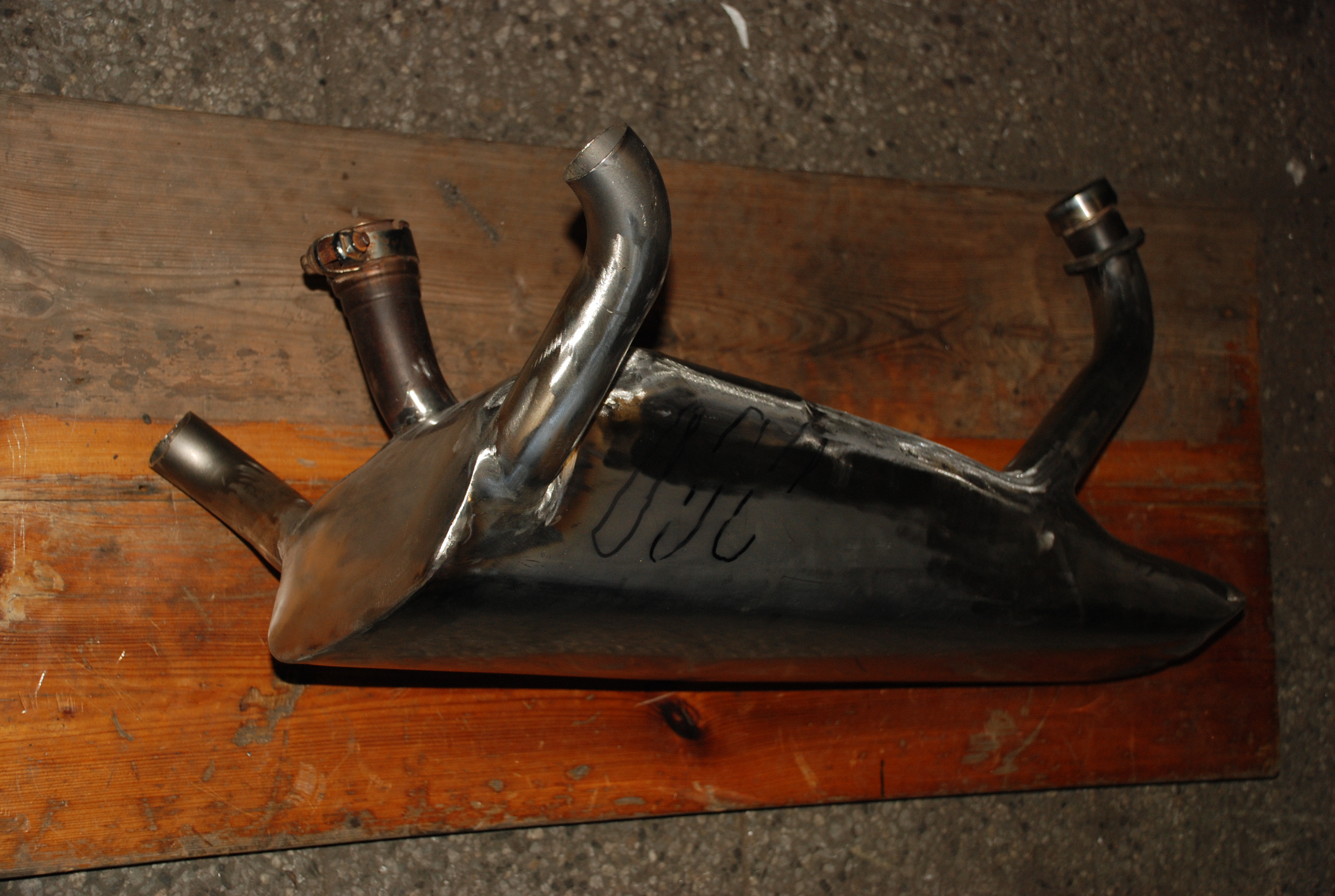

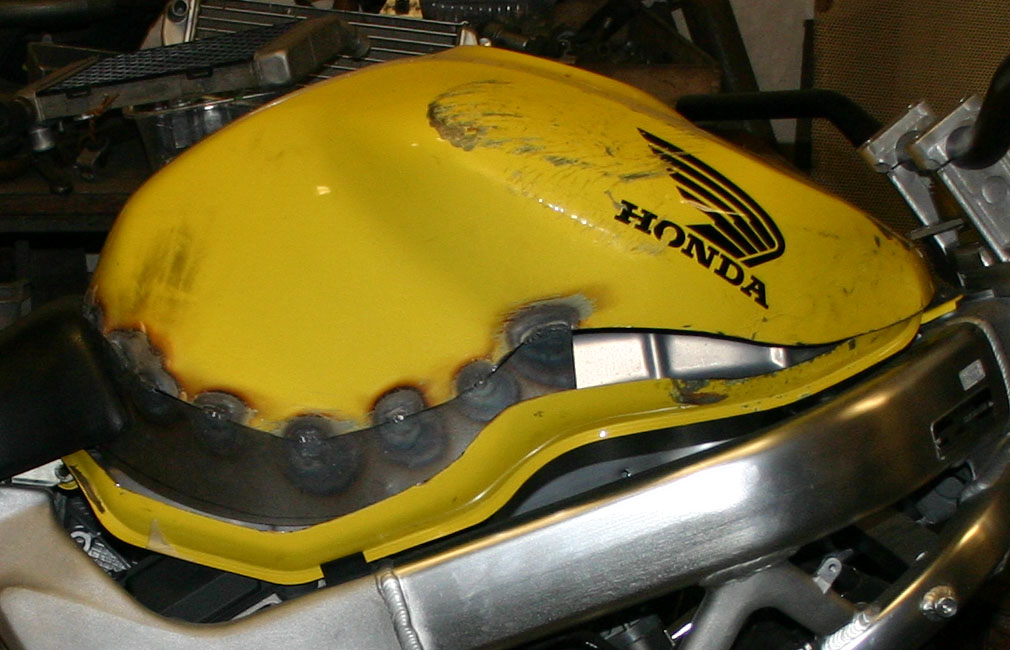

Front forks SP2, both wheels SP2, swingarm SP1, Buell X1 rear part, coolers from KTM, Bulldog headlight, Koso clocks, Ohlins rotary steering damper, Paoli adjustable rear shock, 24L gas tank and one off underengine exhaust. Of course wider handlebars, braided lines, Supersprox, DID etc.

Here are some pictures from the process.

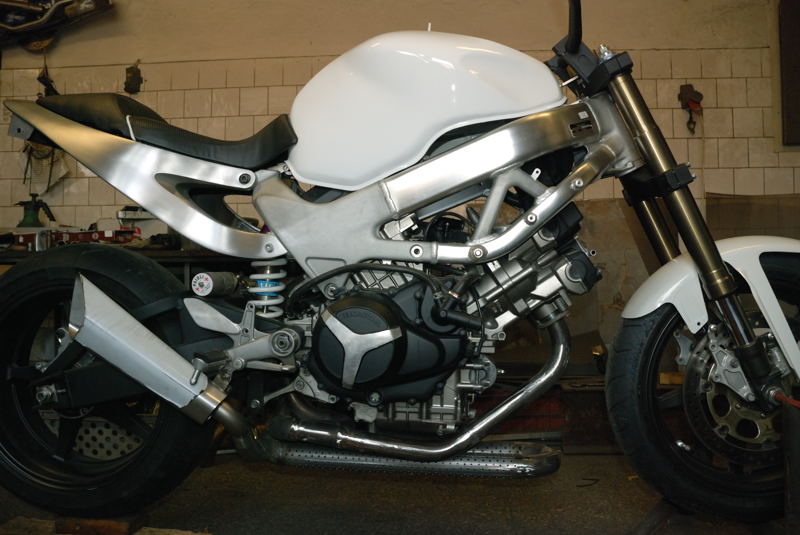

Attached Thumbnails SuperHawk goes naked-dsc00024.jpg   SuperHawk goes naked-04-2008-1.jpg   SuperHawk goes naked-dsc_4762.jpg   SuperHawk goes naked-vtr-larger-tank.jpg   SuperHawk goes naked-img_3712.jpg


Last edited by Ondrecz; 11-20-2015 at 12:35 AM.
Ondrecz is offline
Old 11-19-2015, 01:34 AM
  #2
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road

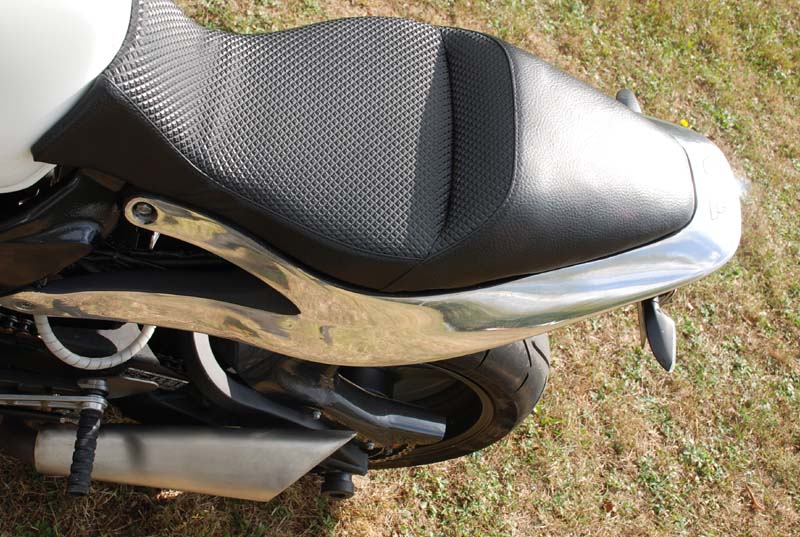

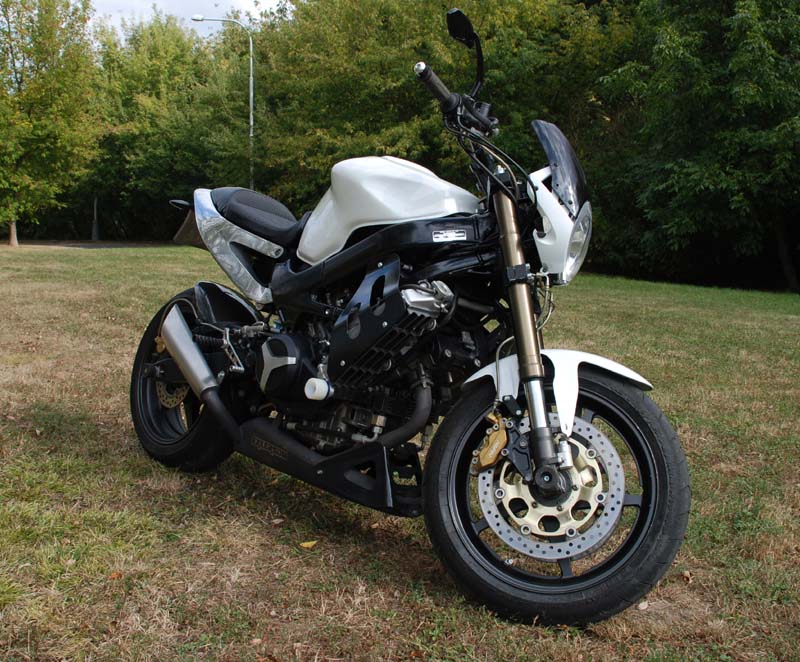

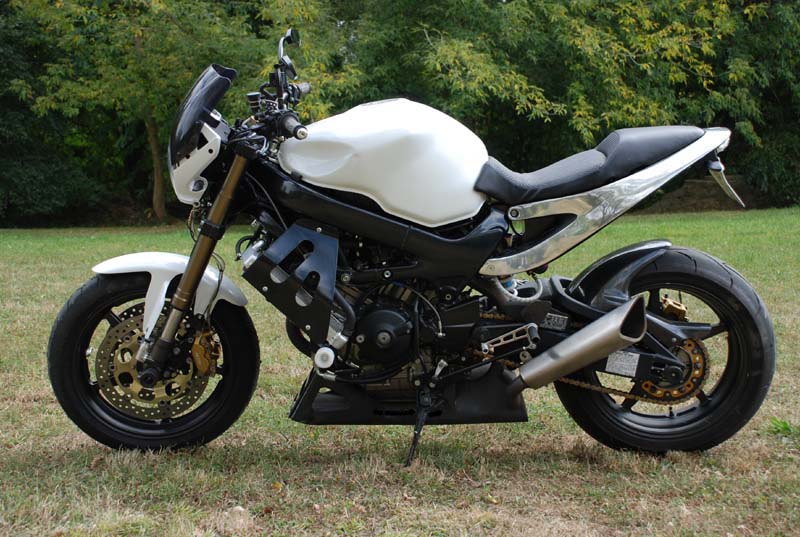

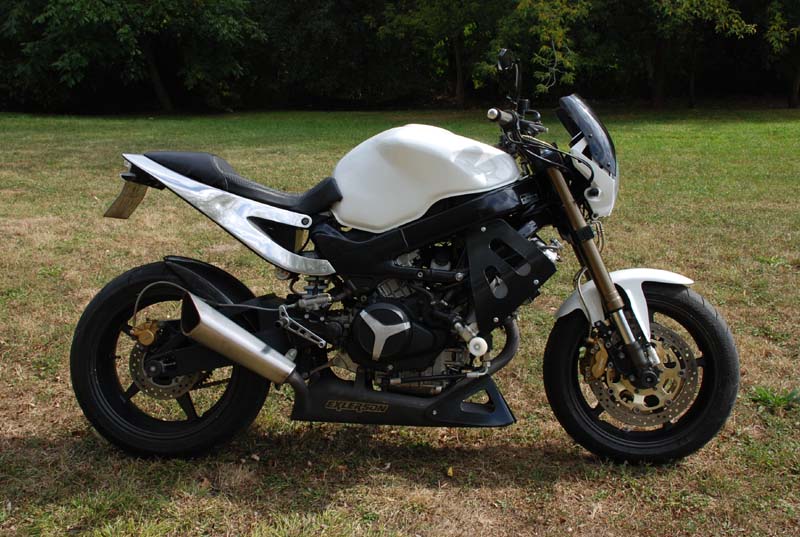

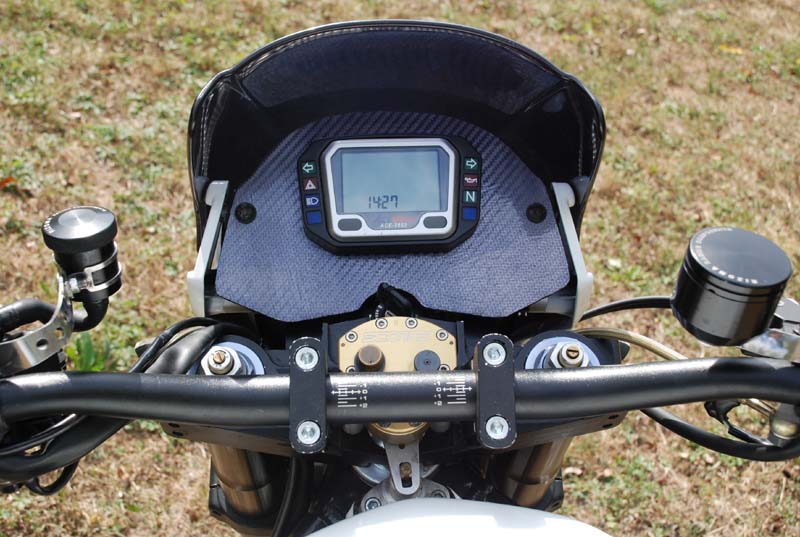

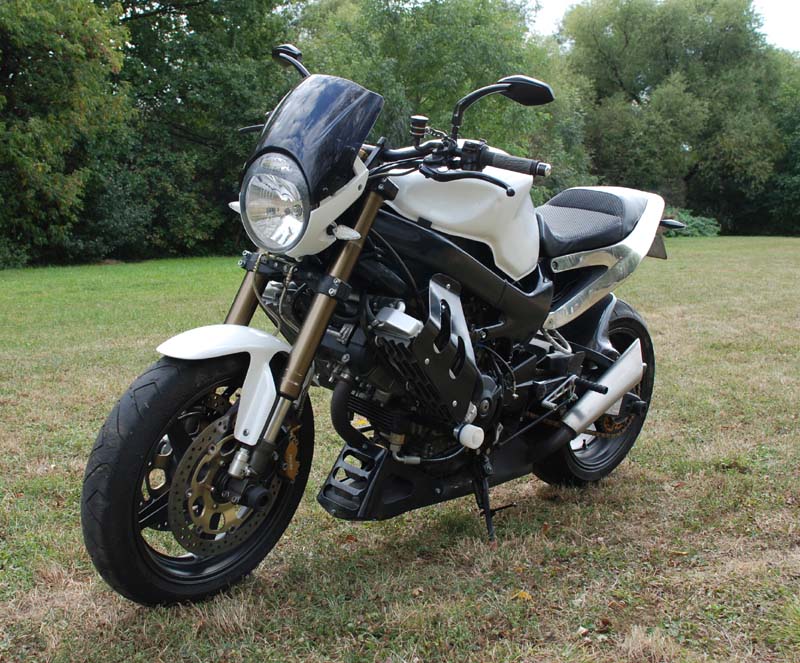

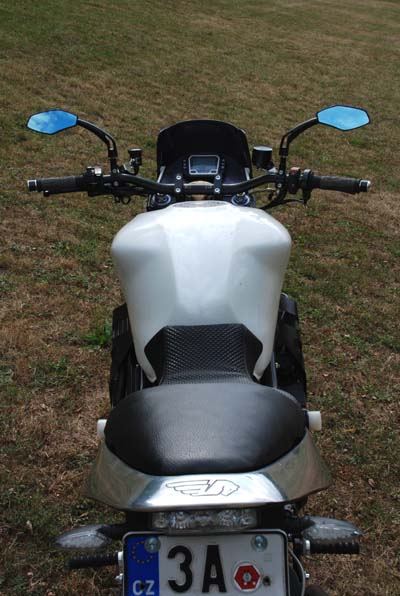

..a year later, these are the results.
Attached Thumbnails SuperHawk goes naked-vtr-final-frontl.jpg   SuperHawk goes naked-vtr-final-frontr2.jpg   SuperHawk goes naked-vtr-final-lside.jpg   SuperHawk goes naked-vtr-final-rside.jpg   SuperHawk goes naked-vtr-final-rearcenter.jpg

SuperHawk goes naked-vtr-final-tacho.jpg   SuperHawk goes naked-vtr-final-seat.jpg
Ondrecz is offline
Old 11-19-2015, 01:43 AM
  #3
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road

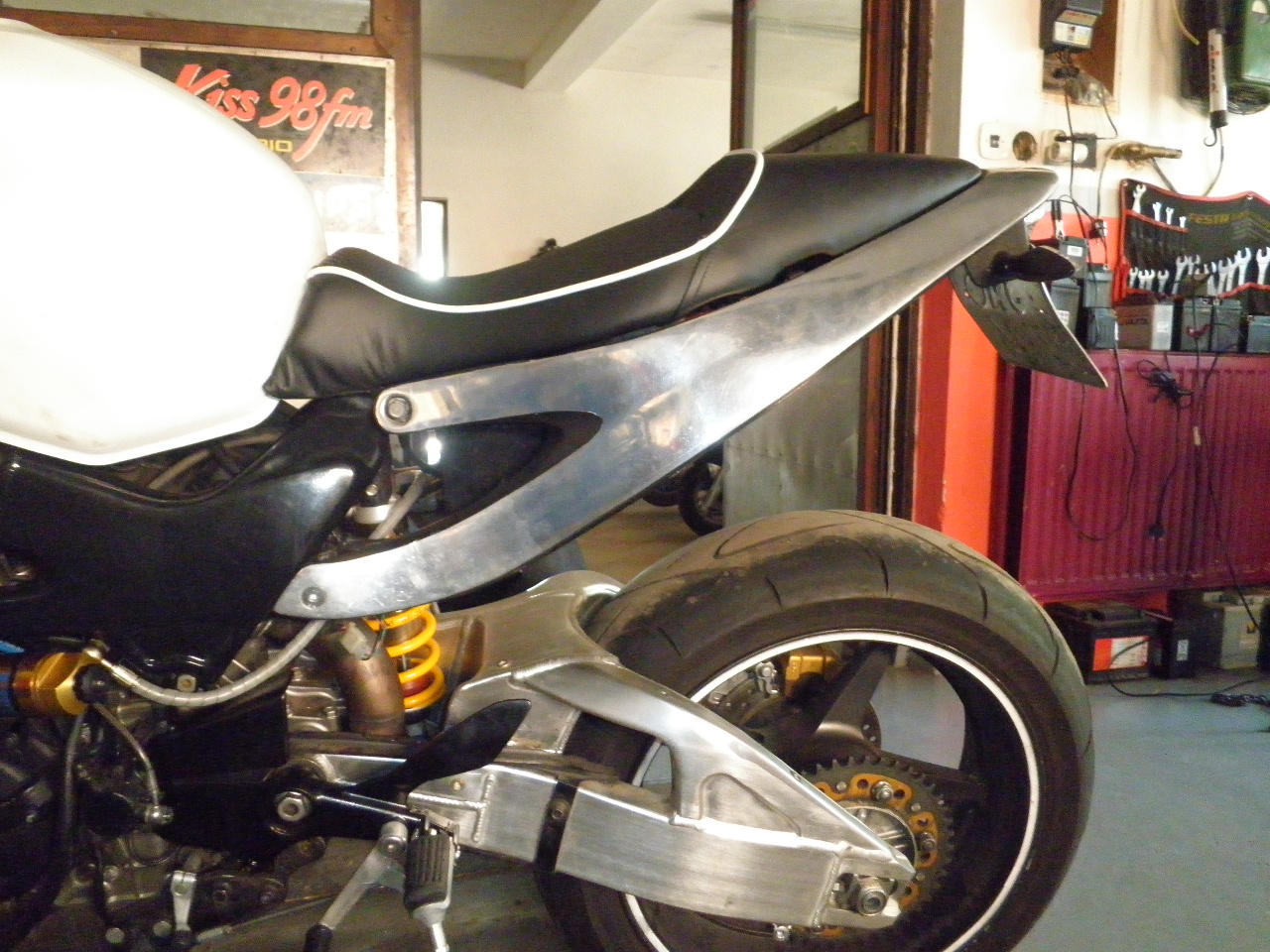

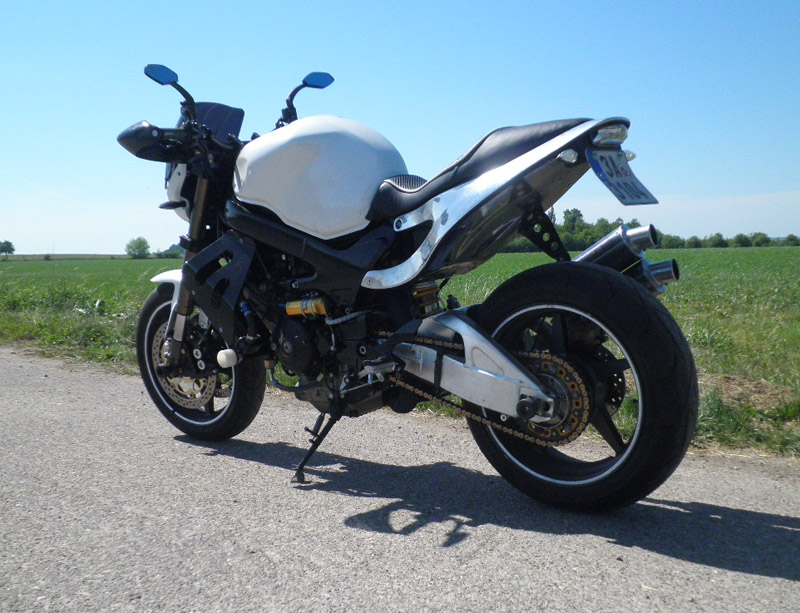

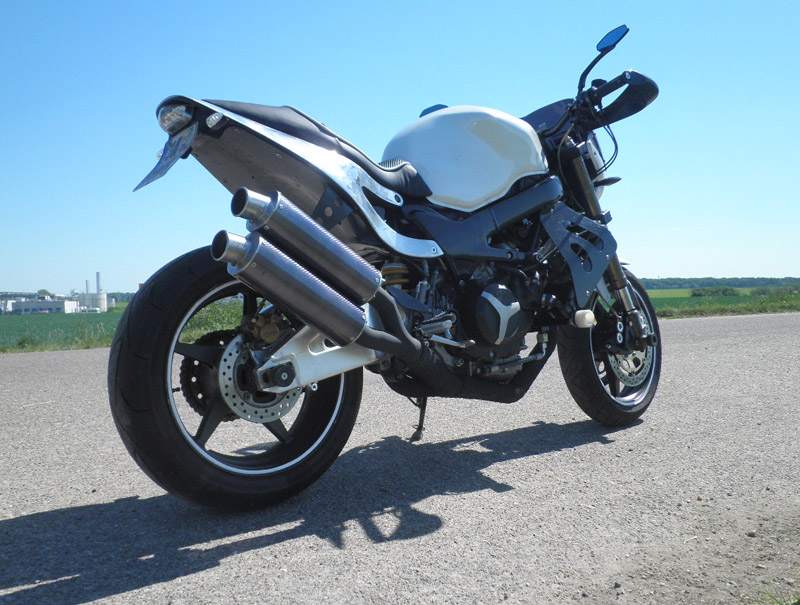

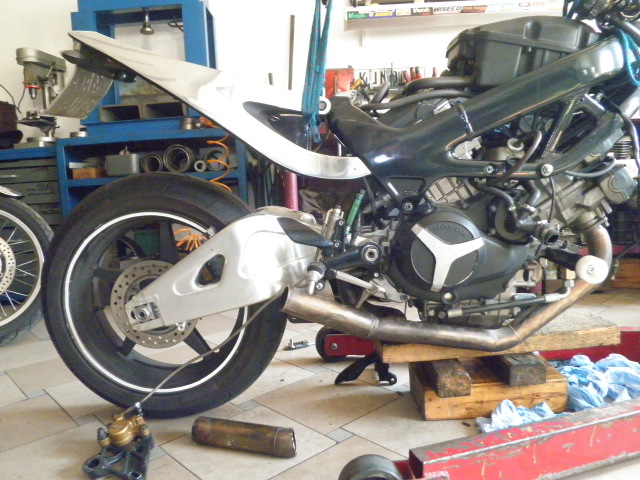

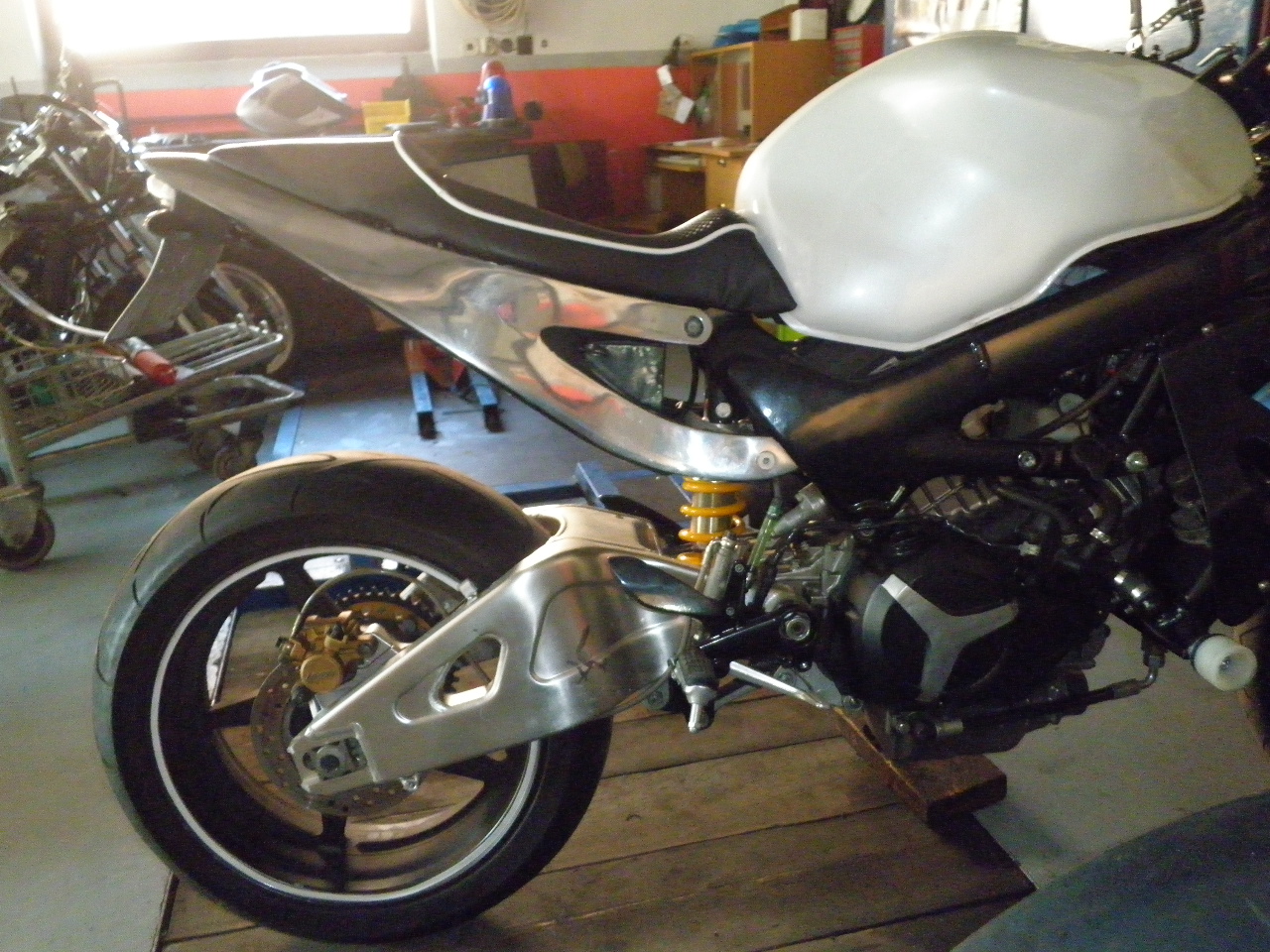

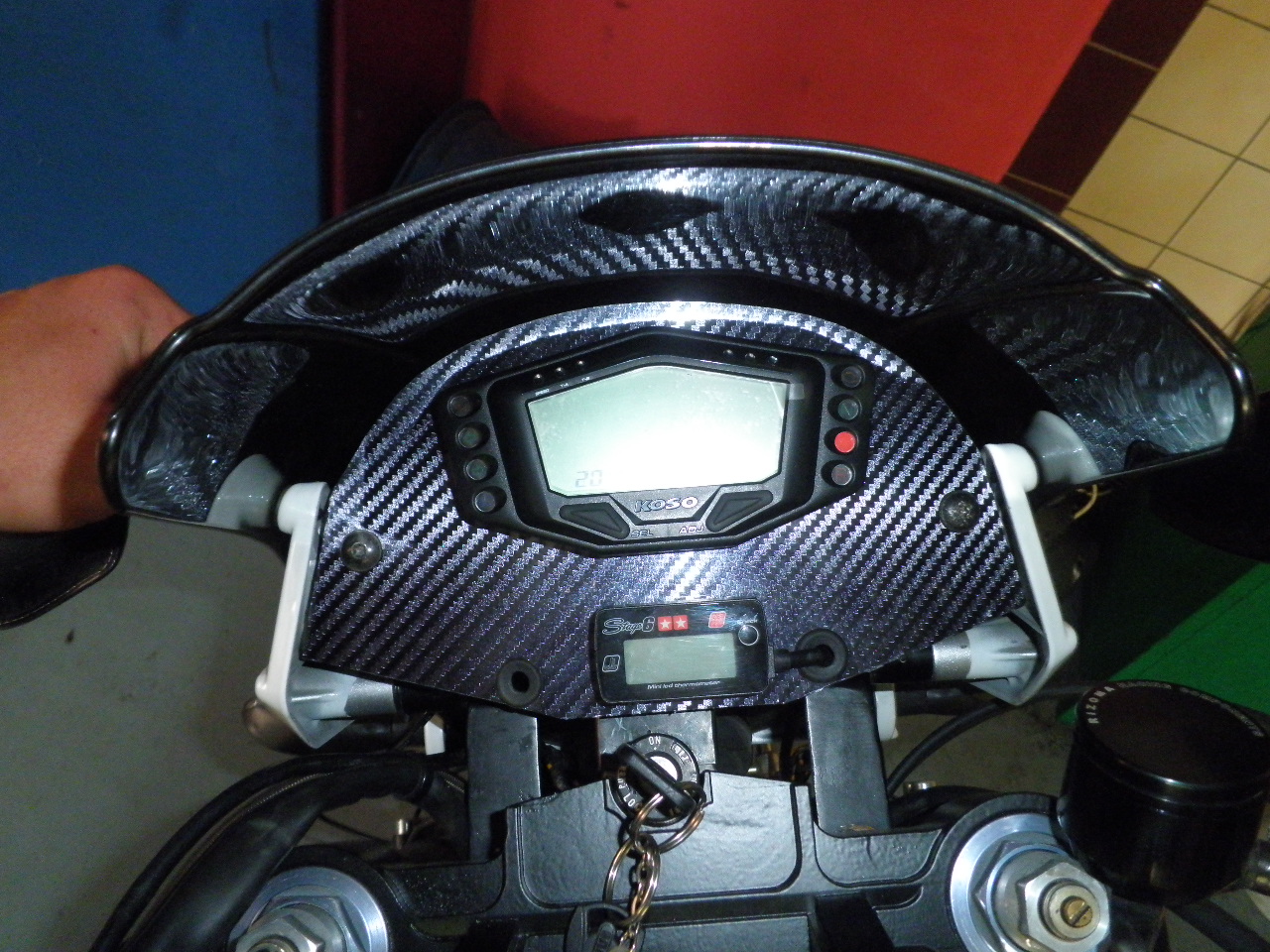

..another season has passed and winters are long here. I had couple of changes in my mind. Exhaust was not right for me and the bike was not running well. Somebody from other side of the world was interested in buying it, so there was a space for another try. This time I went for 2-1, 55mm system. Plus some minor changes such as new shock (Ohlins), new clocks, intercooler, BMW carbon handguards, radial brakes R6, PT radial clutch and 19 brake MC, and swingarm from SP2.
Attached Thumbnails SuperHawk goes naked-p5180213.jpg   SuperHawk goes naked-p5180212.jpg   SuperHawk goes naked-p2250500.jpg   SuperHawk goes naked-vtr11-front-l.side.jpg   SuperHawk goes naked-vtr11-rear-r.side.jpg

SuperHawk goes naked-vtr11-rear-l.side.jpg   SuperHawk goes naked-p5260271.jpg   SuperHawk goes naked-p5240254.jpg   SuperHawk goes naked-mezichladic.jpg

Last edited by Ondrecz; 11-19-2015 at 02:58 AM.
Ondrecz is offline
Old 11-19-2015, 01:47 AM
  #4
erno
Back Marker

erno's Avatar

Join Date: Apr 2009
Location: Australia
Posts: 226
erno is on a distinguished road
nice one mate ,looks similar to a buell X1
erno is offline
Old 11-19-2015, 01:55 AM
  #5
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road

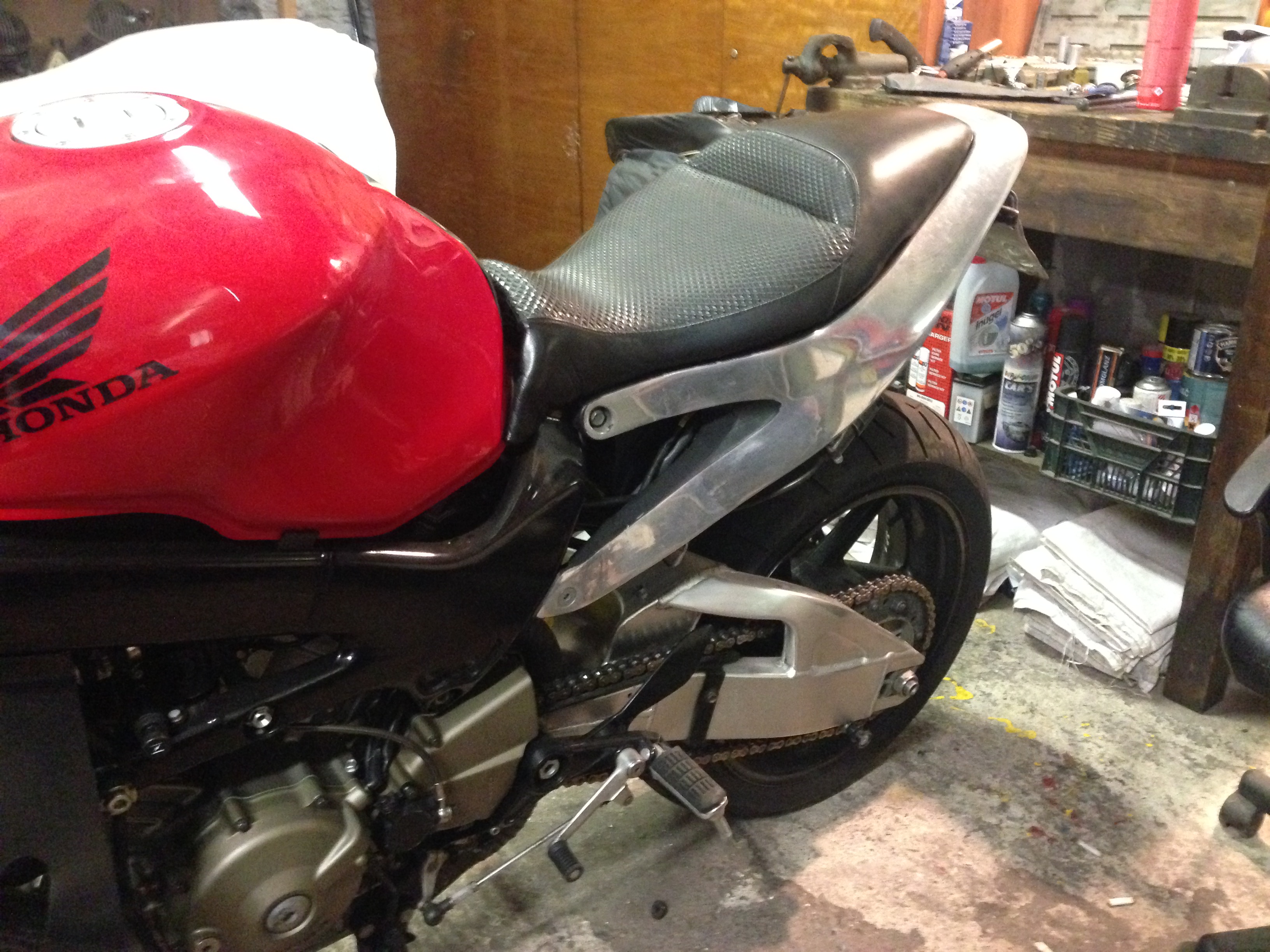

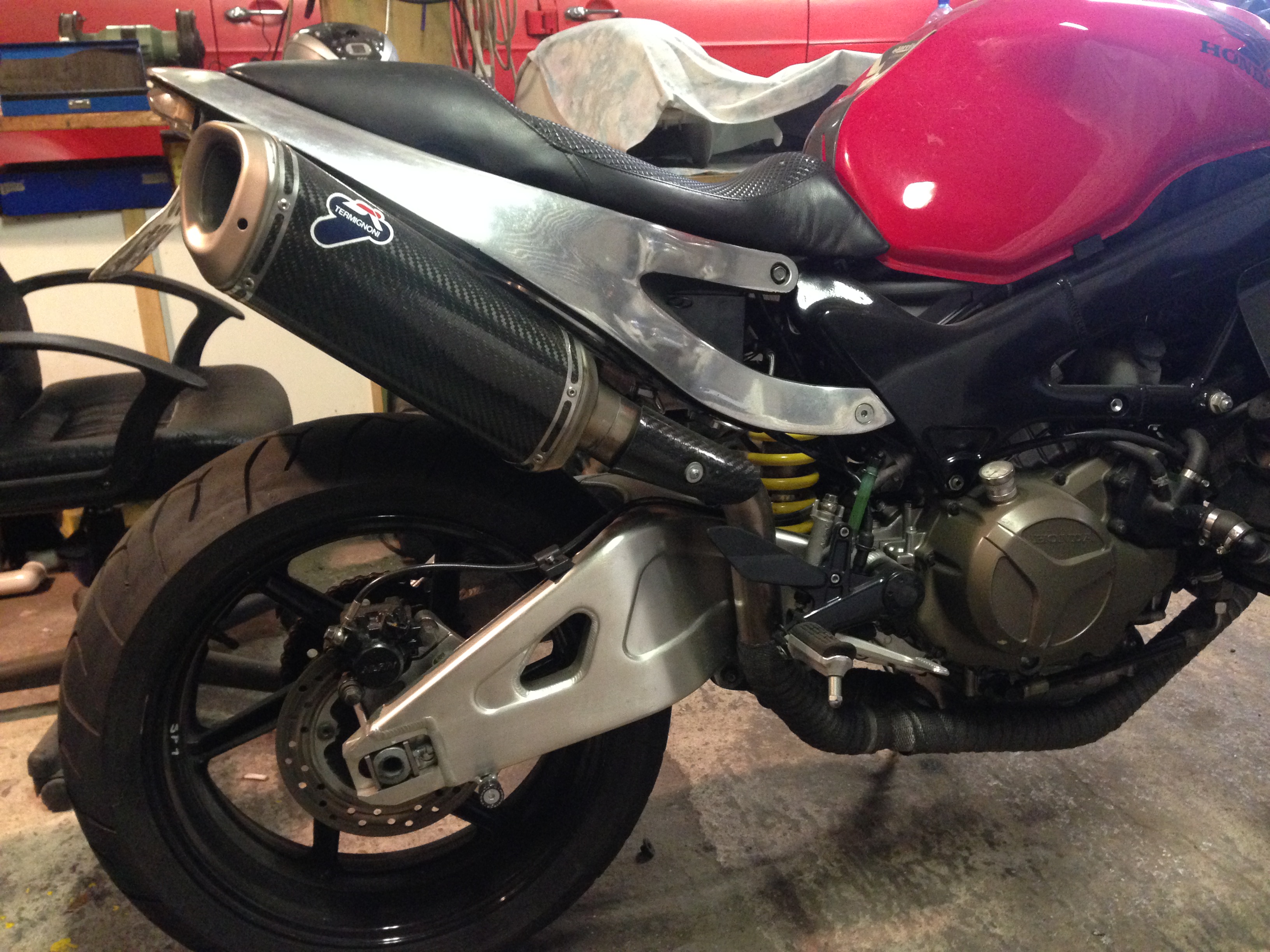

It was no surprise that the bikes suspension did not work right as the "math" behind it was not done exactly. Specially with SP2 swingarm it showed. So this winter I will follow the advice of members from this forum and have it done properly. Plus I bought a SH 06 model for spares with 18k Km, so I'm changing the engine as well as all the bits for newer. At the end I will have original clocks because they work the best, 2-1 system will stay, but will have standard headers, another rear shock. I sold the SP2 wheels, so I putted SP1 instead. I do not really mind extra few grams. I bought reworked SP2 forks with titan nitrid bottoms. Color will stay pearl white. Belly pan will be added later, also rear hugger. Dyno at some point too. I bought Sigma6 needle set from US, so I will try to set this one and will see.
Attached Thumbnails SuperHawk goes naked-img_4763.jpg   SuperHawk goes naked-img_4765.jpg   SuperHawk goes naked-img_4764.jpg

Last edited by Ondrecz; 11-20-2015 at 12:35 AM.
Ondrecz is offline
Old 11-19-2015, 07:59 AM
  #6
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,395
NHSH is on a distinguished road
The tail, did you make it or it's from a Buell? If it is, which model?
NHSH is offline
Old 11-19-2015, 08:12 AM
  #7
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road
Complete tail section was originally from Buell X1. Surely not bolt-on! Bottom mount had to be extended...a lot!
Attached Thumbnails SuperHawk goes naked-dsc_3300.jpg
Ondrecz is offline
Old 11-19-2015, 02:56 PM
  #8
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,395
NHSH is on a distinguished road
Originally Posted by Ondrecz View Post
Complete tail section was originally from Buell X1. Surely not bolt-on! Bottom mount had to be extended...a lot!
Aha, now I recognize this tail, very nice job!
NHSH is offline
Old 11-22-2015, 09:51 AM
  #9
Senior Member
SuperBike

scottiemann's Avatar

Join Date: Feb 2007
Location: boston
Posts: 1,252
scottiemann is on a distinguished road
nice to finally meet the inspiration for my coolers. When I was first trying to figure out what direction I wanted to go, someone posted pics of your bike and that made a much easier decision for me. Great work by the way, keep it up.
scottiemann is offline
Old 11-23-2015, 08:24 AM
  #10
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road
Thanks, I'm glad you liked it.
Side coolers were never an option for me. From my simple knowledge of how they work I figured that without fairing there won't be much air getting through. Because I ride mostly in the town with traffic, cooler fluid temperature is very important to watch.

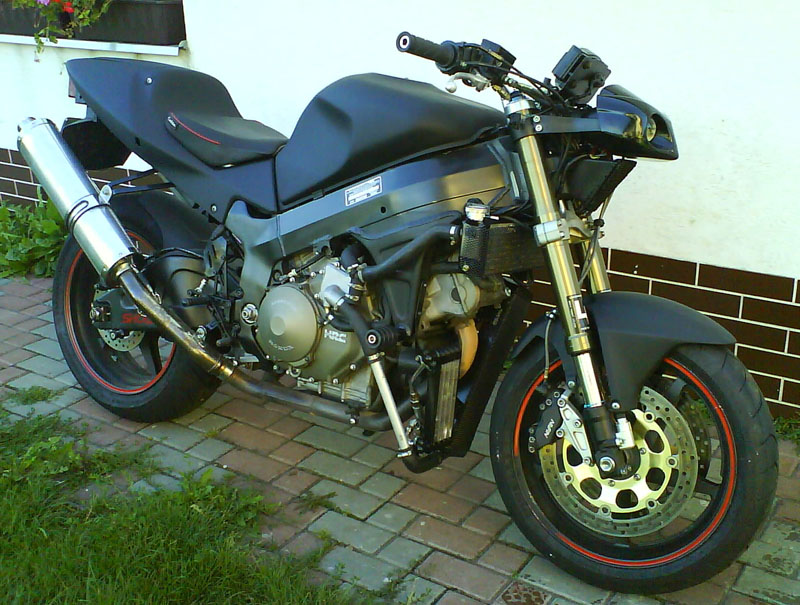

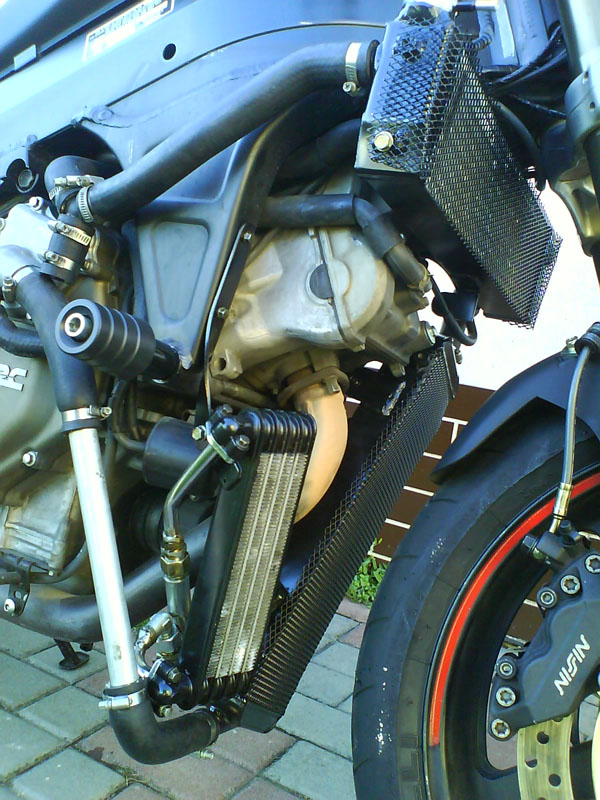

Here is another option when I stripped down VTR SP2 (RVT RC 51 for US) according to HRC for one of my friends. This was quite tricky, as I wanted them to fit in OEM fairing, just in case he decides to sell the bike later on. It's been a few years now, he still has the bike and all works perfectly, no issues!
Attached Thumbnails SuperHawk goes naked-sp2-11.jpg   SuperHawk goes naked-sp2-13.jpg

Last edited by Ondrecz; 11-24-2015 at 12:43 AM.
Ondrecz is offline
Old 11-23-2015, 02:38 PM
  #11
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,395
NHSH is on a distinguished road
Very nice work, I am very impressed!
NHSH is offline
Old 11-23-2015, 07:45 PM
  #12
Senior Member
SuperBike

scottiemann's Avatar

Join Date: Feb 2007
Location: boston
Posts: 1,252
scottiemann is on a distinguished road
that looks like the HRC kit or very similar... home made HRC kit...
scottiemann is offline
Old 11-24-2015, 12:38 AM
  #13
Junior Member
Squid
Thread Starter

Join Date: Nov 2015
Posts: 16
Ondrecz is on a distinguished road

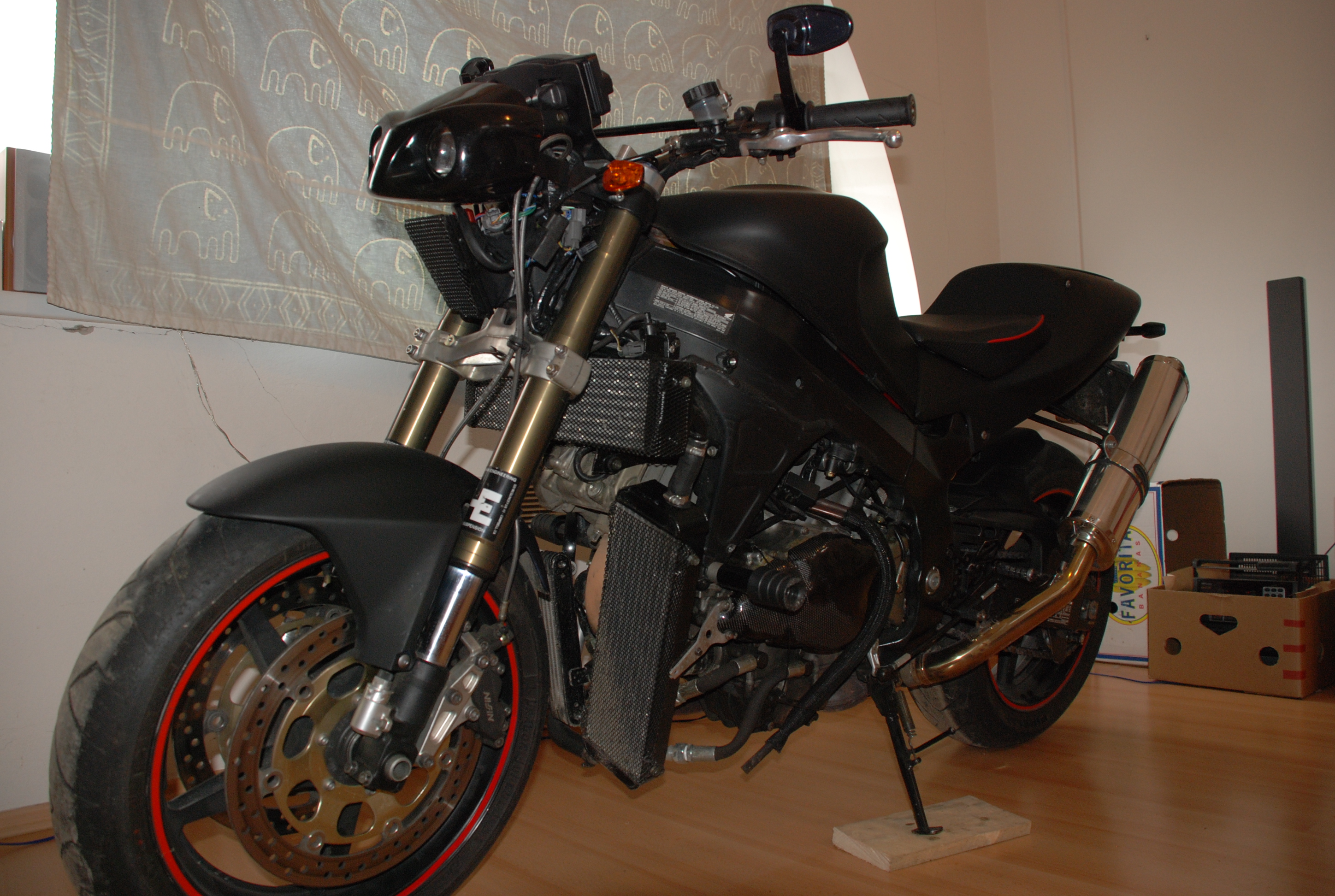

I had HRC kit as a template! These are, of course, made by proffesionals..home assembeled
Attached Thumbnails SuperHawk goes naked-dsc_5423.jpg
Ondrecz is offline
Old 11-27-2015, 02:32 AM
  #14
Senior Member
Superstock

Lefin102's Avatar

Join Date: May 2006
Location: New Jersey USA
Posts: 284
Lefin102 is on a distinguished road
you should have been on the original design team. that's sweet!
