Modifications FINALLY finished....
Hey all....

Wated to post up the modifications I made this winter.... ahh.. spring.... ahh... summer.... yeah, trying to do alot of work with a newborn will cause your winter mods to last untill August!!!! Here's the list of things I changed.... I did all the work with exception of mounting the tires on the rims...

RC51 Front forks (Racetech Springs), upper triple, brakes
929 Lower triple
Ducati 900SS Heli Clipons
RC51 SP-1 6-spoke front wheel
CBR 900 6-spoke rear wheel
Relocated radiators for steering clearence
Jardine Hi Mount Exhaust
Jet-Coat ceramic exhaust coating on headers and mid-pipes
Powdercaoting of the subframe, starter, and exhaust hangers
Powercoating of a milion little parts
Custom undertail and license plate brackets
Sargent Seat

Probably a bunch of other things.. but I can't rememeber at this point... pics below show some in progress.... some before/after.... enjoy....

**** I just finished it this weekend... and haven't driven it out of the driveway yet... that will change this weekend once it's finally inspected....

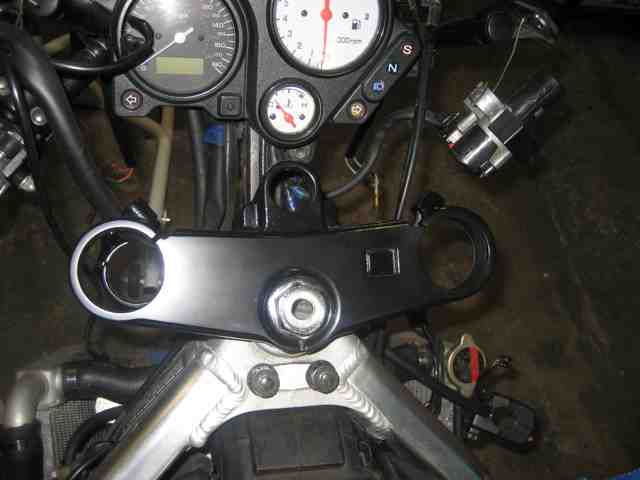

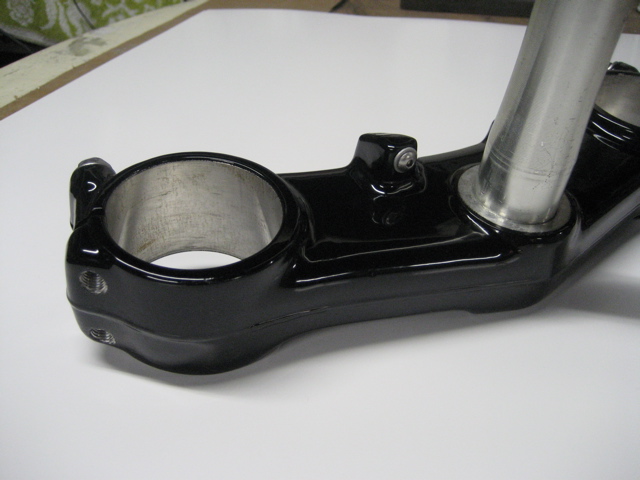

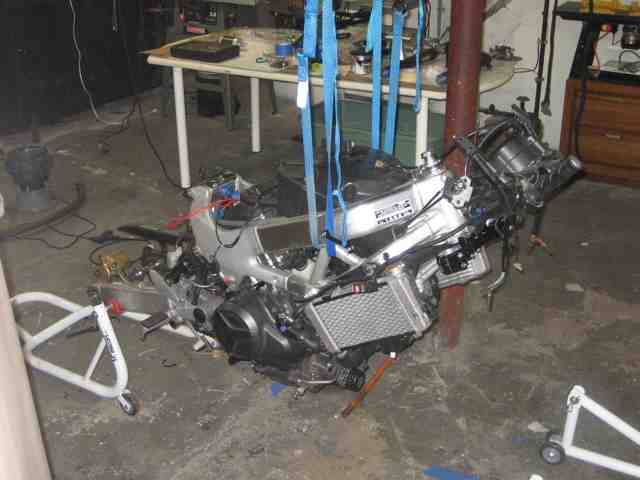

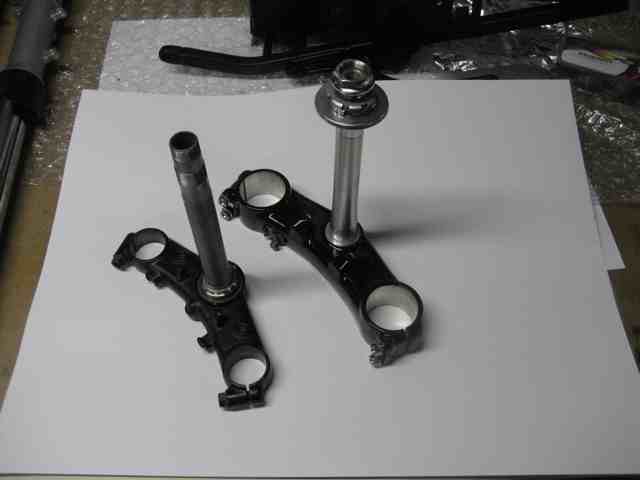

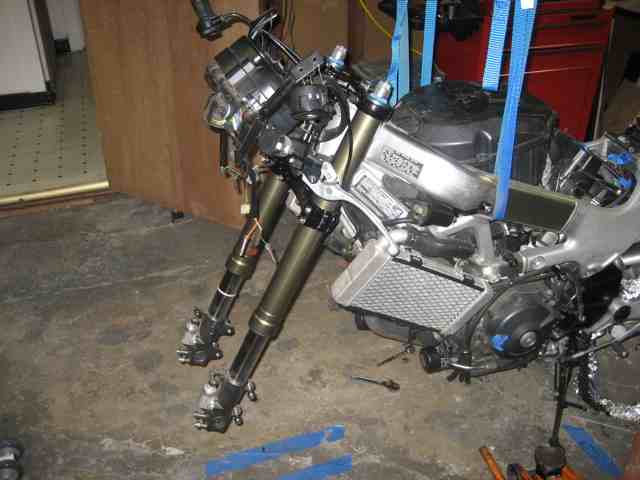

Attached Thumbnails Modifications FINALLY finished....-stripped.jpg   Modifications FINALLY finished....-lower_triple_modified.jpg   Modifications FINALLY finished....-lower_triple_comparision.jpg   Modifications FINALLY finished....-pc_upper_triple.jpg   Modifications FINALLY finished....-forks_on.jpg

SlowHAWK is online now
Reply
Old 08-27-2007, 09:19 AM
  #2
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
More pics

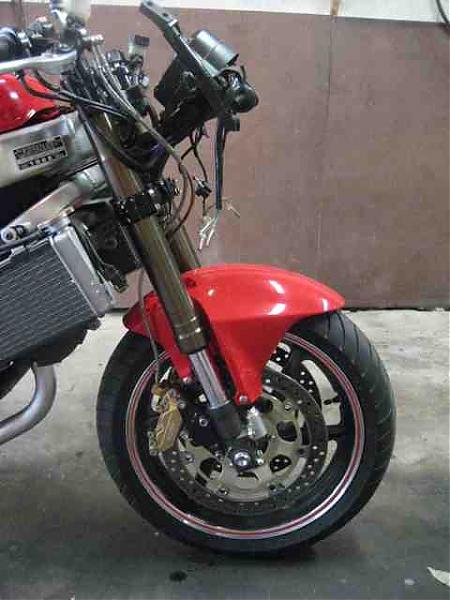

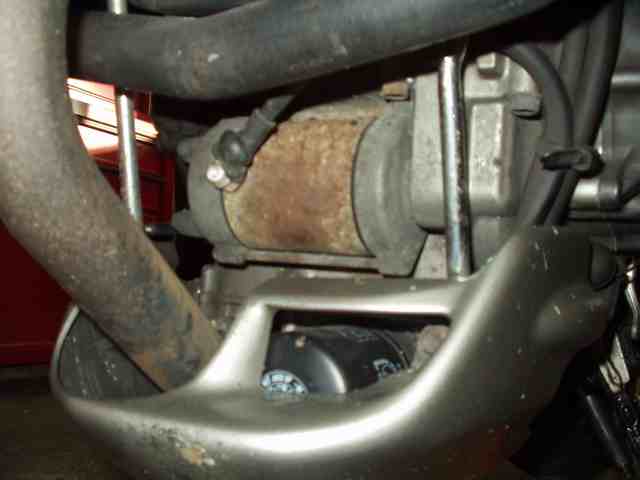

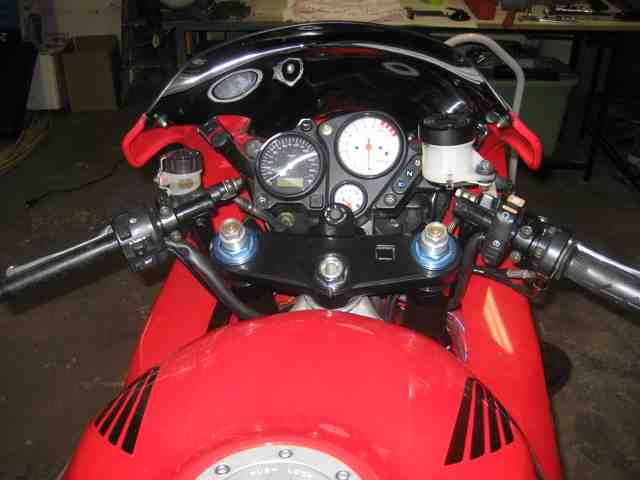

Attached Thumbnails Modifications FINALLY finished....-lower_triple_modified.jpg   Modifications FINALLY finished....-pc_upper_triple.jpg   Modifications FINALLY finished....-clipons_mounted.jpg   Modifications FINALLY finished....-front_end_mounted_up.jpg   Modifications FINALLY finished....-exhaust_starter_dirty.jpg

SlowHAWK is online now
Reply
Old 08-27-2007, 09:20 AM
  #3
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
More...

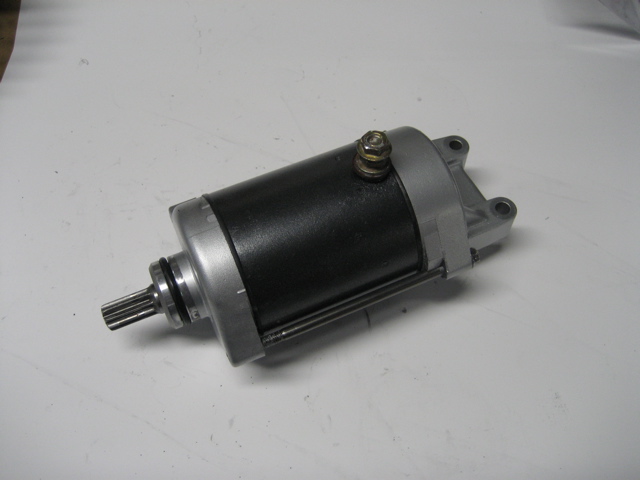

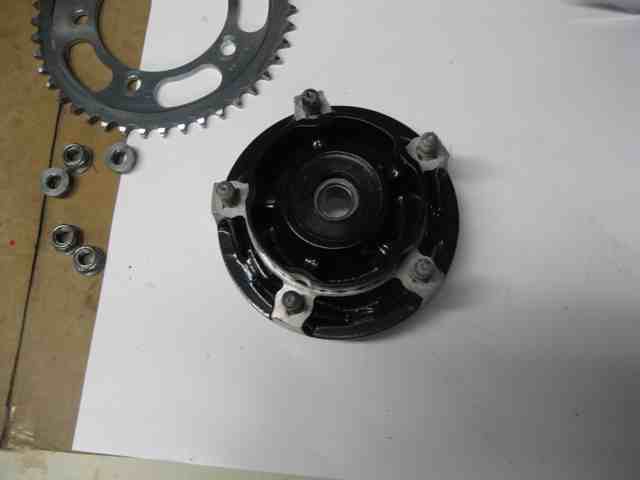

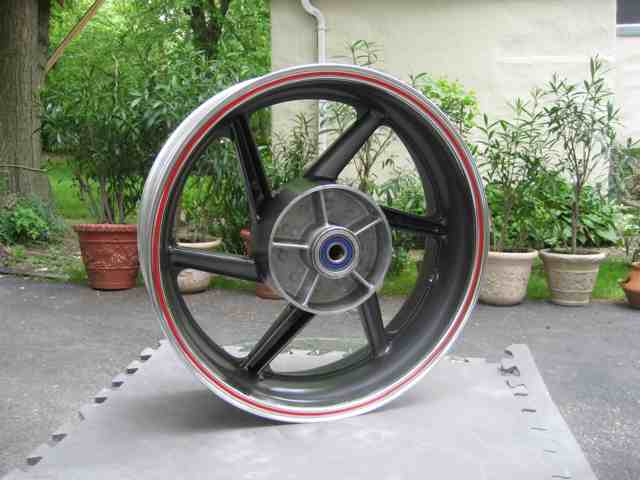

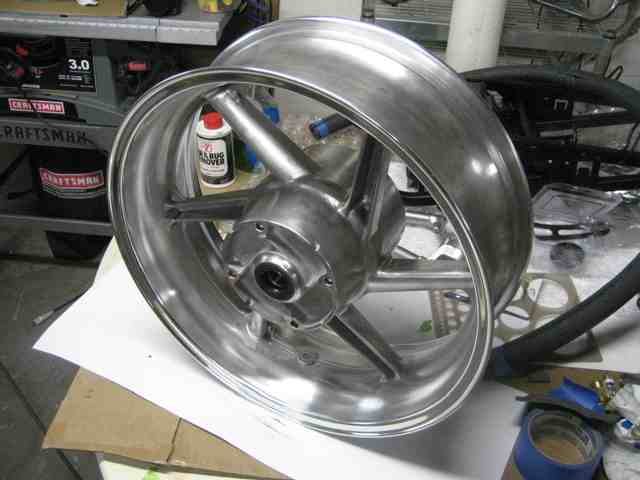

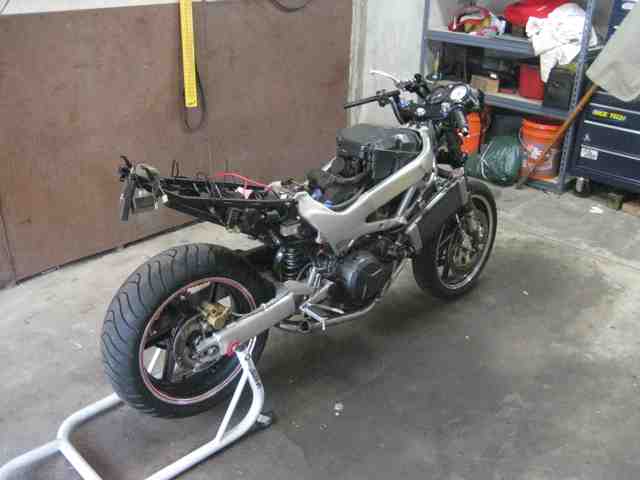

Attached Thumbnails Modifications FINALLY finished....-starter_pcd.jpg   Modifications FINALLY finished....-rear_rim_before.jpg   Modifications FINALLY finished....-rear_rim_after.jpg   Modifications FINALLY finished....-pc_cush_drive.jpg   Modifications FINALLY finished....-exhaust_before.jpg

SlowHAWK is online now
Reply
Old 08-27-2007, 09:21 AM
  #4
Senior Member
MotoGP

ghopki1's Avatar

Join Date: Jul 2007
Location: NW North Carolina
Posts: 6,110
ghopki1 is on a distinguished road
Do you have any pics of that custom undertail with the Jardine highmounts. That is my next upgrade.
ghopki1 is offline
Reply
Old 08-27-2007, 09:23 AM
  #5
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point

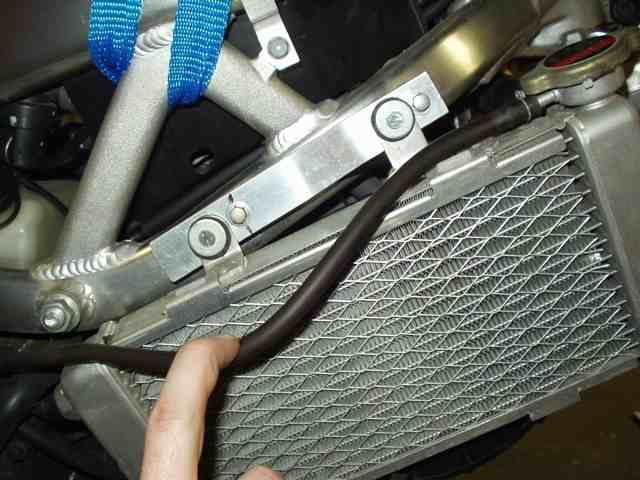

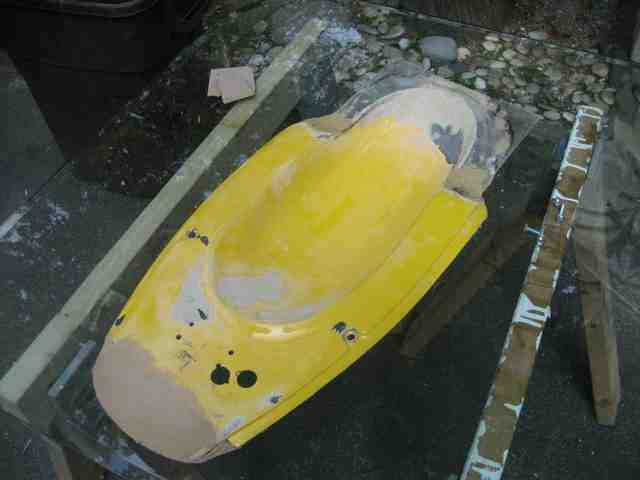

More pics... rads and undertail...

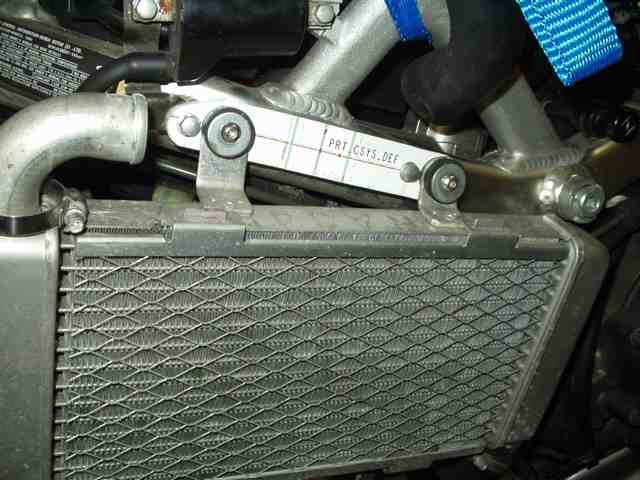

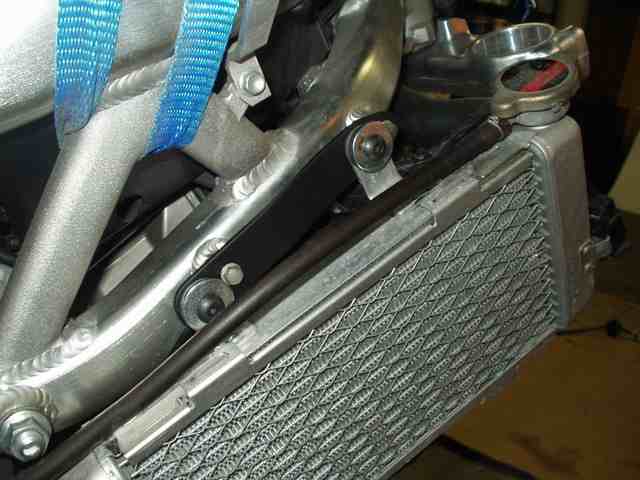

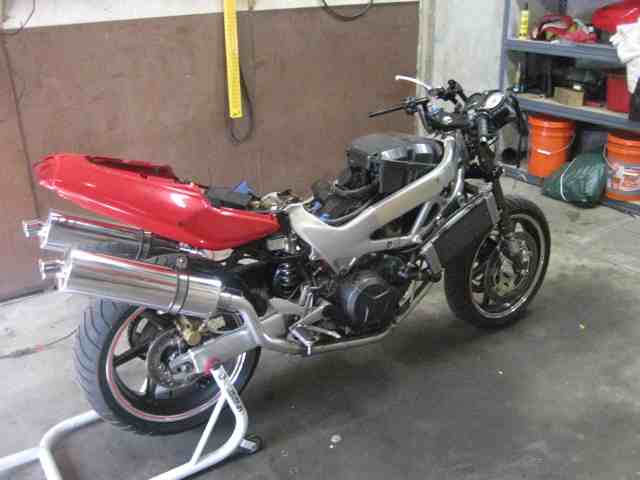

Attached Thumbnails Modifications FINALLY finished....-exhaust_after.jpg   Modifications FINALLY finished....-rad_bracket_start.jpg   Modifications FINALLY finished....-rad_bracket_progress.jpg   Modifications FINALLY finished....-rad_bracket_finished.jpg   Modifications FINALLY finished....-undertail_under_construction.jpg

SlowHAWK is online now
Reply
Old 08-27-2007, 09:25 AM
  #6
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
Undertail work...

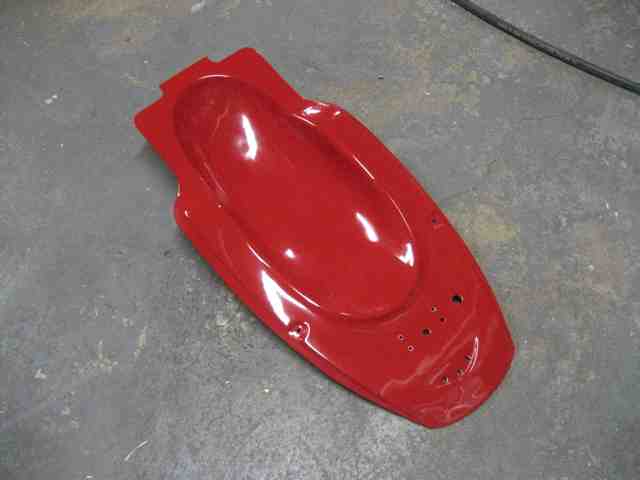

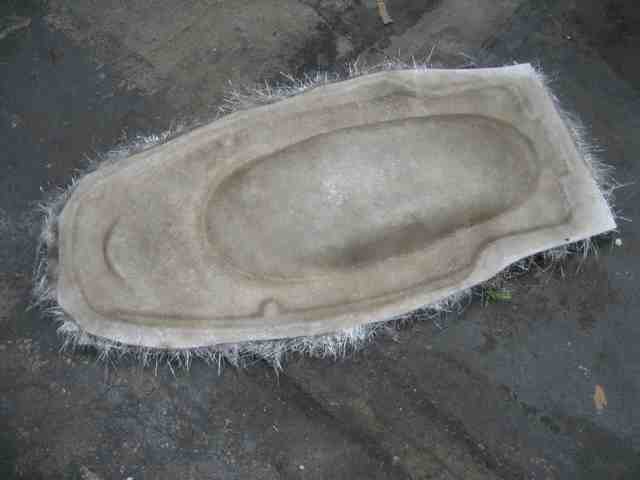

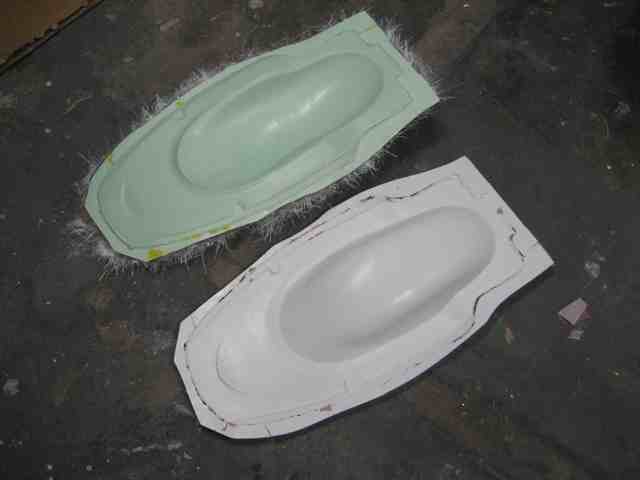

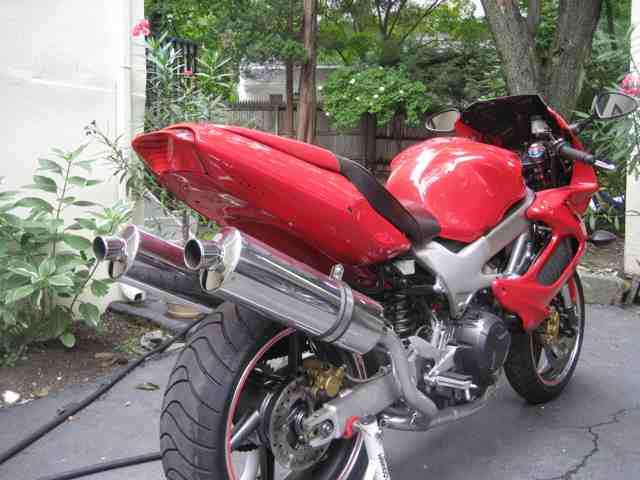

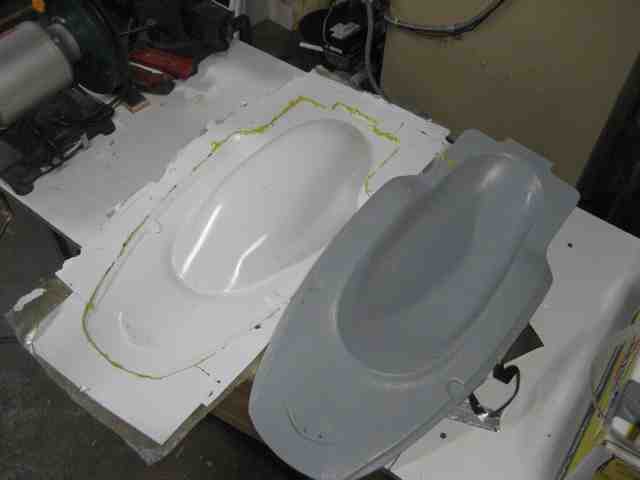

Attached Thumbnails Modifications FINALLY finished....-undertail_mold_plug.jpg   Modifications FINALLY finished....-undertail_glassed.jpg   Modifications FINALLY finished....-undertail_first_part.jpg   Modifications FINALLY finished....-undretail_painted.jpg   Modifications FINALLY finished....-undertail_mounted.jpg

SlowHAWK is online now
Reply
Old 08-27-2007, 09:29 AM
  #7
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
Other pics

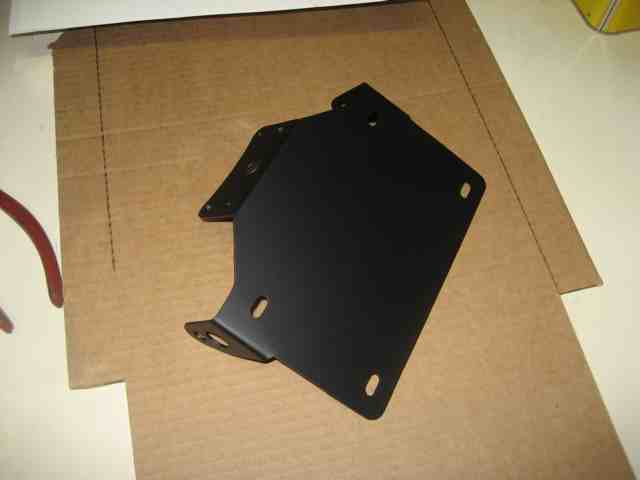

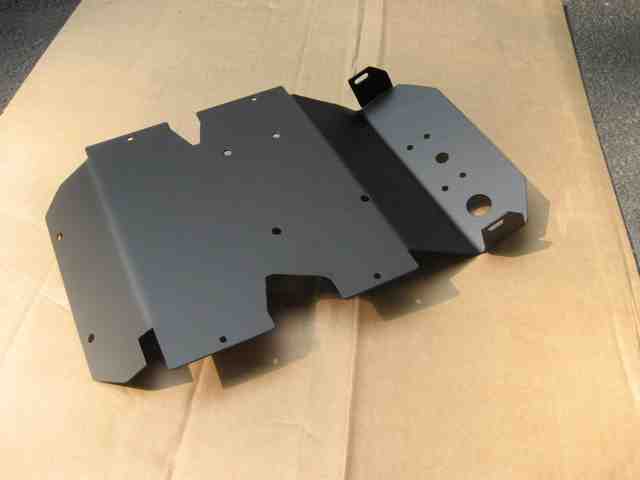

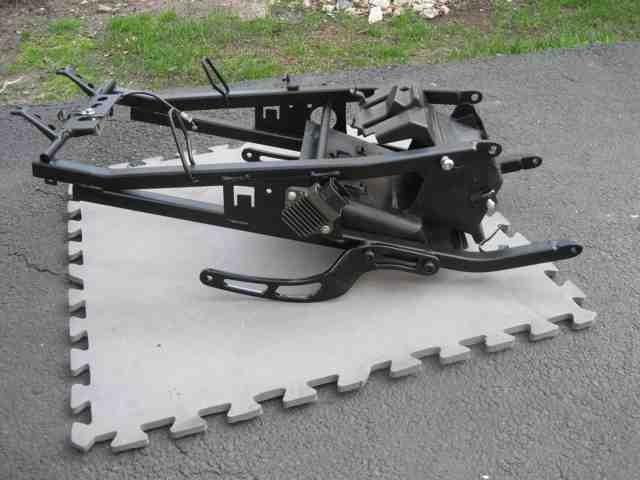

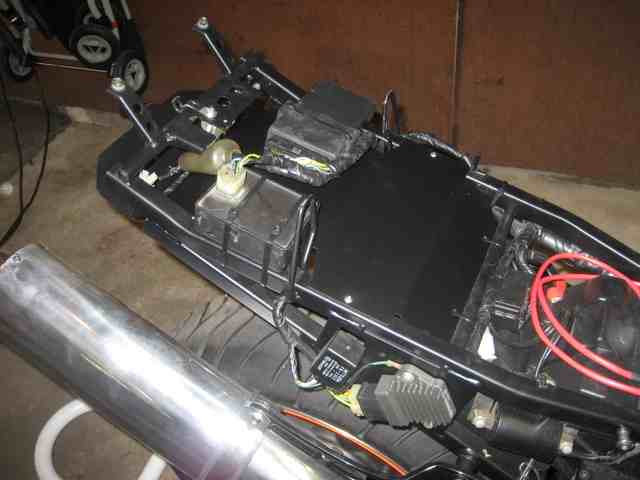

Attached Thumbnails Modifications FINALLY finished....-license_bracket.jpg   Modifications FINALLY finished....-undertail_tray.jpg   Modifications FINALLY finished....-undertail_tray_mounted.jpg   Modifications FINALLY finished....-subframe.jpg
SlowHAWK is online now
Reply
Old 08-27-2007, 09:30 AM
  #8
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
Finally assmenbled...

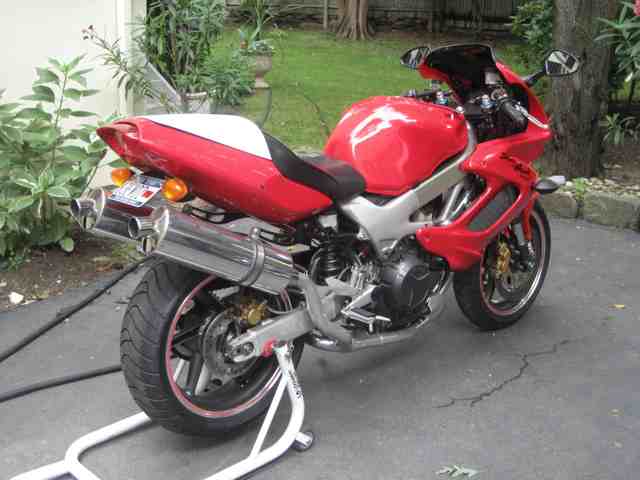

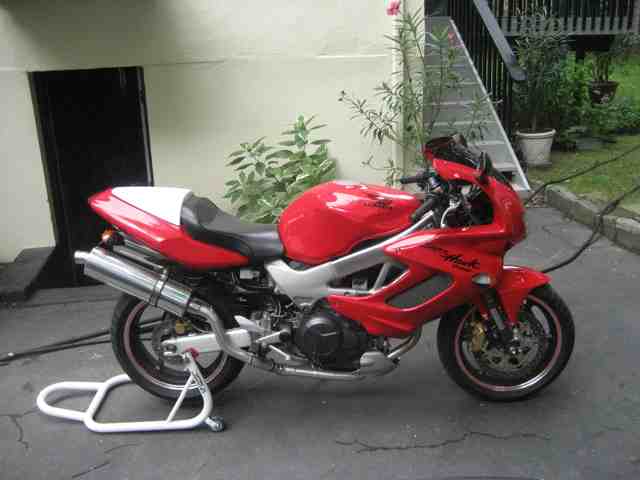

Attached Thumbnails Modifications FINALLY finished....-rear_finished.jpg   Modifications FINALLY finished....-side_finished.jpg
SlowHAWK is online now
Reply
Old 08-27-2007, 09:41 AM
  #9
Senior Member
MotoGP

ghopki1's Avatar

Join Date: Jul 2007
Location: NW North Carolina
Posts: 6,110
ghopki1 is on a distinguished road
Very, very nice man. Good work.
ghopki1 is offline
Reply
Old 08-27-2007, 09:46 AM
  #10
The Underdog
Back Marker

Edwards07's Avatar

Join Date: May 2007
Location: Woodinville, WA
Posts: 140
Edwards07 is on a distinguished road
That's pretty awesome! Doesn't look that hard to put the forks on. Great lookin' bike, Great job!
Edwards07 is offline
Reply
Old 08-27-2007, 09:49 AM
  #11
Senior Member
SuperSport
Thread Starter

SlowHAWK's Avatar

Join Date: Jun 2004
Location: Thornwood, NY
Posts: 817
SlowHAWK is an unknown quantity at this point
Thanks....

The fork swap isn't that bad.... mounting the forks/triples up is pretty easy, it's getting all the little things right, like placement of controls so they don't hit anything, making the stops touch before you hit the rads, and all the little stuff like mounting the horn and other bits that drives you crazy.... etc...

J.
SlowHAWK is online now
Reply
Old 08-27-2007, 09:52 AM
  #12
oh no not another new guy
Squid

tbone's Avatar

Join Date: Aug 2007
Location: boston
Posts: 15
tbone is on a distinguished road
damn thats looking amazing. I really want to do something with my wheels, Im just not sure what Im going to do yet
Last edited by tbone; 08-27-2007 at 01:06 PM.
tbone is offline
Reply
Old 08-27-2007, 11:13 AM
  #13
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Nice work Congrats on a job well done.
mikstr is offline
Reply
Old 08-27-2007, 04:06 PM
  #14
Senior Member
Superstock

Killemall's Avatar

Join Date: Jul 2007
Location: CA, South of Heaven
Posts: 342
Killemall is on a distinguished road
Really an awesome work!!! I wish I had that front end.
Killemall is offline
Reply
Old 08-28-2007, 03:15 AM
  #15
Member
Squid

futurehawk's Avatar

Join Date: Jan 2007
Posts: 45
futurehawk is on a distinguished road
Too nice for mere words. WOW!!!!!!!!!!
futurehawk is offline
Reply
Old 04-13-2008, 12:00 PM
  #16
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by SlowHAWK
More pics
Slowhawk, nice work bro can you come over and do mine? LOL! I'm gathering parts now for the RC51 swap and it looks like that may be a stocker front fender. Is it a stocker and if so will it bolt to the RC51 SP1 forks?

Thanks,
Rick C.
FL02SupaHawk996 is offline
