Wanted: Regulator Rectifier not stator
Pretty sure mine is dead. New battery, not getting charged.
Anyone have a used one for cheap?
Anyone have a used one for cheap?
Last edited by Erik S.; 05-31-2009 at 11:38 AM.
05-30-2009, 09:51 PM
#4
guru of things sparky
SuperSport
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
05-31-2009, 11:37 AM
#5
Senior Member
SuperBike
Thread Starter
Join Date: Nov 2007
Location: Westerly, RI
Posts: 1,216
Circuit, thanks for the heads up and the link. It is the Regulator Rectifier. Now I need to do some re-reading to figure out which is the best upgrade for the SH. I know it's an R6, just can't remember what year.
06-01-2009, 07:48 PM
#7
guru of things sparky
SuperSport
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599

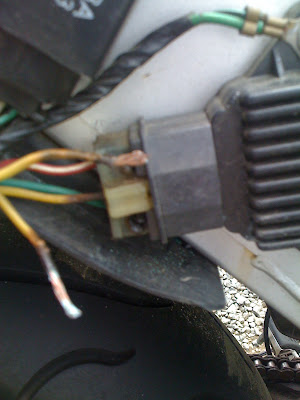

The three bottom leads are the AC from the stator.
It is usually like this when an overcharging situation is taking place. (R/R failure mode B)
In this situation it damages the battery internally, resulting in exactly what you described.
you will likely need a new battery, along with a R/R.
Ditch the plug too as those AC leads at the terminals are a heat source.
Youve probably seen my offerings, they come plugless unless specified otherwise.
Theres a story about why the regulator plugs get so hot, but thats not for here.
It is usually like this when an overcharging situation is taking place. (R/R failure mode B)
In this situation it damages the battery internally, resulting in exactly what you described.
you will likely need a new battery, along with a R/R.
Ditch the plug too as those AC leads at the terminals are a heat source.
Youve probably seen my offerings, they come plugless unless specified otherwise.
Theres a story about why the regulator plugs get so hot, but thats not for here.
06-02-2009, 01:59 PM
#9
guru of things sparky
SuperSport
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
Last edited by Circuit_Burner; 06-02-2009 at 02:06 PM.
06-02-2009, 02:27 PM
#10
Senior Member
SuperBike
Thread Starter
Join Date: Nov 2007
Location: Westerly, RI
Posts: 1,216
Page is starting to look good.
I've got an R1/R6 on the way.
Thanks for the heads up on the battery. Is there a way to check for a dead cell. It's showing 12V right now after being on the battery tender.
Erik
I've got an R1/R6 on the way.
Thanks for the heads up on the battery. Is there a way to check for a dead cell. It's showing 12V right now after being on the battery tender.
Erik
06-02-2009, 02:36 PM
#11
guru of things sparky
SuperSport
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
The best way is to observe how much voltage drop you get when turning on the key.
Same as load testing though, not many motorcycle battery load testers.
If it drops more than a volt when you turn on the key the battery is cooked or dead.
Same as load testing though, not many motorcycle battery load testers.
If it drops more than a volt when you turn on the key the battery is cooked or dead.
Last edited by Circuit_Burner; 06-02-2009 at 02:39 PM.
