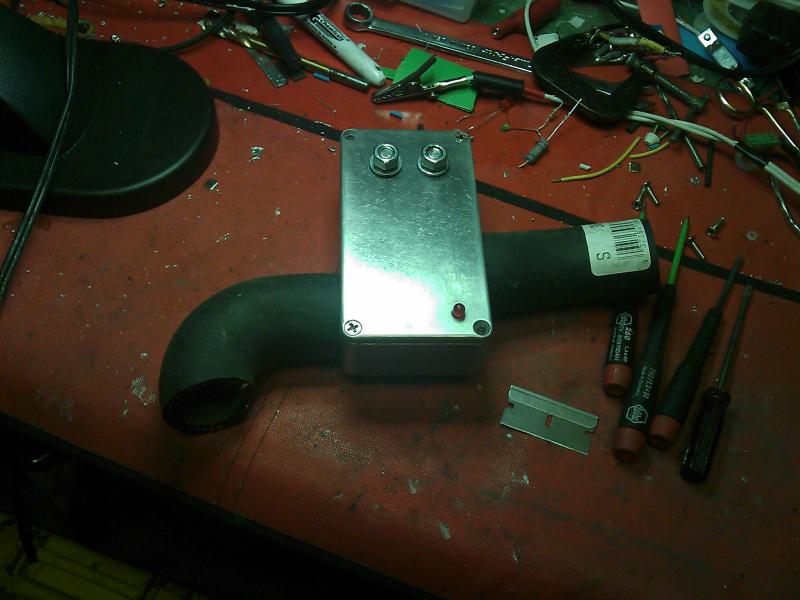

Liquid cooled Regulator Rectifiers
For Rc-51, will fit SuperHawk by reversing hoses.
Keeps Diodes 5 times cooler by diverting coolant from radiator thru R/R.
Worlds 1st for bikes, the concept we originally designed for a small helicopter engine.
$200.00 plus shipping - worldwide.
Keeps Diodes 5 times cooler by diverting coolant from radiator thru R/R.
Worlds 1st for bikes, the concept we originally designed for a small helicopter engine.
$200.00 plus shipping - worldwide.
05-05-2009, 08:52 PM
#2
Senior Member
SuperSport
Join Date: Dec 2008
Location: Arizona
Posts: 507
That seems like a pretty crazy setup. If I were worried about the cooling I would probably just use peltier cooler between the R/R and heatsink. Plus you can find them for around 10 bucks for the size we would need.
05-05-2009, 09:08 PM
#3
Senior Member
Superstock
Join Date: May 2008
Location: S.Dak USA
Posts: 347
Interesting idea.Might be worth the investment for a race application,but on the street I think it would be overkill.You can upgrade to a good aftermarket R/R for just under $100,but good luck with the unit!
05-05-2009, 09:12 PM
#4
Senior Member
MotoGP
Join Date: Jul 2007
Location: NYC
Posts: 5,033
OK this is a joke right? Liquid cooled electronics? Racing applications? I have heard of liquid cooling on speakers but only a thin jacket of coolant to transfer heat to the atmosphere. Ha ha very funny
05-05-2009, 11:26 PM
#5
guru of things sparky
SuperSport
Thread Starter
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
No joke, and its less trouble than peltier wafers and heat sinks.
No liquid gets into the electrics.
Plus, peltier modules have limited service life, the wafer would fail sooner than the other parts would, making the whole thing overheat.
Also peltier modules stop cooling when their heat sink side saturates with heat.(= huge heat sink)
No way heat saturation happens on this unit !
This is not going to be a common item outside of someones racebike, of course.
Its expensive but works great. Sold 3 this year in Dallas so far. Not expecting this one to be a big seller anyway.
Im just trying to round out my line of R/R and similar electrical products with some rarity. ( no one else has done it )
The idea comes from back in the 1980s when Showa made a watercooled shock for the RC-250 racebike, and fed radiator water thru the shock body to cool it and keep it from fading during 30 minute motos. Lots of heat removed this way. I just borrowed the concept, since nothing on your entire bike gets hotter than your regulator rectifier except maybe the exhaust header. I would need to actually measure that to say, its probably pretty close.
Im putting this one on my own hawk this week for measurements.
No liquid gets into the electrics.
Plus, peltier modules have limited service life, the wafer would fail sooner than the other parts would, making the whole thing overheat.
Also peltier modules stop cooling when their heat sink side saturates with heat.(= huge heat sink)
No way heat saturation happens on this unit !
This is not going to be a common item outside of someones racebike, of course.
Its expensive but works great. Sold 3 this year in Dallas so far. Not expecting this one to be a big seller anyway.
Im just trying to round out my line of R/R and similar electrical products with some rarity. ( no one else has done it )
The idea comes from back in the 1980s when Showa made a watercooled shock for the RC-250 racebike, and fed radiator water thru the shock body to cool it and keep it from fading during 30 minute motos. Lots of heat removed this way. I just borrowed the concept, since nothing on your entire bike gets hotter than your regulator rectifier except maybe the exhaust header. I would need to actually measure that to say, its probably pretty close.
Im putting this one on my own hawk this week for measurements.
Last edited by Circuit_Burner; 05-06-2009 at 01:18 AM.
05-06-2009, 09:43 AM
#6
Senior Member
SuperSport
Join Date: May 2008
Location: Bham, AL
Posts: 702
Last edited by haknslash; 05-06-2009 at 09:46 AM.
05-06-2009, 09:53 AM
#7
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
You know a peltier doesn't cool anything? It just moves heat, and adds a couple of watts at the hot end for it's own powerconsumption... So using one in this application is counterproductive...
05-06-2009, 10:19 AM
#8
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
Well if you put a big heatsink on the hot side of the peltier, and the cold side on the R/R it will keep the R/R cooler than if it weren't there.
05-06-2009, 10:37 AM
#9
guru of things sparky
SuperSport
Thread Starter
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
Thats one big heat sink for a R/R . ( imagine a 200 watt amp under your seat for a R/R )
Ive worked with some peltier modules for years, made some Koosie drink coolers that will freeze a can of beer in less than an hour.
(imagine a koosie with a huge heat sink and fan on the bottom)
To remove 10 calories of heat thru a peltier(average calc)you create 1.
its a linear line out from there.
Peltier cooling wafers they are pretty cool devices, but they create a lot of heat and dont last very long.
Last edited by Circuit_Burner; 05-06-2009 at 10:41 AM.
05-06-2009, 10:40 AM
#10
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
hehe ,
Thats one big heat sink for a R/R . ( imagine a 200 watt amp under your seat for a R/R )
Ive worked with some peltier modules for years, made some Koosie drink coolers that will freeze a can of beer in less than an hour.
To remove 10 calories of heat thru a peltier(average calc)you create 1.
its a linear line out from there.
they are pretty cool devices, but they create a lot of heat and dont last very long.
Thats one big heat sink for a R/R . ( imagine a 200 watt amp under your seat for a R/R )
Ive worked with some peltier modules for years, made some Koosie drink coolers that will freeze a can of beer in less than an hour.
To remove 10 calories of heat thru a peltier(average calc)you create 1.
its a linear line out from there.
they are pretty cool devices, but they create a lot of heat and dont last very long.
05-06-2009, 10:44 AM
#11
guru of things sparky
SuperSport
Thread Starter
Join Date: Oct 2008
Location: Grand Prairie , Texas
Posts: 599
Hey you do give me an idea though.
A peltier wafer INSIDE the liquid cooled R/R, cold side fixed to the diodes and SCRs, and the Hot side fixed against the copper water vessel.
That module would never saturate on the hot side.
Now thats a Peltier that would get freeking Ice cold !
I dont know if we need a refrigerated R/R, it might fail from being too cold ... lol
A peltier wafer INSIDE the liquid cooled R/R, cold side fixed to the diodes and SCRs, and the Hot side fixed against the copper water vessel.
That module would never saturate on the hot side.
Now thats a Peltier that would get freeking Ice cold !
I dont know if we need a refrigerated R/R, it might fail from being too cold ... lol
Last edited by Circuit_Burner; 05-06-2009 at 10:51 AM.
