What??


Old 02-24-2017, 12:57 AM
  #1
Junior Member
Squid
Thread Starter

supra's Avatar

Join Date: Dec 2016
Posts: 5
supra is on a distinguished road
What??

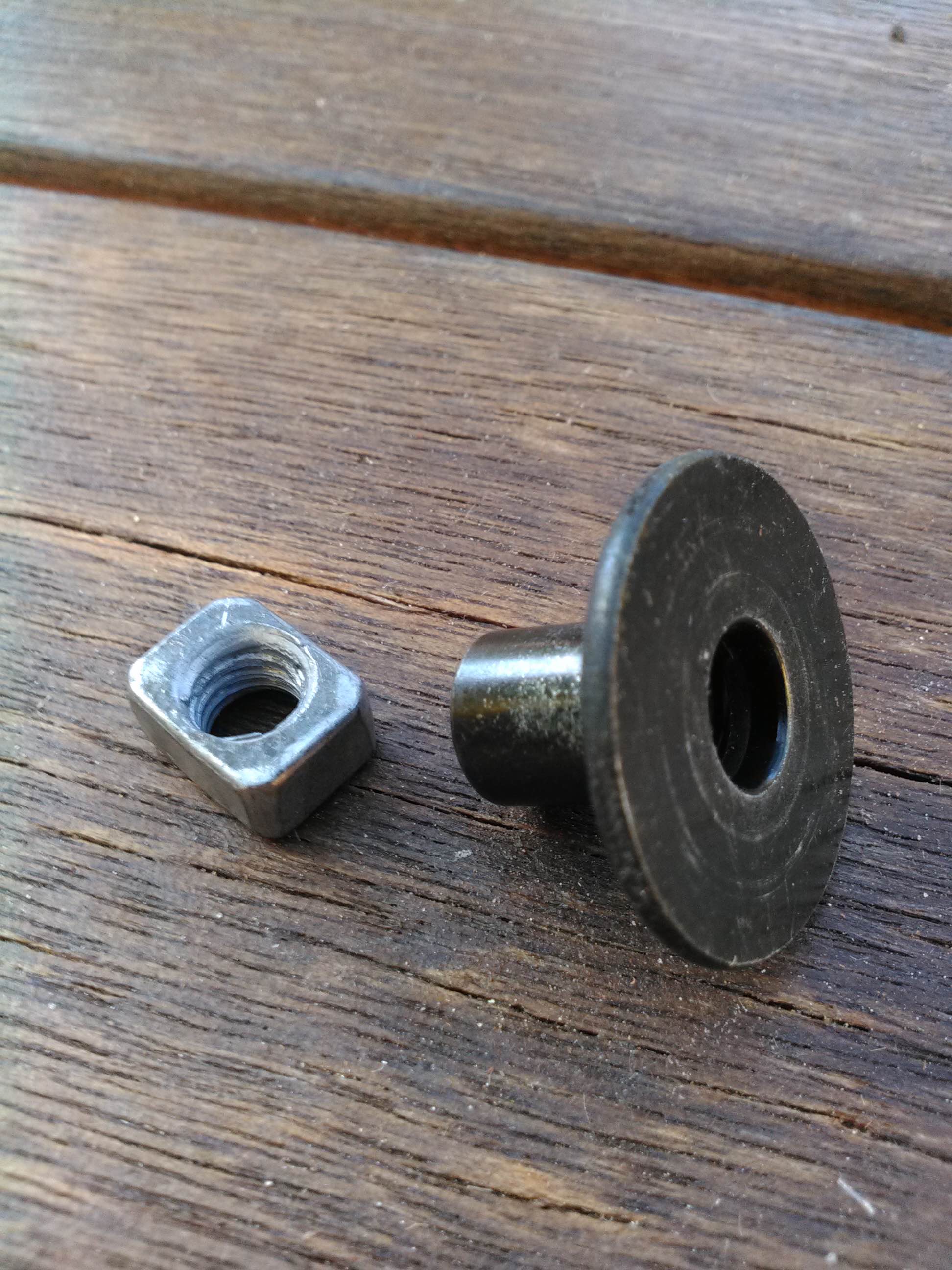

Ok I took off the rear cowling, fuel tank, air box and air filter and these bits ended up on floor- two of the washer and one nut. Where do they go????
Attached Thumbnails What??-img_20170224_161939_fotor.jpg
supra is offline
Reply
Old 02-24-2017, 01:12 AM
  #2
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,707
Wicky is on a distinguished road
22 Collar

https://www.bike-parts-honda.com/pie...IRE+STORM.html
Wicky is offline
Reply
Old 02-24-2017, 03:57 AM
  #3
Senior Member
Superstock

RedStormJ's Avatar

Join Date: Aug 2016
Posts: 345
RedStormJ is on a distinguished road
Could be mistaken but that one piece looks like the fuel tank bushing. Other one is over my head.
RedStormJ is offline
Reply
Old 02-24-2017, 05:25 AM
  #4
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 5,071
Wolverine is on a distinguished road
The square nut looks like a battery nut. I've dropped many over the years.
Wolverine is offline
Reply
Old 02-24-2017, 09:53 AM
  #5
Administrator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,402
E.Marquez is on a distinguished road
Originally Posted by supra
Ok I took off the rear cowling, fuel tank, air box and air filter and these bits ended up on floor- two of the washer and one nut. Where do they go????
Steel collar is either fuel tank rubber spacer or dash rubber spacer.
The rectangle nut appears to be for a batter terminal.



Attached Thumbnails What??-collar-speedometer-setting-37243-mbb-000.jpg   What??-collar-setting-61104-422-000.jpg
Last edited by E.Marquez; 02-24-2017 at 10:48 AM.
E.Marquez is offline
Reply
Old 02-24-2017, 10:22 AM
  #6
Senior Member
Superstock

RedStormJ's Avatar

Join Date: Aug 2016
Posts: 345
RedStormJ is on a distinguished road
Wopverene good call! It looked different on my chinesiim screen but I zoomed in. Thumbs up. You know where that bushing goes right? Pop it in the gas tank where the rear 10 mk bolt goes through. It acts as a spacer and guard against the bolt eating up the rubber. Your tank is probably sitting a slight **** to one side. Thatll even it up. I forget to put it in all the time...
RedStormJ is offline
Reply
Old 02-24-2017, 02:43 PM
  #7
Junior Member
Squid
Thread Starter

supra's Avatar

Join Date: Dec 2016
Posts: 5
supra is on a distinguished road
Thanks for all your answers. Yes the nut is from battery, i remember losing it now.
supra is offline
Reply
