other swing arms

Old 10-23-2007, 06:25 PM
  #1
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
other swing arms

will other honda model swing arms fit onto the 996?
98honda is offline
Old 10-23-2007, 07:43 PM
  #2
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,216
captainchaos is on a distinguished road
not aware of any straight bolt ons...you can cut the brace off a 900rr swingarm and have it welded on for an easy braced swingarm. Several folks have also used sp2 swingarms but that's a bit of cutting and fab work involved with that (and $$$).
captainchaos is offline
Old 10-24-2007, 08:50 AM
  #3
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
thanks, i have a local guy here that works on bikes.. he said i can take mine of and have it sent off for a 4-8 inch custom extension for about 4-500..
98honda is offline
Old 10-24-2007, 02:29 PM
  #4
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point

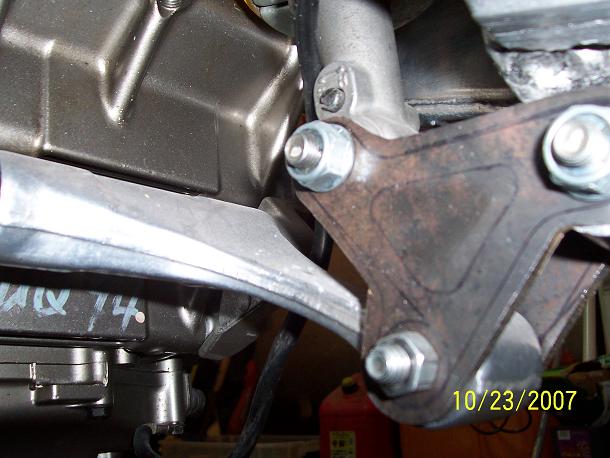

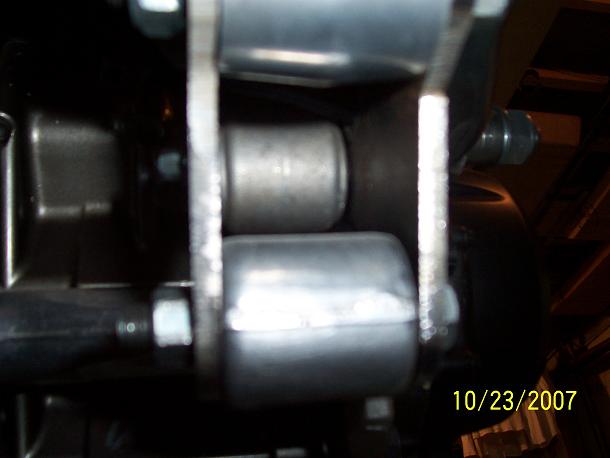

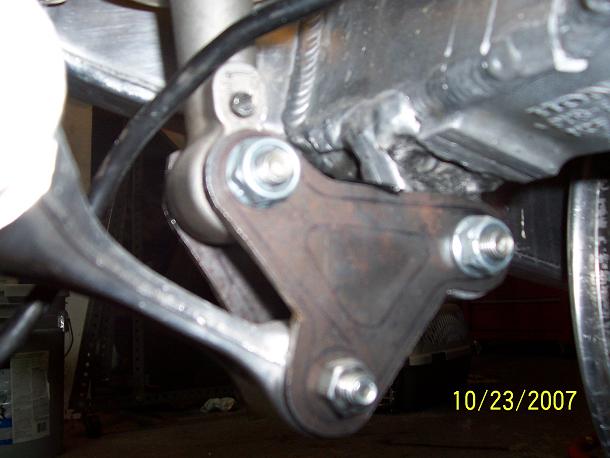

here are pics i was talking about.
Attached Thumbnails other swing arms-shock1.jpg   other swing arms-shock2.jpg   other swing arms-shock3.jpg
hawxter996 is offline
Old 10-24-2007, 05:01 PM
  #5
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
were are you located at? i take it your bike has the other swingarm.. and does the other swingarm allow extensions to fit them..
98honda is offline
Old 10-24-2007, 05:16 PM
  #6
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
i am in maryland.
dont know if rc swingarm accepts extensions.
never have been into drag racing,just like the curves.
heres a couple pics.
at a stall point xmas is coming.
will start up again after 1st of year.

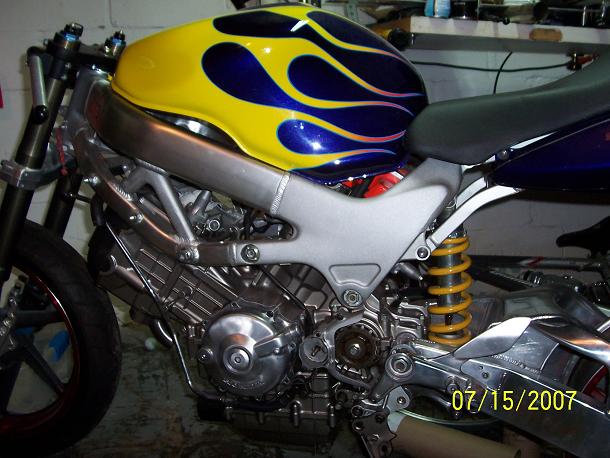

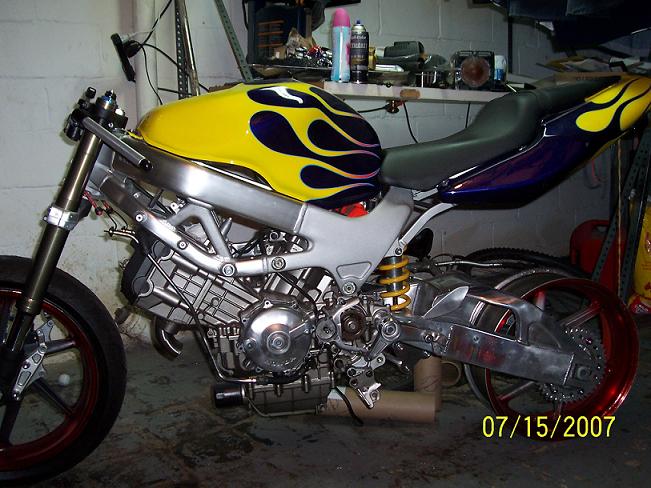

Attached Thumbnails other swing arms-punishment.jpg   other swing arms-punishment3.jpg
hawxter996 is offline
Old 10-24-2007, 05:18 PM
  #7
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
nice man.. here are a few of mine..

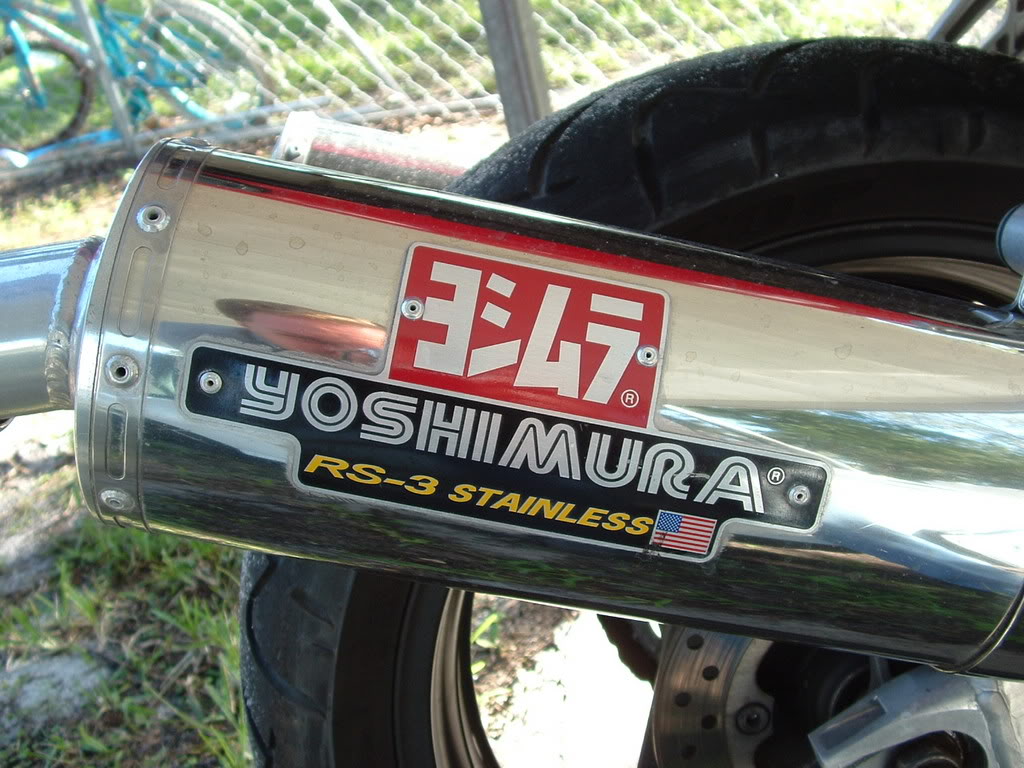

Name:  newbike001.jpg
Views: 6
Size:  145.6 KB

98honda is offline
Old 10-24-2007, 05:22 PM
  #8
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
have always thought red was best color.
i was right. sweet!

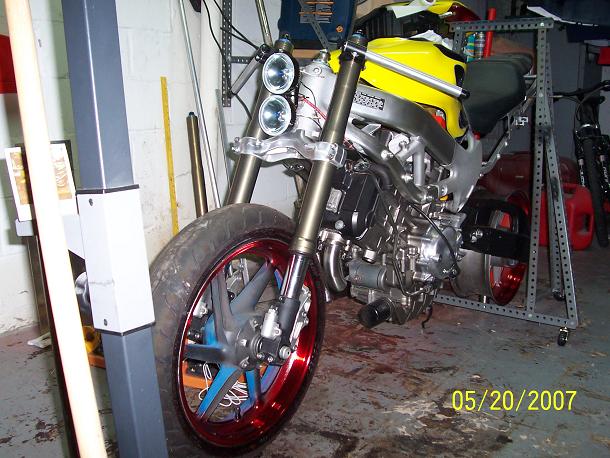

Attached Thumbnails other swing arms-angle.jpg
hawxter996 is offline
Old 10-24-2007, 05:28 PM
  #9
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
i take it you are doing the street fighter look?
98honda is offline
Old 10-24-2007, 05:32 PM
  #10
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
actually im going to try a superbike/moto gp kinda look.
thought those lights just looked kind of cool.
still thinking about bodywork.
hawxter996 is offline
Old 10-24-2007, 05:35 PM
  #11
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
are you powder coating your wheels? that red looks realy good!!
98honda is offline
Old 10-24-2007, 05:39 PM
  #12
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
yeah i like that red also.
was just testing different colors and found
that shade at wallyworld
its the anodized red spray can.
checked powder coaters they want 500 for just wheels
in that shade.
thats a lot of dough for stock wheels.
id rather save for aftermarket at that rate.
hawxter996 is offline
Old 10-24-2007, 05:47 PM
  #13
Senior Member
Back Marker
Thread Starter

98honda's Avatar

Join Date: Oct 2007
Posts: 130
98honda is on a distinguished road
oh i agree.. hey look good though..
98honda is offline
Old 10-24-2007, 05:59 PM
  #14
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
have a lot of mods planned.
weight loss of bike and myself are planned.
battery and all electronics will be relocated.
gonna try a 600rr radiator,older model new one is too large.
subframe is modded. and exhaust will be fabricated out of stainless.
rear pipe exits under seat and front pipe snakes up and exits left side
above alternator.
most likely baffleless thats where moto gp
shows influence.
hawxter996 is offline
Old 10-24-2007, 06:04 PM
  #15
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point

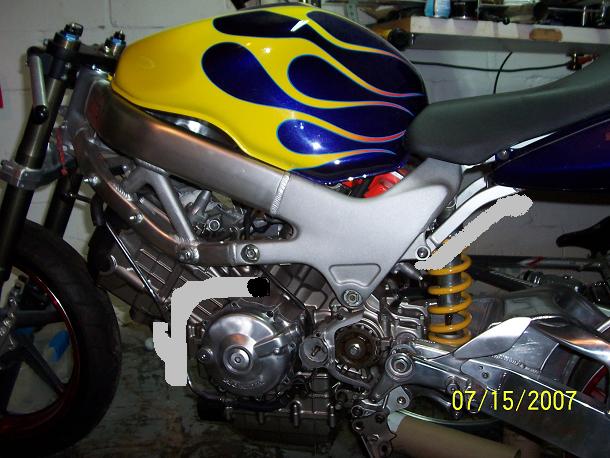

just to give an idea of exhaust routing.
Attached Thumbnails other swing arms-exhaust-proto.jpg
hawxter996 is offline
Old 10-24-2007, 07:59 PM
  #16
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,216
captainchaos is on a distinguished road
hawxter that bike looks sick! Can't wait to see it (and mine lol) done. Did you take any of the length out of the sp2 swingarm to keep the stock wheelbase or did you leave it alone?
captainchaos is offline
Old 10-25-2007, 04:27 AM
  #17
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point

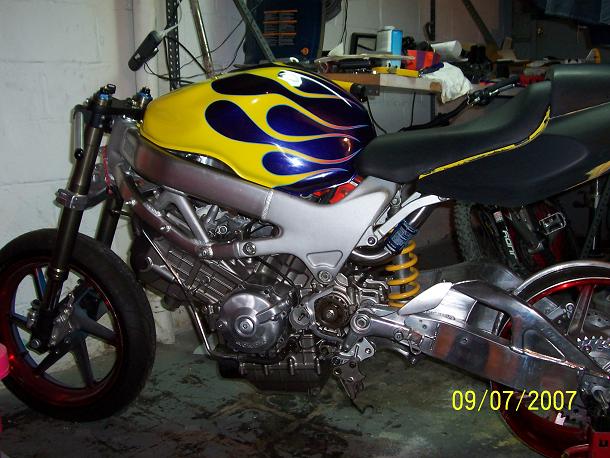

i left arm as is.
was a lot easier to setup.
if i had chopped length off,i would have to
do a lot more fabrication.
it does add a liitle to wheel base,but it
just looks cool as hell.
i think it adds less length than vfr arm though.
Attached Thumbnails other swing arms-sickness.jpg
hawxter996 is offline
Old 10-25-2007, 09:38 AM
  #18
Senior Member
Back Marker

Join Date: Aug 2005
Posts: 200
Besucher98
Don't forget to keep posting the pics as it moves along. I think there are a few of us watching!
Besucher98 is offline
Old 10-25-2007, 10:13 AM
  #19
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
so chaos how about some pics of yours?
hawxter996 is offline
Old 10-25-2007, 10:55 AM
  #20
Senior Member
Back Marker

Alan's Avatar

Join Date: May 2006
Location: UK (England)
Posts: 152
Alan is on a distinguished road
Thats looking awesome mate how far is it off finished?? Did you fabricate the linkage plates your self?? Is there any other mods that need doing to mount the sp swinger?
Alan is offline
Old 10-25-2007, 10:58 AM
  #21
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
Alan,

plates i cut myself need to finish trimming them.
photos i posted should give an idea of work on swinger.
hawxter996 is offline
Old 10-25-2007, 11:15 AM
  #22
Senior Member
Back Marker

Alan's Avatar

Join Date: May 2006
Location: UK (England)
Posts: 152
Alan is on a distinguished road
Are you trimming round the felt tip pen lines that are drawn on the plates for actual size.

Could you mail me a template when your finished if you dont mind

it is looking very special i'm tempted to redo my conversion lol

my vfr swinger adds about 50mm to the wheel base have you an idea on the sp one yet??

whens it finished??
Alan is offline
Old 10-25-2007, 12:01 PM
  #23
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
havent actually measured yet.
am curious to know exactly how much longer it is.
im afraid it may be longer than vfr arm after all.
50mm appears to be slightly less than 2in.
man were stretching our bikes!
i actually wont be doing much until after holidays im afraid.
but yeah if any one wants a template i will work on that.
hawxter996 is offline
Old 10-25-2007, 01:31 PM
  #24
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,216
captainchaos is on a distinguished road
Originally Posted by hawxter996 View Post
so chaos how about some pics of yours?
Soon! I should have had this bike done about 6 months ago but I just haven't had the time. Amongst all the other stuff I currently have the 900rr braced swingarm but just had an sp2 swingarm built that I need to polish. Also finally scored a set of mag marchesinis and of course already did the rc51 front end... it's coming...
captainchaos is offline
Old 10-25-2007, 02:42 PM
  #25
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
come on we want some in progress pics!
hawxter996 is offline
Old 10-25-2007, 03:02 PM
  #26
Senior Member
Back Marker

Alan's Avatar

Join Date: May 2006
Location: UK (England)
Posts: 152
Alan is on a distinguished road
yeah pics! pics! pics!
Alan is offline
Old 10-25-2007, 03:57 PM
  #27
Senior Member
SuperBike

cliby's Avatar

Join Date: Jul 2005
Location: MN
Posts: 1,547
cliby is on a distinguished road
and some details.......what do you mean you had an SP2 arm built? would sure simplify wheel options to ahve RC51 front and rear
cliby is offline
Old 10-25-2007, 04:14 PM
  #28
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
Originally Posted by cliby View Post
and some details.......what do you mean you had an SP2 arm built? would sure simplify wheel options to ahve RC51 front and rear
left that out sp1 front and rear on mine.
could anyone here that has a vfr arm measure from
pivot center to center of axle.
i have a measurement of 530mm on rc arm.

Last edited by hawxter996; 10-25-2007 at 04:30 PM.
hawxter996 is offline
Old 10-25-2007, 08:33 PM
  #29
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,216
captainchaos is on a distinguished road
Originally Posted by cliby View Post
and some details.......what do you mean you had an SP2 arm built? would sure simplify wheel options to ahve RC51 front and rear
"had it built" means I started learning to tig but not experienced enough to try and build it myself lol. Paid a pretty penny to have @3 inches cut out of it (to keep the stock wheelbase) and have it welded to the superhawk swingarm pivots. Also had a custom shock mount made so I can keep my superhawk shock (ohlins). So now it's a bolt on part. I don't have pics yet but I promise to post 'em as soon as I can get this thing back together. This is ******* sickness and it's an expensive one too.

Last edited by captainchaos; 10-25-2007 at 08:39 PM.
captainchaos is offline
Old 10-26-2007, 05:22 AM
  #30
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
chaos

i think i can speak for the rest of us,lets see some pics of that arm before you mount it.

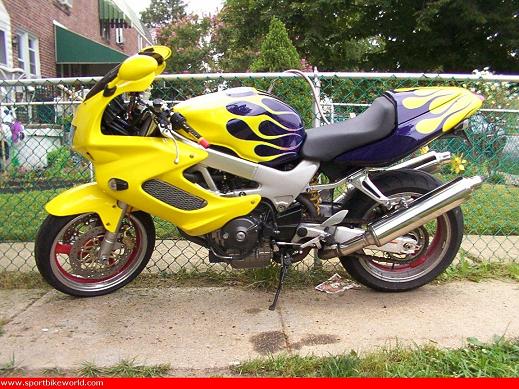

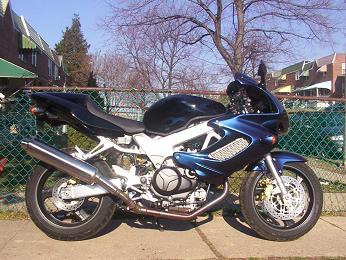

1st pic is as purchased.

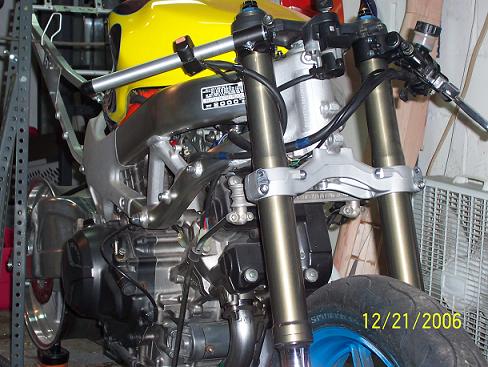

2nd pic is after new paint.

3rd pic is current,under going mods.
Attached Thumbnails other swing arms-pp2.jpg   other swing arms-pp3.jpg   other swing arms-pp.jpg
hawxter996 is offline
