need help on regulater

Old 07-30-2011, 03:36 PM
  #1
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
need help on regulater

got r1 regulater on it and its reading same as before, so it isn't the regulater. volts on idle read 14.2 but rev it up and voltage drops drastically 2000rpm it down to 5v

Last edited by wsharpman; 07-30-2011 at 05:08 PM.
wsharpman is offline
Old 07-30-2011, 05:39 PM
  #2
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
did you test the stator?
autoteach is offline
Old 07-30-2011, 06:05 PM
  #3
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
no not yet I havent, truth be known I am not very good at all this but learning lol. anyhow I may be ok but batt reads 13.1v on its own (off) yet it isn't enough to start the beast just barely too low. So I have to boost it off. after I went back out and restarted it (boosted) I again checked and it was reading it charging at [email protected] so I am hoping in the morning when I am fresh and I have a fully charged battery I will recheck again and if all seems good test it out.
wish me luck

Last edited by wsharpman; 07-30-2011 at 06:27 PM.
wsharpman is offline
Old 07-31-2011, 08:08 AM
  #4
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
well this morning after charging all night the battery still needed a jump to give it that extra to start it. I ran it a few miles and saw that the readings looked good (on the multimeter) but after shutting it off and restarting on its own, it wouldnt start again after 2nd try. So I went to wallymart and bought a new battery and a smart charger (my shop charger has no light to tell when its full). anyways put the new charger on it and it shows its really low even when multimeter says its at 13.4v so tells me that the battery was shot (only 1 month old) by the regulater. anyways got a new battery and charging it right now...
wsharpman is offline
Old 07-31-2011, 03:52 PM
  #5
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
update for anyone that cares, I cut fins off the r1 regulater/rectifier only enough to fit the exact shape (rounded) and size to fit cowl back on. and bought new battery and ran it several times and shut it off and restarted no problems so far..even seem to notice the bike runs a lot smoother and appears to have more power although that may be just me?
wsharpman is offline
Old 07-31-2011, 04:06 PM
  #6
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,833
JamieDaugherty is an unknown quantity at this point
Sounds to me like you have a bad battery!!!
JamieDaugherty is offline
Old 07-31-2011, 04:31 PM
  #7
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
this was a carry over from other post jim, stock reg went bad and ruined a new battery, then I opted for the mosfet r1 regulater/rectifier and then a new battery...everything is all good again or appears so anyways
wsharpman is offline
Old 07-31-2011, 07:07 PM
  #8
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road

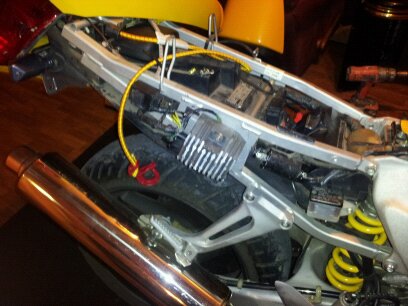

r1 mosfet upgrade

r1 reg /rect done
oh and by the way anyone else looking to find where the red (hot) wire goes on the reg pins it is the one closest to the yellow pins.
Attached Thumbnails need help on regulater-bike-parts-005.jpg
wsharpman is offline
Old 08-01-2011, 02:17 PM
  #9
99 superhawk
Superstock
Thread Starter

wsharpman's Avatar

Join Date: Jun 2011
Location: jasper Ga.
Posts: 256
wsharpman is on a distinguished road
bikes running like a champ now (even got caught in a heavy rain today) gave me an oppertunity to not only see if everything is sealed well from rain, but also see how the new tires I put on handle the water. sliced thru the water like nothing (was conserned as these tires on these bikes look like they have more slick than traction lol ). Alls good!!!!
wsharpman is offline
Old 07-28-2014, 06:44 AM
  #10
Junior Member
Squid

Join Date: Dec 2010
Location: mt.juliet, tennessee
Posts: 15
supertim996 is on a distinguished road
I too have had the same issues, the R1 rectifier and battery lasted 8 mos. now it's messed up again. I would love some insight from people in the know
supertim996 is offline
Old 07-28-2014, 09:42 AM
  #11
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,833
JamieDaugherty is an unknown quantity at this point
You should try adding an additional ground wire directly from the R/R to the negative terminal of the battery. I've also found it helpful to do the same with the positive, but for most people getting a good ground is enough.

Good luck!
