Master cylinder....

Old 07-22-2013, 07:34 PM
  #1
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
Master cylinder....

So, when that master cylinder took a dump while riding, i torn it apart and ordered a new one from the local honda stealer. Well, got the part in and it looks nothing like what came out of the bike. Im at a total lost. I ordered the right part, for the right bike, for the right year.

Item #18 Parts Finder Lifestyles Honda Mount Vernon, WA (877) 710-9700


Here is a picture of both the old (left) and the new (right) master cylinder sets.
Name:  q-1.jpg
Views: 4
Size:  74.6 KB

Name:  qq.jpg
Views: 4
Size:  22.8 KB
Mrredline05 is offline
Old 07-22-2013, 08:00 PM
  #2
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
It appears to me that the MC you have on the bike is not stock. I recognize the internals on the right... the left not so much. You have a pic of your MC?
7moore7 is offline
Old 07-22-2013, 08:09 PM
  #3
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
if you have a pic of the mc and calipers,we all might be able to help you out with what you have.
if im correct,from your member pic,it looks like you have upside down forks,which could be anything.
but the most common forks for the bike is 900rr,rc51.so you may have front brakes from a 954,929,rc51 .
take pics is the most important you can do so maybe we can help.
saige is offline
Old 07-22-2013, 08:11 PM
  #4
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
i can step out and get a few.
Mrredline05 is offline
Old 07-22-2013, 08:17 PM
  #5
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road

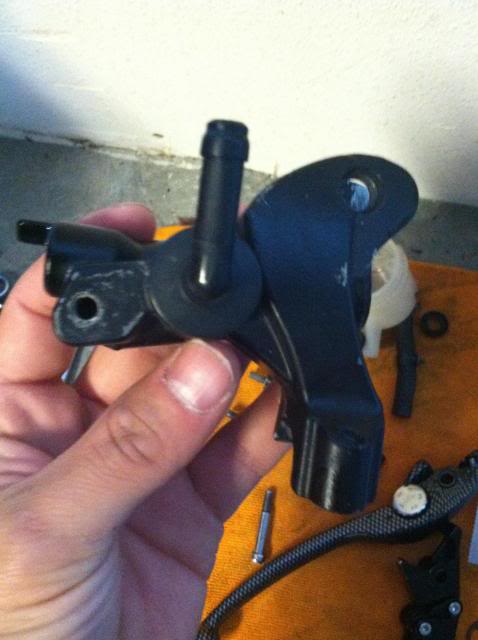

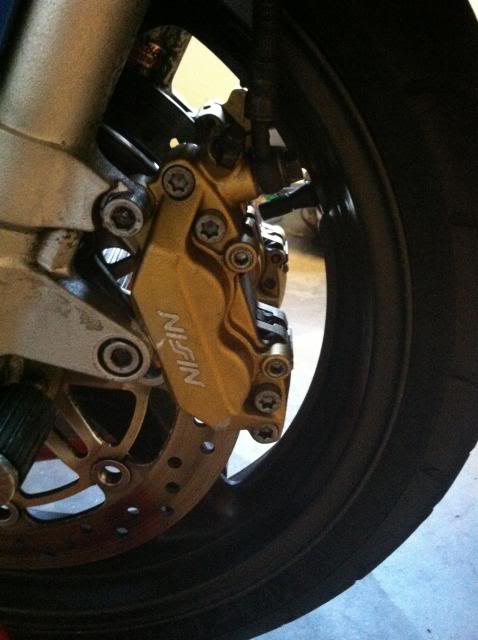

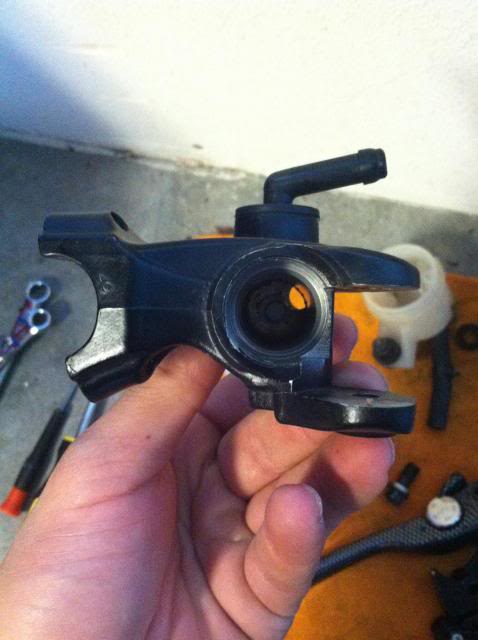

here is the MC and the brakes on it.

Name:  ww.jpg
Views: 3
Size:  33.5 KB

Name:  w.jpg
Views: 2
Size:  33.3 KB

Name:  www.jpg
Views: 2
Size:  35.5 KB
Mrredline05 is offline
Old 07-22-2013, 08:51 PM
  #6
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
it looks like a rc51/929 calipers and mc.
on the bottom of the mc,it will have a number on it.it will be 2 numbers with a slash mark in between.
what are thay?
read thru some of this,it may help better understand what you have.
https://www.superhawkforum.com/forum...ke-mods-13176/
saige is offline
Old 07-22-2013, 09:15 PM
  #7
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road

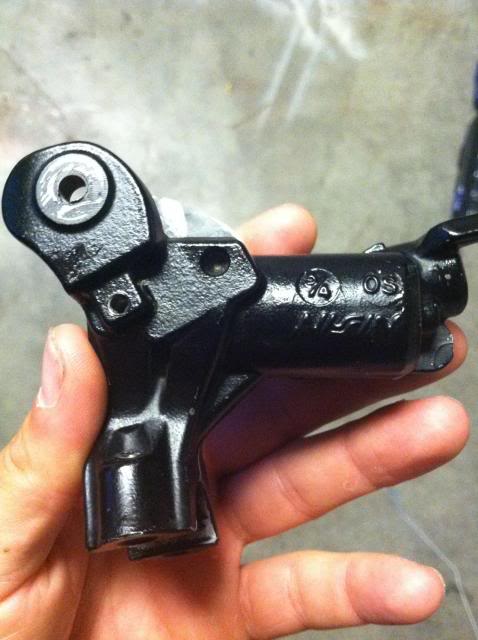

Ok, ill read through it and see if i find anything. here is a picture of the bottom.

Name:  aaa.jpg
Views: 2
Size:  39.6 KB
Mrredline05 is offline
Old 07-22-2013, 09:47 PM
  #8
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
Mrredline05 is offline
Old 07-22-2013, 10:25 PM
  #9
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
rc51 or 929 mc
2000/2001 rc51 and same years with 929
2000/2001 rc51 is aka rvt1000/sp1/firestorm
the sp1 model is what you want,thats rc51 in the states.
in ebay or the ads or fiche,you will see rc51 sp1 or rc51 sp2
look for rvt1000/rc51 sp1
thats is the 3/4
the bore is different from the newer rc51's,which is 11/16th

honda 929 aka cbr900rr/929/fireblade
the 929 was only made for 2 years,i think both years have the same mc as the rc51 sp1

if i am wrong about any of this,im sorry,im sure if someone knows better,they will chime in and correct it.so no matter what,look and research,you will learn a lot.
we all try and help,no matter what.

Last edited by saige; 07-22-2013 at 10:27 PM.
saige is offline
Old 07-22-2013, 10:55 PM
  #10
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
yea, ill start digging. In the mean time, mind as well take the part back and get a refund lol.
Mrredline05 is offline
Old 07-23-2013, 05:34 AM
  #11
New boy
Squid

AMCQ46's Avatar

Join Date: Nov 2009
Location: Birmingham UK
Posts: 25
AMCQ46 is on a distinguished road
looks to me like they sent you the service kit for the rear master cyl not the front that you wanted

edit..........2nd look says it is not a rear either, so scratch that observation

Last edited by AMCQ46; 07-23-2013 at 05:39 AM.
AMCQ46 is offline
Old 07-23-2013, 08:56 AM
  #12
Senior Member
SuperSport

supermarto's Avatar

Join Date: Aug 2007
Location: Tarpon Springs, FL
Posts: 524
supermarto is on a distinguished road
No, they definitely sent the correct part... IF he was working on a stock MC. Which he definitely does not have.
supermarto is offline
Old 07-23-2013, 03:17 PM
  #13
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
Right. Im still looking for a match up, but cant seem to find one expect that one on ebay that i linked a few post back.
Mrredline05 is offline
Old 07-23-2013, 06:08 PM
  #14
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
Yep, so me and a buddy looked around and found it. Honda CBR1000RR 04 08 Front Brake Master Cylinder Kit | eBay
Mrredline05 is offline
