Factory pro shift kit review.

I just installed the Factory Pro shift kit in my wifes Superhawk.
She had an issue with the first gear to second shift that always resulted in neutral. When I drove the bike, I had no such issue, but the throw is very long.

Long story short. The mod makes a huge improvement! Each gear really clicks audibly and much more precise. The throw feels shorter. Much shorter and the shifting is very solid and dependable. WELL WORTH THE COST!!!

A few tips: The kit does come with the clutch cover gasket, but not a water pump O-ring. Order a new one.

I found that it was easier to remove the two 10mm bolts off of the ignition pulser and remove the pulser from the cover than to hunt down, unplug and then refit the pulser wire through the frame, etc. a dab of black silicone seals it up.



When fitting the new detent arm, leave the bolt a little loose and use a piece of string to pull the spring up and over the arm. This sucker is TWICE as strong as the stock part.

Before starting the job, remove the radiator cap and remove the bottom radiator hose from the left radiator to drain the coolant. Have a rag ready for the little bit that is left when you pull off the water pump cover. This way NO water will enter your crankcase. (And you can use new coolant anyway, huh?)

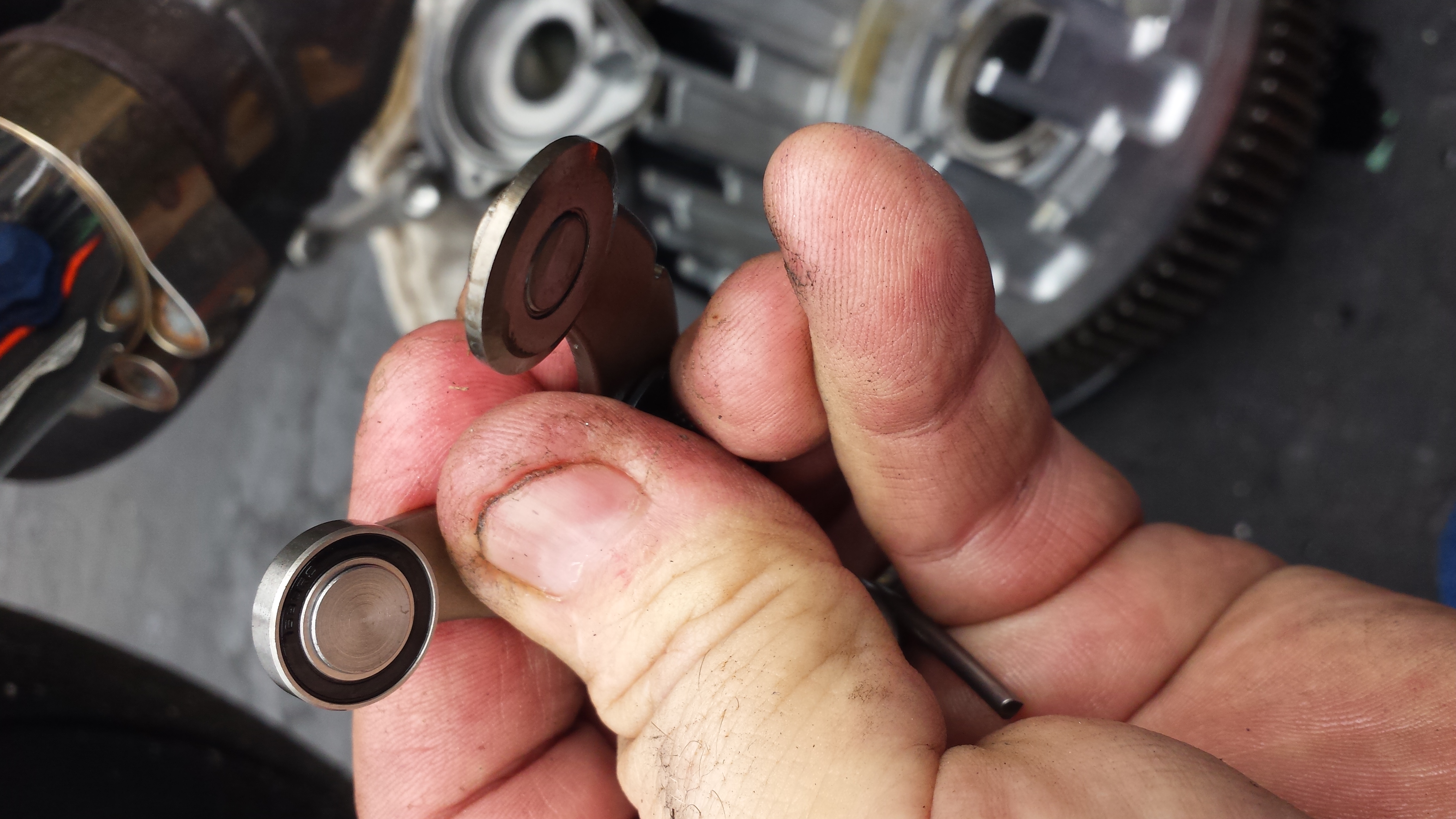

Attached Thumbnails Factory pro shift kit review.-20160108_115136.jpg   Factory pro shift kit review.-20160108_114204.jpg   Factory pro shift kit review.-20160108_120121.jpg   Factory pro shift kit review.-20160108_151450.jpg

Last edited by ZERO; 01-29-2016 at 02:50 AM.
ZERO is offline
Old 01-11-2016, 05:26 AM
  #2
Senior Member
Back Marker

AndyMX47's Avatar

Join Date: Oct 2014
Posts: 189
AndyMX47 is on a distinguished road
Nice review Zero - answers the questions I had too! Over the weekend I looked up the price for the stock shift drum arm - it's something like $13, which means it probably cost Honda 13 cents.


Always like to see feedback after a mod!
AndyMX47 is offline
Old 01-11-2016, 03:09 PM
  #3
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
Thanks for the review Zero. Still waiting on any communication from Marc as to whether my kit is made yet or shipped or forgotten. But it is always good to see photos of the inside before starting a job. Wondering whether to do the ignition rotor at the same time.
Twitchy is offline
Old 01-11-2016, 03:46 PM
  #4
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
I didn't load the advance (anti rattle gear)as the book says and I ended up with engine noise.
I just took it apart again. All good.
I got my kit from ordered to delivered in about ten days

Last edited by ZERO; 01-12-2016 at 02:06 AM.
ZERO is offline
Old 01-12-2016, 01:47 AM
  #5
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
Anyone in the U.S. want ring FP? Ordered kit early December, 2 emails since to see how things are going - zero return communication. No confirmation of manufacture, shipping, nothing.
Twitchy is offline
Old 01-12-2016, 02:08 AM
  #6
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
Originally Posted by Twitchy View Post
Anyone in the U.S. want ring FP? Ordered kit early December, 2 emails since to see how things are going - zero return communication. No confirmation of manufacture, shipping, nothing.
Wow. His communication was great for me.
Get me your information and order number and I'll stir the pot for you this afternoon.
ZERO is offline
Old 01-12-2016, 03:26 AM
  #7
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
PM sent. Thanks.
Twitchy is offline
Old 01-12-2016, 09:34 AM
  #8
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Originally Posted by ZERO View Post
Save yourself some money and time by not buying the whole pro kit. The detent star in the kit it the same width with the same profiles as the stock Honda one. Unless yours is worn or damaged, I wouldn't bother with that part. Just the detent arm and spring.

Take it from me and just swap out the arm and spring.
Excellent how-to, thanks.

Are you absolutely sure the FP star is the same profile as the OEM star? From your photos it appears the FP star has a lower height to the five "peaks" and a more uniform if not only shallower profile in the one "valley" than the OEM star.

It would seem the lower height of the "peaks" would provide less rise and resistance to the arm roller resulting in easier shifts?
skokievtr is offline
Old 01-13-2016, 02:23 AM
  #9
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
I didn't measure them. I went by looks alone.
It would make sense that they are not the same.
No. I am not certain.
ZERO is offline
Old 01-13-2016, 07:36 AM
  #10
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Originally Posted by ZERO View Post
I didn't measure them. I went by looks alone.
It would make sense that they are not the same.
No. I am not certain.
But your glowing report is based on use of the FP star and thus the shifting action may NOT be so great keeping in the OEM star as you recommend not installing the FP star to save time and money.

You did not qualify this discepecy and thus invalidated your very positive review to a maybe if only just the FP arm and spring are installed!
skokievtr is offline
Old 01-13-2016, 07:42 AM
  #11
Senior Member
SuperBike

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I think I hear you saying that the only thing that stands between the OEM shift star and the FP shift star is a dremel tool.....

James
thedeatons is offline
Old 01-13-2016, 08:53 AM
  #12
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Originally Posted by thedeatons View Post
I think I hear you saying that the only thing that stands between the OEM shift star and the FP shift star is a dremel tool.....

James
???

As I stated in my only other reply to this thread before my last, the profiles of the FP star appear "shorter" (and more gradual) than OEM. The review was based on the FP star but he recommended not installing it. So it is unknown how much better the FP star improves shifting over keeping the oem per his review anyway.
skokievtr is offline
Old 01-13-2016, 03:17 PM
  #13
Senior Member
SuperBike

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Yah i was just kidding

James
thedeatons is offline
Old 01-13-2016, 03:33 PM
  #14
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
My review was based on my installing the new detent arm, spring and shift star and the assumption that the star was the same dimensions as stock.
I have no first hand experience with not changing the star. I did and the shifting action is much, much better. Also changing the star ads time and complication to the job and I am uncertain if it is time and money well spent. So much of the better shifting seems to be the result of the much stronger detent arm spring alone.
My opinion.

Last edited by ZERO; 01-13-2016 at 03:37 PM.
ZERO is offline
Old 01-13-2016, 04:03 PM
  #15
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
Originally Posted by ZERO View Post
My review was based on my installing the new detent arm, spring and shift star and the assumption that the star was the same dimensions as stock.
I have no first hand experience with not changing the star. I did and the shifting action is much, much better. Also changing the star ads time and complication to the job and I am uncertain if it is time and money well spent. So much of the better shifting seems to be the result of the much stronger detent arm spring alone.
My opinion.
I verified with FP that their star has different cam heights and profiles. According to Marc (FP "president"), the star contributes about 50% to the improved function. The arm and spring provide smoother and more positive activation but the reduced effort and rapidity is from the star.
skokievtr is offline
Old 01-14-2016, 06:11 AM
  #16
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
Originally Posted by skokievtr View Post
I verified with FP that their star has different cam heights and profiles. According to Marc (FP "president"), the star contributes about 50% to the improved function. The arm and spring provide smoother and more positive activation but the reduced effort and rapidity is from the star.
Fair enough. I've got the cover off awaiting a new gasket. I still have the old, original star too. I'll measure the peaks and valleys in the next few days..
ZERO is offline
Old 01-14-2016, 08:12 AM
  #17
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,218
E.Marquez is on a distinguished road
Originally Posted by skokievtr View Post
Excellent how-to, thanks.

Are you absolutely sure the FP star is the same profile as the OEM star? From your photos it appears the FP star has a lower height to the five "peaks" and a more uniform if not only shallower profile in the one "valley" than the OEM star.

It would seem the lower height of the "peaks" would provide less rise and resistance to the arm roller resulting in easier shifts?
Not the same in any of the three superhawks I have installed this kit in.

Either your bike is special and came from the factory with a different part
Your bike already had the FP part installed
Or you simply did not notice the difference

I'll take pics of both shift stars in a week or so and post
E.Marquez is offline
Old 01-14-2016, 08:41 AM
  #18
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
Originally Posted by E.Marquez View Post
Not the same in any of the three superhawks I have installed this kit in.

Either your bike is special and came from the factory with a different part
Your bike already had the FP part installed
Or you simply did not notice the difference

I'll take pics of both shift stars in a week or so and post
I've already posted before and after pics in my initial thread.........
ZERO is offline
Old 01-14-2016, 01:59 PM
  #19
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
OK
As already stated. No need to measure. Im sitting here looking at the proof.The peaks ARE shorter on the FP part.
The valleys are roughly the same.
It stands to reason. Not only do the shift throws SEEM shorter. The ARE in fact shorter.
I now recommend replacing the star as well.
Please forgive my original theory.
Shame on me!!!

Last edited by ZERO; 01-14-2016 at 02:01 PM.
ZERO is offline
Old 01-14-2016, 02:28 PM
  #20
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,218
E.Marquez is on a distinguished road
Originally Posted by ZERO View Post
OK
As already stated. No need to measure. Im sitting here looking at the proof.The peaks ARE shorter on the FP part.
The valleys are roughly the same.
It stands to reason. Not only do the shift throws SEEM shorter. The ARE in fact shorter.
I now recommend replacing the star as well.
Please forgive my original theory.
Shame on me!!!
LOL, all good.. I was really confused how what you were seeing in front of you was so different then what I had sitting in front of me.
E.Marquez is offline
Old 01-14-2016, 05:28 PM
  #21
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,933
skokievtr is on a distinguished road
+1 My old eyes are OK despite needing cataract surgery on the left to go with the right already done.

I had ordered the EVO kit, called and changed it to the basic kit, then stuck to my guns and reordered the EVO kit. Lucky the place I ordered was understanding and hopefully FP comes thru after the emails and go, stop, go...

skokievtr is offline
Old 01-14-2016, 05:37 PM
  #22
Senior Member
SuperBike

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
So i'm a little confused about the differences...

Are the differences such that we are able to modify our stock shift star to achieve better results?

(I realize there may be no replacement for spending money, but i'm always after the inexpensive option

James
thedeatons is offline
Old 01-14-2016, 05:47 PM
  #23
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,218
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
So i'm a little confused about the differences...

Are the differences such that we are able to modify our stock shift star to achieve better results?

(I realize there may be no replacement for spending money, but i'm always after the inexpensive option

James
If you have the ability to mount, index, and mil complex curves in hardened Steel in a 360 deg circle than sure , piece of cake.
E.Marquez is offline
Old 01-14-2016, 06:25 PM
  #24
ren
Senior Member
Back Marker

Join Date: Nov 2013
Location: Los Angeles, CA
Posts: 170
ren is on a distinguished road
I'd be happy to try and model it in CAD if you guys would like, also that damn HAAS CNC Mill sitting in my shop really needs to get fixed..
ren is online now
Old 05-29-2016, 05:41 PM
  #25
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
Hi guys, following the last few posts regarding the differences between the shift stars, check these out;

Name:  010_zps29ye3ntw.jpg
Views: 266
Size:  194.5 KB

Name:  011_zpsxwzuzbhj.jpg
Views: 269
Size:  104.5 KB

The OEM spring is noticeably thinner gauge than the FP piece, the roller (bearing) is obviously smaller diameter, and the star itself has considerably lower peaks and rounder valleys. Also the OEM star seems to have pins that press through from the back, where the FP piece seems to be milled. The recess for the bolt head is larger on the FP unit, presumably to reduce weight, which is more surprisingly, but looking at the back, it is one solid section.

Hopefully this helps.
Twitchy is offline
Old 06-14-2016, 09:04 AM
  #26
Senior Member
Back Marker
Thread Starter

ZERO's Avatar

Join Date: Jan 2015
Location: SOUTH FLORIDA
Posts: 101
ZERO is on a distinguished road
What do you think of the way it shifts?
ZERO is offline
Old 06-14-2016, 04:20 PM
  #27
Member
Squid

Twitchy's Avatar

Join Date: Apr 2015
Location: Perth, Western Australia
Posts: 40
Twitchy is on a distinguished road
Apologies for the absence guys, but I have yet to test it. I am also installing (fighting) Convertibars, along with an STM clutch slave cylinder I was given. As I am trying to get the bars setup in the shed as close as possible, which means leaving the clutch & brake lines loose at the bar ends while positioning. Now I want to get the clutch all bled up and check the throw of the new slave before I put the right side cover back on. On top of that, the HEL lines I bought 4 months ago, and only now getting around to fitting are waaaaay too long. The clutch line curves from the master, back through to the steering head bracket, I have curved it down to the bottom of the radiator, back up to the frame, along to the bracket and down to the slave. I asked for +2" front brake & clutch with standard rear brake. I reckon the clutch line is 4" longer than stock, the front brake lines might be ok, the rear brake is probably an inch or so too long. The next step is to side by side compare the lines, and send them back to get shortened. Bloody bugger.
Twitchy is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Evil_Twin
Modifications - Performance
25
05-24-2015 05:50 AM
inderocker
Modifications - Performance
61
02-19-2010 09:23 AM
FTMS
Technical Discussion
6
08-14-2008 04:54 AM
ride57
Modifications - Performance
9
01-29-2008 08:27 AM
Scumbag
General Discussion
4
03-15-2007 03:25 PM


Thread Tools
Search this Thread
Quick Reply: Factory pro shift kit review.


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
