Broken frame tabs, fairing stay repair?

Old 03-10-2016, 03:05 PM
  #1
Member
Squid
Thread Starter

Chefmatt's Avatar

Join Date: Jan 2016
Posts: 32
Chefmatt is on a distinguished road
How Screwed Am I? Really...

Hey All,

1998 Hawk, 37k on the clock. Bought it about 2k ago, invested over 1500 in it so far....new rubber, APE CCts, stainless lines, new pads, rear seat cowl, full lower belly pan, flush mounts...you get the picture. Heard a strange rattling on the way home tonight, no change in the bike behavior. Got home, was putting in new left bar controls that I just got, and noticed THIS! the upper fairing stay mount has broken off the frame. The weld failed. I knew the bike had been down before I bought it, but it was minor cosmetic damage. Apparently, the damage was more extensive, and the weld finally failed.

Anybody seen this before? This can be welded? Is the frame cast aluminum? How safe is this to ride in the meantime? Opinions on repair? Thanks fellas.

After previously owning a series of carbed 1000cc bikes - '89 Fj1200, '89 ZX-10, '91 gsxr1000, this is by far my favorite and would hate to part her out. Thanks!

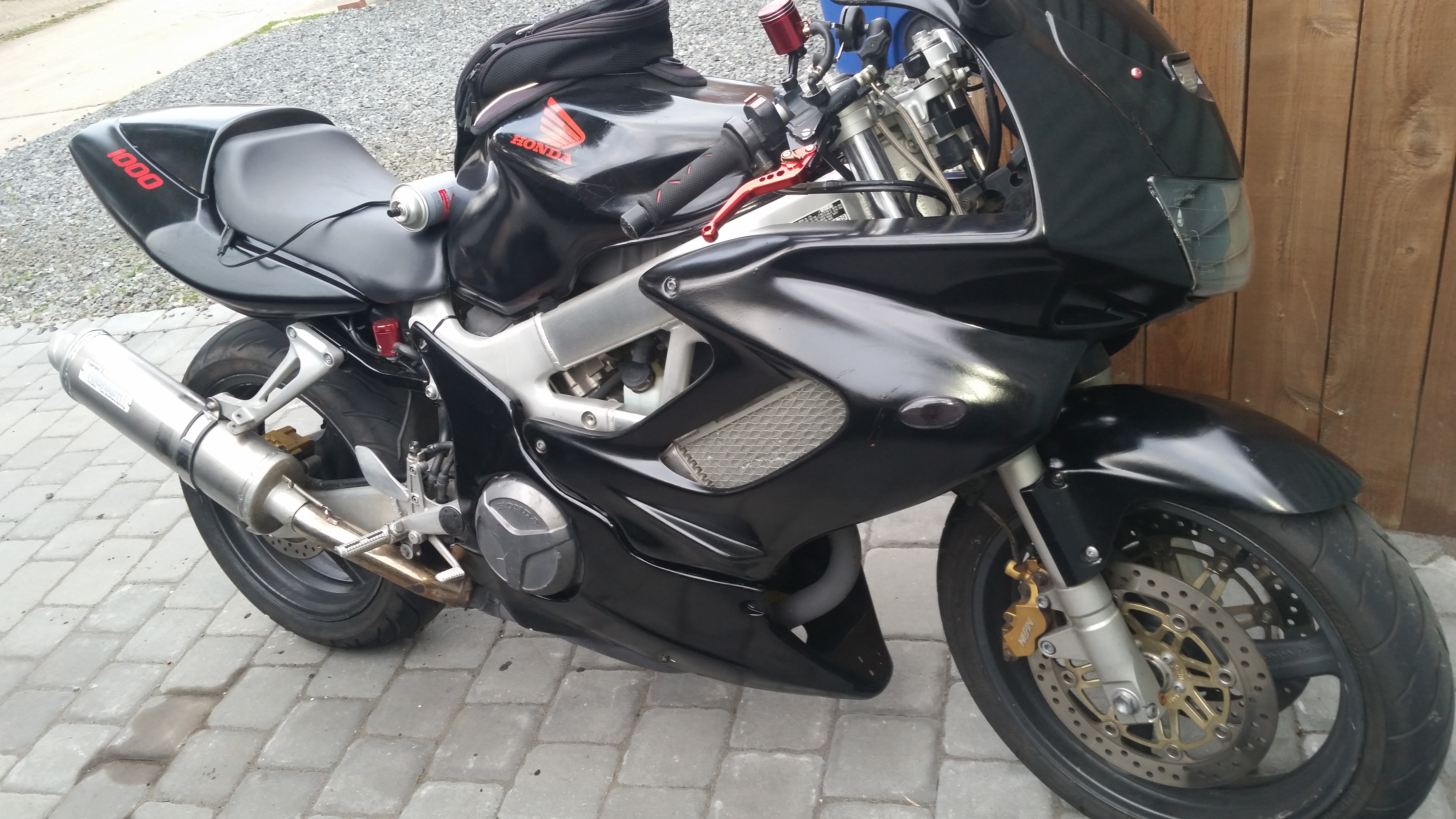

Attached Thumbnails Broken frame tabs, fairing stay repair?-20160310_173507.jpg   Broken frame tabs, fairing stay repair?-fairing-stay.jpg

Last edited by Chefmatt; 03-10-2016 at 03:25 PM. Reason: mistake in description
Chefmatt is offline
Old 03-10-2016, 04:31 PM
  #2
Senior Member
SuperBike

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
The good news is it's not really structural... Just holds up the fairing...

Disassemble, have it Tig welded, then powdercoat the frame... Then you'll never think about it again.

James
thedeatons is offline
Old 03-10-2016, 05:27 PM
  #3
Member
Squid
Thread Starter

Chefmatt's Avatar

Join Date: Jan 2016
Posts: 32
Chefmatt is on a distinguished road
Thanks James . Worried about warping of head stock during weldng....and failure of lower bracket in the interim. Eff it, I'll put a hose clamp to take stress off lower.
Chefmatt is offline
Old 03-10-2016, 06:37 PM
  #4
That one guy
Back Marker

Meier Link's Avatar

Join Date: Jun 2015
Location: Broken Arrow
Posts: 225
Meier Link is on a distinguished road
Keep in mind it's been welded before. If it's been welded before it can be welded again. Just make sure to take it to someone that actually knows how to weld.

Seeing it's non Structural even a tack weld would suffice as long as the bike doesn't go down again. It's just a fairing stay bracket . Nothing to loose sleep over nor to part the hawk out for.
Meier Link is offline
Old 03-10-2016, 06:38 PM
  #5
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,558
mikstr is on a distinguished road
You can always try JB Weld, if welding has you concerned about warping
mikstr is online now
Old 03-10-2016, 06:46 PM
  #6
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,189
captainchaos is on a distinguished road
Actually a fairly common failure in my experience on a crashed superhawk-seen it numerous times. Being it's probably a clean break and you have the broken piece, it should be a very easy and quick repair for someone who has a clue how to tig weld. Did that on a '99 a few years back that I bought after it was dropped. Never had any issues with it. It's a fairly small piece/weld. Anyone out there with more welding experience than me think it's going to warp or damage anything?

Last edited by captainchaos; 03-10-2016 at 06:48 PM.
captainchaos is offline
Old 03-10-2016, 08:33 PM
  #7
Senior Member
Back Marker

superbeater's Avatar

Join Date: May 2009
Location: Pac NW
Posts: 212
superbeater is on a distinguished road
Get a good welder to TIG that as The Deatons said. It will be good as new. The powder coating is optional.
superbeater is offline
Old 03-10-2016, 09:56 PM
  #8
Senior Member
SuperSport

NZSpokes's Avatar

Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
NZSpokes is on a distinguished road
Originally Posted by superbeater View Post
Get a good welder to TIG that as The Deatons said. It will be good as new. The powder coating is optional.
I agree. Its a big chunk of alloy so it wouldnt bother me.
NZSpokes is offline
Old 03-11-2016, 02:15 AM
  #9
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,524
kenmoore is on a distinguished road
Get it welded, move on and enjoy the bike! That's what I would do.

As you will find out, there is always something to do to these bikes.
kenmoore is offline
Old 03-11-2016, 04:01 AM
  #10
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,218
E.Marquez is on a distinguished road
Originally Posted by captainchaos View Post
Actually a fairly common failure in my experience on a crashed superhawk-seen it numerous times. Being it's probably a clean break and you have the broken piece, it should be a very easy and quick repair for someone who has a clue how to tig weld. Did that on a '99 a few years back that I bought after it was dropped. Never had any issues with it. It's a fairly small piece/weld. Anyone out there with more welding experience than me think it's going to warp or damage anything?
Very weldable done right no issues at all
E.Marquez is offline
