uchi

so im having an issue with it. firstly last year the bike would randomly cut out while i was turnign it over resetting the clock and trip meters but then when i let off the button and hit it again it would start. after a while the attery stopped holding a charge so i replaced it with a brand new one. this year twice now, first time being not as bad, the bike has cut right out and cranked very slowly and weak like it didnt have enough juice. the first time it fixed itself and my buddy put the battery on his charger when he did my carbs and i put it on mine over night before putting the bike back together when i did the regulator. so today we went for a ride, pushed the bikes hard through the turns and then stopped for a short break. hopped on the bike turn the key, hit the switch, and again a very slow dragged out start, engine turned over once or twice and no juice at all. this happened over and over and over again. and the bastard wouldnt start at all. so we bump started it, luckily we were pulled over near a hill cause with my *** on it this thing is hard to push, lol. so i get her home, pull into the garage, shut it off and try to fire it up again and no juice. my headlights are wired so that the hid only comes on with the hi beam and the low beam controls the angel eye and the led strips, so i fire up the hid, it flickers on and after a few seconds shuts off. looks like there isnt enough juice to power it.

so what the hell could be wrong? its going to my buddys shop to have the battery put onto a load tester. could the stator be on its way out? after we got it started it ran ok, it actually stalled while idling once after getting it running the first time after it sat for a couple minutes but that could be the carbs needing some adjustment. what do you guys think?

j shizzy wizzy

gnomes

Stevebis1

The standard answer here is going to be the R/R - and it could be. You said you replaced it last year - with what? newer finned OEM? Aftermarket? r1/r6?. In any case I'm sure people wll jump in and give you tips on how to check that.

My thought is a bit different. Perhaps you have an intermitent short to ground somewhere. I know the bike draws some power when off, but should be very little. I get that a bad R/R can do this, I'm just thinking with all the changes you've done maybe there is a bad connection somewhere that could be grounding.

uchi

rr was replaced last week actually. once we bumped the bike it ran and i rode it home, when the rr went there was zero power going to the bike and it kept popping the main fuse.

i yanked the battery and it was at 11.75 v. its at my mechanic friends place, he put it under load and it wasnt looking too good but he said he should be able to save the battery and that the rr going last week might have caused the issue. so when i get it back ill hook it up and fire the bike up and see if its charging and go from there. im hoping thats all it is, my second thought is the stator is on its last legs.

also the rr was replaced with an aftermarket unit, finned, thicker than oem and its got a 1 year warranty so im not too worried about that going as ill just replace the bastard again. you guys ever regret modding the things we own, lol.

Tweety

I'd say it's likely that the R/R took out your battery... It's fairly common for a R/R failure to mistreat the battery a long time before the actual failure...

I'm also fairly sure you have nothing to worry about regarding the stator... If you had, the bike would not run once bump started... To run you need a working stator to produce power and a R/R to regulate it... You do not need a battery other than as a powerbank...

I'm again fairly sure you do have another problem though... And that's sub-par grounding and likely also some corrosion on contacts... Go through all contacts and clean/lube them up with contact spray (NO ******* WD40!) and seal them off with vaseline spray...

uchi

ok glad to hear it thanks tweety. if thats the case i bet that ***** killed my old battery too, oh well this one is brand new and under warranty so i guess itll be getting replaced. a little annoying to deal with but better than replacing anything else.

the contacts on my battery are extremely clean and look brand new so ill clean the ground on the engine from the battery and give the cable ends a once over aswell. thanks again

Tweety

Well, if you replaced the R/R a week ago, the new and under warranty R/R definitely doesn't need replacing... It should work fine... The damage to the battery was already done by the time the old R/R failed...

Oh BTW by contacts I didn't mean the battery contacts (Or well, they are included)... I mean the other 100 or so contacts on the bike... And there are 3 other ground points... Get cleaning!

uchi

Lol I was hoping for 4 or 5 max. Damnit. Hey I have beer and pizza. swing by and give me a hand. You're not that far. Lol

Tweety

Heh... I'll pay for my own beer and pizza, you pay the plane ticket...

Seriously though I think there are about 25 ish connectors spread out over the bike, some of them are sealed by a rubber grommet but most aren't... The "open" ones are fairly susceptible to corrosion... Takes an our tops to go over it... Just look in the service manual to make it easier to find them...

nath981

This was part of my nightmare with R/R I copied off another thread.

took the battery out and took it a shop and had it tested. Although it was relatively new, it tested as bad. I then bought a new Yuasa(78.00) and as I was connecting the negative cable, I smelled something burning, then smoke from the R/R, which had recently been replaced with a finned type. By the time I figured it out and removed the cable, the R/R was cooked, i.e., melted. I bought a new R/R from Honda shop(177.00) and hesitantly hooked it up(this time I held the negative cable on the battery with fingr pressure only until I was sure it was not going to cook the R/R.

So, new battery and new R/R and started it up, had friend rev to 5000rpm and checked the charge at battery which read 13.8v indicating that the stator is charging. So far so good. I'll post additional problems if they occur.

Note: new Yuasa- I charged it myself because i didn't want to wait at the Honda shop. according to the Yuasa directions, the protocal for new battery set-up is critical. I bought a new battery recently and know it wasn't prepared correctly and it failed prematurely. So if you buy a new battery and want to make sure it is prepared properly, you may want to do it yourself.

uchi

Thanks guys. I've got the shop manual on the computer so ill do some reading today. Tweety ill fedex a log an axe and a lifejacket with some instructions on making a canoe. Is that sufficient? Lol.

Nath. Thanks for the info. I read the same and was worried about hooking it up for the first time. Although my bike mechanic buddy said the regs are pretty tough little things and deal with voltage changes and what not so he said a little spark shouldn't really affect it during hookup. Still to be safe I followed directions I found here. Another thing I learned and similar to what you posted is that the batterys don't come charged and need a really good charge the first time around. I've got the same brand you mention, can't spell it and I'm on my phone so I don't wanna scroll up and loose my spot in the reply, and we added the liquid into it when it arrived and sealed her up but didn't charge enough I guess. So the way my mechanic buddy explained It to me is that the battery will charge with an at home charger but something about not fully charging with it and that you'd need to force it to take more juice to fully charge. Something along those lines. So hopefully he saves the battery for me and I can avoid a 4 hour round trip to replace it. Lol. Ill know today and ill let you guys know how it turns out. And tonite ill go through the connectors and clean them up. Thanks again for all the help.

nath981

I thought you weren't supposed to remove the fill canister until it was fully charged. It tells you in the directions, and I'm not sure, but i remember the punching the fill canister into the battery and charging all night. then remove the canister and seal it up.

uchi

I don't recall what it said. But someone just followed their own directions. Lol

uchi

well my buddy was able to save the battery, he put a load tester on it and she held up no problem. only issue now is when i fire the bike up with the hid off and just the leds and angel eye turned on it sits at 14.8v, and with the hid on it sits at 13.1. but it holds and when i shut the hid off it goes back to 14.8. so im wondering if its normal for this much of a drop to happen or if maybe the stator is starting to get a little weak

Tweety

Ideally that would be 13.5V-14.5V loaded or unloaded... But obviously your R/R lets more through on idle if the system isn't being loaded... Not ideal as most batteries don't like being charged at above 14 ish volts (Gel type at 14.1-14.2, most AGM's at 14,4-14,5)... It's not good for a long battery life to overvolt them to much... But I wouldn't worry about it... You're supposed to use the HID anyway right?!

However you don't need to worry about your stator... It has absolutely nothing to do with it... It supplies up to 70V or so depending on RPM's... The only part regulating the 12V part is most surprisingly the Regulator (R/R = Rectifier / Regulator)

uchi

well i run the hid at night which i havent done yet so its off during the day and only the leds and angel eye are on, also im not sure how much of a difference it makes but with my integrated blinker mirrors they blinkers are no longer on all the time like they used to be so i thought maybe thats raising the voltage a bit.

uchi

For the love of fuken christ. I'm about to take a can of gas to this thing. I test the battery today. 14 volts on the nose. Bike fires right up. I ride her to the gym. And on the way there any time I stop I smell burning plastic. So I get to the gym and I can still smell it. No idea what it is. Can't see any thing rubbing. I go in for a quick workout. Get out go for a ride. Still smells a little. I pull up behind a car and its starting to get dim out so I fire up the hid. Except it tells me to **** myself with an old stick and stays off. I try to cycle it a couple times. Not a peep from it. Wtf. So I ride home before it gets dark just to be safe. Pull into my garage and that stink is still there. I test the battery with the bike on 12.5 v. What the hell. What could possibly be causing this? I'm gonna find out why the hid isn't working. I think maybe the relay killed itself. But I'm wondering what the stink could be. I don't see anything that could have melted. Could the reg be defective? It smells from around the tail but I'm trying to avoid removing it again cause its such a huge pain in the *** to get off

uchi

Well the hid works again. The connector pulled itself out of the headlight plug. I guess I had it a litte too tight and the big twins vibratoion yeanked it out. Sher was tight behind the cluster. But still no idea on the stink or the voltage drop.

Tweety

Highest odds on the battery... R/R is close second...

uchi

lol, i say it might catch fire before we find out, haha. were testing the stator tonite just to eliminate it. the damn reg is brand new, im gonna email the guy i might replace it as its under warranty, im not sure if its causing the stink but the stink wasnt there till it showed up, lol

uchi

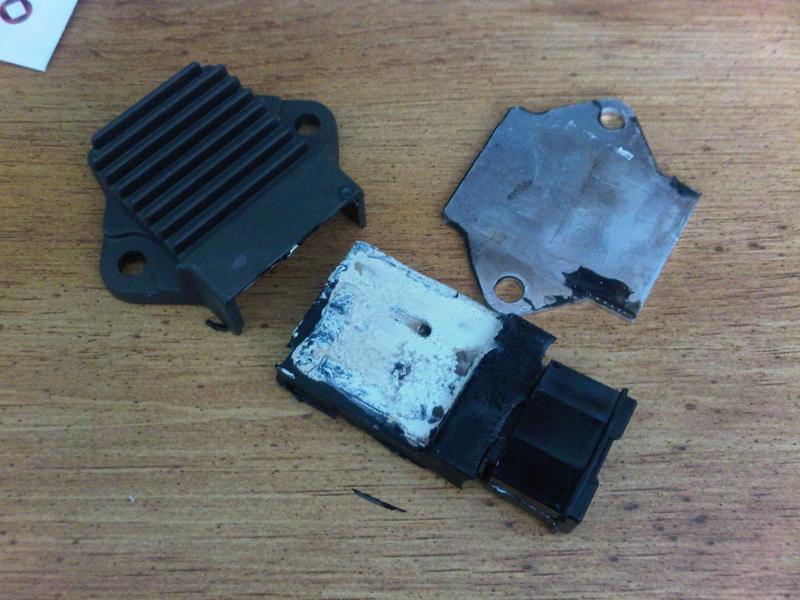

stator shows 80v, my mechanic buddy came by, the reg blew, i pulled it out in literally 2 pieces, so yeah, thats exciting. that stink has filled the garage and the bike permanently i think
