fighterhawk
04-08-2009, 10:14 PM
#1
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
fighterhawk

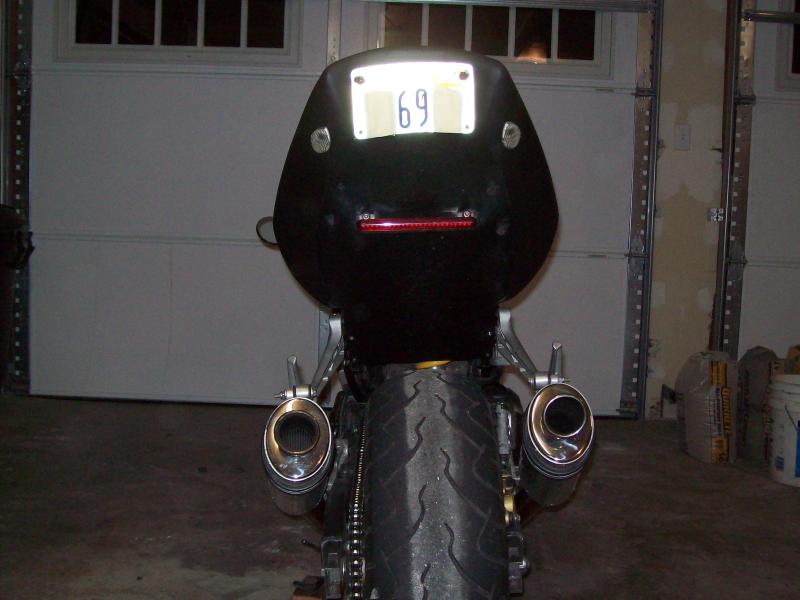

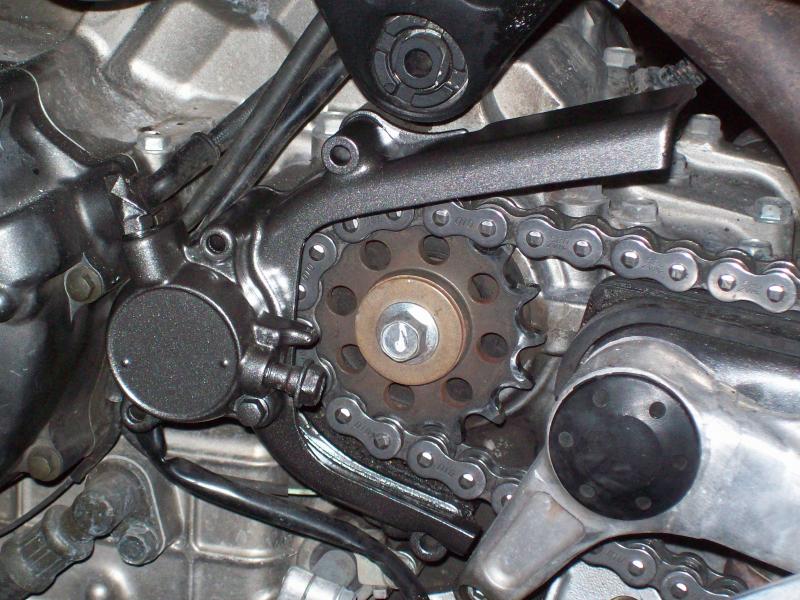

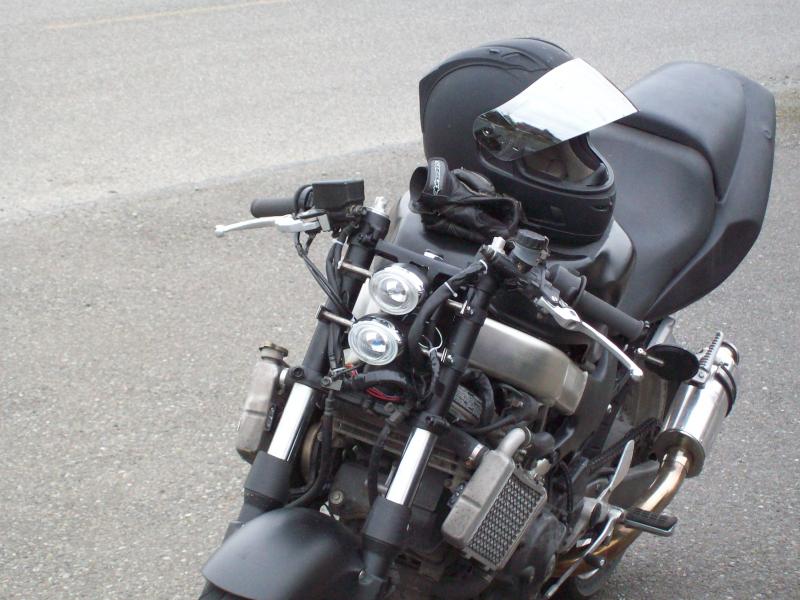

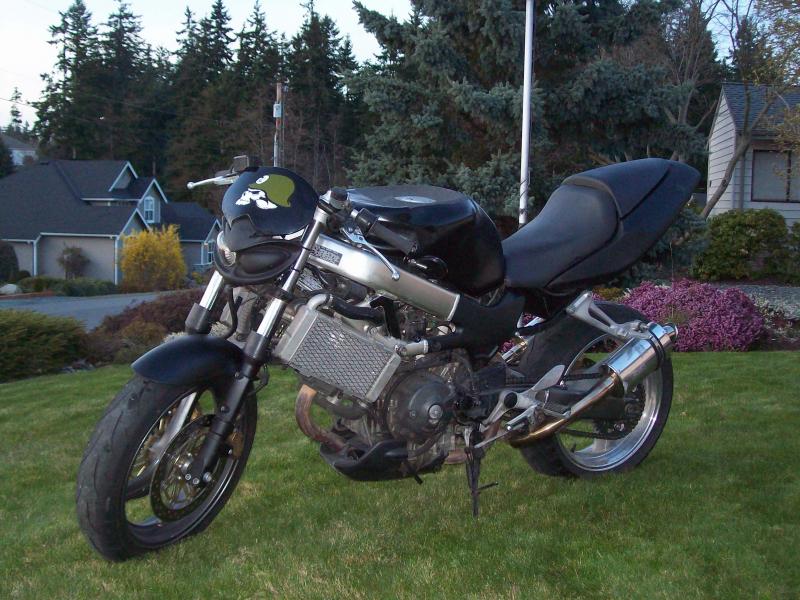

my never ending project. 520 chain conversion +1 in the rear , viper race cans, K&N filter, raised subframe, custom fiberglass job on the rear, stealth flush mount blinkers mounted on the inside of the radiators.
04-09-2009, 12:13 PM
#3
Senior Member
Back Marker
Join Date: Jun 2007
Posts: 158

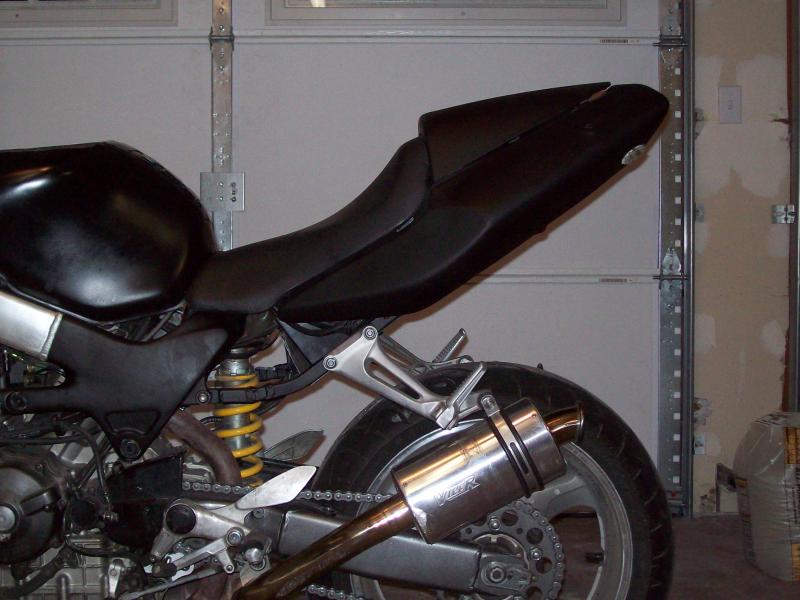

I like the front lights. Can you show a side shot of the raised tail?
________
Rhode Island Medical Marijuana Dispensaries
________
Rhode Island Medical Marijuana Dispensaries
Last edited by Malice; 05-01-2011 at 07:25 AM.
04-09-2009, 10:21 PM
#9
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
04-09-2009, 10:22 PM
#10
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
07-05-2009, 09:56 PM
#14
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
start of the new build

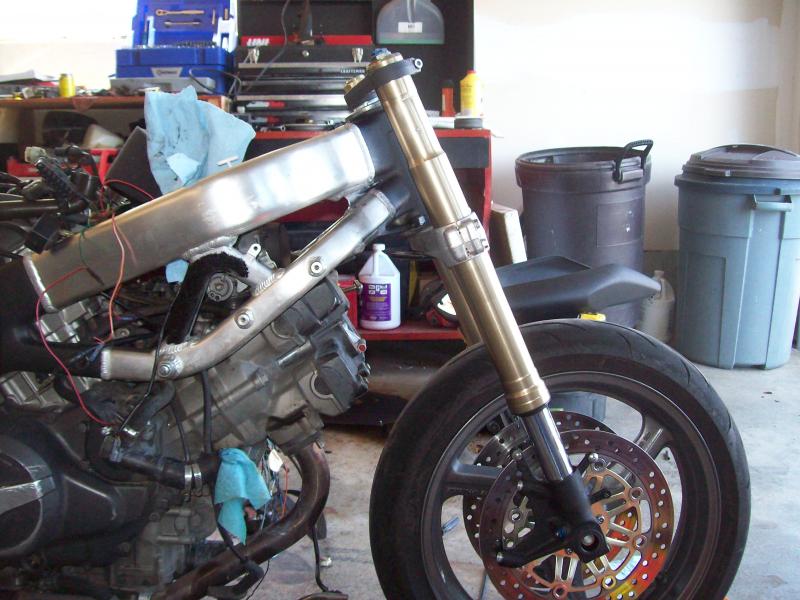

putting a 2007 GSXR 600 forks on.

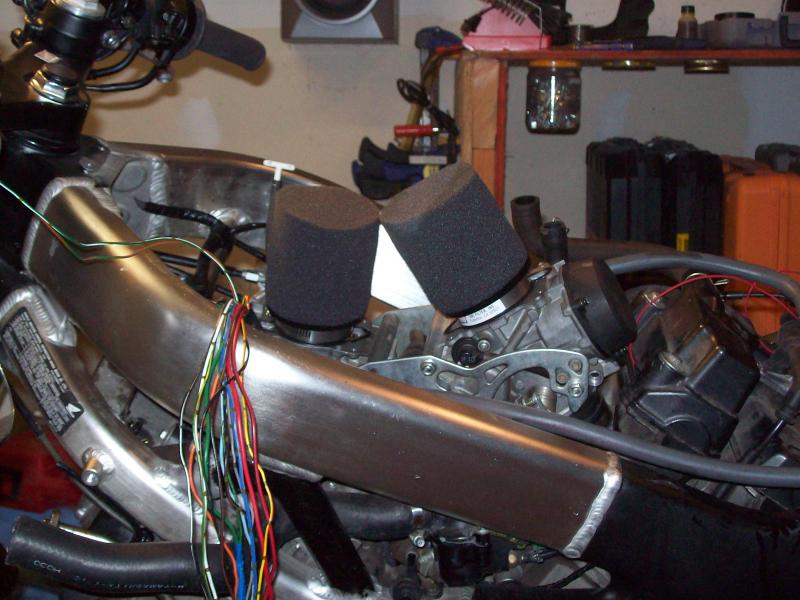

installed pod filters vs the air box the bike will run just fine when i get done jetting
removed the stock radiator overflow tank going to make a custom one and moved the coils from subframe and side of frame and installed them on top of each other underneath the carbs.moved the wiring harrness from under teh side of the frame to the inside the frame. so you cant see it.moved the oil cooler lower down so a single radiator can be mounted in its stock location.going to rebuild the subrame to make it sleeker looking.
installed pod filters vs the air box the bike will run just fine when i get done jetting
removed the stock radiator overflow tank going to make a custom one and moved the coils from subframe and side of frame and installed them on top of each other underneath the carbs.moved the wiring harrness from under teh side of the frame to the inside the frame. so you cant see it.moved the oil cooler lower down so a single radiator can be mounted in its stock location.going to rebuild the subrame to make it sleeker looking.
07-06-2009, 04:43 PM
#19
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88

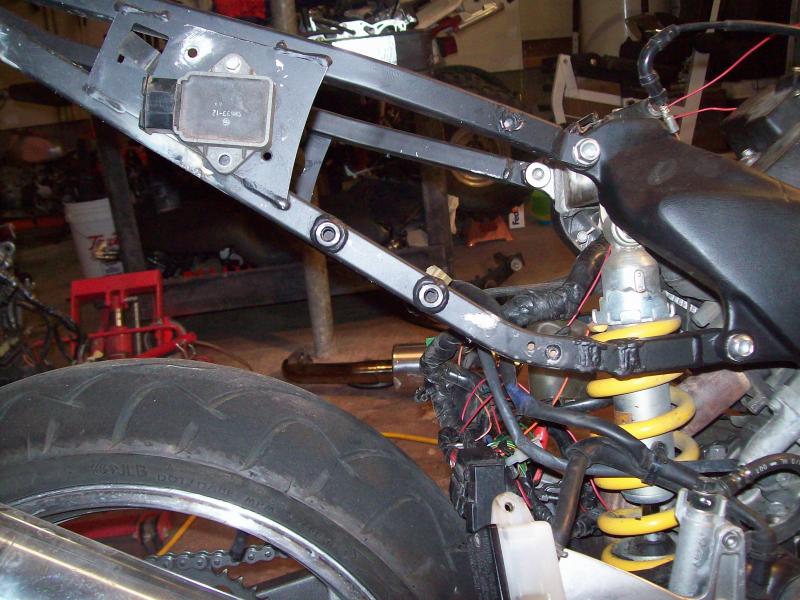

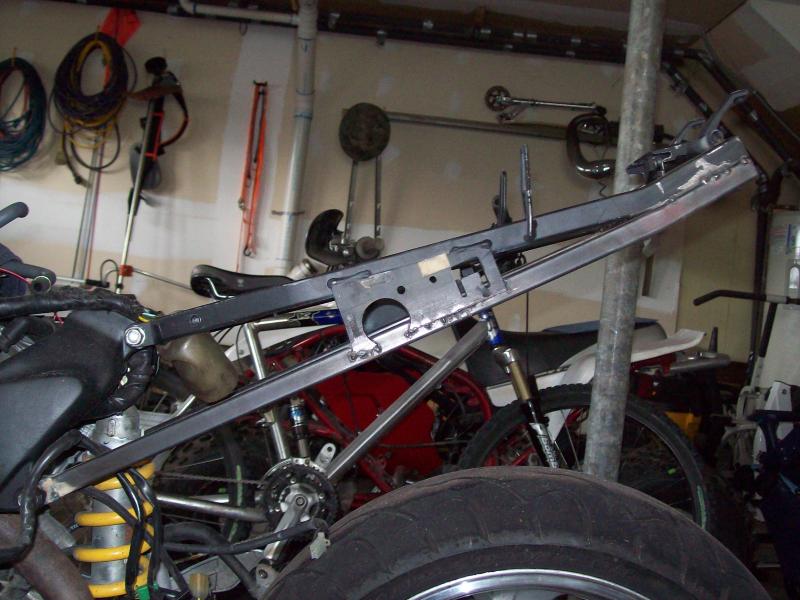

i raised the tail to give it a more aggressive look on the last go around but found it was a bad idea if you have the old lady ride with you . so cut a new peice to be put in. hated looking at the old brace hang down so much so i ended up with this.
before
final
before
final
07-07-2009, 05:11 PM
#20
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88

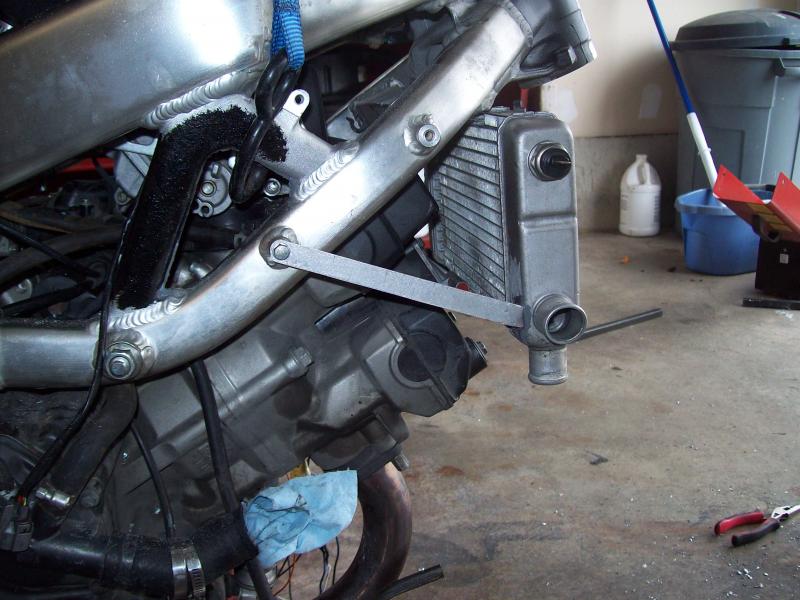

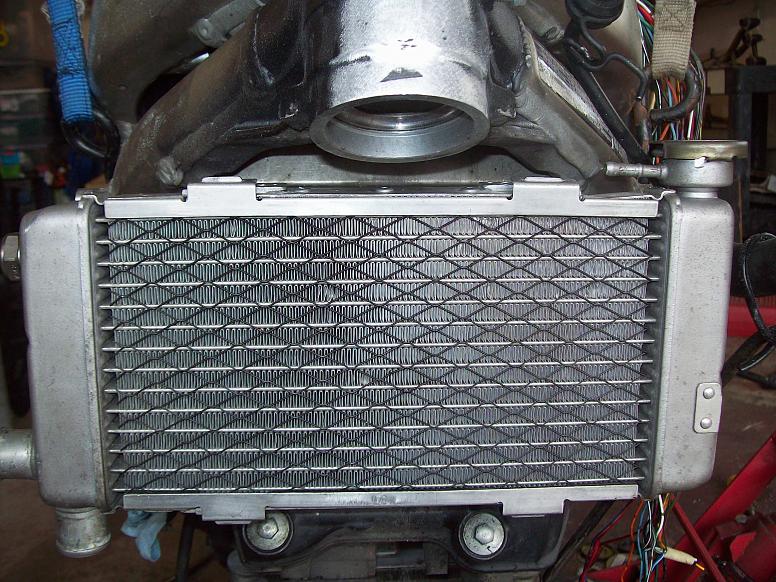

made the mounts for the single radiator upfront. didnt get to envolved with the build because im going to get a CBR radiator later to give it a more complete look. used the old holes from the oil cooler for the top bracket and the old side radi
ator hole for the bottom bracket
ator hole for the bottom bracket
07-08-2009, 01:57 AM
#22
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
found the oil cooler i bought for the ZX6 build im very slowly doing going to use it vs the stock VTR's this one is twice as big. doesnt hurt to run cooler. will post a pic when its finally mounted.
07-09-2009, 09:18 PM
#23
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88

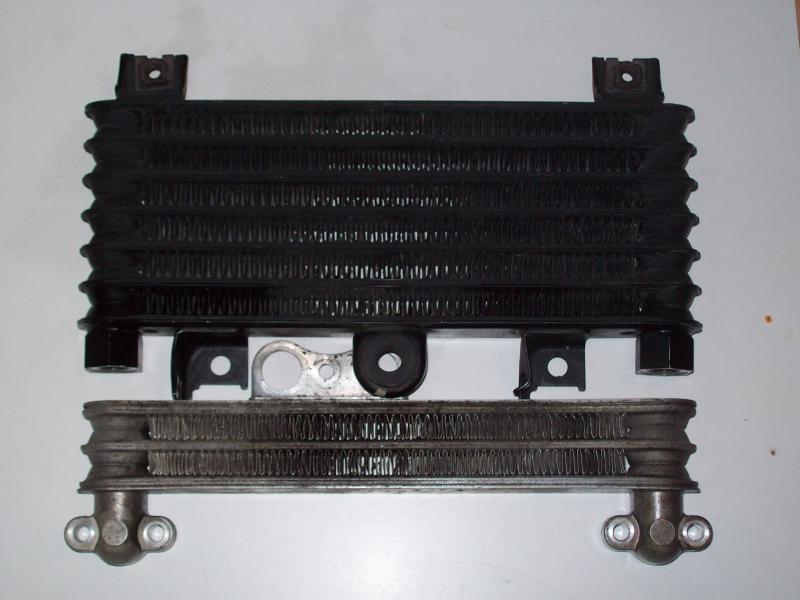

oil cooler replacement
heres a pic of the replacement zx6 oil cooler im going to use in place of the stock one

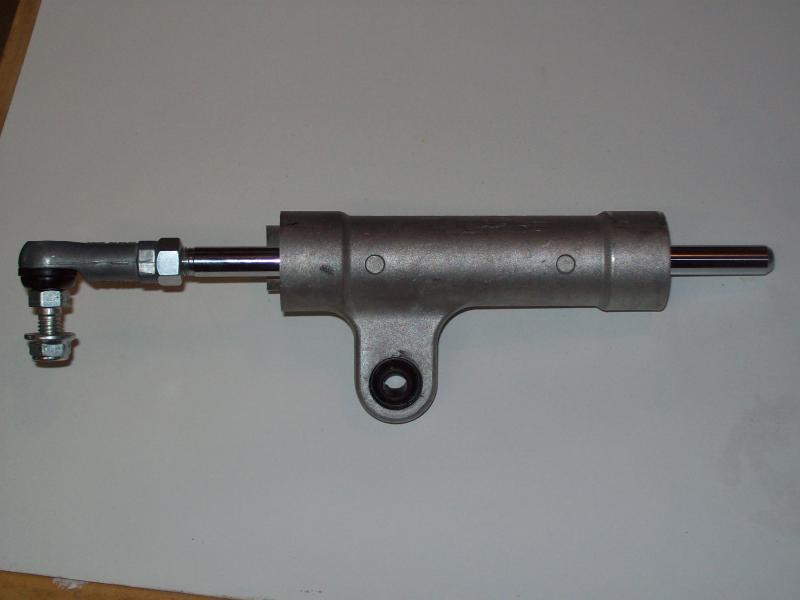

also finally got the steering damper for the GSXR forks going to work on mount to the frame this weekend.
also finally got the steering damper for the GSXR forks going to work on mount to the frame this weekend.
07-18-2009, 10:30 PM
#25
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88

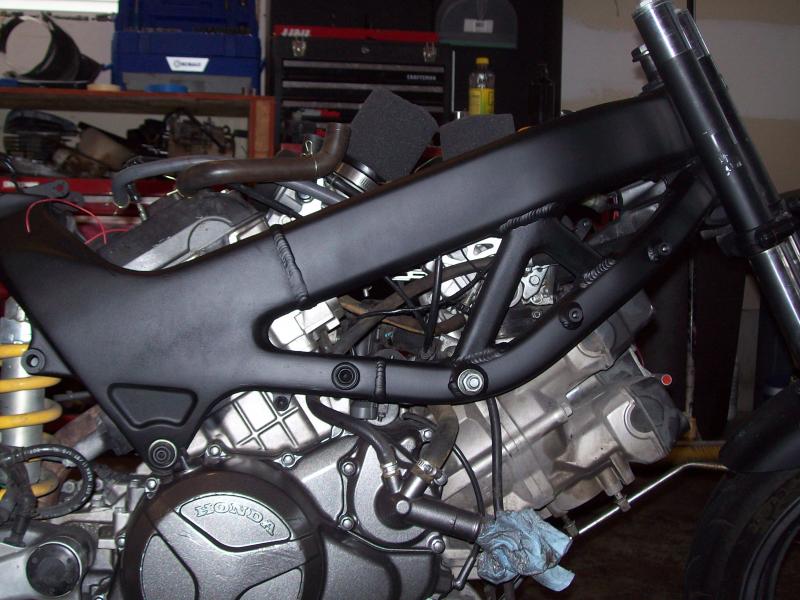

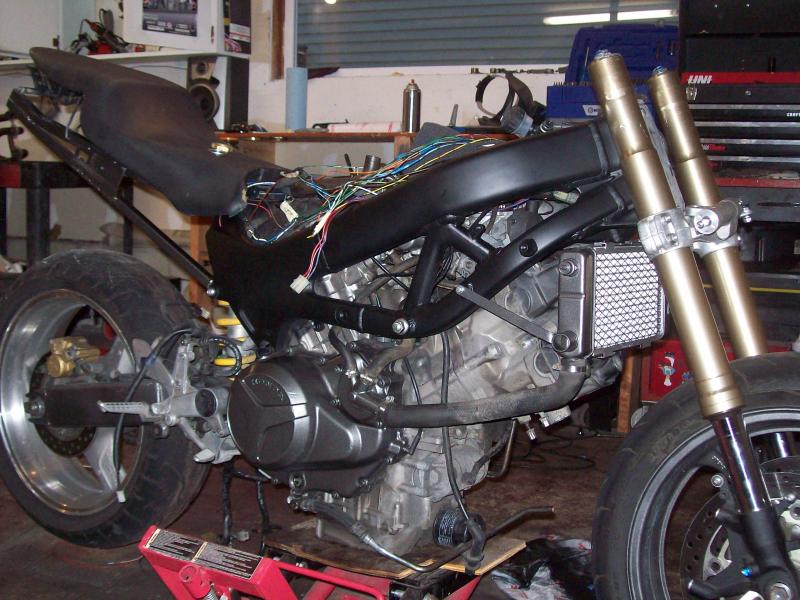

painted the frame flat black and the radiator gun metal. finally starting to come together i have a month and a half before a big motorcycle gathering "the oyster run" you might have heard of it depends on the area you live. i didnt paint the goose neck on the frame yet due to the steering damper mounts i need welded on but its only rattle canned anyways. bought a gsxr wheel off ebay slightly bent but will have it fixed cant afford a $250 straight wheel. it ended up being $40.48 after shipping cant really go wrong with that. brakes came a day ago
07-18-2009, 10:59 PM
#26
Senior Member
Superstock
Join Date: Jul 2009
Location: Melbourne Australia
Posts: 348
Great job,all looks good

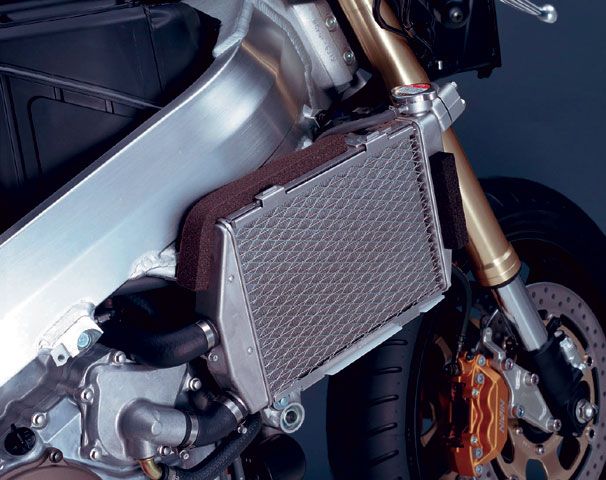

.I like the black/silver color.I wonder how a rc51 radiator would fit up front
,its a little bit bigger but might help with cooling.Keep up the great work.What year zx6 oil cooler is that?
.I like the black/silver color.I wonder how a rc51 radiator would fit up front,its a little bit bigger but might help with cooling.Keep up the great work.What year zx6 oil cooler is that?
07-19-2009, 12:27 PM
#27
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
like i said a couple posts ago its a temp radiator for a couple of months but ya a rc51 rad would cool better. its a 92 zx6 oil cooler i have another one with alot of bent fins if you have the time to bend them back you can have it just pay for shipping
07-20-2009, 12:34 AM
#28
Senior Member
Superstock
Join Date: Jul 2009
Location: Melbourne Australia
Posts: 348
Thanks for the offer but i live in Melbourne Australia & postage might be a bit expensive.Keep up the good work & let us all know how your vtr runs with the new front rad/oil set up when you finish!
07-20-2009, 06:20 PM
#29
supermatt996
Squid
Thread Starter
Join Date: Mar 2009
Location: camano island, washington
Posts: 88
