Relocated coolant bottle
09-17-2014, 09:26 PM
#31
Senior Member
MotoGP
Join Date: Jul 2007
Location: NYC
Posts: 5,033
That is so awesome! But can you add coolant without drama? I still want to put it under the bodywork to keep it in sight, but this is definitely on my to do list.
Can you remind me what is on the stock tank? How many nipples and do they need to be top or bottom? As I recal it has them one top and one bottom.
Can you remind me what is on the stock tank? How many nipples and do they need to be top or bottom? As I recal it has them one top and one bottom.
Last edited by smokinjoe73; 09-17-2014 at 09:36 PM.
09-18-2014, 07:58 AM
#33
Rex Kramer-Thrill Seeker
SuperBike
Thread Starter
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
As for filling it, once it is pushed back the 3/4"-1", you can fill it when the tank is up. Otherwise, just remove one easily accessible screw and you can pull the coolant bottle out, do what you need to, and then screw it back in.
Since I've owned my bike, I have checked the level many times, but have never needed to top it off. So, I see this as not that big of deal. As Jerry stated, checking the fluid level is easy. Just bend your knees and take a look.
I know this Traxxas part and attaching it underneath the airbox is not as simple as Lloydie's HRC bottle, but it is another option we have now. Cost? $16 for the Traxxas fuel tank, a couple bucks for a chunk of aluminum for the bracket, and a couple bucks for new lines (also need a reducer, since the coolant expansion line is a larger diameter than the nipple on the Traxxas fuel tank).

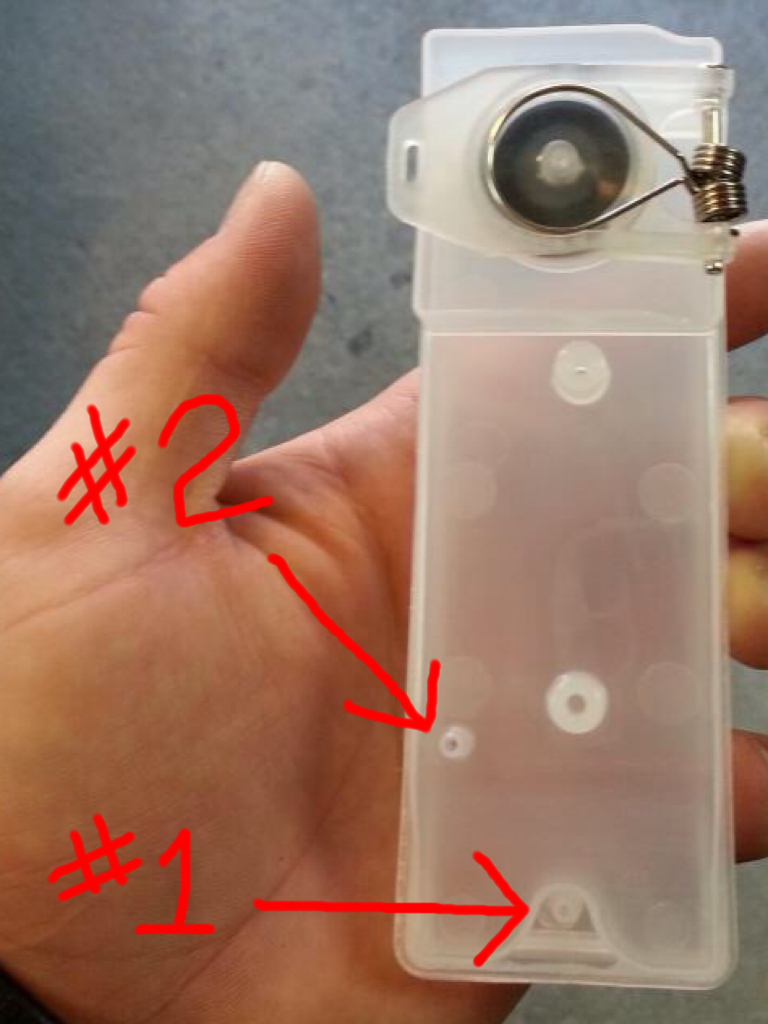

#1 is the where the coolant expansion line attaches.
#2 is the vent/overflow
Since I've owned my bike, I have checked the level many times, but have never needed to top it off. So, I see this as not that big of deal. As Jerry stated, checking the fluid level is easy. Just bend your knees and take a look.
I know this Traxxas part and attaching it underneath the airbox is not as simple as Lloydie's HRC bottle, but it is another option we have now. Cost? $16 for the Traxxas fuel tank, a couple bucks for a chunk of aluminum for the bracket, and a couple bucks for new lines (also need a reducer, since the coolant expansion line is a larger diameter than the nipple on the Traxxas fuel tank).
#1 is the where the coolant expansion line attaches.
#2 is the vent/overflow
Last edited by CruxGNZ; 09-18-2014 at 08:01 AM.
09-18-2014, 08:48 AM
#34
Senior Member
MotoGP
Join Date: Jul 2007
Location: NYC
Posts: 5,033
Ok so the replacement bottle just needs a nipple at the bottom submerged in coolant right?
I have a plastic bottle I think will work or I can get one of crux's 3 ebay items. Not much in the way of hobby shops around me.
I have a plastic bottle I think will work or I can get one of crux's 3 ebay items. Not much in the way of hobby shops around me.
09-18-2014, 02:13 PM
#36
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
Is there ever a need to fill it? If so would we need to remove it from the mount, or just pivot it off to the side to access the cap? Just thinking out loud.
I applaud you for going down this road. Can't wait to get this all figured out with all the different mounting options so I can move mine.
*Any more mounting location ideas?
**Any more specifics on the HRC bottle mounting location and mounts?
Thanks for all you're doing!
James
I applaud you for going down this road. Can't wait to get this all figured out with all the different mounting options so I can move mine.
*Any more mounting location ideas?
**Any more specifics on the HRC bottle mounting location and mounts?
Thanks for all you're doing!
James
Last edited by thedeatons; 09-18-2014 at 02:16 PM.
09-18-2014, 04:08 PM
#38
Retired- but not tired!
SuperBike
Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,478
09-20-2014, 06:50 PM
#40
Rex Kramer-Thrill Seeker
SuperBike
Thread Starter
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
Is there ever a need to fill it? If so would we need to remove it from the mount, or just pivot it off to the side to access the cap? Just thinking out loud.
I applaud you for going down this road. Can't wait to get this all figured out with all the different mounting options so I can move mine.
*Any more mounting location ideas?
**Any more specifics on the HRC bottle mounting location and mounts?
Thanks for all you're doing!
James
I applaud you for going down this road. Can't wait to get this all figured out with all the different mounting options so I can move mine.
*Any more mounting location ideas?
**Any more specifics on the HRC bottle mounting location and mounts?
Thanks for all you're doing!
James
To fill this Traxxas part, you can just lower it by removing one screw.
As for more mounting location ideas, you can install a coolant bottle inside the black ram air duct thingy on the inside of our fairings. That might work.
Here's a picture of it all hooked up. I never got around to making a longer bracket yet. I have to buy some different lines. Right now it's hooked up with plain 'ol vaccuum lines.
09-20-2014, 07:48 PM
#42
Rex Kramer-Thrill Seeker
SuperBike
Thread Starter
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
Haven't tried it yet myself, but yes, I don't see why this wouldn't make changing jets that much easier.
11-02-2014, 06:36 PM
#43
Rex Kramer-Thrill Seeker
SuperBike
Thread Starter
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
Just an update.
The Traxxis fuel tank works fantastic. No problems in 450 miles.
I filled the Traxxis fuel tank half full and installed it. Been running that way ever since.
So, it works and it's not expensive.
The Traxxis fuel tank works fantastic. No problems in 450 miles.
I filled the Traxxis fuel tank half full and installed it. Been running that way ever since.
So, it works and it's not expensive.
11-29-2014, 02:36 AM
#46
Senior Member
SuperBike
Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,544
Ordered one from U.K flea bay today.
Looks the goods.
As I have an electric water pump,I am thinking of taking the thermo housing etc out of the picture.
I intend to get a pipe fabricated allowing the temp sender to be retained and open up the V in the bike.
Just another thing to fool people! Into thinking that I am a Sunday morning Latte sipping cowboy!!
Will post pics when I do it.
Looks the goods.
As I have an electric water pump,I am thinking of taking the thermo housing etc out of the picture.
I intend to get a pipe fabricated allowing the temp sender to be retained and open up the V in the bike.
Just another thing to fool people! Into thinking that I am a Sunday morning Latte sipping cowboy!!
Will post pics when I do it.
11-29-2014, 08:13 AM
#47
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
I'm seriously thinking about using an 8oz rectangular Nalgene bottle mounted up by the headlight on the fairing stay (like the rc51 racebikes i've seen). Anyone see any problem with doing that? Seems like if they can mount them above the radiator height, then we can too, correct?
Hey kenmoore... We should start another thread on removing the thermostat housing. I'm very interested in that mod too...
James
Hey kenmoore... We should start another thread on removing the thermostat housing. I'm very interested in that mod too...
James
11-29-2014, 10:15 AM
#48
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
I feel like doing an Indian War Whoop!!!!!

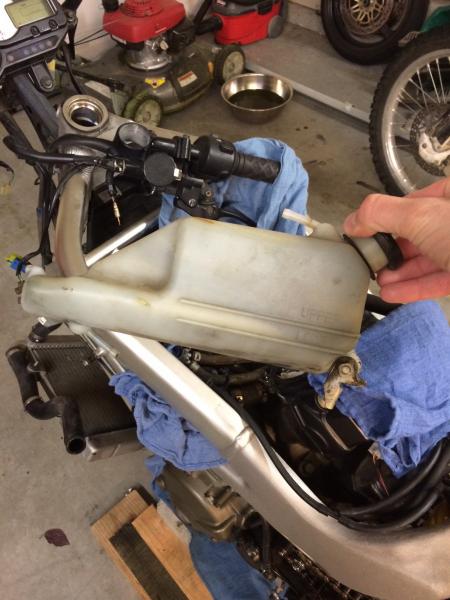

I removed this thing this morning... (Looks like it's on to the For Sale section)
Anyone have the HRC part number on the coolant bottle? I want to look it up at my local dealer.
James
I removed this thing this morning... (Looks like it's on to the For Sale section)
Anyone have the HRC part number on the coolant bottle? I want to look it up at my local dealer.
James
11-29-2014, 10:38 AM
#49
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
Wow, you had to take a lot of parts off to get the bottle out......
11-29-2014, 10:45 AM
#50
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
LOL..... Yes, it was imperative the forks come of to get to the bottle. The front wheel and brake calipers were in the way.
Just kidding of course
I'm in the middle of removing the frame for powdercoating.
James
Just kidding of course
I'm in the middle of removing the frame for powdercoating.
James
11-29-2014, 10:49 AM
#51
Rex Kramer-Thrill Seeker
SuperBike
Thread Starter
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
I have wondered why they made the coolant bottle so dang big, when only a few ounce container would suffice.
James, I have seen the HRC part number posted here or possibly in the UK forum.
James, I have seen the HRC part number posted here or possibly in the UK forum.
11-29-2014, 11:34 AM
#52
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
Starting to want to do this myself. Found a bottle. I may leave the stock one in to start with in case it doesnt work out.
But with a twist, I will mount a second one above it as an oil breather tank.
But with a twist, I will mount a second one above it as an oil breather tank.
11-29-2014, 01:57 PM
#54
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
So after about 20 minutes of searching i found the HRC part numbers, just in case someone else needs them:
HRC coolant catch can (reservoir) 250ml (8oz): 19602-NF4-810
HRC zip ties: 90651-NC8-000
HRC vinyl tubing (6x9x800): 95003-14080-10
Any Honda dealer should be able to order this stuff for you. Catch can should run about $10.
*I got my part numbers from here: http://world.honda.com/HRC/products/partslist/
James
HRC coolant catch can (reservoir) 250ml (8oz): 19602-NF4-810
HRC zip ties: 90651-NC8-000
HRC vinyl tubing (6x9x800): 95003-14080-10
Any Honda dealer should be able to order this stuff for you. Catch can should run about $10.
*I got my part numbers from here: http://world.honda.com/HRC/products/partslist/
James
Last edited by thedeatons; 11-29-2014 at 01:59 PM.
11-29-2014, 07:24 PM
#55
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
I want the bottle out of the airbox.
11-30-2014, 01:55 PM
#57
Senior Member
Back Marker
Join Date: Jul 2012
Location: Melbourne, Australia
Posts: 144
12-09-2014, 11:21 PM
#58
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
I have done my version of this mod now and have been running it for a week. No problems at all. And its hot here currently.

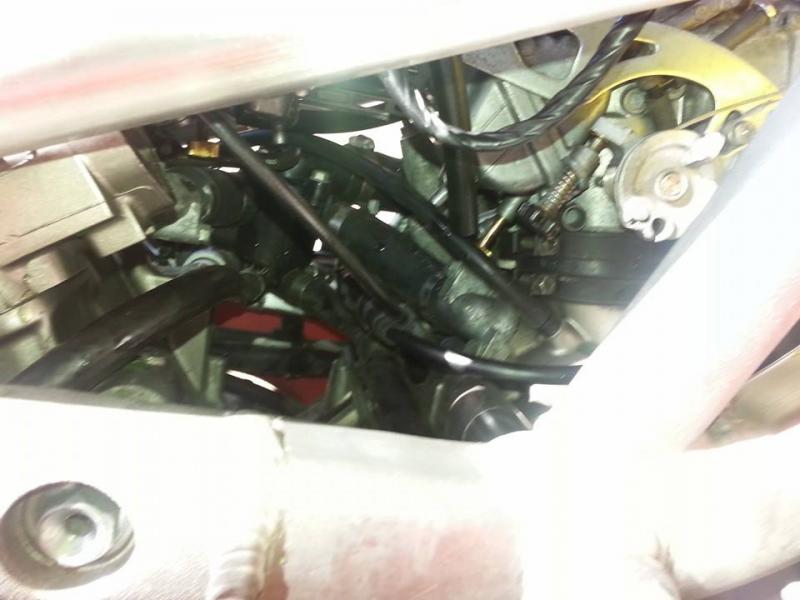

I just did a main jet change. Through the frame, carbs were left in place. Took 15mins and a lot of that was working out how to get myself in the right angle to get to the screws. Next time will be about 10 mins for a main jet change.
I just did a main jet change. Through the frame, carbs were left in place. Took 15mins and a lot of that was working out how to get myself in the right angle to get to the screws. Next time will be about 10 mins for a main jet change.
12-10-2014, 02:48 AM
#59
Retired- but not tired!
SuperBike
Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,478
I have done my version of this mod now and have been running it for a week. No problems at all. And its hot here currently.
I just did a main jet change. Through the frame, carbs were left in place. Took 15mins and a lot of that was working out how to get myself in the right angle to get to the screws. Next time will be about 10 mins for a main jet change.
I just did a main jet change. Through the frame, carbs were left in place. Took 15mins and a lot of that was working out how to get myself in the right angle to get to the screws. Next time will be about 10 mins for a main jet change.
