98 honda vtr 1000 wont start

hi im new to the site i have a 98 honda vtr 1000 superhawk it was stored for a 1yr. now ready to use. it will turn over but will not start, i replaced spark plugs, got new battery, took out carbs inspected & cleaned-also float is working ok, cleared old fuel out of lines, flushed tank put new fuel, after trying to start i slightly unscrewed both carb drain screws & gas is getting to carbs from tank, no gas leaks. after all this it will not start. please help
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 03:44 PM   #2
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
check the fuses,just to be on safe side.
when you put in spark plugs,did you unscrew the tip,sometimes people dont remember to do that and could be losing contact.
make sure coils are pluged in to the loom.
make sure battery has good connection,and that it has a full charge.all it needs to do is drop a little,and wham,wont start.
make sure petcock vacuum hose is in correct spot,not the bottom of it,but on the back of the petcock.
make sure fuel is turned all the way in the on position.
__________________

Saige
saige is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 07:02 PM   #3
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Granada Hills, CA
Posts: 5,568
8541Hawk will become famous soon enough
Make sure the kill switch is in the "run" position....
__________________
To err is human, to forgive is divine. Neither, however, is Marine Corps policy
8541Hawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 07:24 PM   #4
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
Quote:
Originally Posted by 8541Hawk View Post
Make sure the kill switch is in the "run" position....
lmao,i forgot the obvious,i did that once or twice
__________________

Saige
saige is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 08:05 PM   #5
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 3,408
captainchaos is on a distinguished road
Quote:
Originally Posted by saige View Post
lmao,i forgot the obvious,i did that once or twice
Haha yeah first reaction is wiseass until I realize how many times I've done that
__________________
1998 Honda Superhawk
1999 Honda Superhawk
captainchaos is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 09:25 PM   #6
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Granada Hills, CA
Posts: 5,568
8541Hawk will become famous soon enough
Yeah I think we have all done it once or twice.....
For me it is usually when I am trying to be quiet and we all know how loud the bang is when you remember and get it fire with all that fuel in the exhaust....
__________________
To err is human, to forgive is divine. Neither, however, is Marine Corps policy
8541Hawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 10:01 PM   #7
Senior Member
Back Marker

Join Date: Mar 2009
Location: Wisconsin
Posts: 138
superdutyd is on a distinguished road
Does it sputter at all? When the carbs were out of sync on one of my hawks it was near impossible to start coming out of storage. I drained 2 batteries trying. Finally got it and did a carb sync. I think it may have been easier to start if i used starting fluid. So the question is , is there a place to spray starting fluid with the bike still assembled? Also, may as well check for spark with a tester first.
__________________
_____________________________________________

Manual CCT'S for sale here:
http://www.superhawkforum.com/forums...rs-sale-25095/

Pair removal plates for sale here:
http://www.superhawkforum.com/forums...es-sale-18515/
superdutyd is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-30-2012, 10:20 PM   #8
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,553
smokinjoe73 is on a distinguished road
Have you checked for spark? As a rule if you have fuel and spark you will run. Many stored bikes benefit from starting fluid. If it starts with that you have spark & lack fuel delivery. You may have to open the airbox to get a good shot to the intake to spray it in.
smokinjoe73 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-01-2012, 09:26 AM   #9
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
........... If it starts with that you have spark & lack fuel delivery. You may have to open the airbox to get a good shot to the intake to spray it in.
Be sure and keep your face away from the delivery point if you use this method because if you do have spark the chances of a fireball coming back up the chute are good.
RWhisen is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-01-2012, 11:56 AM   #10
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,553
smokinjoe73 is on a distinguished road
Fireball? Dont let that scare you. You can drive a car by spraying the aerosol into the motor. (the spray guy sits on the hood)
smokinjoe73 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 08:02 AM   #11
Junior Member
Squid

djlheat's Avatar

Join Date: Jun 2012
Posts: 6
djlheat is on a distinguished road
thanks alot for all the ideas. i checked fuses are good. have spark on plugs. battery good. got the bike started with starter fluid. but it wont stay on unless i keep revving the engine. had to adjust, idle adjuster all the way up it stays on at 2500 rpm. once it warms up & stays on, i try to adjust back down to 1500rpm but then it stalls. i thought (idle fuel?air mixture adjustment?) i more of a car guy & a noobee with bikes.
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 08:06 AM   #12
Senior Member
SuperBike

RWhisen's Avatar

Join Date: Sep 2008
Location: Ft. Worth, TX
Posts: 1,605
RWhisen is on a distinguished road
PVLIR.

Search for it.
RWhisen is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 08:33 AM   #13
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,553
smokinjoe73 is on a distinguished road
So now you need to search your butt off looing for PLVIR which is the small hose that goes from carb to tank. It creates a vacuum without which the fuel wont flow. Cranking on your idle adjust is no way to do it.
smokinjoe73 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 10:36 AM   #14
Junior Member
Squid

djlheat's Avatar

Join Date: Jun 2012
Posts: 6
djlheat is on a distinguished road

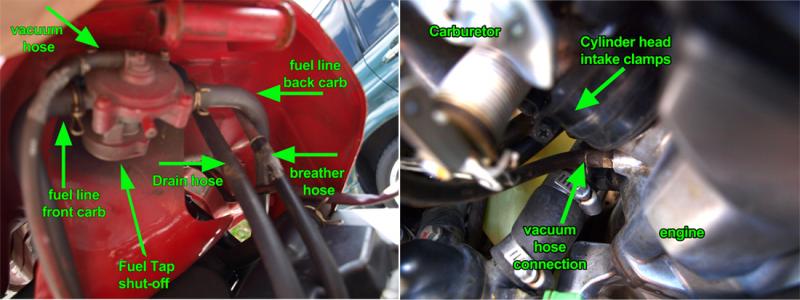

PVLIR i copy pasted to search bar looked through all the thread results & i cannot find, is this a title? not sure what im doing wrong. as for vacuum line it runs into the engine intake, not connected to carb what can i do to check vacuum line?
Attached Images
File Type: jpg fuel line.jpg (40.9 KB, 29 views)
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:09 AM   #15
Junior Member
Squid

djlheat's Avatar

Join Date: Jun 2012
Posts: 6
djlheat is on a distinguished road
found threads Primary Vacuum Line Inadvertant Relocation. lines are connected properly. reading threads but not sure what to do next as far as checking vacuum. originally when i put carbs back together & installed them. there was no gas in carb or fuel lines, then i connected the fuel tank & after i started it with starter fluid, i opened both carburetor drain screws to see if i was getting gas to carbs & i was. so i assume the gas is flowing. so what am i missing?
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:33 AM   #16
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 4,211
VTRsurfer is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
Fireball? Dont let that scare you. You can drive a car by spraying the aerosol into the motor. (the spray guy sits on the hood)
... and he wears a Nomex suit.
__________________
'05 SuperHawk - 73k miles (bought new), Yoshimura titanium slip-ons, .020" needle shim, 48 pilots, Sargent seat with medium gray piping, LP dark smoke screen, EBC HH pads, Bridgestone S20's, DID Gold X-ring 530 chain, passenger pegs removed, trimmed rear fender, inferior late model VTR cams

Stable mate: 2013 Triumph Daytona 675 ABS - Crystal White/Saphire Blue - 24k miles
VTRsurfer is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:44 AM   #17
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 4,211
VTRsurfer is on a distinguished road
Quote:
Originally Posted by djlheat View Post
thanks alot for all the ideas. i checked fuses are good. have spark on plugs. battery good. got the bike started with starter fluid. but it wont stay on unless i keep revving the engine. had to adjust, idle adjuster all the way up it stays on at 2500 rpm. once it warms up & stays on, i try to adjust back down to 1500rpm but then it stalls. i thought (idle fuel?air mixture adjustment?) i more of a car guy & a noobee with bikes.
Did you remove and soak the pilot (slow) jets? If not, disassemble the carbs one at a time, then soak the pilot jet in carb spray for at least 1/2 hour. Then spray carb cleaner through the pilot jet, followed by shooting compressed air through the jet. Shoot carb spray, then compressed air, through all passageways. Remove and clean the pilot screws, then reinstall 2 1/2 turns out to start. Reassemble, then do the other carb. The carbs have different main jets and emulsion tubes, so don't tear them both down at the same time.
__________________
'05 SuperHawk - 73k miles (bought new), Yoshimura titanium slip-ons, .020" needle shim, 48 pilots, Sargent seat with medium gray piping, LP dark smoke screen, EBC HH pads, Bridgestone S20's, DID Gold X-ring 530 chain, passenger pegs removed, trimmed rear fender, inferior late model VTR cams

Stable mate: 2013 Triumph Daytona 675 ABS - Crystal White/Saphire Blue - 24k miles
VTRsurfer is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:45 AM   #18
Full Fledged Member
Squid

jeremyabbott's Avatar

Join Date: May 2009
Location: Belmont, New Hampshire
Posts: 40
jeremyabbott is on a distinguished road
What kind of exhaust pipes and air filter? I know when I got my Hawk the PO said it ran "wicked" cold and you had to use choke most of the time. He had put 2 Bros. and K&N air filter in but did not jet so it was running incredibly lean. Had to tape off half the air box until I got the carbs jetted. Just another thought.
__________________
'98 SuperHawk, 1 PO, Two Bro Slip Ons, K&N Air Filter, Dynojet Stage 1 Kit, Pilots, -1 Front Sprocket, Steel Braided FB Lines, New OEM CCTs, Aftermarket R/R, Custom flush mount turn signals
jeremyabbott is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:48 AM   #19
Junior Member
Squid

djlheat's Avatar

Join Date: Jun 2012
Posts: 6
djlheat is on a distinguished road
sorry no nomex suit. i'm just a learn as you go type. i have the honda service manual from haynes, and have done everything i could that i found in the book with no luck ??
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 11:51 AM   #20
Junior Member
Squid

djlheat's Avatar

Join Date: Jun 2012
Posts: 6
djlheat is on a distinguished road
thanks vtr surfer i havent tried that yet. i will let you know how it goes thanks
djlheat is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-07-2012, 12:42 PM   #21
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 4,211
VTRsurfer is on a distinguished road
Quote:
Originally Posted by djlheat View Post
thanks vtr surfer i havent tried that yet. i will let you know how it goes thanks
If you've got stock pilot jets in there, they are tiny, #45. They clog easily with today's gas, especially if the bike has sat for a while. I had #2 cylinder die completely in the middle of a ride 2 1/2 years ago. The #2 carb pilot jet was completely clogged.
__________________
'05 SuperHawk - 73k miles (bought new), Yoshimura titanium slip-ons, .020" needle shim, 48 pilots, Sargent seat with medium gray piping, LP dark smoke screen, EBC HH pads, Bridgestone S20's, DID Gold X-ring 530 chain, passenger pegs removed, trimmed rear fender, inferior late model VTR cams

Stable mate: 2013 Triumph Daytona 675 ABS - Crystal White/Saphire Blue - 24k miles
VTRsurfer is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-19-2014, 12:02 AM   #22
Senior Member
Back Marker

20_rc51_00's Avatar

Join Date: Jul 2010
Posts: 218
20_rc51_00 is on a distinguished road
Super old thread I Know. Anything ever come of this? I keep a bike in storage in cal and get to ride it for about a week once a year. It's ALWAYS hard to start. Every time I kill the batt even when it's full and charged and end up cranking her boosted from a car for about 30 min befor she decides to fire up. Does end up firing though. Jus like you said it idles very rough and needs the idle adj cranked just to keep it running. Once it's hot it does ok. cold actually Needs the throttle held open to keep from stalling out. Trying to start with the choke is a definite no go. Haven't had the carbs syncd or plugs changed I'm guessing it's a combination of fuel moisture uptake and water/ethanol separation and likely carbs/plugs. It was stored with stabilizer.... def not like starting a fuel injected bike lol.
20_rc51_00 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-19-2014, 09:08 AM   #23
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,553
smokinjoe73 is on a distinguished road
You are making it worse by cranking up the idle. That is what the choke is for. Also a bad idea using a car to jump it. You will destroy stuff if you keep doing that. Have you seen the difference in cranking amps from car to bike?

If it always happens, you should drain your tank & start with fresh gas. Use a stabilizer specificly for ethanol. I think startron or tectron makes one with enzymes. You want that one. Ok, here you go, this one
Amazon.com: Star brite Star Tron Enzyme Fuel Treatment Formula for Small Engines: Sports & Outdoors Amazon.com: Star brite Star Tron Enzyme Fuel Treatment Formula for Small Engines: Sports & Outdoors

You also need to own a float charger to leave the battery on. If you fully discharge it you drasticly shorten its life and strength.

Even if you stabilize the fuel, go get new gas once you get it started to dilute the junk old gas. Modern gas degrades as soon as it gets in your tank. Ethanol is hygroscopic (hydroscopic) and sucks water from the air. Water doesnt burn very well so water mixed with gas is not your friend.

No fuel treatment is going to clean your carbs if gunk, debris, laquer (forms from gas), etc is in them. At the least, learn to drain the bowls of your carbs before starting. This will at least remove some gunk.

You really need to clean your carbs by hand first as a baseline. Its not that hard. A properly clean carb should start right up even after storage.

Take a minute to put fuel filters, there are write ups on here on how.

Water will form in your tank also since it is vented to atmosphere and condensation happens in the tank. You cant change that.

Last edited by smokinjoe73; 09-19-2014 at 09:10 AM.
smokinjoe73 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-19-2014, 09:08 AM



Reply

Tags
1000, 1998, 98, diagram, flush, honda, lines, mount, proton, signals, start, starter, superhawk, turn, vacuum, vtr, vtr1000, wont

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 05:52 PM.



Honda and the Honda marquee are registered trademarks of the American Honda Motor Company, Inc. Neither American Honda Motor Company nor its subsidiaries or affiliates shall bear any responsibility for SuperHawkforum.com content, comments, or advertising. SuperHawkforum.com is not affiliated with American Honda Motor Company in any way. American Honda Motor Company does not sponsor, support, or endorse SuperHawkforum.com in any way. Copyright/trademark/sales mark infringements are not intended or implied.

Advertising

SEO by vBSEO ©2010, Crawlability, Inc.
