motorcycle lift adapters?
12-31-2006, 05:29 PM
#1
Senior Member
Back Marker
Thread Starter
Join Date: Apr 2006
Location: Wekiva Springs (Orlando) FL
Posts: 186
motorcycle lift adapters?
Does anyone have any info that can help me out? I have a hydraulic m/c lift, the standard kind with two parallel rubber coated skids that lift from under the frame on a standard type bike. I would like to be able to lift the hawk for routine maintenance and suspension measurements, etc. but due to the design of the hawk, I can't find a way to lift the bike. Has anyone ever found any type of adapter that would allow me to lift the bike without doing any damage? I can't believe that there is nothing out there, seeing as how the majority of bikes out there now days use the engine as a stressed member, and have exhaust pipes, filters, or whatever that hang down below any thing that may be suitable to bear the weight of the bike. I'd really rather not buy pit stands and have another thing to store in the garage, when I already have a nice lift. Thanks for any help you may be able to provide.
12-31-2006, 06:33 PM
#2
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
I bought a jack just like yours (I bet) and I have never in my life bought such a worthless piece of ****! I spent an entire Sunday afternoon tearing that thing apart, grinding and cutting. I wanted to be able to cruise the jack up under the forks, spindle the little lift points into position and lift the bike - just as you say - routine. I am within two welds of completing the task and would have had it done but my friend had a death in the family and had to leave town. I got pretty drastic with it and I will post pictures of it when I'm done. I'm not sure it will have the stability needed to lift a bike but it was a boat anchor the otherwise - and it may be still! I guarantee you if it drops the 'Hawk it will go swimming!
01-01-2007, 08:06 AM
#3
Senior Member
Back Marker
Thread Starter
Join Date: Apr 2006
Location: Wekiva Springs (Orlando) FL
Posts: 186
That's classic...I considered trying something like that myself, but I don't want to modify the lift b/c I want to still be able to use it on other makes. If your lift hurts the hawk, let it "swim with the fishes".
01-01-2007, 10:54 AM
#5
Senior Member
MotoGP
Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
You guys are making things too difficult for yourselves, I've been using mine for years now with some flat steel I bought at an auto parts store until I got my race stands. I think I paid like $5, just put them across the rubber parts and line them up with the cooling fins on the pan. I still use it with fork work because I haven't ordered the attachment to lift by the triple.. You just have to make sure the jack is far enough in that it doesn't hit the exhaust and you're golden. Depending on what I'm doing I'll position the bike accordingly,(taking off the front wheel position back etc.). If you have a couple of pieces of rubber put them on top to keep it from shifting but as long as it's tied down I've yet to have a problem.
01-01-2007, 02:16 PM
#8
Senior Member
Back Marker
Thread Starter
Join Date: Apr 2006
Location: Wekiva Springs (Orlando) FL
Posts: 186
Very cool. I appreciate the advice. That's just the kind of stuff I was hoping for (cheap and readily available). Do any of you have the approx. spacing of the 2x4's apart, or advice on exactly where I want them to sit?
01-01-2007, 05:08 PM
#9
Senior Member
MotoGP
Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
You guys are making things too difficult for yourselves, I've been using mine for years now with some flat steel I bought at an auto parts store until I got my race stands. I think I paid like $5, just put them across the rubber parts and line them up with the cooling fins on the oil pan. I still use it with fork work because I haven't ordered the attachment to lift by the triple.. You just have to make sure the jack is far enough in that it doesn't hit the exhaust and you're golden. Depending on what I'm doing I'll position the bike accordingly,(taking off the front wheel position back etc.). If you have a couple of pieces of rubber put them on top to keep it from shifting but as long as it's tied down I've yet to have a problem.
01-01-2007, 07:51 PM
#10
Senior Member
SuperBike
Join Date: Jul 2004
Posts: 1,015

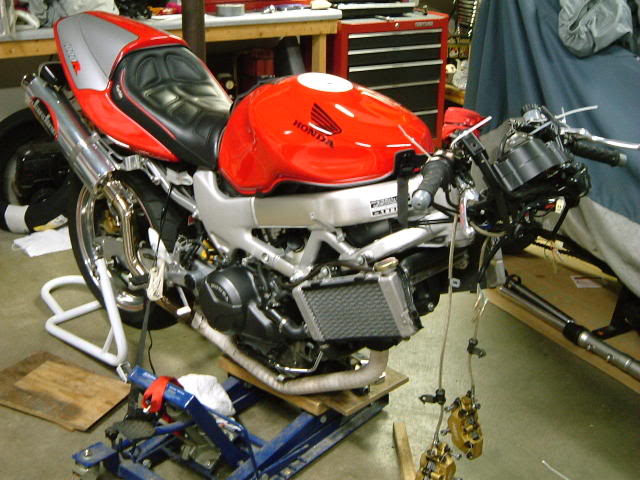

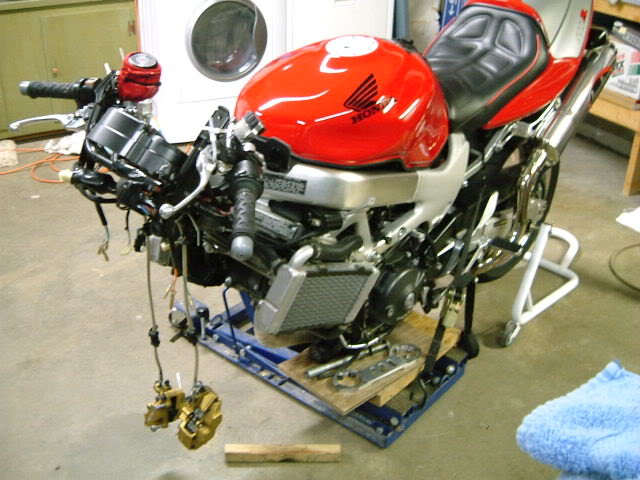

I just use 2x2 and small sheets of plywood and a rear stand as you can see below when i installed new tapered head bearing this past summer. Bike set on the stand for three days. I just use the rachet tie downs and soft ties to stabalize the bike.
01-02-2007, 08:03 AM
#12
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
Just a footnote, Thumper, the manual says to never let the calipers float free like you have them. I would think the brake lines are stong enough but everyone says to tie them off to something like the triple or clipons or the ceiling - just don't let the weight hang on the lines. Nice looking bike BTW
01-02-2007, 01:10 PM
#13
Member
Squid
Join Date: Jun 2006
Location: Kaneohe HI
Posts: 55
Pitbull front and rear stands: http://www.pit-bull.com/motorcycle-stands.html
I just bought a pair for my superhawk.
I just bought a pair for my superhawk.
01-02-2007, 05:52 PM
#14
Senior Member
Superstock
Join Date: Sep 2006
Posts: 308
I've got one of those motorcycle stands. A 2x4 between the 2 rubber coated sides works great. After a few trys, you figure out where the "balance" point is and you can make it stay secure (relativly speaking)... I wouldn't leave it on one unattended without straps.
01-02-2007, 06:55 PM
#15
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138

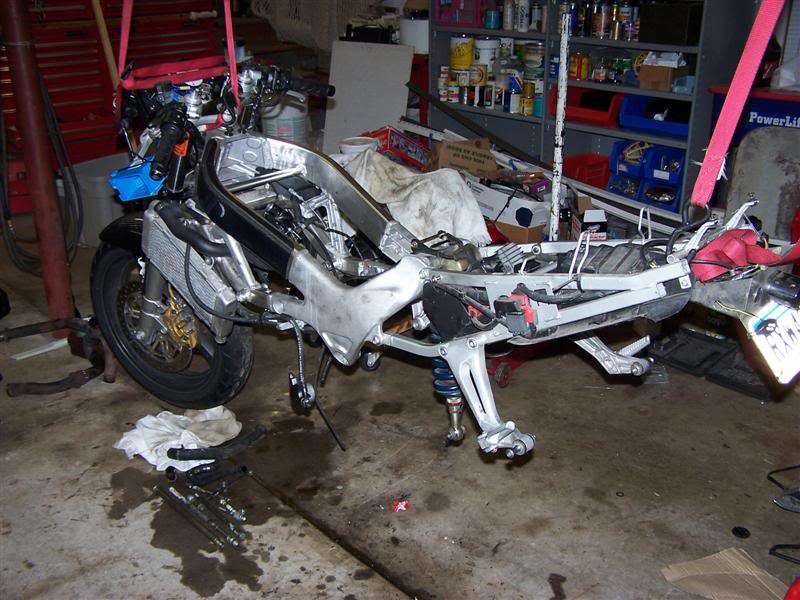

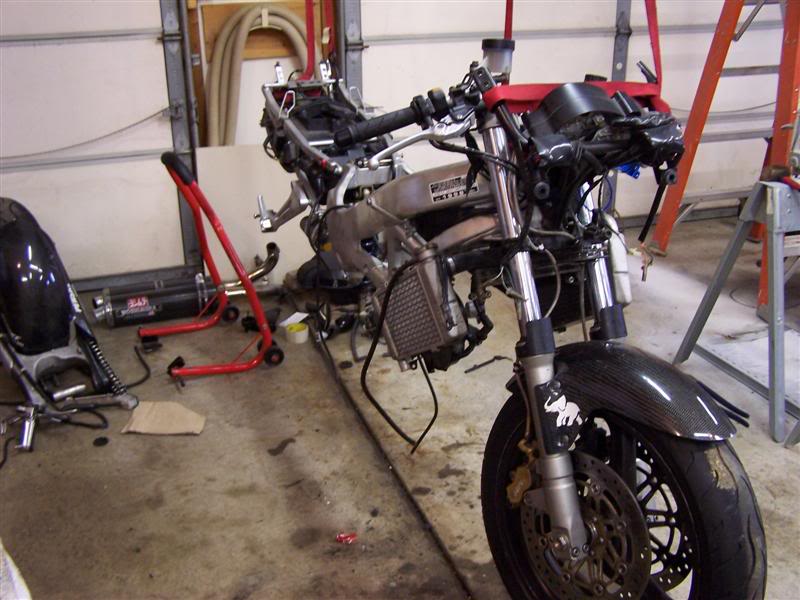

You all talk about straps and tie-downs - are you just strapping the bike to the jack? I don't think I could kick one of those jacks hard enough to knock it over but put a 430lb motorcycle on top of it - I think the bike wins. sort of - ? I've used straps to the rafters of the shop for side to side stability but if that's the case you can lift the bike with a bottle jack. Before I pulled the forks on the 'Hawk for winter rebuild I installed a treated 2x6 across four of the roof trusses above my primary work area. I installed one central lift point but also two outriggers for side to side stability. It works great but you have to have access to the ceiling joist to do it. The little bike jack is mobile and if fitted with the outrigger arms will provide enough stability to lift the Superhawk. Problem is, with the way they are manufactured the jack can't get a decent hold on the bike to lift it as J points out correctly above. When I'm done the jack will still lift a dirt bike by the skid plate, will lift a conventional "frame under" motorcycle, will lift the 'Hawk by the front forks from the side stand position, lift the 'Hawk by the swingarm and in either the front or tail position be capable of removing the tire. (I think ) I think my friend got home from New Orleans today so I'm anxious to get the welds done to see if it's going to work. I will post some pictures when I get it done. The mods to the jack are nothing that a person can with a hacksaw can't handle. That and a box of washers to firm up the arms and you're in business!
) I think my friend got home from New Orleans today so I'm anxious to get the welds done to see if it's going to work. I will post some pictures when I get it done. The mods to the jack are nothing that a person can with a hacksaw can't handle. That and a box of washers to firm up the arms and you're in business!
01-02-2007, 07:53 PM
#16
Senior Member
SuperBike
Join Date: Jul 2004
Posts: 1,015
Pitbull front and rear stands: http://www.pit-bull.com/motorcycle-stands.html
I just bought a pair for my superhawk.
I just bought a pair for my superhawk.
01-02-2007, 07:55 PM
#17
Senior Member
SuperBike
Join Date: Jul 2004
Posts: 1,015
You all talk about straps and tie-downs - are you just strapping the bike to the jack? I don't think I could kick one of those jacks hard enough to knock it over but put a 430lb motorcycle on top of it - I think the bike wins. sort of - ? I've used straps to the rafters of the shop for side to side stability but if that's the case you can lift the bike with a bottle jack. Before I pulled the forks on the 'Hawk for winter rebuild I installed a treated 2x6 across four of the roof trusses above my primary work area. I installed one central lift point but also two outriggers for side to side stability. It works great but you have to have access to the ceiling joist to do it. The little bike jack is mobile and if fitted with the outrigger arms will provide enough stability to lift the Superhawk. Problem is, with the way they are manufactured the jack can't get a decent hold on the bike to lift it as J points out correctly above. When I'm done the jack will still lift a dirt bike by the skid plate, will lift a conventional "frame under" motorcycle, will lift the 'Hawk by the front forks from the side stand position, lift the 'Hawk by the swingarm and in either the front or tail position be capable of removing the tire. (I think ) I think my friend got home from New Orleans today so I'm anxious to get the welds done to see if it's going to work. I will post some pictures when I get it done. The mods to the jack are nothing that a person can with a hacksaw can't handle. That and a box of washers to firm up the arms and you're in business!
) I think my friend got home from New Orleans today so I'm anxious to get the welds done to see if it's going to work. I will post some pictures when I get it done. The mods to the jack are nothing that a person can with a hacksaw can't handle. That and a box of washers to firm up the arms and you're in business! I have also done the strap it to the garage pole with tie downs and soft ties to prevent rtip over.
01-03-2007, 07:53 PM
#19
Senior Member
Back Marker
Thread Starter
Join Date: Apr 2006
Location: Wekiva Springs (Orlando) FL
Posts: 186
OK, I'm gonna try the 2x4, strap it to the jack idea. I really don't want to cut the lift apart, as I still want to be able to use it on the other bikes. I'm still shocked that no one makes adapters. Seems like these 2 skid m/c lifts are all pretty similar dimensions. Some enterprising sole could market a welded steel contraption that slid over the skids and held the bike securely by whatever points were appropriate. But not me, I mean some OTHER enterprising sole...
01-03-2007, 08:12 PM
#21
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
I didn't think the jack had a big enough face to give it that much stability but that's me wanting to over build everything. I just got a real thing about dropping my bike. This is valuable information though and it gives me confidence that the mods I've made may work afterall. I've cussed that stupid garage sale a hundred times and the twenty bucks that brought me all this intrigue but the light at the end of the tunnel is in view. :-D Then if it drops the Superhawk, it swims with the fishes.
01-03-2007, 08:16 PM
#22
Senior Member
MotoGP
Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
A quick search provided this, like I said I'm too cheap but if you want to try it.
http://www.hugediscountmall.com/Univ...apter_p831.htm
http://www.hugediscountmall.com/Univ...apter_p831.htm
01-03-2007, 08:43 PM
#24
Senior Member
MotoGP
Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
Didn't like it I take it? Never seen or used it Sears had one too but it was out of stock. It looked similar to what I use but has 2 studs that go into their new jack and has rubber on it.
Never seen or used it Sears had one too but it was out of stock. It looked similar to what I use but has 2 studs that go into their new jack and has rubber on it.
01-03-2007, 08:55 PM
#25
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
The adaptor is just as useless as the jack itself. If you could hold that thing in your hand and hold it up to the underside of a Superhawk you can go from front to back and never find ANYTHING that it will hook up to! This is down to a matter of pride now in my garage! It's me and my grinder/cutter against the worthless piece of ****.
02-23-2007, 07:42 AM
#30
Senior Member
Back Marker
Join Date: Jul 2005
Location: PA
Posts: 127
I used this thread as a guide, since I didn't like the rinky dink way I jacked up the front end last time I changed tires.
This time I tried a modified "Thumper" (thanks) method. I have a generic rear stand and a (Sam's Club) mororcycle jack.
Support the rear end with the rear stand.
Take off the oil filter cowl.
Put a piece of 1X2 on top of one of the rubber coverd spars on the jack.
Place this so that it's contacting the front end of the oil pan, and is not contacting the front head pipe.
Jack it up.
If you try to support the whole oil pan it lifts the whole bike up, losing contact with the rear stand.
I aligned the jack (cheated to the right) so that I could use a set of canyon dancers and tie downs to secure the bike, but didn't bother after a wiggle test.
This time I tried a modified "Thumper" (thanks) method. I have a generic rear stand and a (Sam's Club) mororcycle jack.
Support the rear end with the rear stand.
Take off the oil filter cowl.
Put a piece of 1X2 on top of one of the rubber coverd spars on the jack.
Place this so that it's contacting the front end of the oil pan, and is not contacting the front head pipe.
Jack it up.
If you try to support the whole oil pan it lifts the whole bike up, losing contact with the rear stand.
I aligned the jack (cheated to the right) so that I could use a set of canyon dancers and tie downs to secure the bike, but didn't bother after a wiggle test.
