Anyone have experience removing a locked gas cap without a key

Bought a used tank that doses not have a key. Looks like a screwdriver has already been shoved in. Anyone have any ideas on how I can get this sucker off to replace with my current cap and key?
__________________
Red '98
Stainless braided ftr/rr & clutch lines, Pyramid lower, full TBR high mount exhaust, two tall runners, Zero Gravity DB, GenMar bar risers, sliders, Sargeant seat, K&N, APE cct's, Speedo healer, '06 R6 r/r, voltage gauge, stick coils, Retro HID, Race Tech springs frt/JDM F4i rr, Superbrace, JDM billet shifter, FP shift kit, Buell pegs, lightened flywheel, Proton signals,six spokers, F4 calipers
HawkRider98 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 05:24 PM   #2
Honducati
SuperSport

jbaxx's Avatar

Join Date: Oct 2006
Location: Anaheim, CA
Posts: 809
jbaxx is on a distinguished road
Take it to a locksmith.
__________________
Jardine oval high mounts, Factory Pro jet kit, +4 advancer, Dual long velocity stacks, Trucker's CCT's, .95 kg fork springs, Galfer braided lines, EBC HH pads, Michelin Pilot Power tires, ZG double bubble, Mini short-stalk turn signals with clear lenses, Powdercoated 6 spoke wheels, de-stickered/reflectored, fenderectomy.
Stablemates: '04 Interceptor, '04 CBR1000RR
jbaxx is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 05:46 PM   #3
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 4,211
VTRsurfer is on a distinguished road
I assume you're talking about a car's gas cap. I had a student with that problem about a year ago. I basically mangled/dismantled it until it could be opened. The locks are very cheap pot metal. I think I might have used a drill. Its not that difficult. Good luck.

Oops, you did say the cap was on a tank. Glad you got it taken care of.

Last edited by VTRsurfer; 09-04-2009 at 09:39 PM.
VTRsurfer is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 06:06 PM   #4
Senior Member
MotoGP

nuhawk's Avatar

Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,133
nuhawk is on a distinguished road
Send a message via MSN to nuhawk
I bought a gas tank from a member (brief) here. In his kindness, he rinsed the tank out with diesel fuel then rinsed with water.

He wrapped in plastic and shipped it to me on camels who arrived 7 days later.

When I got it I realized what a grand cluster I was info so I just shelved it to dry out. It has but I digress.

The tank had all the same markings (screwdriver enty) as mine. I still disassembled all the equipment off the tank. Shook the water out as best I could and said FI - lesson learned. Newbie - if you're out there - never ever - put water in a fuel system or any of it's parts.

Like is said, these locks are pot metal and very malable. The mechanism itself is not the valuable part to the locksmith - it's valuable to you. The locksmith can rebuild the locking device but if you have to buy the canoodle from Honda we're talking hundreds.
nuhawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 06:27 PM   #5
Senior Member
Back Marker

Join Date: Oct 2007
Location: East TX
Posts: 206
HawkRider98 is on a distinguished road
This is a Hawk tank I bought to replace mine after my wife backed into my bike and knocked it over onto my tool chest. Only thing messed up was a couple of nice dents in the side of the tank. The purchased tank included the locked gas cap and no key. I was thinking locksmith until I saw the jammed keyhole. I just took a couple of different size screwdrivers and an icepick to the locking mechanism and managed to get it to turn and unlock. Thanks for the suggestions.
__________________
Red '98
Stainless braided ftr/rr & clutch lines, Pyramid lower, full TBR high mount exhaust, two tall runners, Zero Gravity DB, GenMar bar risers, sliders, Sargeant seat, K&N, APE cct's, Speedo healer, '06 R6 r/r, voltage gauge, stick coils, Retro HID, Race Tech springs frt/JDM F4i rr, Superbrace, JDM billet shifter, FP shift kit, Buell pegs, lightened flywheel, Proton signals,six spokers, F4 calipers
HawkRider98 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 06:56 PM   #6
Honducati
SuperSport

jbaxx's Avatar

Join Date: Oct 2006
Location: Anaheim, CA
Posts: 809
jbaxx is on a distinguished road
Sweet
__________________
Jardine oval high mounts, Factory Pro jet kit, +4 advancer, Dual long velocity stacks, Trucker's CCT's, .95 kg fork springs, Galfer braided lines, EBC HH pads, Michelin Pilot Power tires, ZG double bubble, Mini short-stalk turn signals with clear lenses, Powdercoated 6 spoke wheels, de-stickered/reflectored, fenderectomy.
Stablemates: '04 Interceptor, '04 CBR1000RR
jbaxx is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 07:19 PM   #7
Senior Member
SuperBike

Gregw's Avatar

Join Date: Jun 2007
Location: Los Angeles ish
Posts: 1,030
Gregw is on a distinguished road
Quote:
Originally Posted by HawkRider98 View Post
I just took a couple of different size screwdrivers and an icepick to the locking mechanism and managed to get it to turn and unlock.
A handy skill to have if the gas prices go back up.
Gregw is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 08-31-2009, 10:36 PM   #8
Moderator
MotoGP

inderocker's Avatar

Join Date: May 2005
Posts: 2,708
inderocker is an unknown quantity at this point
large screwdriver and a hammer... done it many times.
__________________
Daniel-

inderocker is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-04-2009, 06:06 PM   #9
Senior Member
Back Marker

little squirt's Avatar

Join Date: Jul 2008
Location: Big Island, HI
Posts: 246
little squirt is on a distinguished road
Quote:
Originally Posted by inderocker View Post
large screwdriver and a hammer... done it many times.
DITTO
little squirt is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-04-2009, 08:57 PM   #10
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 3,408
captainchaos is on a distinguished road
You do have to be careful because pounding on the lock can easily crease or dent the tank. I've actually had to do two recently for a shitty little GS500 project I dragged home. The first I did use a hammer and screwdriver and got impatient (the tank was rusted out anyway) and ended up denting the top in a little. It was good practice. The second (the replacement tank) worked awesome-I drilled out the lock cylinder to the bottom-not all the way through though. I was able to pull out the little thin bit of remaining lock cylinder, and the inner workings of the two little teeth that grab the tank were now exposed. I simply used two of the little pointer tools I have and unlocked it. Of course if you wanted to keep the lock/cap a locksmith could unlock & key it for whatever they charge.
__________________
1998 Honda Superhawk
1999 Honda Superhawk
captainchaos is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 09-07-2009, 09:05 PM   #11
Junior Member
Squid

Join Date: Sep 2009
Location: michigan
Posts: 10
josh2025 is on a distinguished road
Quote:
Originally Posted by HawkRider98 View Post
This is a Hawk tank I bought to replace mine after my wife backed into my bike and knocked it over onto my tool chest. Only thing messed up was a couple of nice dents in the side of the tank. The purchased tank included the locked gas cap and no key. I was thinking locksmith until I saw the jammed keyhole. I just took a couple of different size screwdrivers and an icepick to the locking mechanism and managed to get it to turn and unlock. Thanks for the suggestions.
So what did you do with your old tank with the dings in it??
josh2025 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 07-02-2010, 03:13 PM   #12
Junior Member
Squid

Join Date: Apr 2010
Posts: 7
striker3034 is on a distinguished road
Quote:
Originally Posted by captainchaos View Post
The second (the replacement tank) worked awesome-I drilled out the lock cylinder to the bottom-not all the way through though. I was able to pull out the little thin bit of remaining lock cylinder, and the inner workings of the two little teeth that grab the tank were now exposed. I simply used two of the little pointer tools I have and unlocked it.

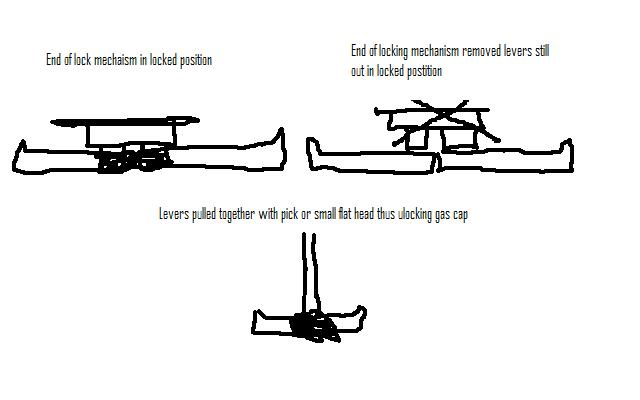

That's what worked best for me. The hammer screwdriver wasn't getting it to turn. So I just carefully drilled (about an inch?) down and you will notice the end of the locking mechanism if you take your time and at the end of the lock there is two spring loaded levers that hold the cap down. Simply pull together/pry both of the levers inward and the cap should come unlocked.

(Keep in mind this is happening about an inch down into the gas cap)
Click the image to open in full size.+1 to me for awesome MSPaint diagram.
Attached Images
File Type: jpg gascap.jpg (22.6 KB, 50 views)
